£302.99

Stock Available: 0
  • Black
  • Number of computers controlled: 1
  • Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
  • 1600 x 1200 pixels
  • 6.3 W External power adapter

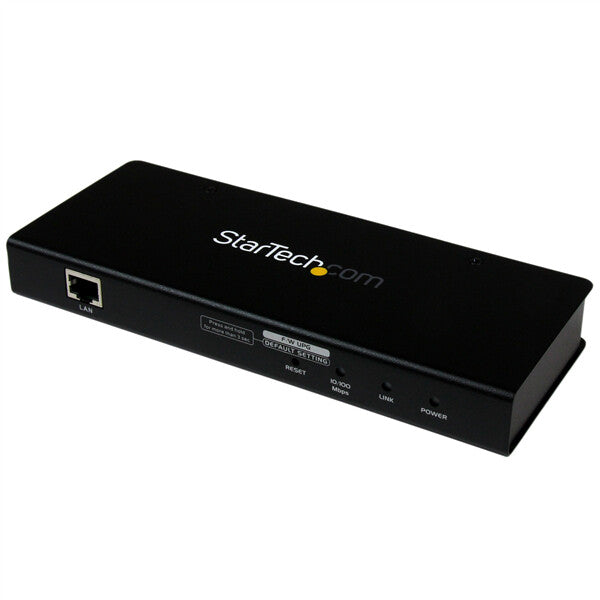

The SV1108IPEXGB 1 Port USB PS/2 Server Remote Control IP KVM Switch with Virtual Media lets you control a USB or PS/2 server remotely over a LAN or the Internet.

The 1 port KVM over IP includes all necessary KVM cables, and offers KVM control from the BIOS-level onward. Reboot, monitor the entire boot process, and interact with your connected system easily. RS232 support also lets you connect to a serial console device via Telnet or SSH.

Virtual Media lets you execute files via USB from the remote console as if they were local to the connected server. Perfect for remote driver updates, patches, application or OS installation.

The Java-based browser utility ensures the IP remote control unit is compatible with many current web browsers, and almost any operating system on the market.

Multiple integrated security features ensure a reliable single port IP KVM connection, including password-protection, IP/MAC address filtering, external authentication (RADIUS, LDAP, LDAPS, Active Directory) and advanced encryption (56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4).

Ports & interfaces
Number of computers controlled 1
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
VGA (D-Sub) ports quantity 2
USB 2.0 ports quantity 4
PS/2 ports quantity 4
Audio connections No
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Cabling technology 10/100Base-T(X)
Networking standards IEEE 802.3, IEEE 802.3u
Security algorithms 128-bit RC4, 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS
Performance
Maximum resolution 1600 x 1200 pixels
Design
Product colour Black
LED indicators Yes
Certification FCC, CE, UL
Display
Built-in display No
Power
Input voltage 100-240 V
AC input frequency 50 - 60 Hz
External power adapter Yes
Power consumption (typical) 6.3 W
USB powered No
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Other operating systems supported Yes
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Packaging data
Package weight 1.4 kg
Packaging content
Cables included KVM, USB
Quick installation guide Yes
AC adapter included Yes
Manual Yes
