Sparkle Technology Intel Arc B580 TITAN OC 12 GB GDDR6
£181.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £60.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- TORN Cooling 2.0
- Tri-fan, 2.2-slot, metal backplate

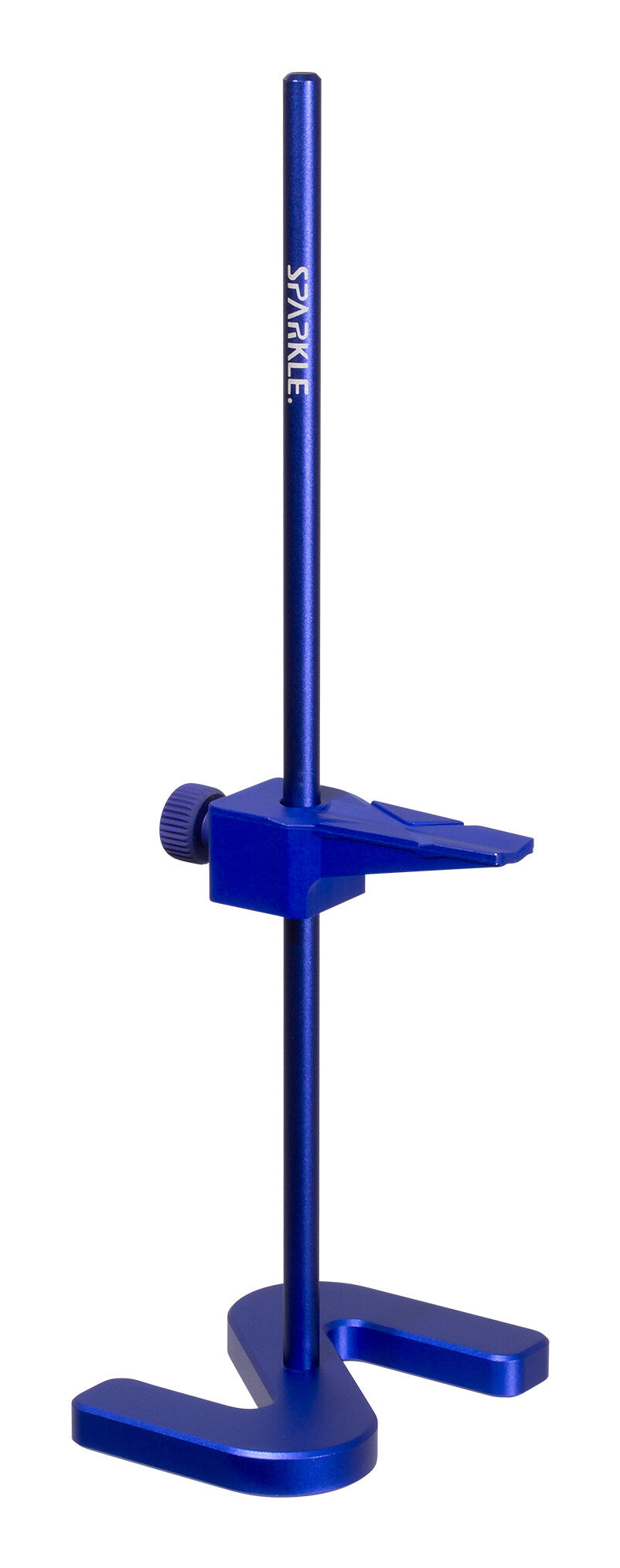

- Limited GPU Holder Included

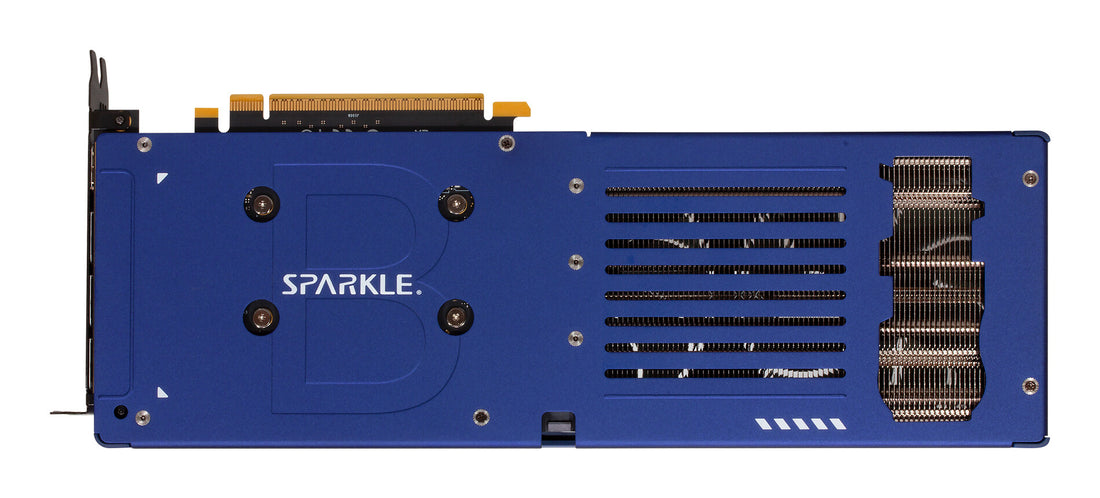

- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
The SPARKLE Intel® Arc™ B580 TITAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and fullmetal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
Specifications
Processor
| Graphics processor family | Intel |
|---|---|
| Graphics processor | Arc B580 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 2740 MHz |
| Ray accelerators | 20 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Discrete graphics card memory | 12 GB |
|---|---|
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 456 GB/s |
Show all 44 specificationsShow fewer specifications
Ports & interfaces
| Interface type | PCI Express x8 4.0 |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
Performance
| TV tuner integrated | No |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| Xe-cores | 20 |
| NPU performance up to | 233 TOPs |
| Overclocked (OC) edition | Yes |
Design
| Cooling type | Active |
|---|---|
| Number of fans | 3 fan(s) |
| Number of slots | 2.2 |
| Illumination | Yes |
| Product colour | Blue |
Power
| Minimum system power supply | 600 W |
|---|---|
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
| Power supply location | Top |
System requirements
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
Weight & dimensions
| Weight | 954 g |
|---|---|
| Length | 315 mm |
| Depth | 44 mm |
| Height | 117 mm |
Other features
| HDMI | Yes |
|---|
