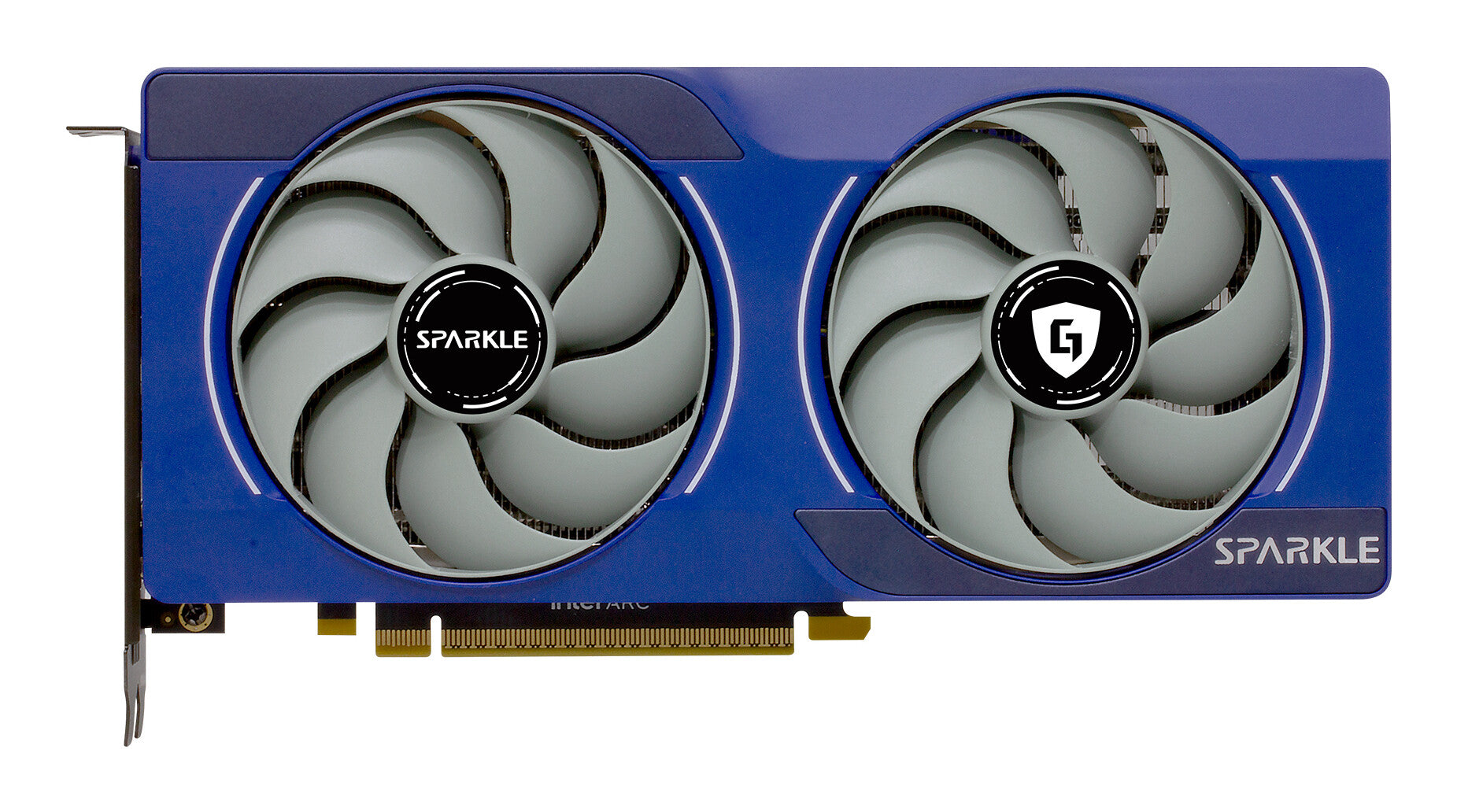

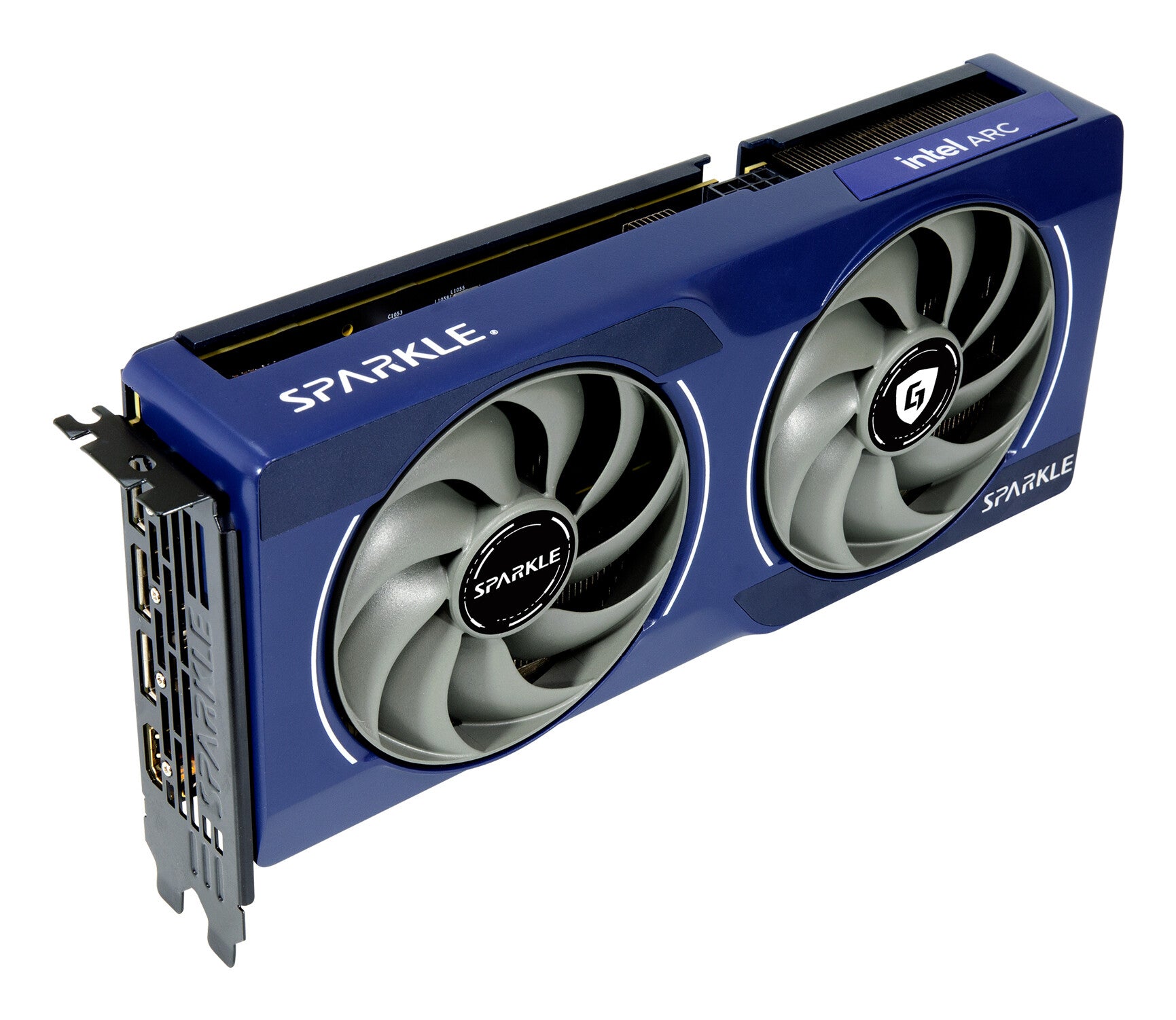

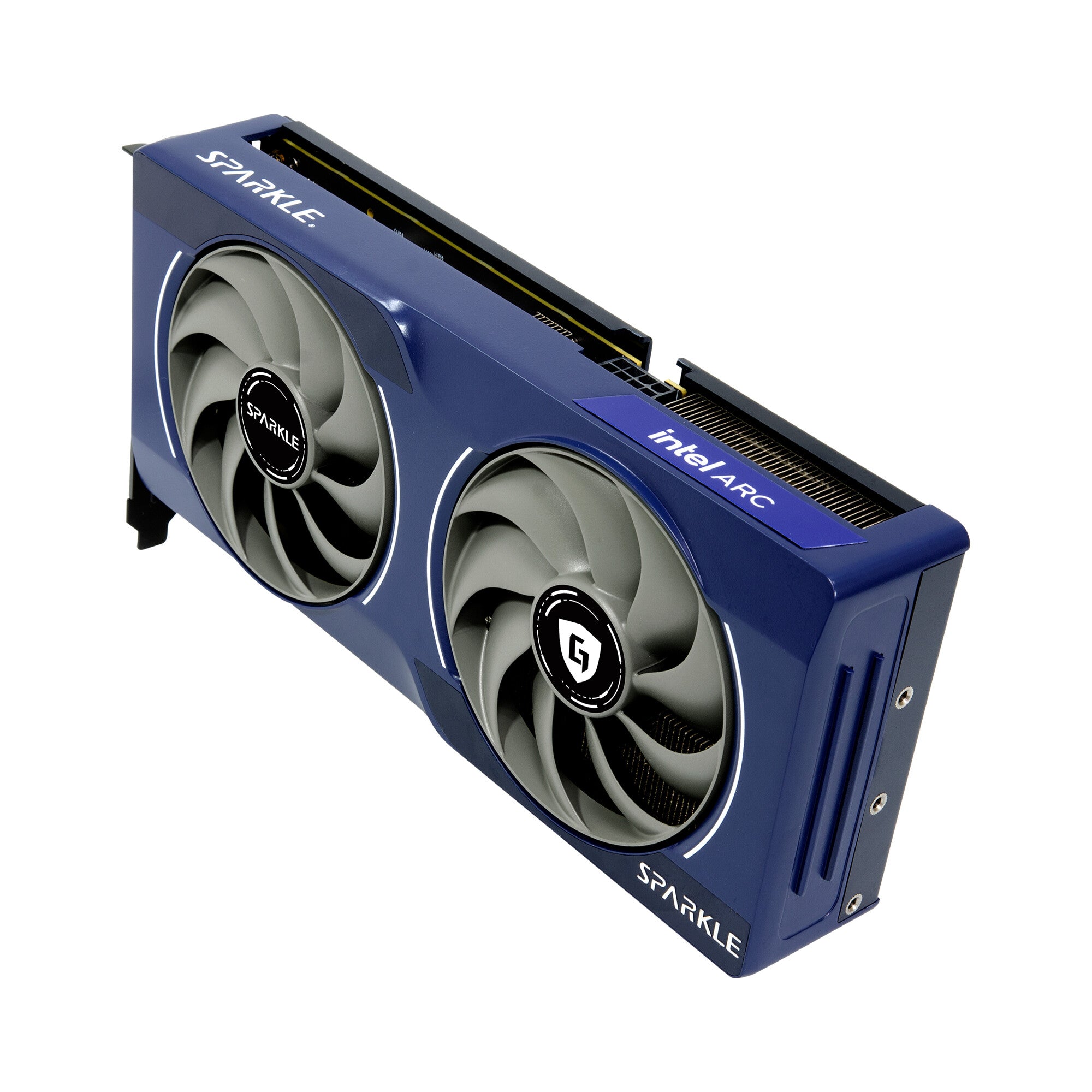

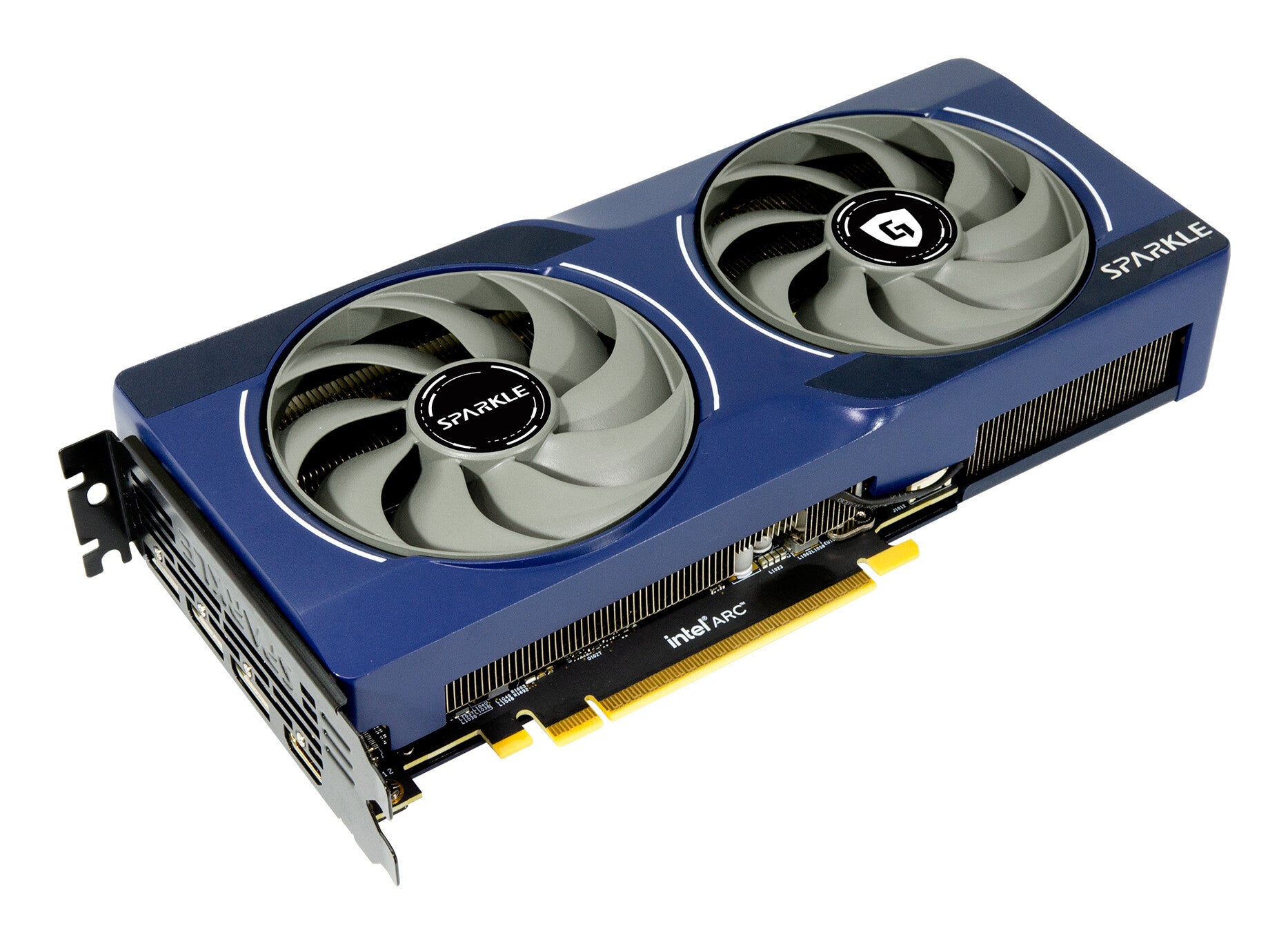

Sparkle Technology Intel Arc B570 GUARDIAN OC 10 GB GDDR6
£180.99
Couldn't load pickup availability
- TORN Cooling 2.0
- Dual-fan, 2.2-slot, metal backplate
- Comapct Design

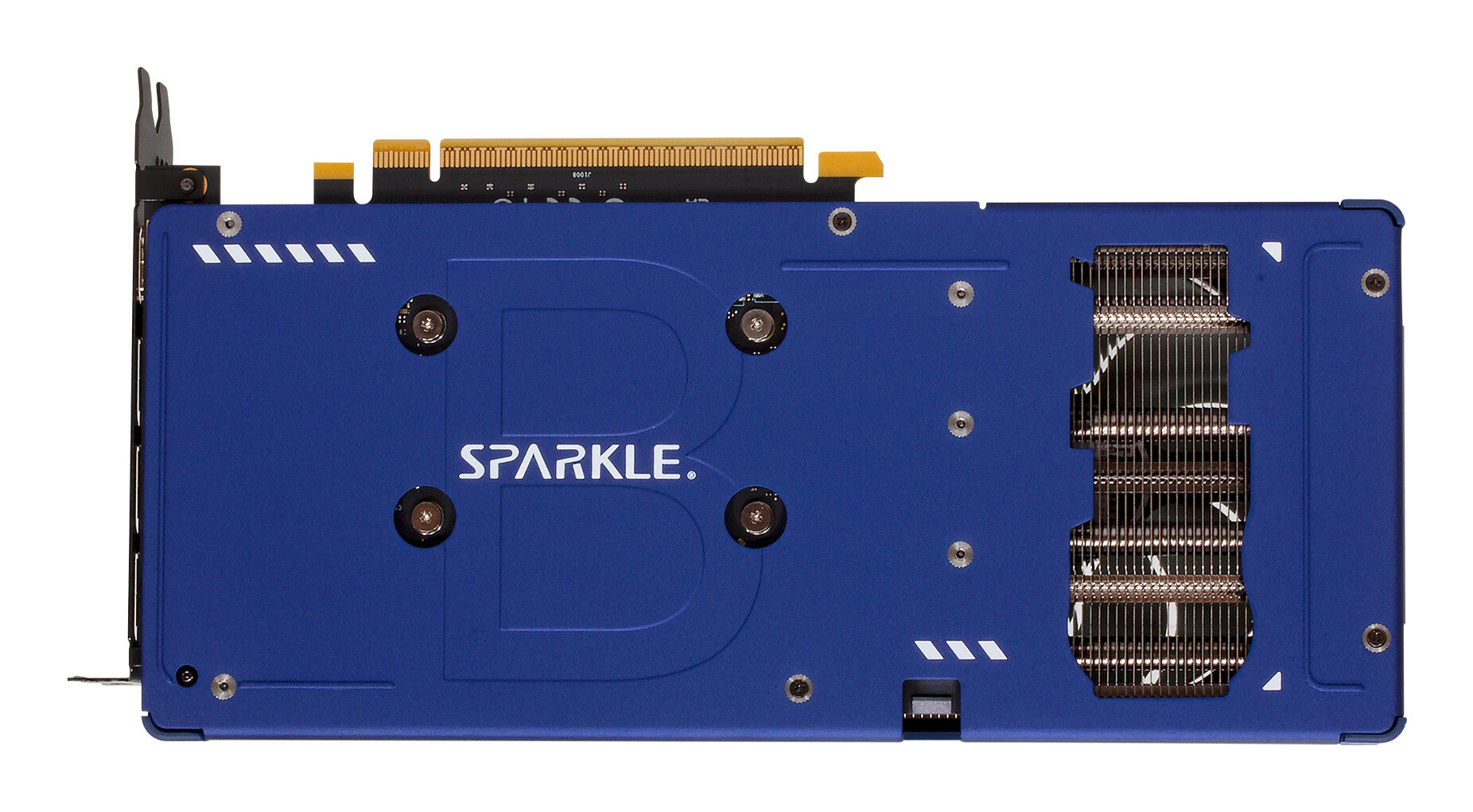

- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
| Processor | |
|---|---|
| Graphics processor family | Intel |
| Graphics processor | Arc B570 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 2500 MHz |
| Processor boost clock speed | 2660 MHz |
| Ray accelerators | 18 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Memory | |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 160 bit |
| Memory bandwidth (max) | 380 GB/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x8 4.0 |

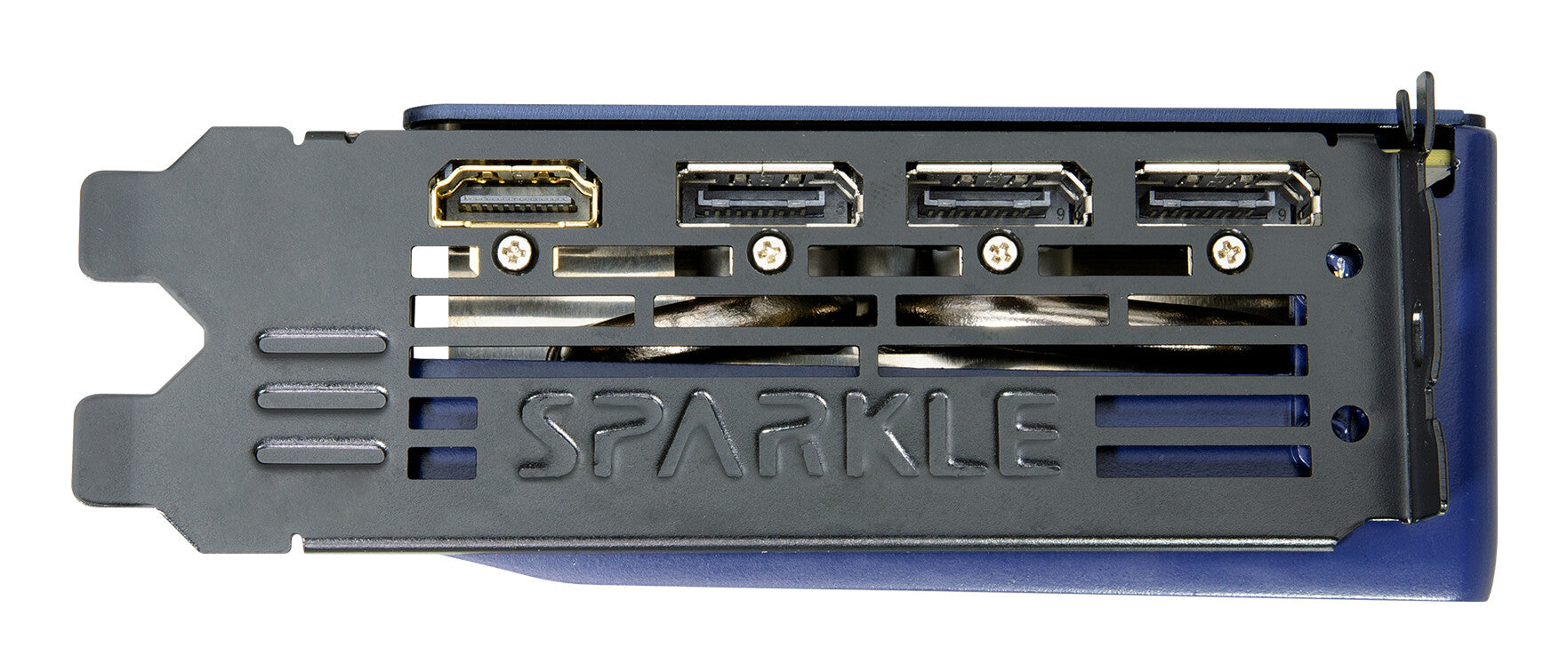

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| Performance | |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 144 |
| Xe-cores | 18 |
| NPU performance up to | 203 TOPs |
| Overclocked (OC) edition | Yes |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.2 |
| Illumination | Yes |
| Product colour | Blue |
| Power | |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (max) | 170 W |
| Power consumption (typical) | 150 W |
| Supplementary power connectors | 1x 8-pin |
| Power supply location | Top |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
| Weight & dimensions | |
|---|---|
| Weight | 796 g |
| Length | 242 mm |
| Depth | 44 mm |
| Height | 105 mm |
| Packaging data | |
|---|---|

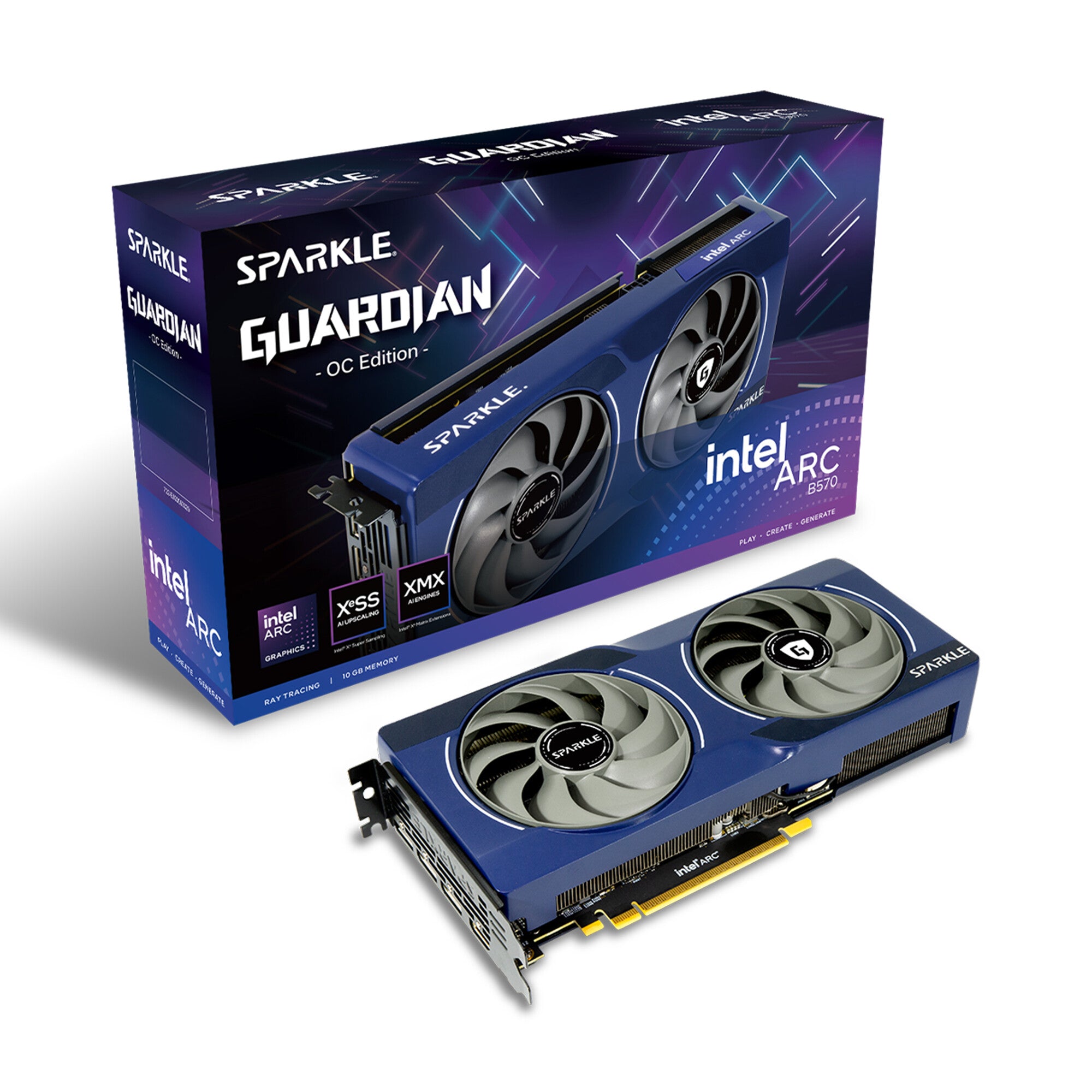

| Package type | Box |
