£36,825.99

Stock Available: 0
  • 1U
  • Wired
  • Total storage capacity: 256 GB
  • 119.4 W

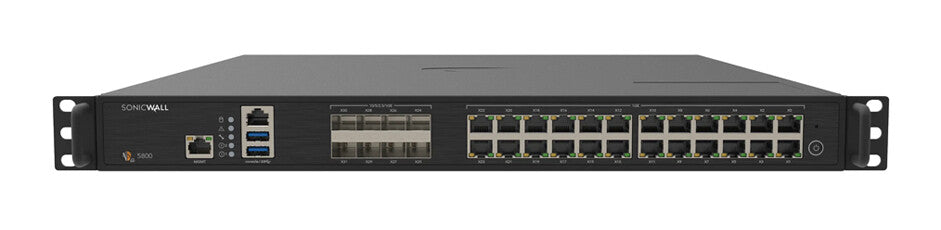

SonicWall NSa 5800 Secure Upgrade Plus Advanced Edition 3 year (includes 1 year CSE)

SonicWall NSa 5800 hardware with 3 year Advanced Protection Service Suite (APSS) and 1 year CSE. APSS includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 Support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics, Cloud Secure Edge for 1 year SIA - basic (50 user) and 1 year SPA - advanced (15 user)

The SonicWall Network Security Appliance (NSa) 5800 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.

The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Gen 8 NSa Series, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise-level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency.

The NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliances provide a single-pane-of-glass interface to manage both switches and access points.

Data transmission
Firewall throughput 30 Gbit/s
IPSec VPN throughput 21 Gbit/s
IPS/IDS throughput 24000 Mbit/s
SSL inspection throughput 4200 Mbit/s
Maximum firewall connections per second 240000
Performance
TLS interception 750000 MB/s
Network
VPN tunnels quantity 6000
Quality of Service (QoS) support Yes
Number of VLANs 512
Security
Security algorithms 128-bit AES, 256-bit AES, 192-bit AES, SHA-1, MD5
Protocols
Management protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Ports & interfaces
Connectivity technology Wired
10G Ethernet (copper) ports quantity 8
Gigabit (fiber) ports quantity 24
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Number of console ports 1
SFP+ module slots quantity 8
Installed SFP+ modules quantity 8
Storage
Total storage capacity 256 GB
Design
Rack mounting Yes
Form factor 1U
Power
AC input voltage 100-240 V
AC input frequency 50/60 Hz
Power consumption (max) 119.4 W
Power supply 450 W
Certificates
Certification FCC Class A, ICES Class A, CE (EMC, LVD, RoHS),UL, cUL, Mexico DGN Notice by UL, ANATEL,WEEE, REACH, SCIP, RCM, MIC Terminal, VCCIClass A, KCC/MSIP, BSMI, MTCTE/TEC, CB
Weight & dimensions
Width 430 mm
Depth 460 mm
Height 45 mm
Weight 7.4 kg
