SilverNet SIL-WCAP-AX-W 1800 Mbit/s White Power over Ethernet (PoE)
Couldn't load pickup availability
- WIFI 6, 802.11ax chipset, 1800Mbps
- Coverage Range: 100m
- WAN – 10/100/1000-BASE-T
- Type-c connector
- PoE 802.af
- Channel optimisation
- Automatic interference avoidance
- Up to 8 SSID (4 on 2.4GHz, 4 on 5.8GHz)
- Client Load Balancing
- AES Encryption
- VLANS
- PING Watchdog
- MAC Access control
- Easy to install
- Local or Cloud Management

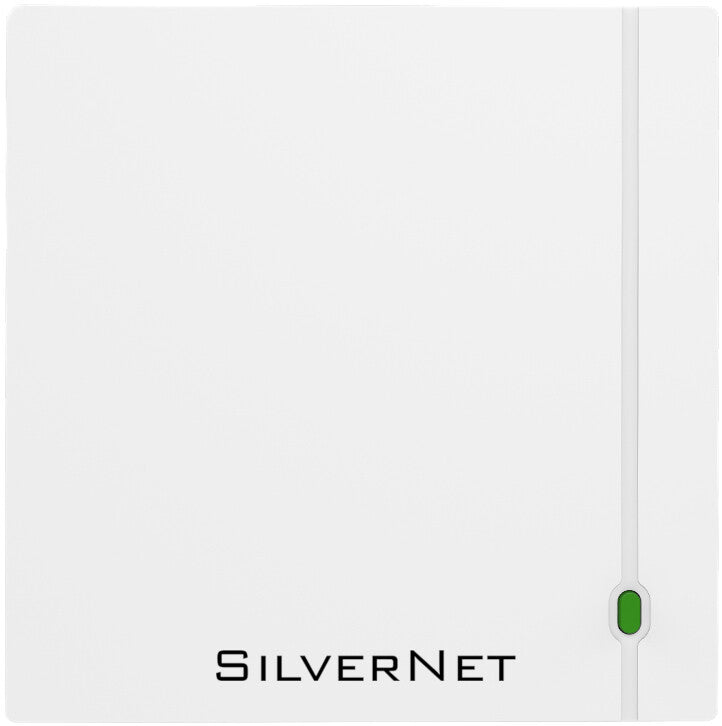

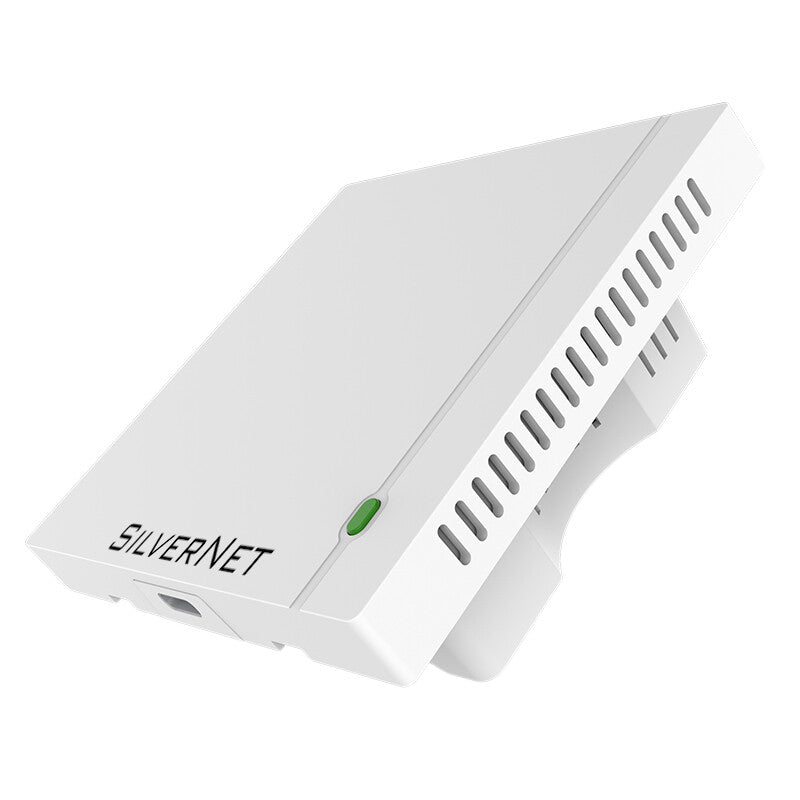

As part of the new Intelligent Wi-Fi 6 "Aero" range by SilverNet, the SIL WCAP-AX-W is a compact In Wall access point that offers more than meets the eye.

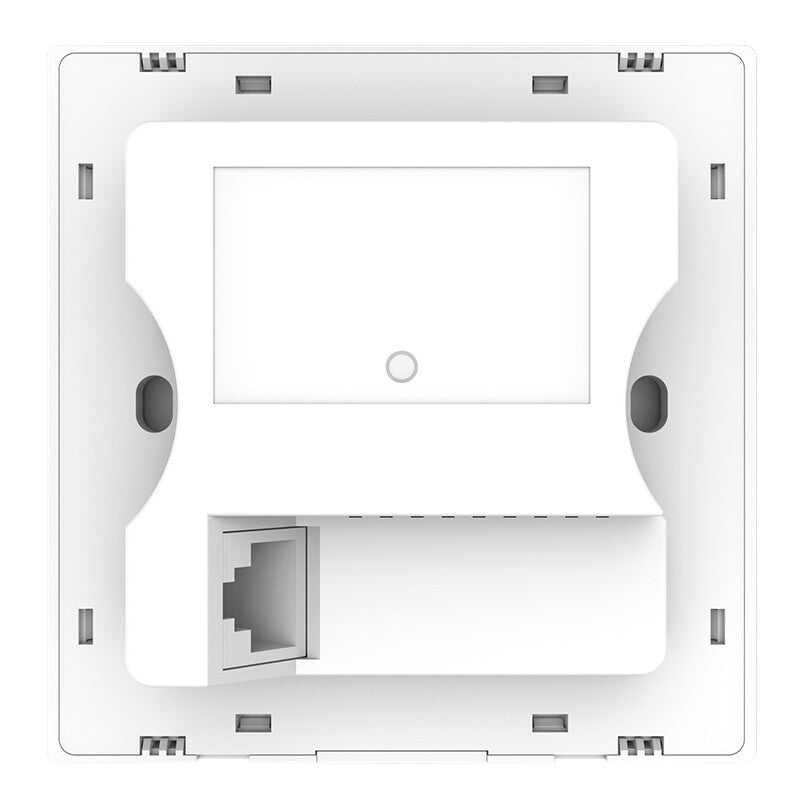

With a hidden port enabling it to offer WAN and Power Over Ethernet supply, don’t let its compact size fool you. Robust and powerful, the WCAP-AX-W offers superior indoor Wi-Fi speed and includes a USB-C port on the bottom for mobile phone or tablet charging. If required, this small but functional AP also works as an RJ45 port when used with an Ethernet Adaptor.
These features are designed with hospitality applications in mind, making it ideal for installation in hotels and guest houses to provide impressive Wi-Fi speeds of up to 1800Mbps to your guests. On top of these applications, the WCAP-AX-W can also be efficiently utilised in enterprise and home networks.
With options to manage the AP locally or via the cloud, the flexibility of this equipment allows you to offer a full, end-to-end managed Wi-Fi service to meet your client’s needs. It is also efficient when used as a standalone AP.
Keep things running smoothly for both you and your customer. You’ll stay informed about your customer’s Wi-Fi client signal health and internet quality, putting an end to common, unnecessary support calls. Time consuming tasks like RF troubleshooting and bulk software upgrades are a breeze, and installation is a simple, speedy job.
The 5Ghz priority feature improves wireless network performance, and with 1 year extended warranty you won’t have to worry about your customer’s WiFi needs.
| Features | |
|---|---|
| Transmitting power | 17 dBmW |
| Maximum outdoor range | 50 m |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| MIMO | Yes |
| Number of users | 100 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Number of SSID supported | 8 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| USB connector type | USB Type-C |
| Power | |
|---|---|
| Power consumption (max) | 6 W |
| Output current | 0.32 A |
| Output voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Reset button | Yes |
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 2 dBi |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Weight & dimensions | |
|---|---|
| Weight | 140 g |
| Height | 10.5 mm |
| Depth | 86 mm |
| Width | 86 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 240 g |
| Package height | 63 mm |
| Package depth | 109 mm |
| Package width | 108 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
