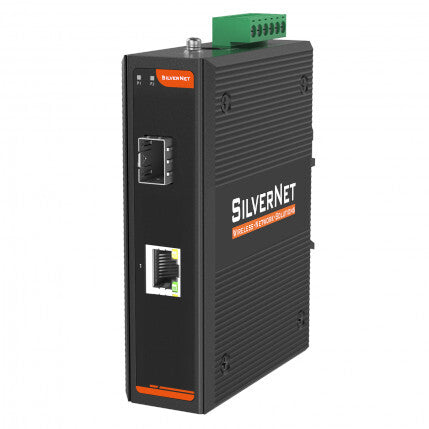

SilverNet SIL 73101P network media converter Internal 1000 Mbit/s Black
Couldn't load pickup availability

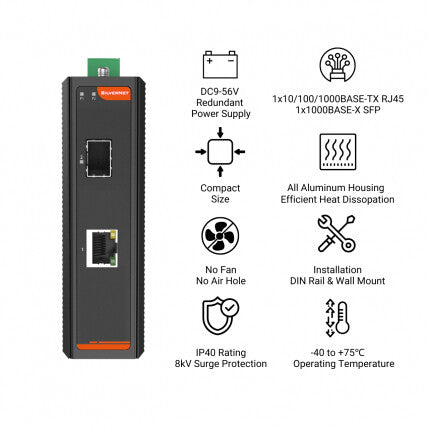

- All-aluminium Case, Compact and Fanless Design
- 10/100Mbps or 10/100/1000Mbps Full/Half
- Duplex, Auto-Negotiation and Auto-MDI/MDIX
- Supports IEEE 802.3af/at PoE Standard, without damaging non-PoE devices
- Operating Temperature from -40 to 75℃

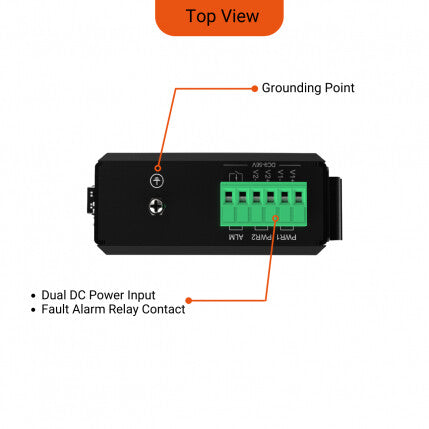

- Dual Redundant DC9~56V power input
- Support power input polarity protection; no worries about the reverse connection
- Aluminium shell, fanless design
- Free fall, shock-proof and vibration-proof for industries
- Plug and play; no software configuration is needed

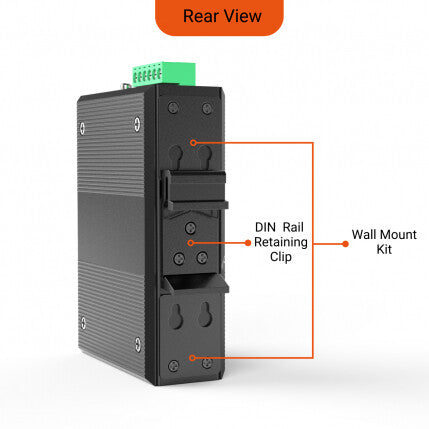

- Either DIN rail or Wall Mount installation
- 5 Year Warranty as Standard
To ensure the SIL 73101P can withstand harsh environments, the enclosure plays a crucial role in meeting industrial-grade standards. Unlike steel or iron, aluminium has several advantages that make it a widely used metal material.
The SIL 73101P is a rugged Industrial Fibre Media Converter designed to operate reliably in harsh environments. It features a fanless design and low power consumption, which eliminates the need for maintenance. Additionally, mature technology and open network standards enable the SIL 73101P to operate efficiently at both low and high temperatures. Moreover, it is resistant to electric interference, salt fog, vibration, and shocks, making it suitable for various applications. The SIL 73101P also includes redundant dual power supplies, which enhances its reliability for always-on connections.
The SIL 73101P supports fibre-optic link capacity, which allows network deployment to extend from 550 meters to 2 kilometres for multi-mode fibre and up to 10/20/40/60/80/120 kilometres for single-mode or WDM fibre. Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements, making it ideal for applications within enterprise data centres and distributed systems.
| Network | |
|---|---|
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Data transfer rate | 1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-X |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Converter input interface | 1000Base-TX, 1000Base-X |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Wavelength-division multiplexing (WDM) | Yes |
| Maximum transfer distance | 160000 m |
| Features | |
|---|---|
| Housing material | Aluminium |
| LED indicators | Link, Power |
| Product colour | Black |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| Plug and Play | Yes |
| Internal | Yes |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Terminal block included | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power plug type | Type C |
| External power adapter | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 4 W |
| Power consumption (typical) | 2 W |
| Output voltage | 48 V |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
|---|---|
| Weight | 350 g |
| Height | 120 mm |
| Depth | 90 mm |
| Width | 35 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 52 g |
| Package height | 50 mm |
| Package depth | 168 mm |
| Package width | 150 mm |
| Certificates | |
|---|---|
| Certification | FCC Part15 Class ACEEMC/LVDRoHSEN610004 2 (ESD):LEVEL 4IEC 6100 4 2 (EFT):LEVEL 4IEC 6100 4 2 (Surge): LEVEL 4IEC 6100 4 2 (CS) LEVEL 3IEC 61000 4 2(PFMP) : LEVEL 5EN61000 4 3 (RS):LEVEL 4IEC60068 2 27IEC60068 2 6IEC60068 2 31 |
| Safety | EN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508 |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
