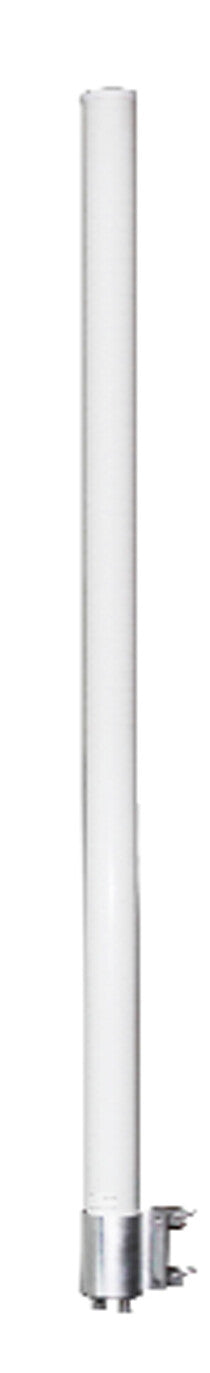

SilverNet OAN2412 network antenna Omni-directional antenna N-type 12 dBi
£138.99
Couldn't load pickup availability
- Dual Polarisation: Horizontal 360°, Vertical 7°
- 2.3GHz to 2.7GHz Frequency Range
- Compatible with PRO Range SIL AP1200
- N-Type Connector
- 12dBi Gain
- Wall / Pole Mountable
The SIL OAN2412 is an outdoor Omni antenna with a 360-degree horizontal beam width. It operates on the 2.4GHz band and is fully compatible with the SIL AP1200 multipoint receiver.
This antenna comes equipped with two N-type female connectors.
For connection to one of our multipoint receivers, you will require LMR400 cables. SilverNet provides these cables in lengths of 1, 2, 4, and 8 meters.
| Performance | |
|---|---|
| Horizontal beam width | 360° |
| Vertical beam width | 7° |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.3 - 2.7 GHz |
| Antenna gain level (max) | 12 dBi |
| Features | |
|---|---|
| Type of clamp | U-bolt |
| Maximum operating distance | 1000 m |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Survival wind speed | 241.4 km/h |
| Wind load | 150 |
| Waterproof | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Polarization | Dual polarization |
| Antenna connector type | N-type |
| Connector gender | Female |
| Antenna type | Omni-directional antenna |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 105 g |
| Height | 1200 mm |
| Depth | 73 mm |
| Width | 110 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.62 kg |
| Package height | 81 mm |
| Package depth | 125 mm |
| Package width | 900 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
