SilverNet NDR-240-48 network switch component Power supply
£146.99
Couldn't load pickup availability
- Universal AC Input / Full Range
- Protections from: Short Circuit / Overload / Over Voltage
- Cooling by Free Air Convection

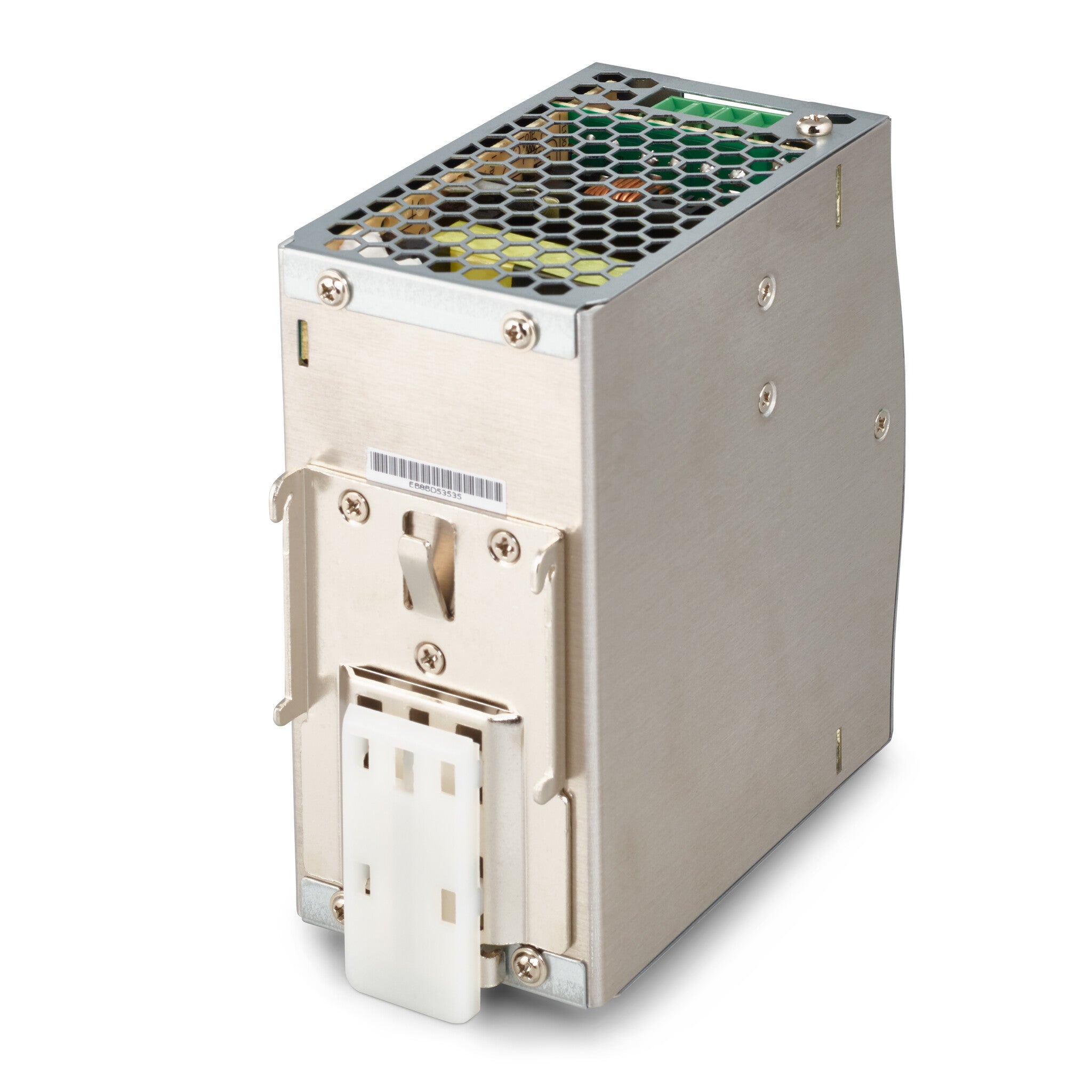

- Can be installed on DIN Rail TS-35/7.5 or 15
- 100% Full Load Burn In Test
- UL 508 Industrial Control Equipment Approved
- EN61000-6-2 (EN500820-2) Industrial Immunity Level
- Slim design for easy installation

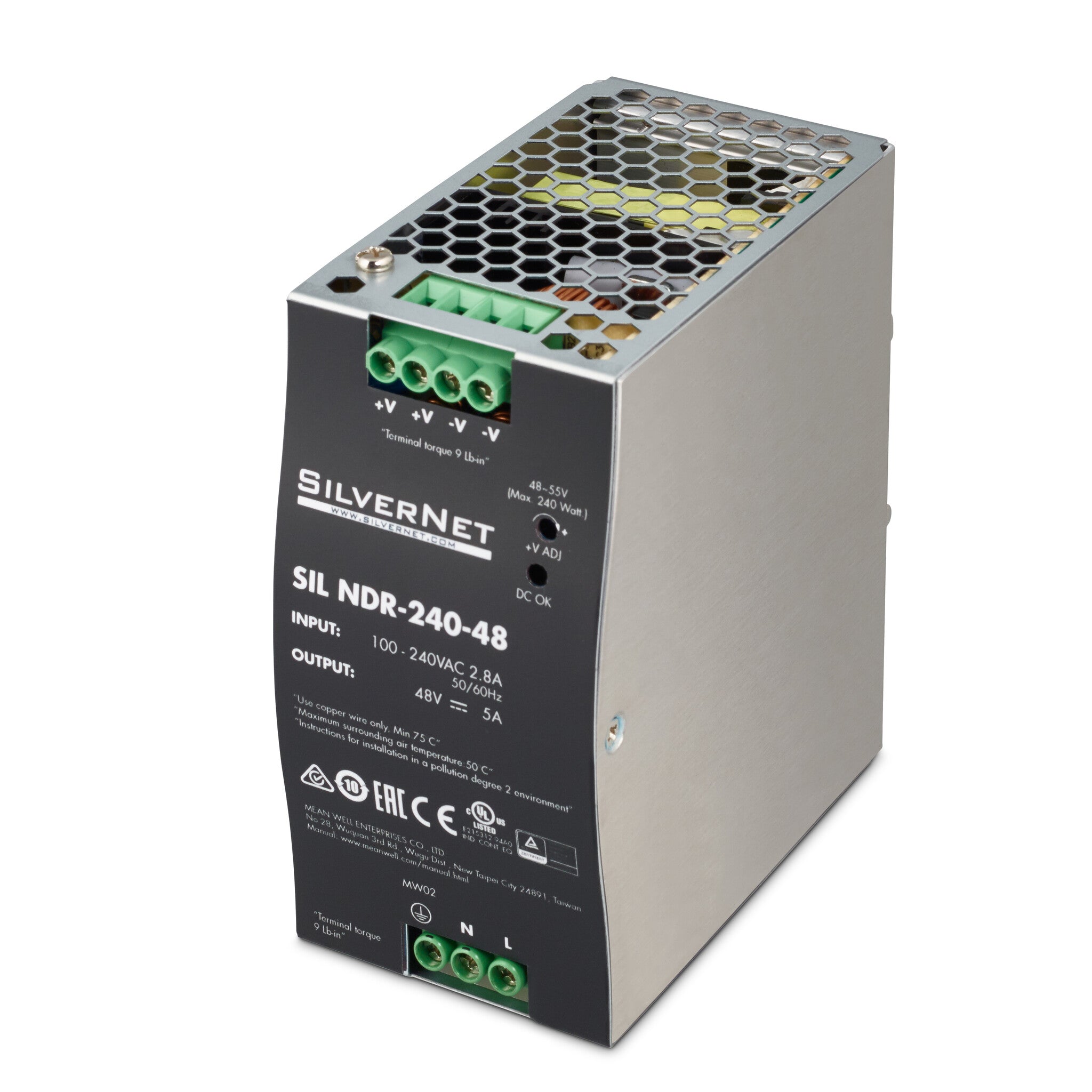

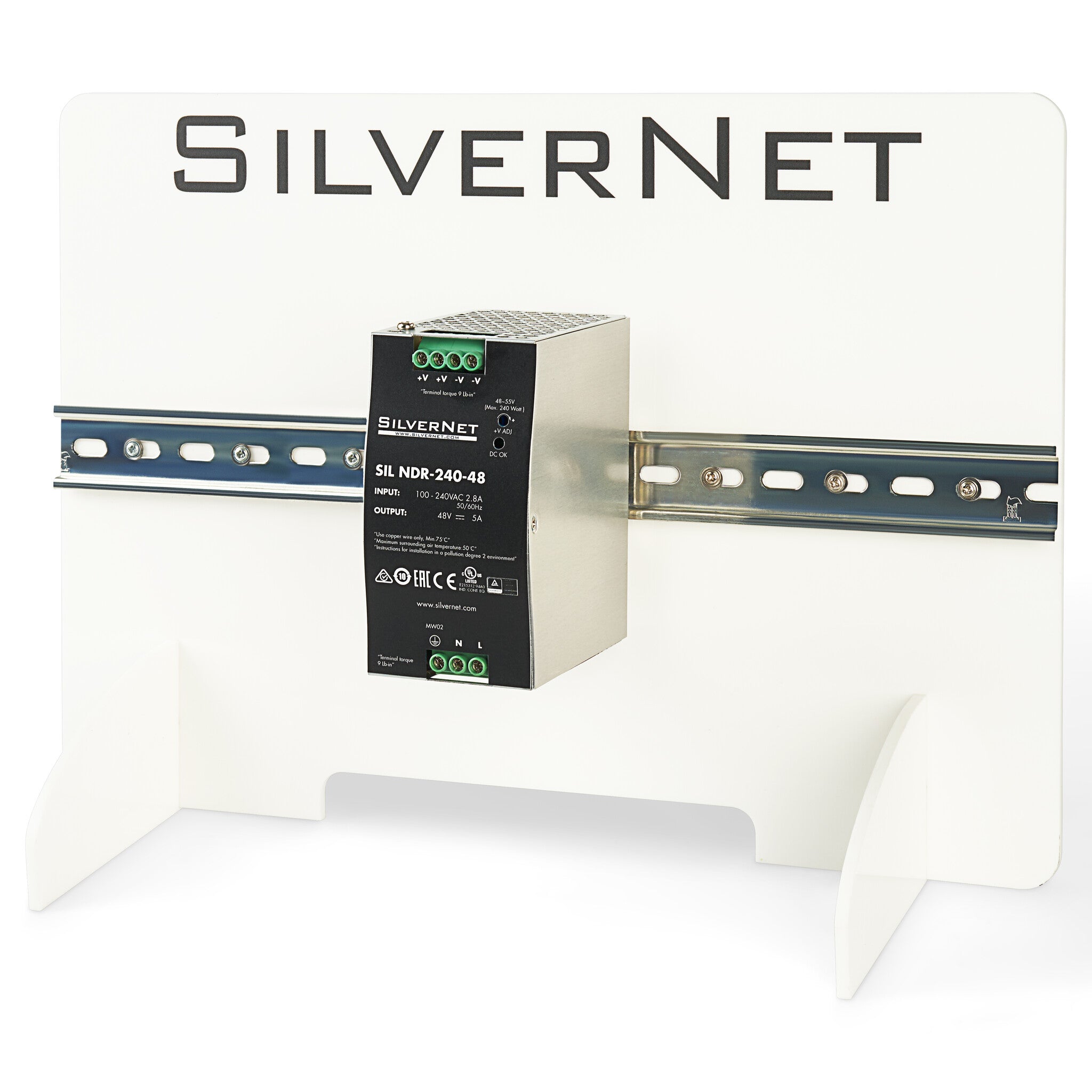

The SIL NDR-240-48 PSU is a 240W, 48V, 5A DIN rail power supply designed for installation on TS-35/7.5 or TS-35/15 mounting rails. Its 63mm width helps to conserve space when installed inside cabinets.
It is ideal for use with SilverNet Series 7 Industrial network switches.

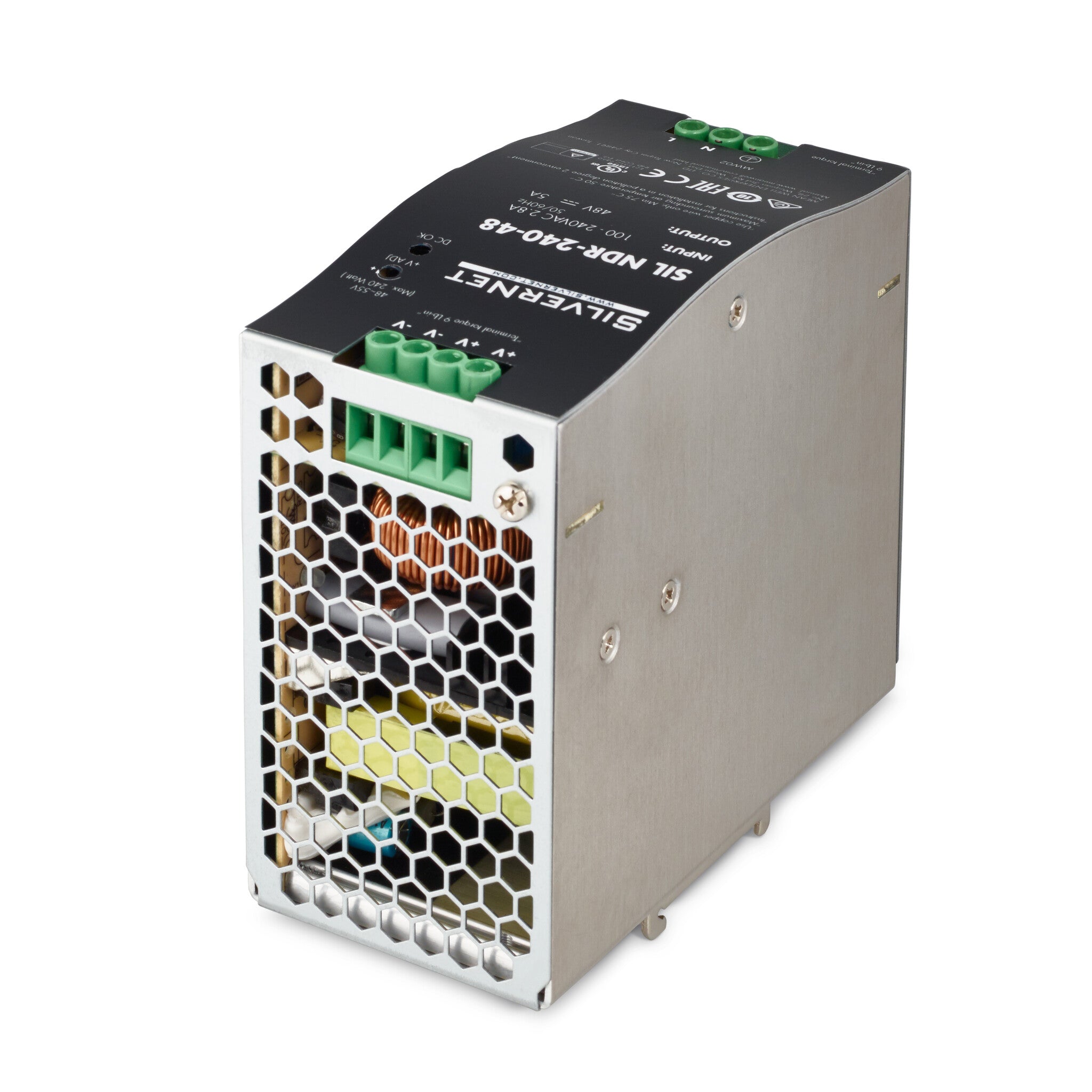

The SIL NDR-240-48 features a metal housing that improves power dissipation and boasts an operational efficiency of up to 90%. It can function in temperatures ranging from -20°C to 70°C and comes with protections against short circuits, overload, and overvoltage.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 230200 h |
| Power protection features | Over voltage, Overheating, Overload |
| LED indicators | Power |
| DIN rail mounting | Yes |
| Product colour | Black |
| Product type | Power supply |
| Network | |
|---|---|
| Compliance industry standards | EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020 |
| Power | |
|---|---|
| Ripple & noise | 150 mVpp |
| Voltage tolerance | 1% |
| DC output voltage | 48 V |
| DC voltage range | 48 - 55 V |
| Inrush current | 35 A |
| Maximum current | 5 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 90-264 V |
| Total power | 240 W |
| Certificates | |
|---|---|
| Certification | Heavy industry level, criteria A, EAC TP TC 020Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RHWithstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVACUL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 113.5 mm |
| Depth | 125.2 mm |
| Width | 63 mm |
| Packaging data | |
|---|---|
| Package weight | 960 g |
| Package height | 150 mm |
| Package depth | 158 mm |
| Package width | 100 mm |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85044095 |
| Warranty period | 1 year(s) |
