SilverNet
£67.99
Stock Available: 0
  • Universal AC Input / Full Range
  • Protections from: Short Circuit / Overload / Over Voltage
  • Cooling by Free Air Convection
  • Can be installed on DIN Rail TS-35/7.5 or 15
  • 100% Full Load Burn In Test
  • UL 508 Industrial Control Equipment Approved
  • EN61000-6-2 (EN500820-2) Industrial Immunity Level
  • Operating Temperature of -20°C to 70°C
  • Slim design for easy installation

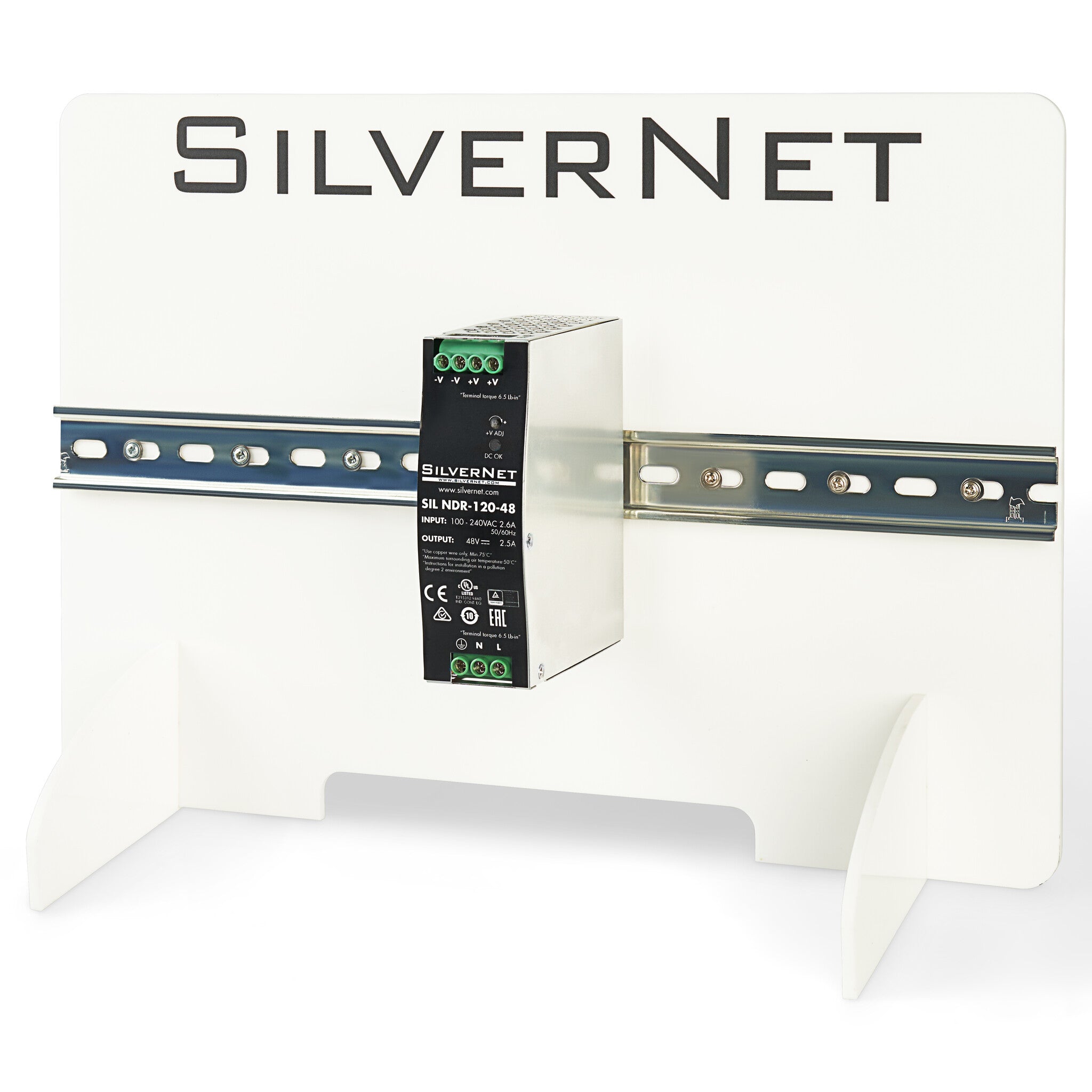

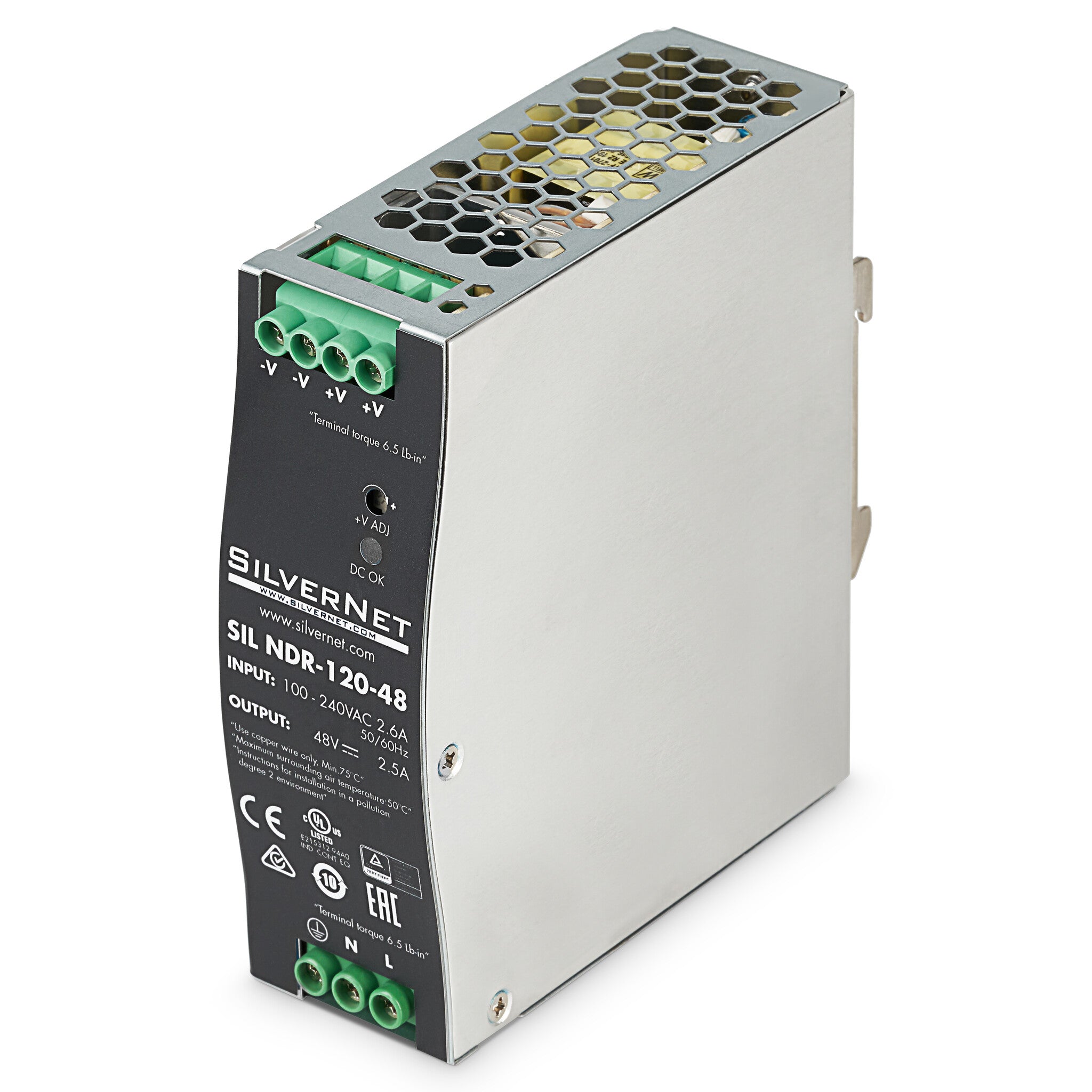

The SIL NDR-120-48 PSU is a slim 120W 48v 2.5A DIN rail power supply, adapted to be installed on TS-35/7.5 or TS35/15 mounting rails. The PSU is slim (40mm wide), which allows you to save space when fitting inside cabinets.

Ideal for use with the SilverNet Series 7 Industrial network switches.

The SIL NDR-120-48 is designed with metal housing that enhances the unit's power dissipation and has a working efficiency up to 90%, it can operate at temperatures between -20°C and 70°C and is equipped with short circuit, over load & over voltage protection.

Features
Mean time between failures (MTBF) 456300 h
Power protection features Over voltage, Overload, Short circuit
LED indicators Power
DIN rail mounting Yes
Product colour Black
Product type Power supply
Network
Compliance industry standards EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020
Power
Ripple & noise 150 mVpp
Voltage tolerance 1%
DC output voltage 48 V
DC voltage range 48 - 55 V
Inrush current 35 A
Maximum current 2.5 A
AC input frequency 47 - 63 Hz
AC input voltage 100-240 V
Total power 120 W
Certificates
Certification Heavy industry level, criteria A, EAC TP TC 020Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RHWithstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVACUL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1)
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 20 - 90%
Storage temperature (T-T) -40 - 90 °C
Operating temperature (T-T) -20 - 70 °C
Weight & dimensions
Weight 600 g
Height 125.2 mm
Depth 113.5 mm
Width 40 mm
Packaging data
Package weight 580 g
Package height 140 mm
Package depth 145 mm
Package width 59 mm
Logistics data
UK Trade Tariff code 85044095
