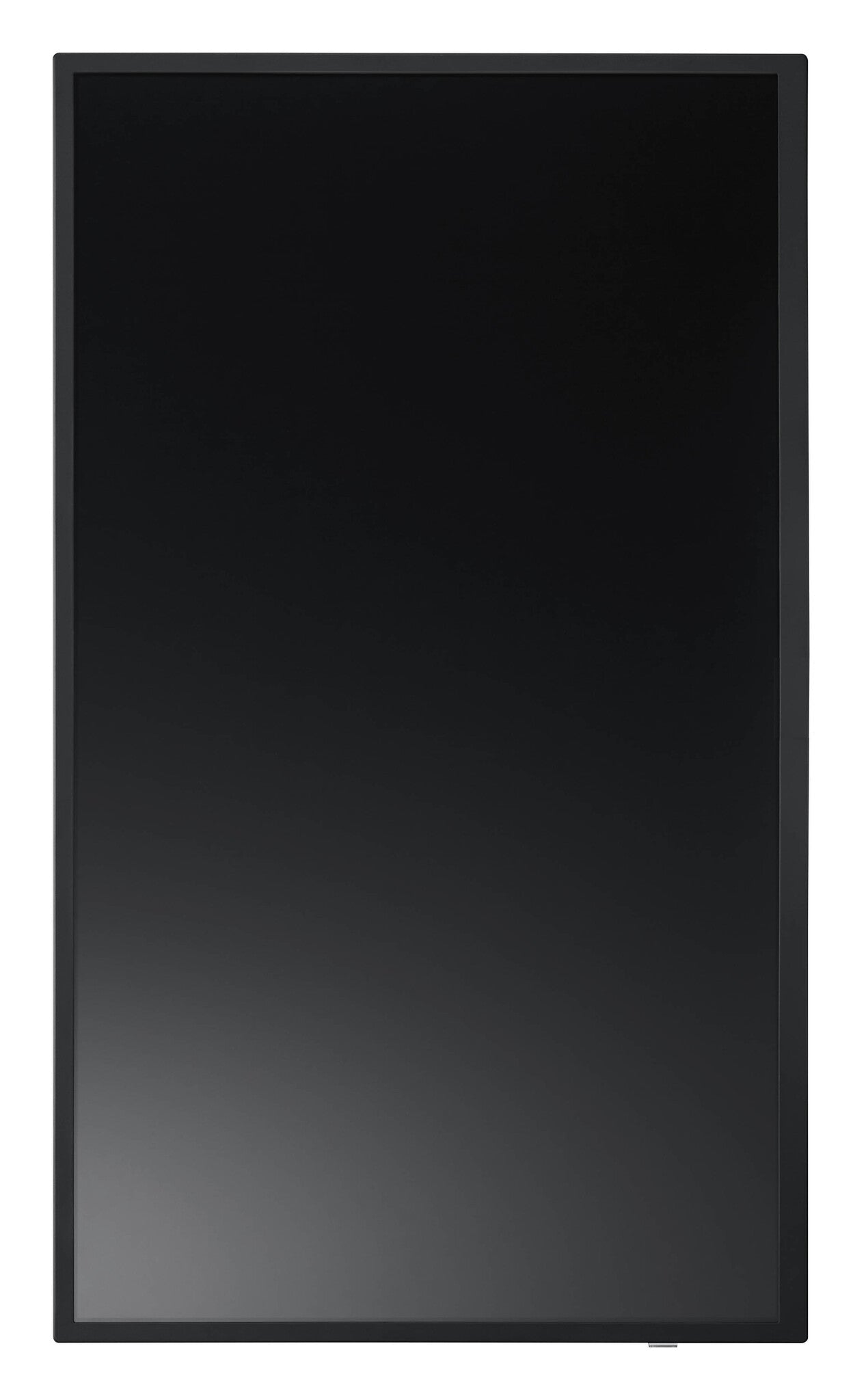

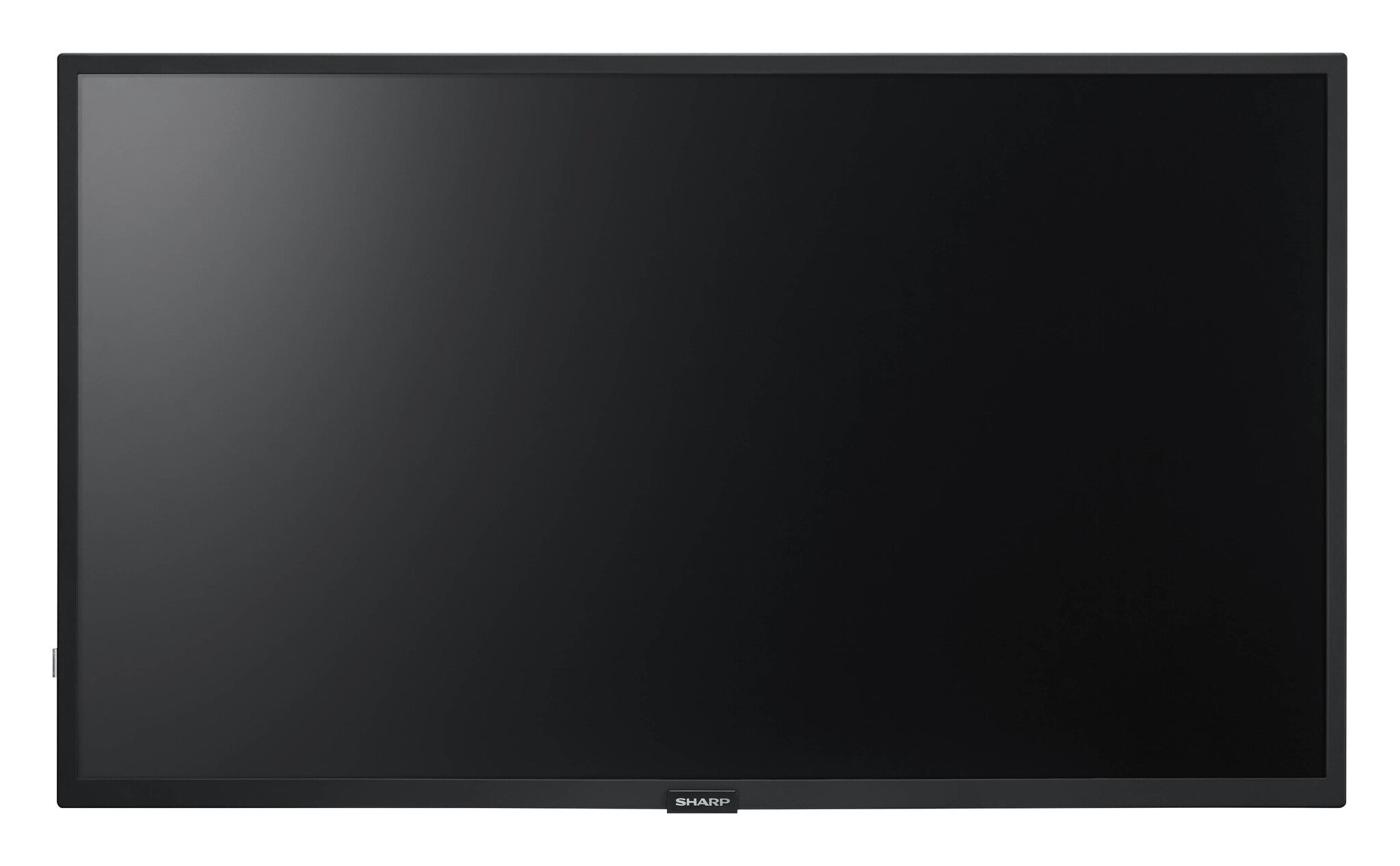

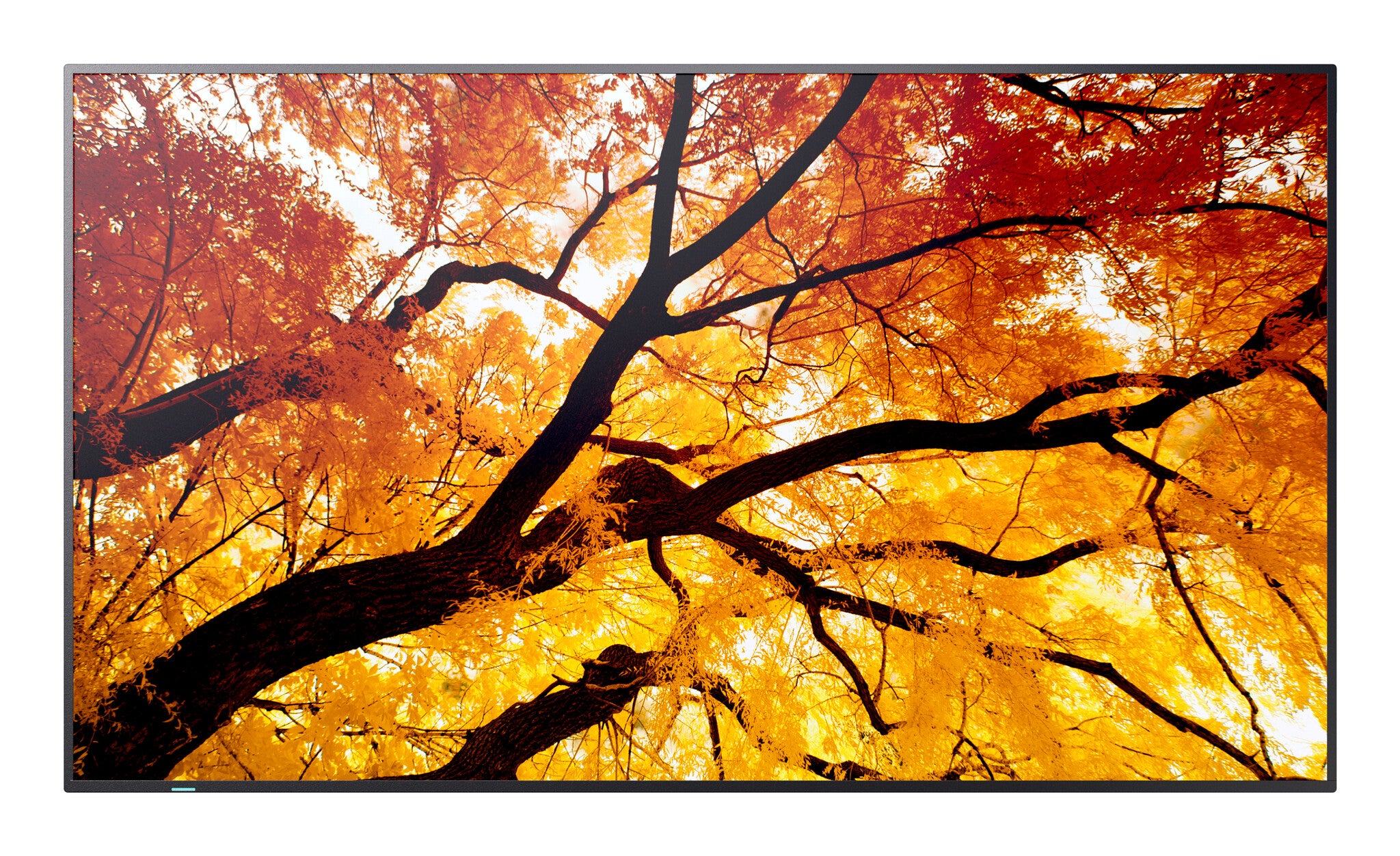

Sharp MultiSync M322 Digital signage flat panel 81.3 cm (32") LCD 550 cd/m² Full HD Black
Couldn't load pickup availability
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Intuitive professional content delivery
For economical signage in 24/7 commercial environments, the 32” Sharp MultiSync® M322 delivers all the professional performance and features you need, whilst minimising the cost of ownership. With a 450 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration.

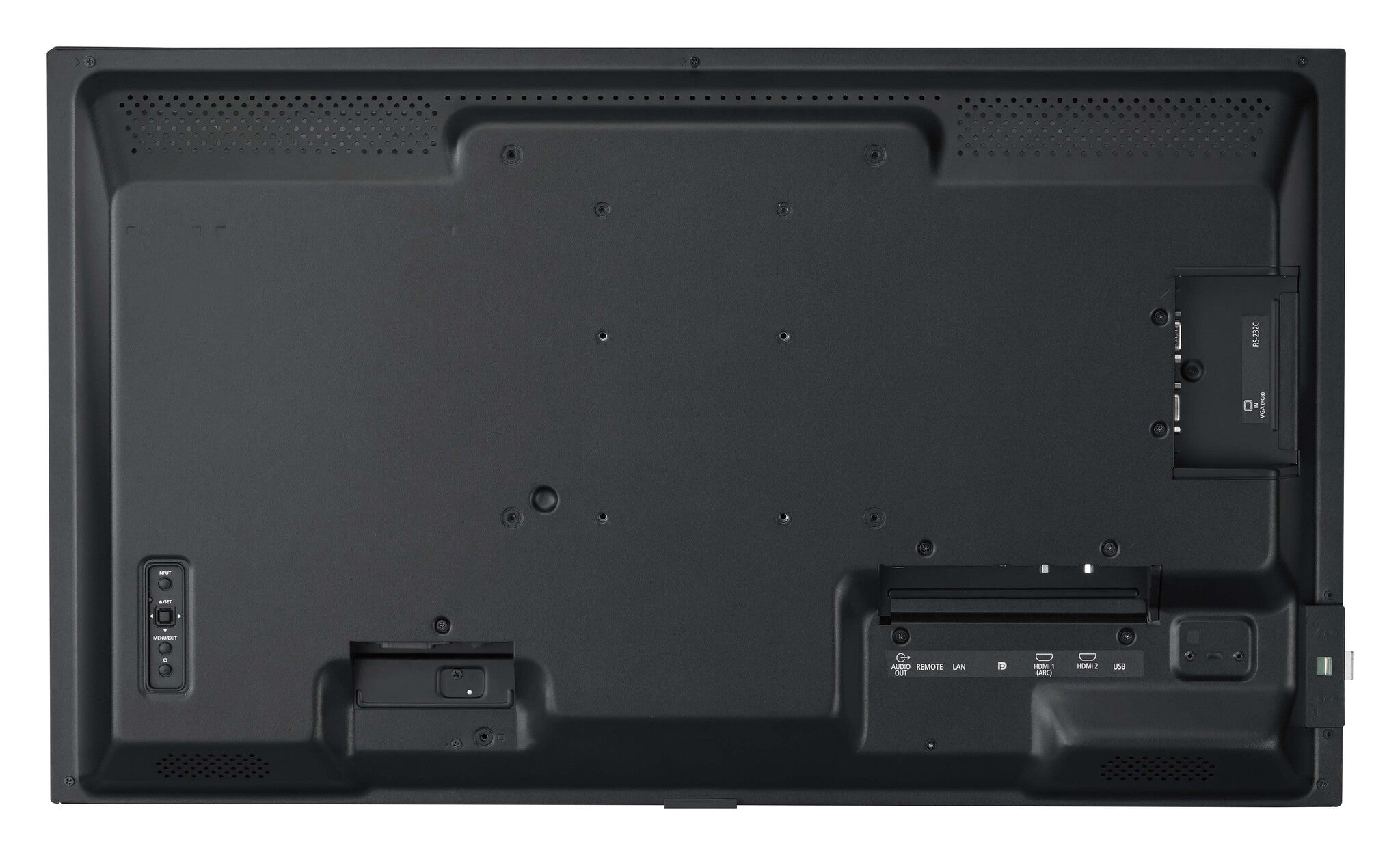

Featuring multiple industry standard digital and analogue signal inputs, the M322 is future-proof for flexible integration. It also features full external control support through both RS-232 or LAN connectivity enabling operators to achieve time and cost savings when managing an estate of displays.
The full metal chassis, high end componentry and integrated schedule function affords peace of mind for extended runtimes, ideal for retail and transportation applications.
| Display | |
|---|---|
| Display diagonal | 81.3 cm (32") |
| Display technology | LCD |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 550 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Display diagonal (metric) | 80 cm |
| Haze rate | 28% |
| Vertical scan range | 23 - 86 Hz |
| Horizontal scan range | 26 - 91.1 kHz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Yes |
| USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | No |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Screen shape | Flat |
| VESA mounting | Yes |
| Bezel width (bottom) | 1.72 cm |
| Bezel width (side) | 1.19 cm |
| Bezel width (top) | 1.18 cm |
| Performance | |
|---|---|
| Purpose | Universal |
| Power | |
|---|---|
| Power consumption (typical) | 40 W |
| Input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
|---|---|
| Display width | 726.5 mm |
| Display depth | 66.5 mm |
| Display height | 425.4 mm |
| Display weight | 6.3 kg |
| Packaging data | |
|---|---|
| Package width | 870 mm |
| Package depth | 160 mm |
| Package height | 527 mm |
| Package weight | 9.8 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| General | |
|---|---|
| Product family | MultiSync |
