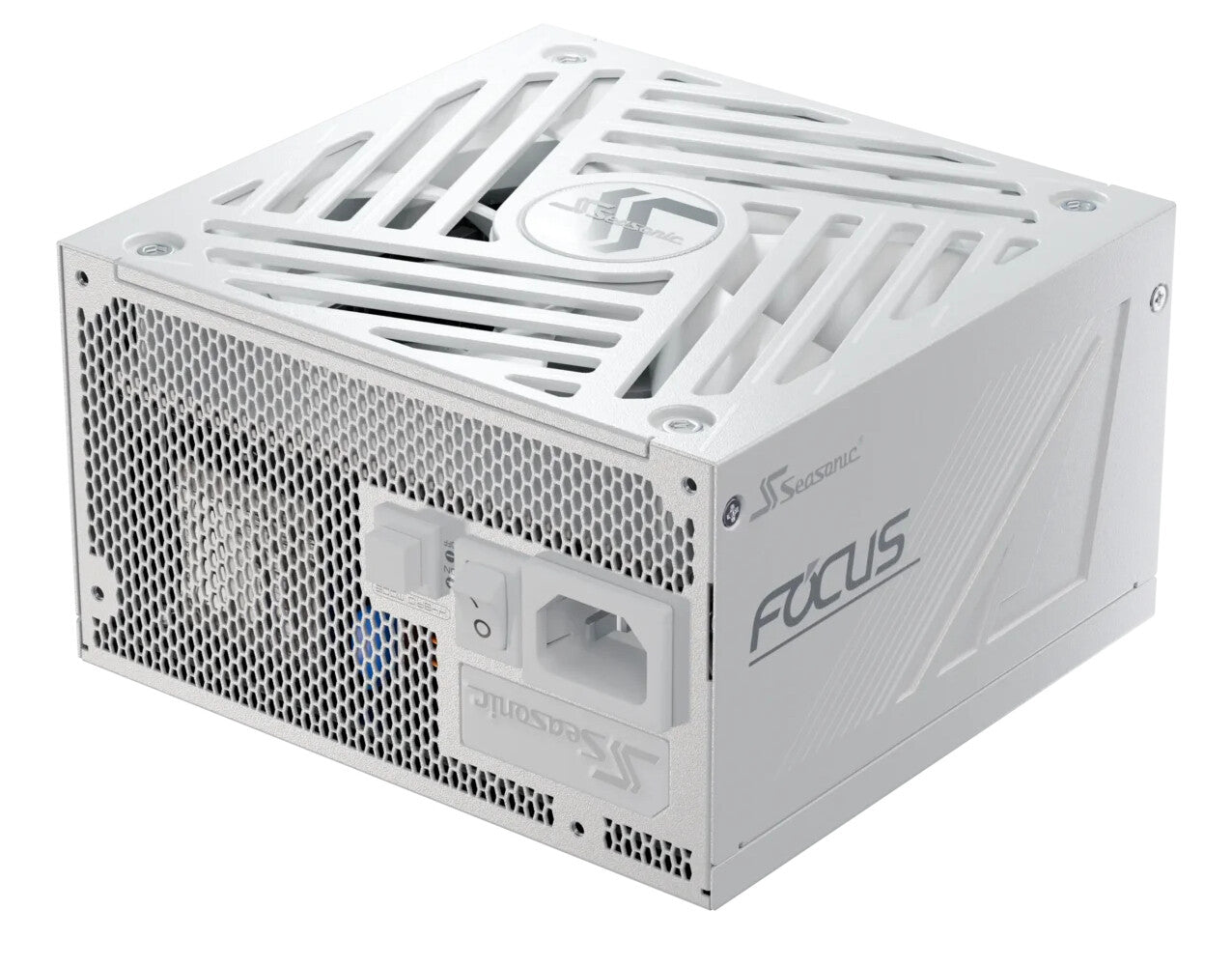

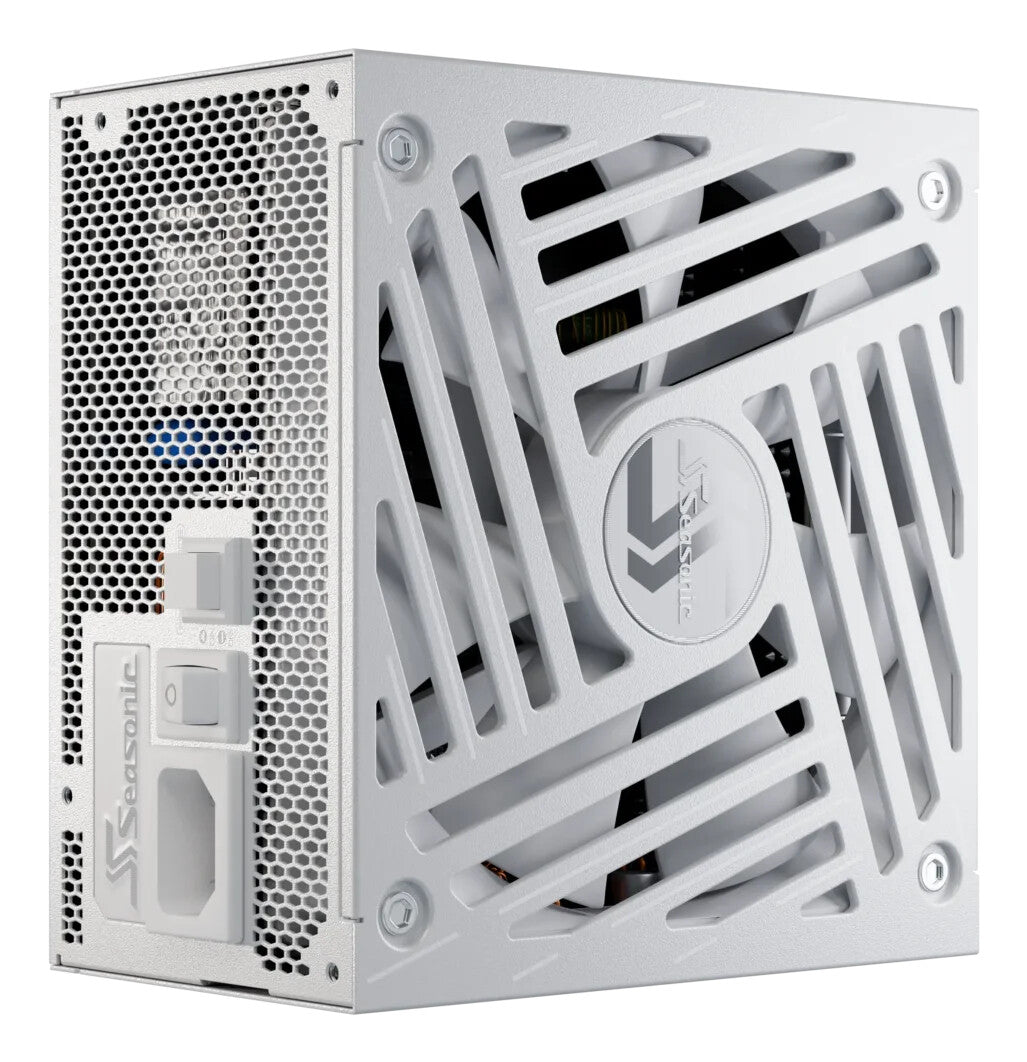

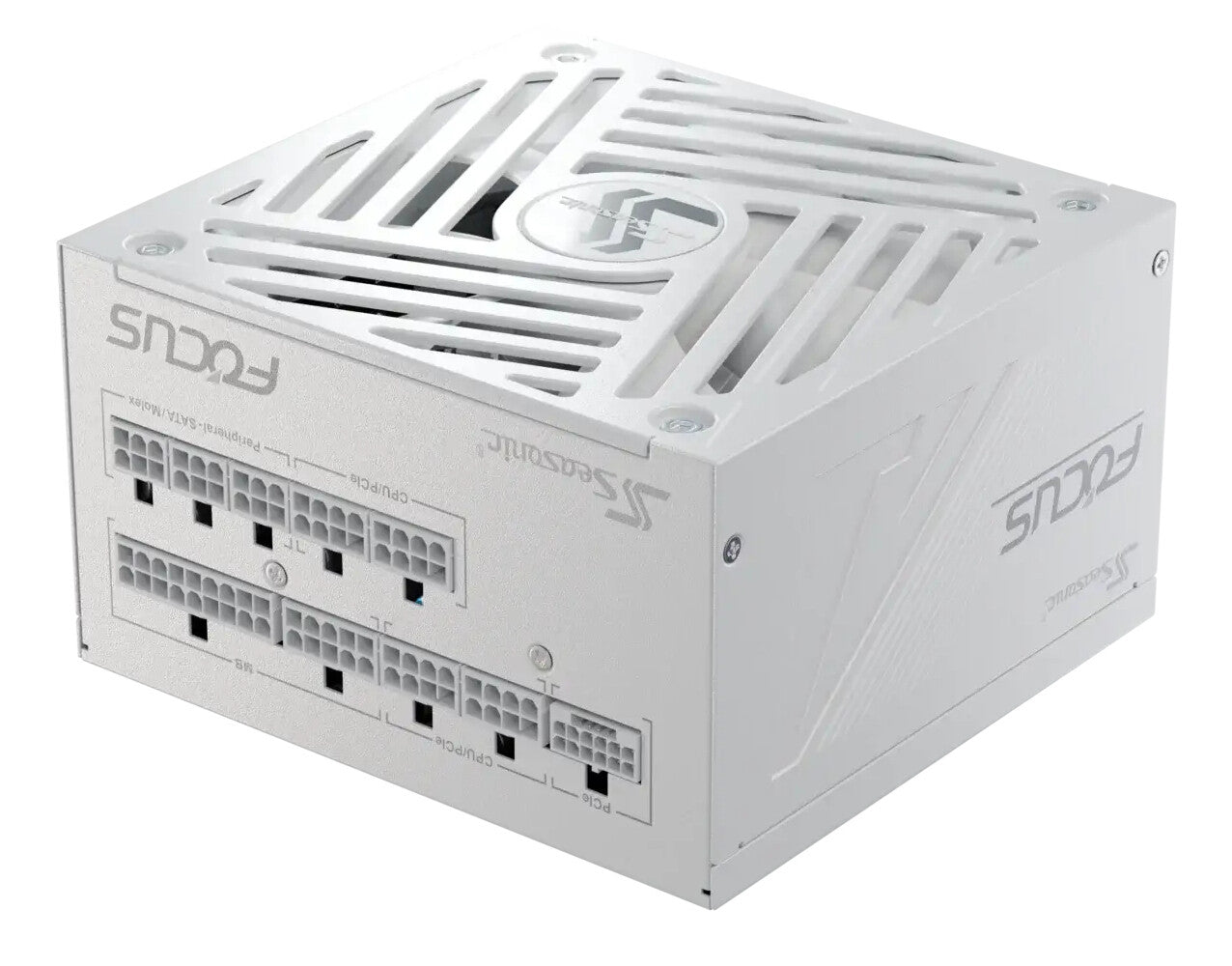

Seasonic Focus GX power supply unit 750 W 24-pin ATX ATX White
iFrame
£140.99
Couldn't load pickup availability
- 750 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- Active 13.5 cm
- White
Seasonic Focus GX-750 ATX 3.1 750W 80 Gold Modular Power Supply - White
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 100 W |
| Input current | 10 - 5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |

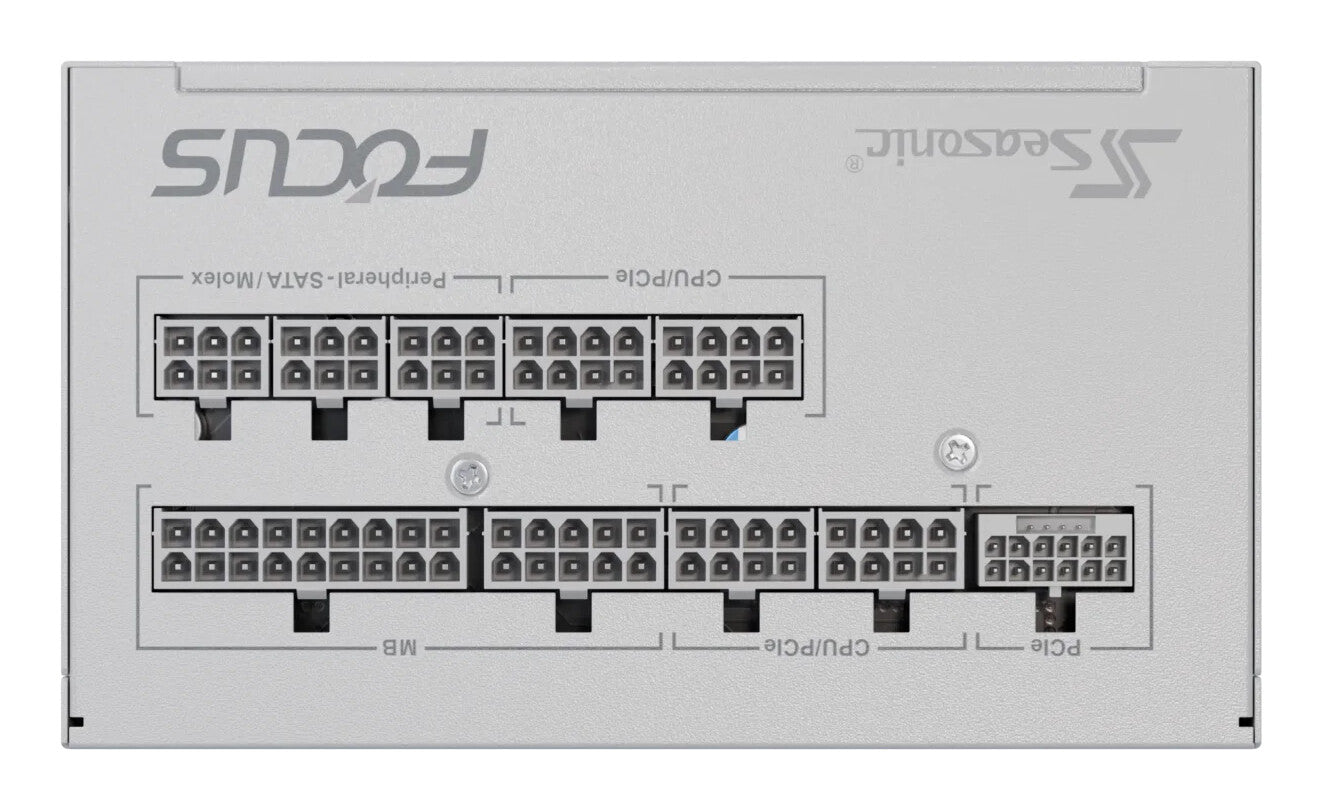

| Ports & interfaces | |
|---|---|

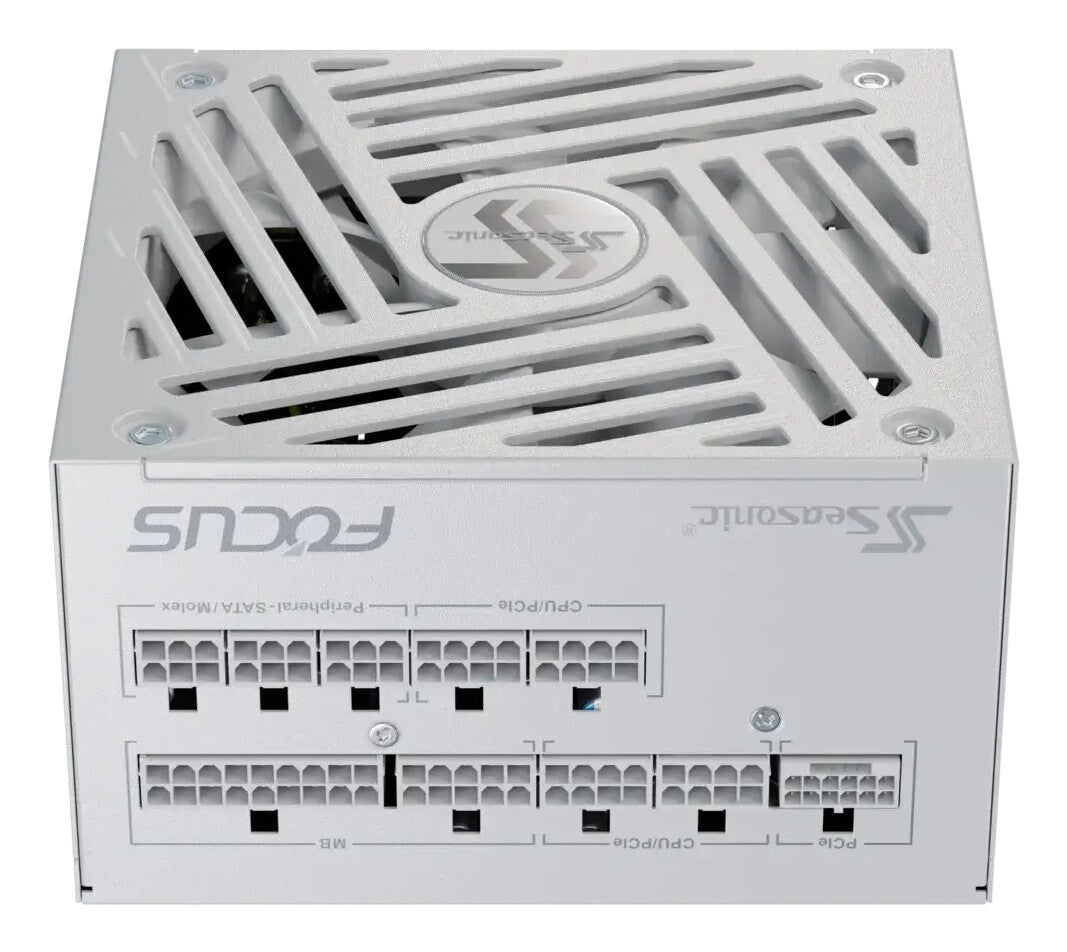

| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 690 mm |
| SATA power cable length | 950 mm |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Silent mode | Yes |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|

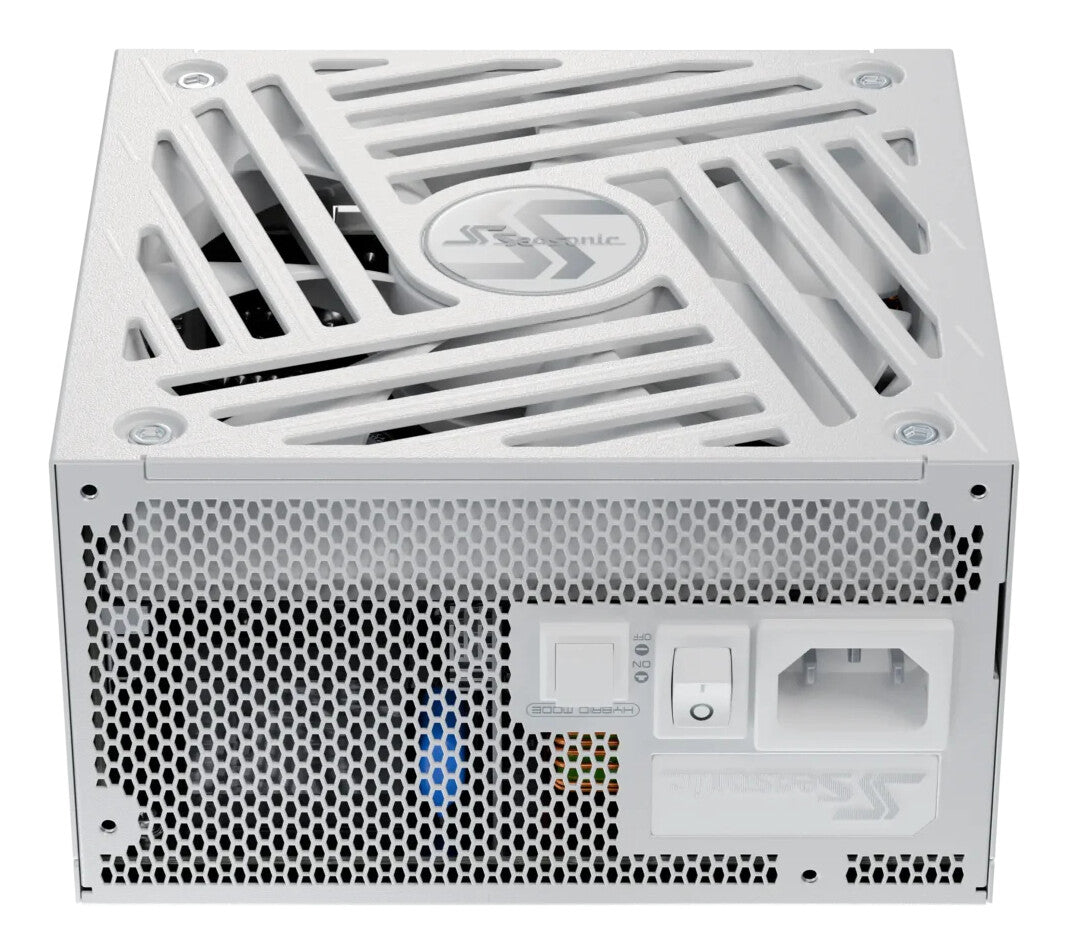

| On/off switch | Yes |

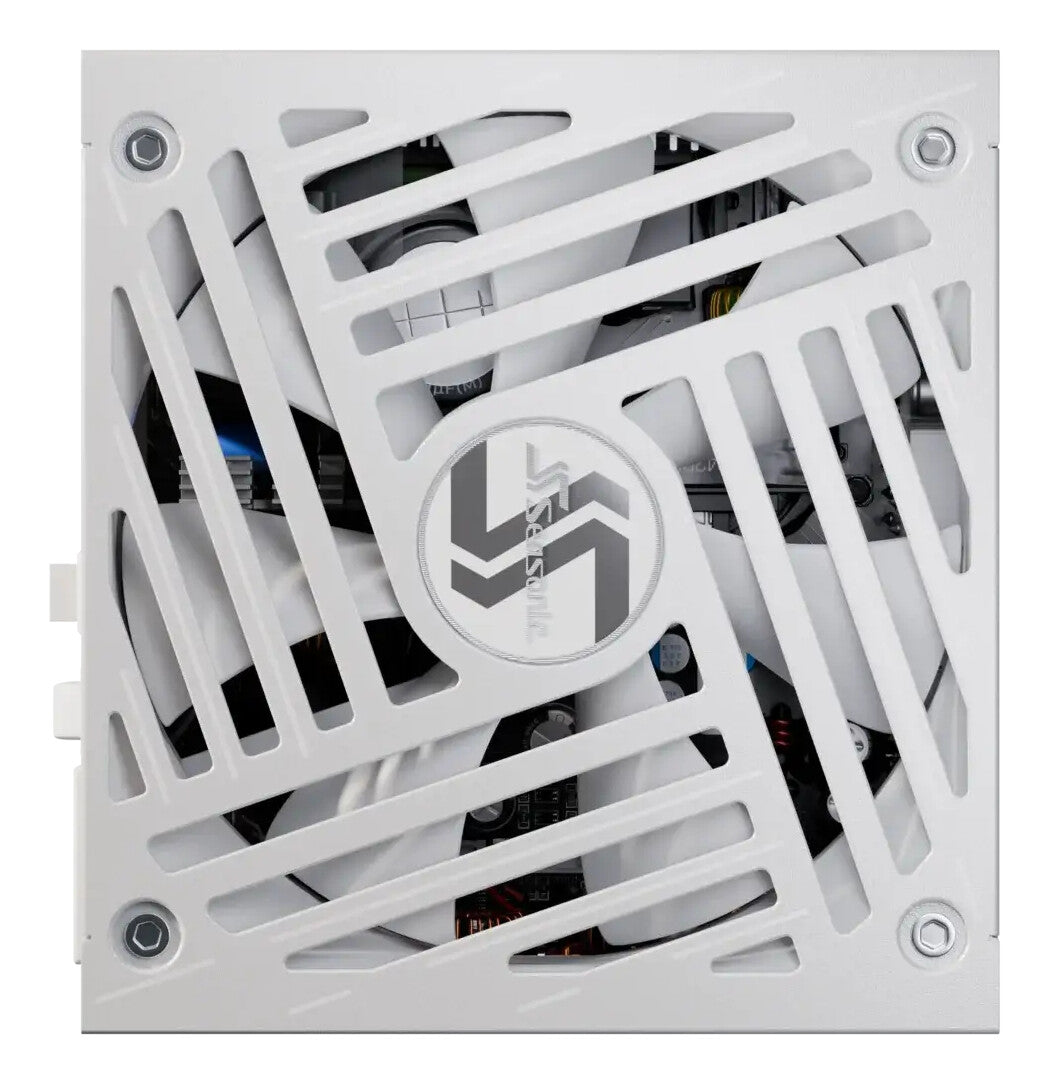

| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | White |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| General | |
|---|---|
| Product family | Focus |
| Certificates | |
|---|---|
| Certification | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, TÜV mark, cTUVus |

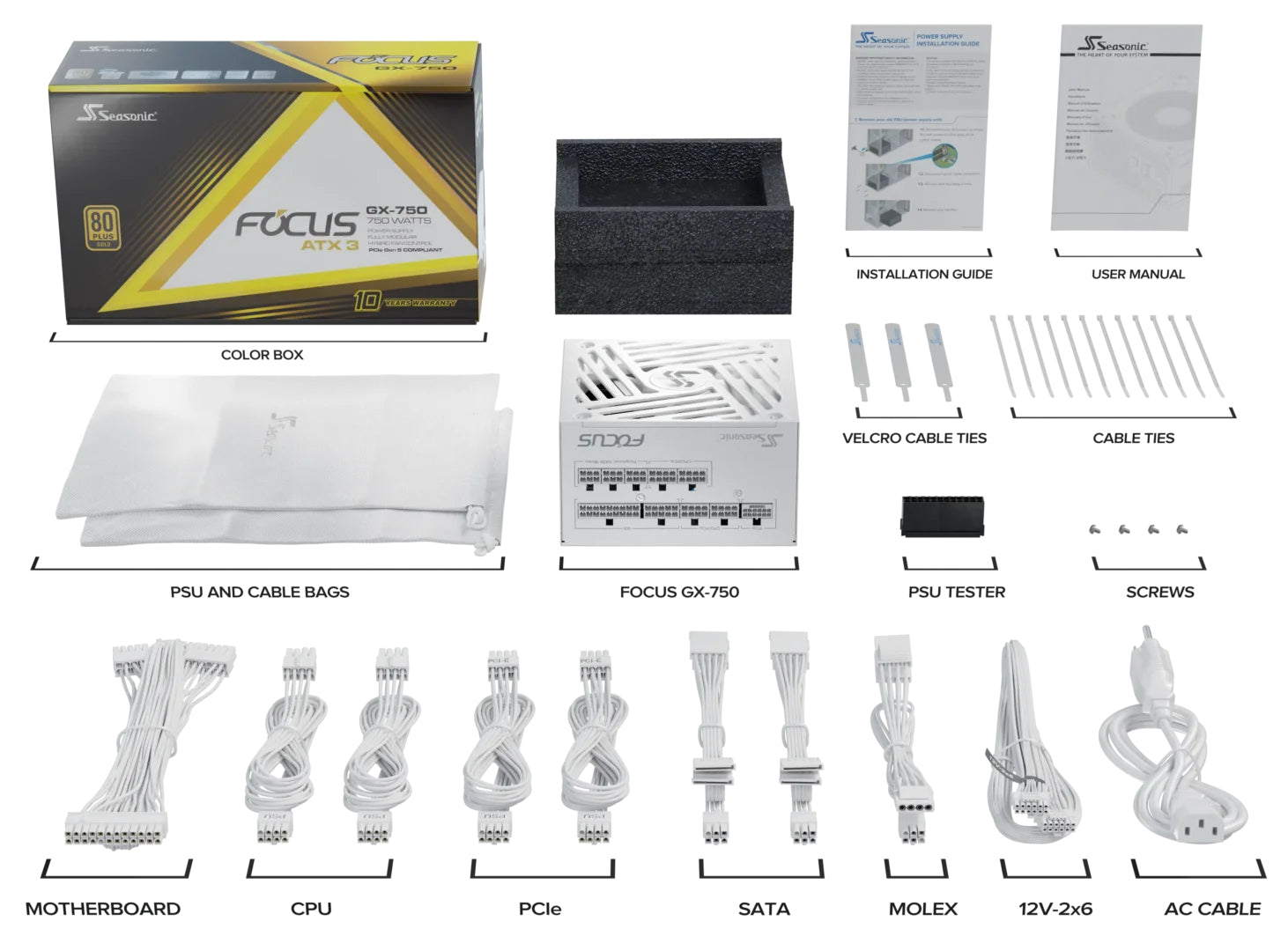

| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
