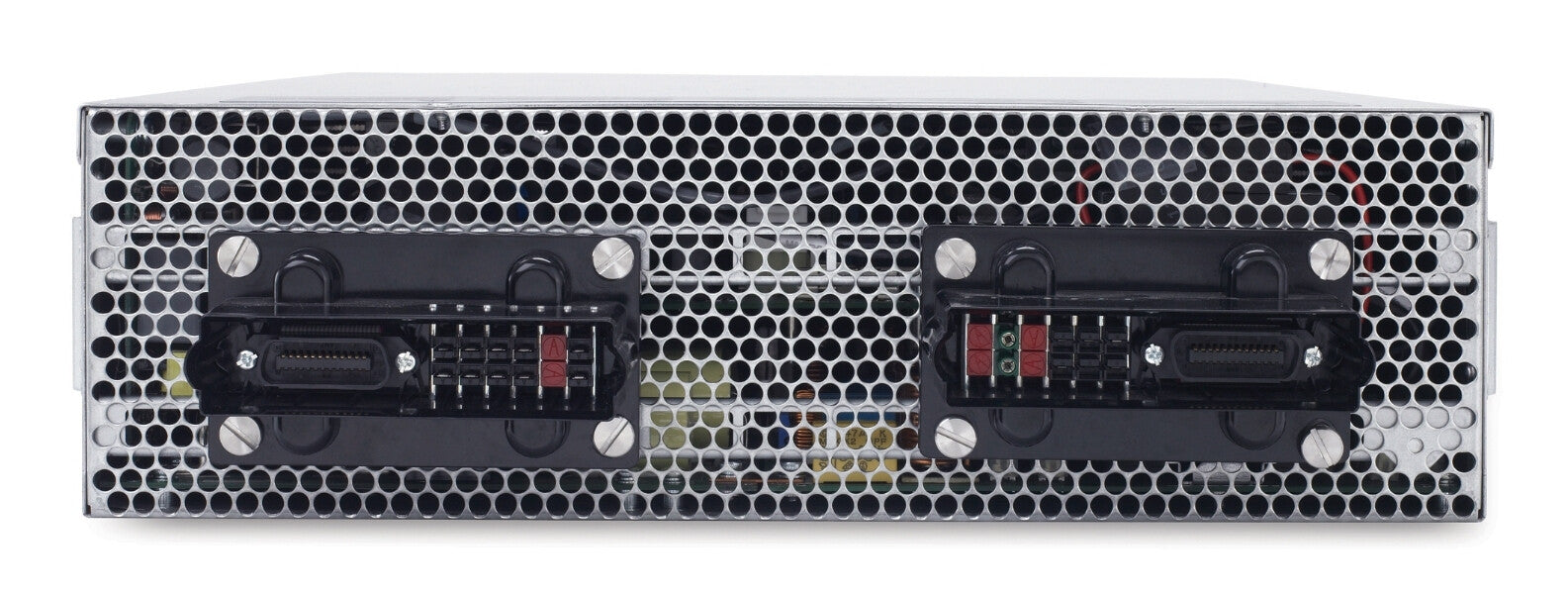

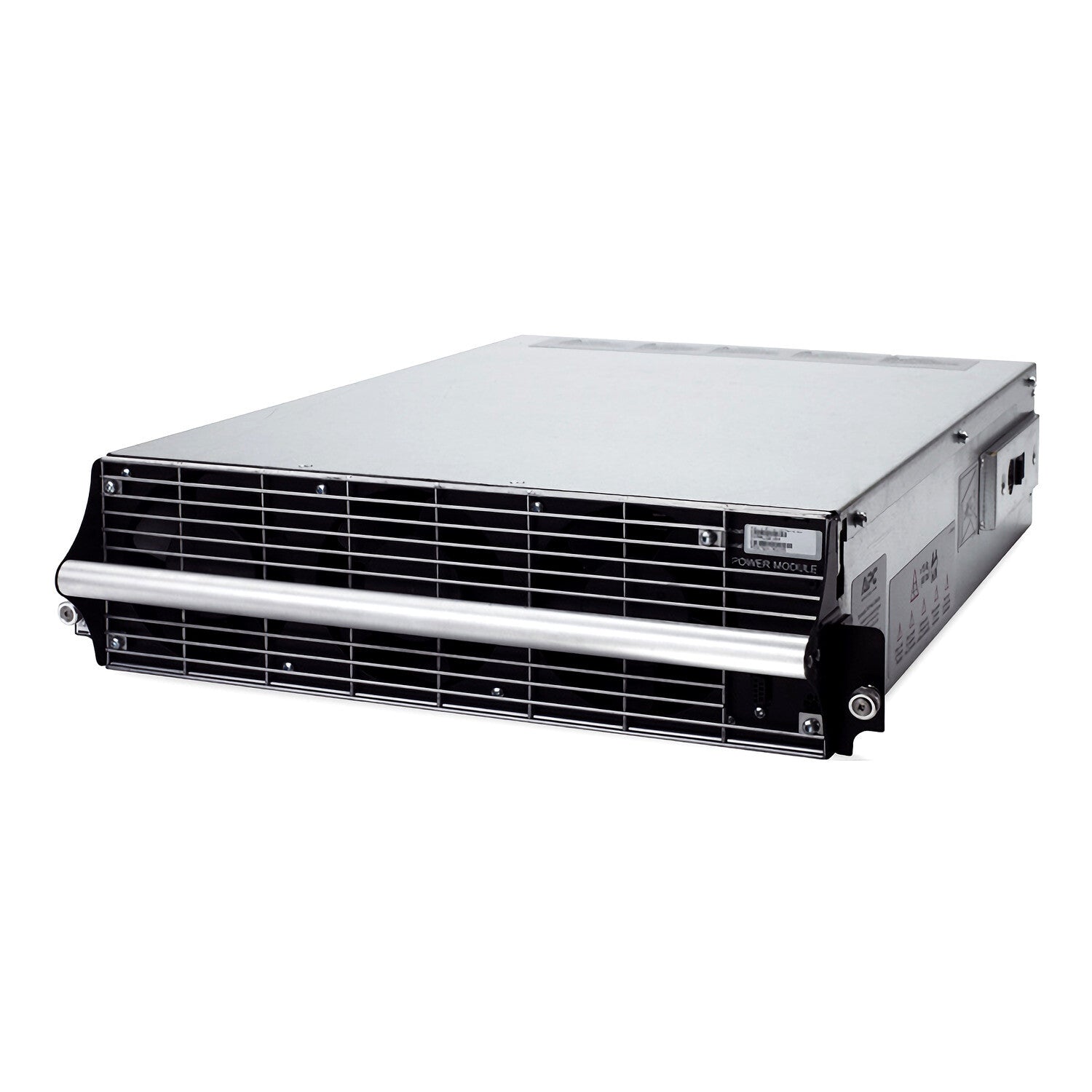

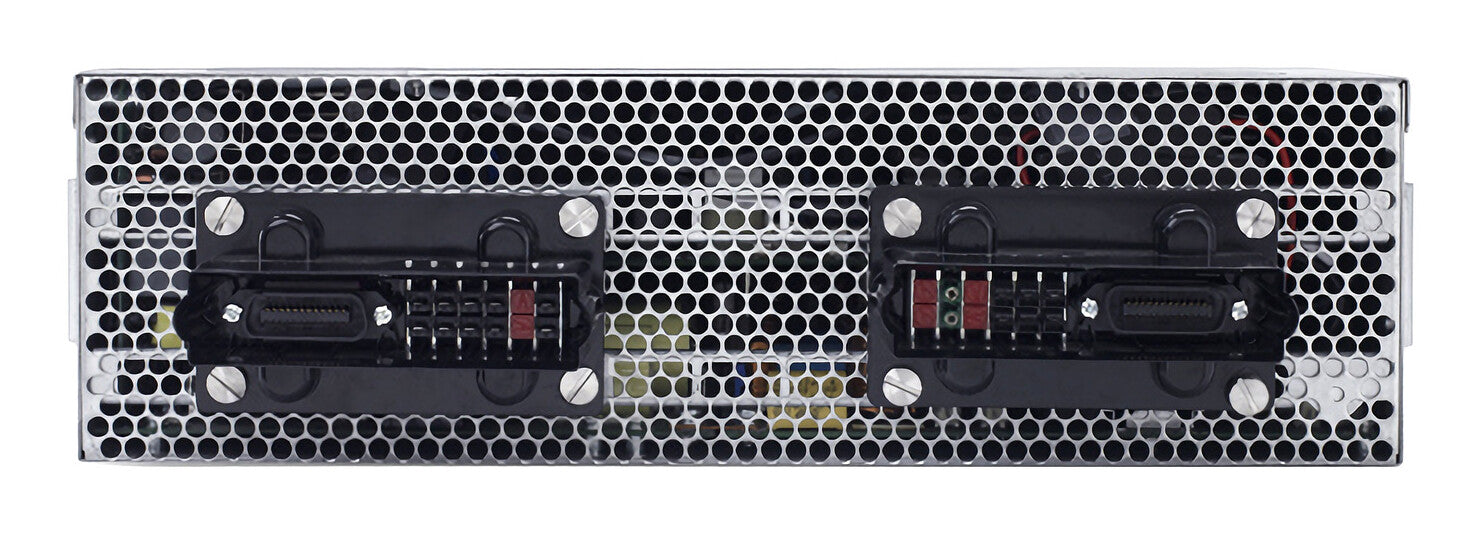

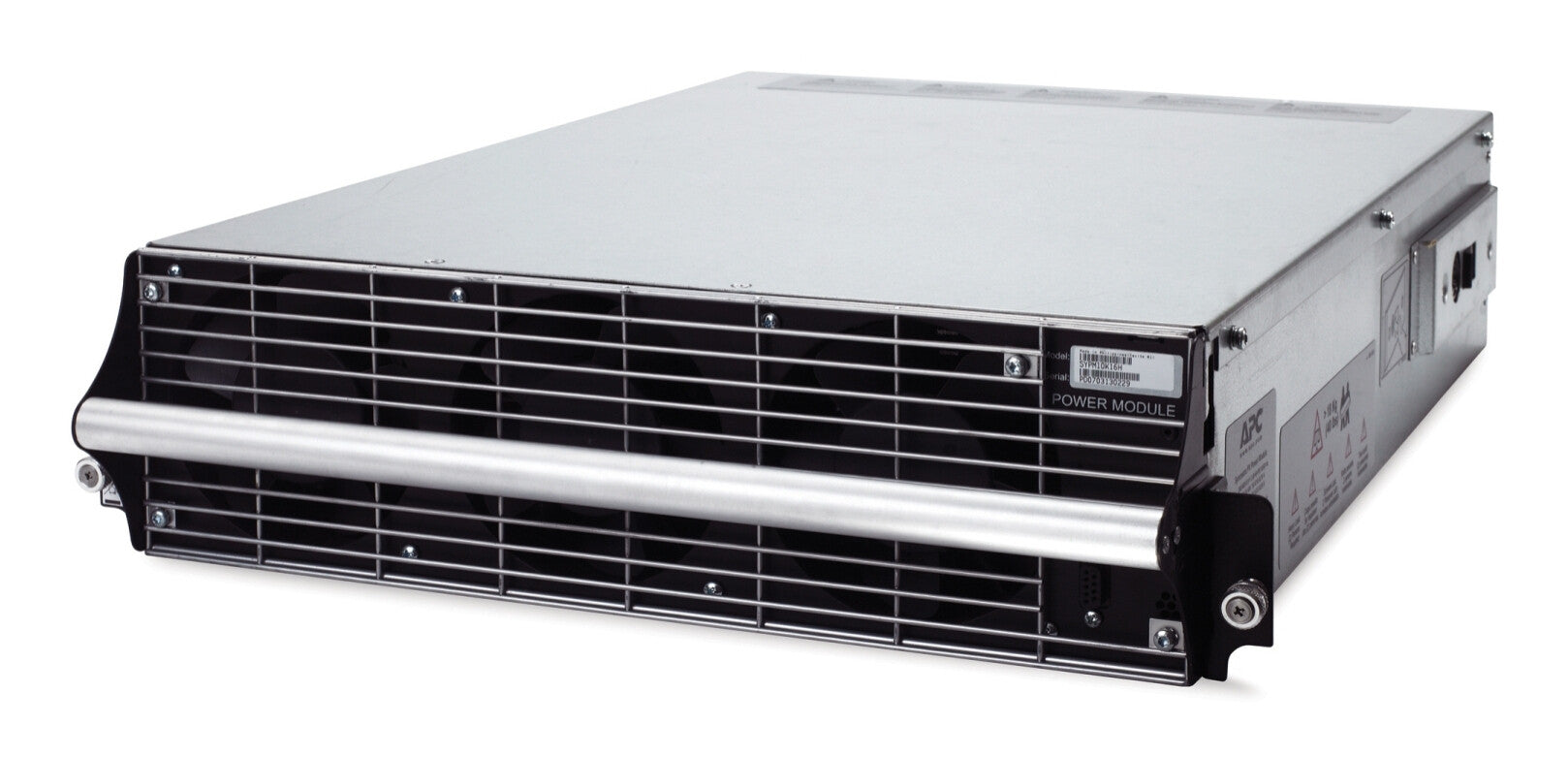

Schneider Electric Symmetra PX Power Module, 10/16kW, 400V
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 2
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 3
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 4
1 / 4
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 2
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 3
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 4
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 2
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 3
Schneider Electric Symmetra PX Power Module, 10/16kW, 400V - image 4

Schneider Electric Symmetra PX Power Module, 10/16kW, 400V

Schneider Electric · MPN: SYPM10K16H
£6,750.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,250.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Input power factor correction minimizes installation costs by enabling the use of smaller generators and cabling
  • Modular design speeds up mean time to repair (MTTR)
  • Compatible with 400V Symmetra PX 48 and 96/160kW
  • Compatible with 208V Symmetra PX 20, 40, and 80kW

"A 16 kW high efficiency power module for the Symmetra PX 160 kW & PX 48 kW." "This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10 kW of power protection if installed in a PX 80 kW, 40 KW or 20 kW all-in-one."

Specifications

Features

Product typePower module
Product colourBlack, Grey
Noise level63 dB

Power

Load capacity16000 VA
Capacity16000 W
Input voltage400 3 phases
Input frequency40/70 Hz
Output voltage230 V
Number of phases3
Maximum total current draw per phase33 A
DC input voltage400 V 3 phases
Output connection typehard wire 5-wire (3P + N + E) for 1 zone(s)
Output power capacity16 kVA
Show all 32 specificationsShow fewer specifications

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
CertificationCE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1015 m
Non-operating altitude0 - 4572 m

Weight & dimensions

Width483 mm
Depth700 mm
Height132 mm
Weight28.5 kg

Technical details

Mountingfront
Packaging recycled materialsRecycled cardboard
Packaging without single use plasticNo
Take-back systemNo
SCIP numberf4c2965e-f80d-4830-8cd4-be926afb0f45
Sustainable packagingNo
