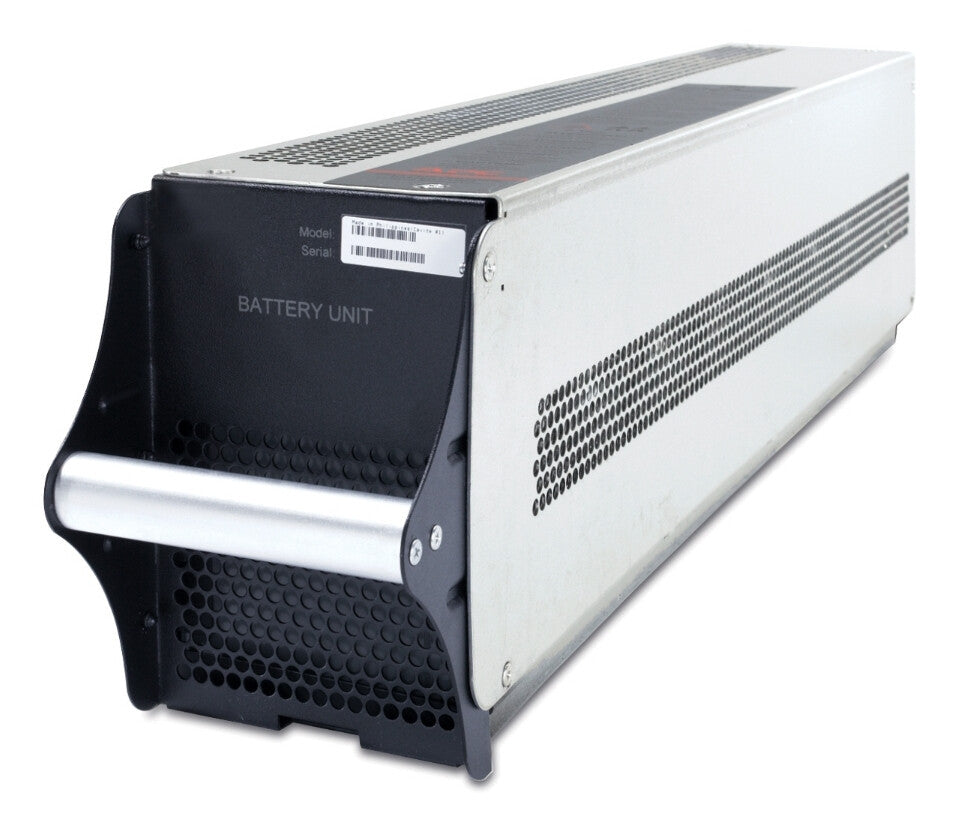

Schneider Electric APC Symmetra PX 9Ah Battery Unit, High Performance
Couldn't load pickup availability
- Black, Metallic
- Sealed Lead Acid (VRLA)
- 9 Ah
- 1 pc(s)
For Symmetra PX 100, it is recommended to replace all four batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 100, you must order battery units in multiples of 2 and you must replace string positions A+B or C+D, as the batteries are connected in pairs. The batteries in each half string must be from the same manufacturer. For Symmetra PX 250/500, it is recommended to replace all six batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 250/500, you must order battery units in multiples of 3 and you must replace the batteries in string position A+B+C or D+E+F, as they are connected in pairs. The batteries in each half string must be from the same manufacturer.
| Features | |
|---|---|
| Product colour | Black, Metallic |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Number of batteries included | 1 pc(s) |
| Compatibility | Symmetra PX 100 |
| Certificates | |
|---|---|
| Compliance certificates | CE |
| Certification | UL 1778 |
| Weight & dimensions | |
|---|---|
| Weight | 25.2 kg |
| Width | 107 mm |
| Height | 159 mm |
| Depth | 700 mm |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package height | 135 mm |
| Package depth | 830 mm |
| Package weight | 26.5 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1015 m |
| Non-operating altitude | 0 - 4572 m |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8507.60 |
