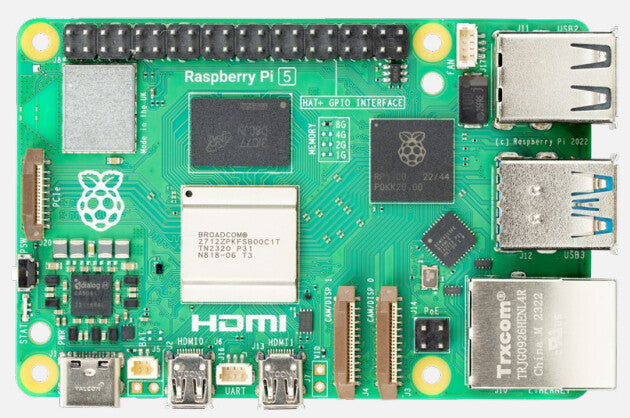

Raspberry Pi 5B development board Arm Cortex-A76 2400 MHz
Couldn't load pickup availability
- Power button
- Dual 4Kp60
- Real-time clock
- UART debug port
RP1
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
More than twice as fast and infinitely smoother
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.
All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
| Processor | |
|---|---|
| 64-bit computing | Yes |
| Processor cores | 4 |
| Processor cache | 512 KB |
| Processor model | Arm Cortex-A76 |
| Processor manufacturer | ARM |
| Processor frequency | 2400 MHz |
| Memory | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory type | LPDDR4x-SDRAM |
| Maximum internal memory | 8 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| Integrated LAN | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Expansion slots | |
|---|---|
| PCI Express interface data lanes | x1 |
| PCI version | 2.0 |
| Features | |
|---|---|
| On/off button | Yes |
| Real-time clock (RTC) | Yes |
| Power | |
|---|---|
| USB powered | Yes |
| Input current | 5 A |
| DC input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 49 mm |
| Board dimensions | 85 x 49 mm |
