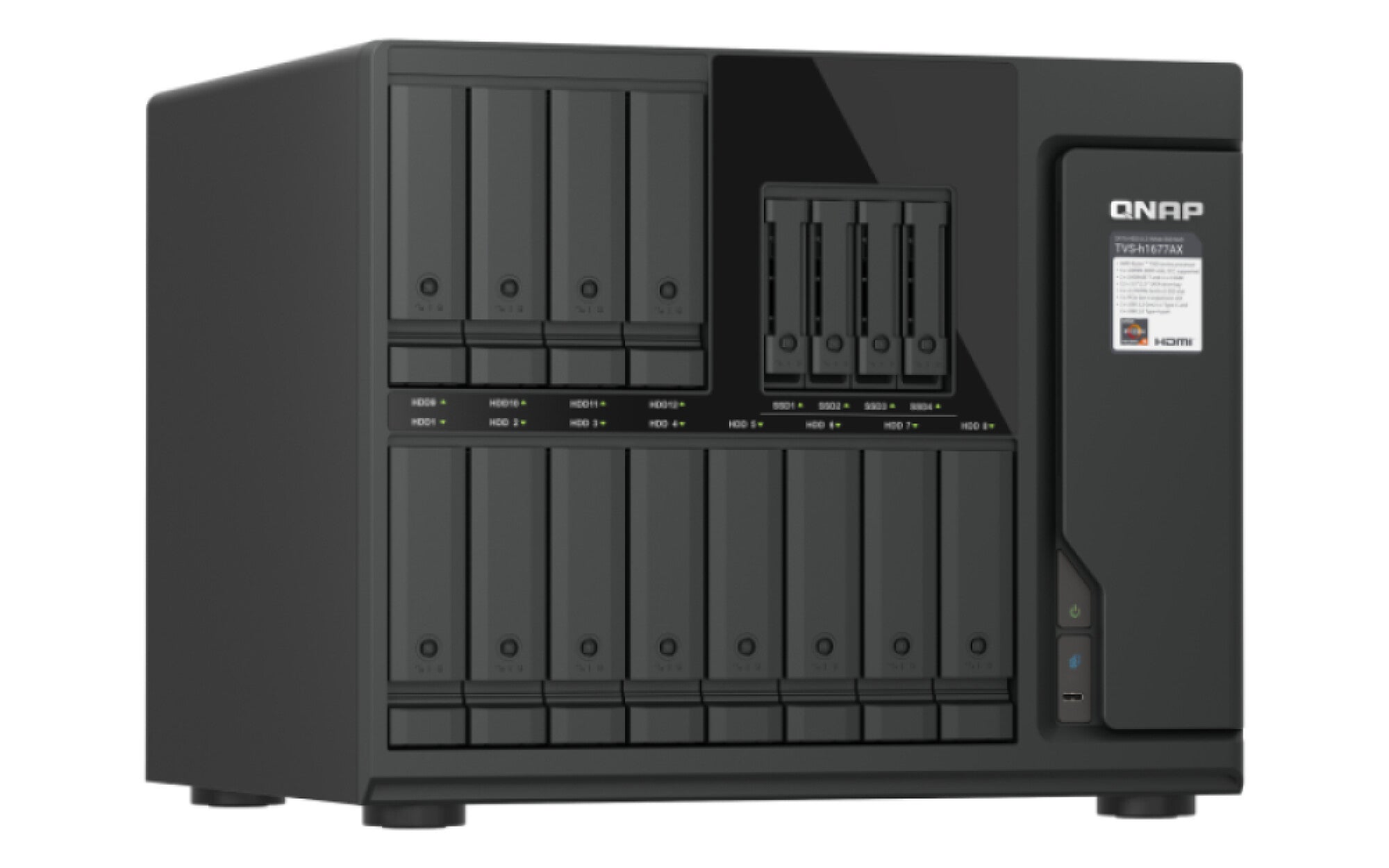

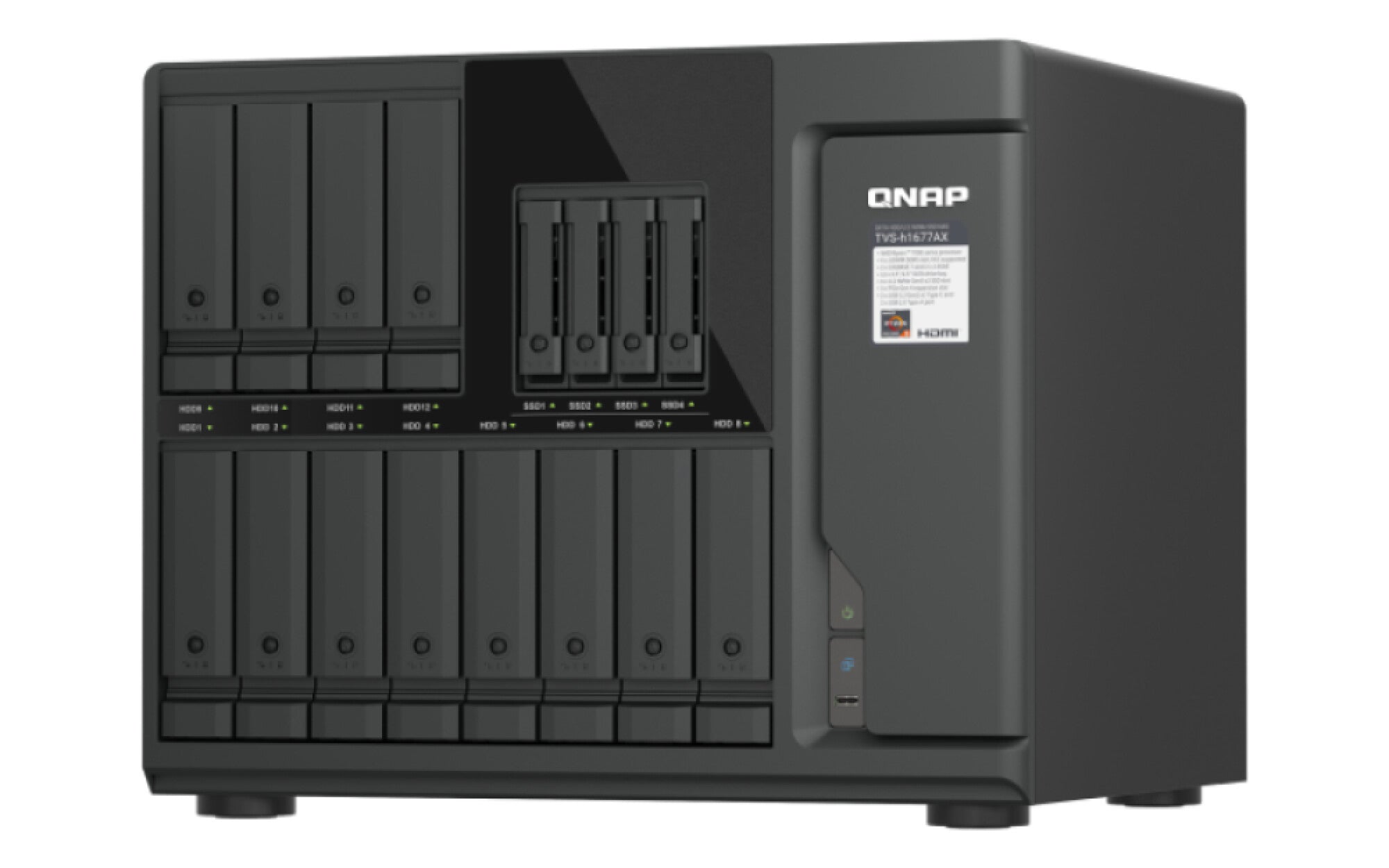

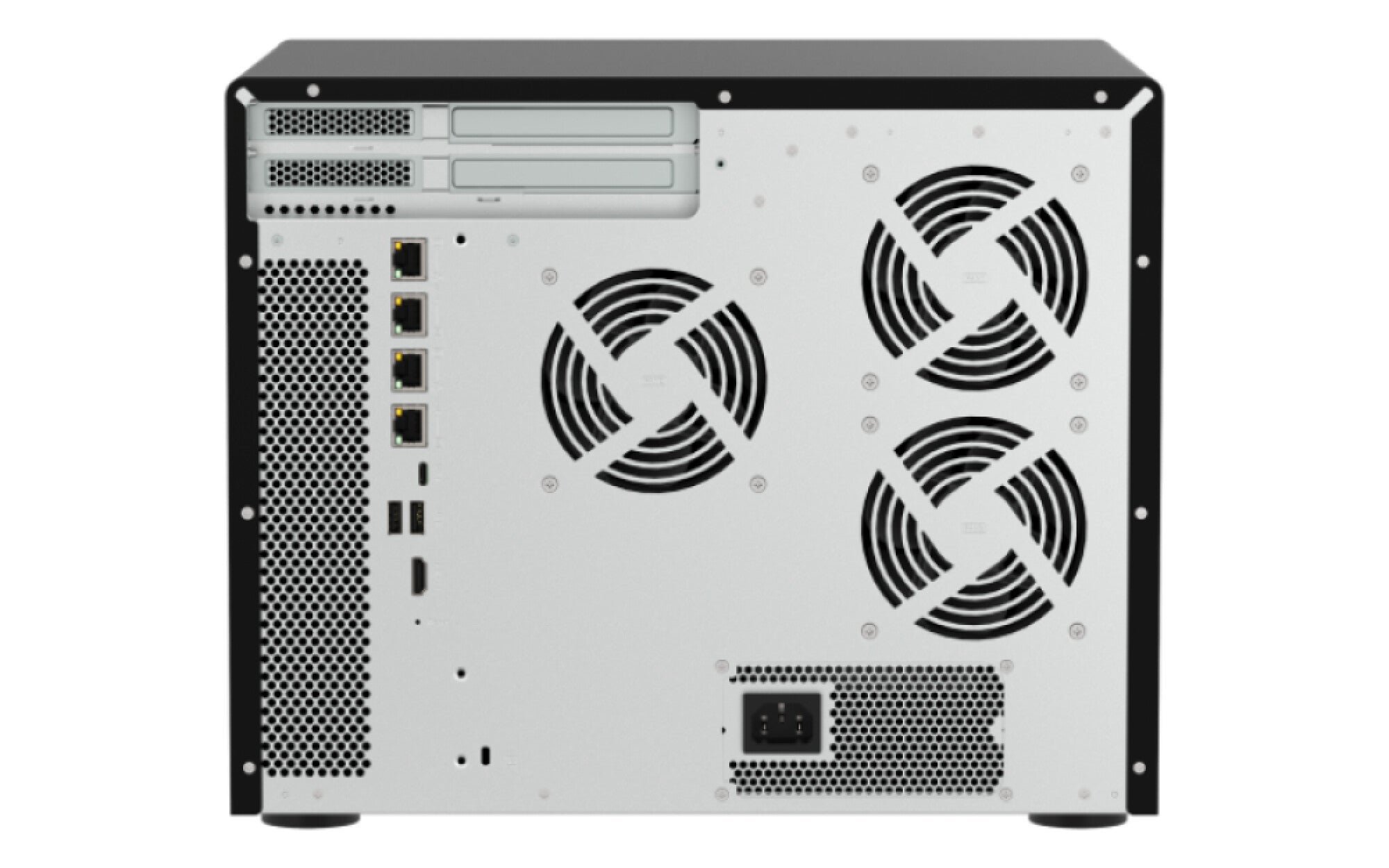

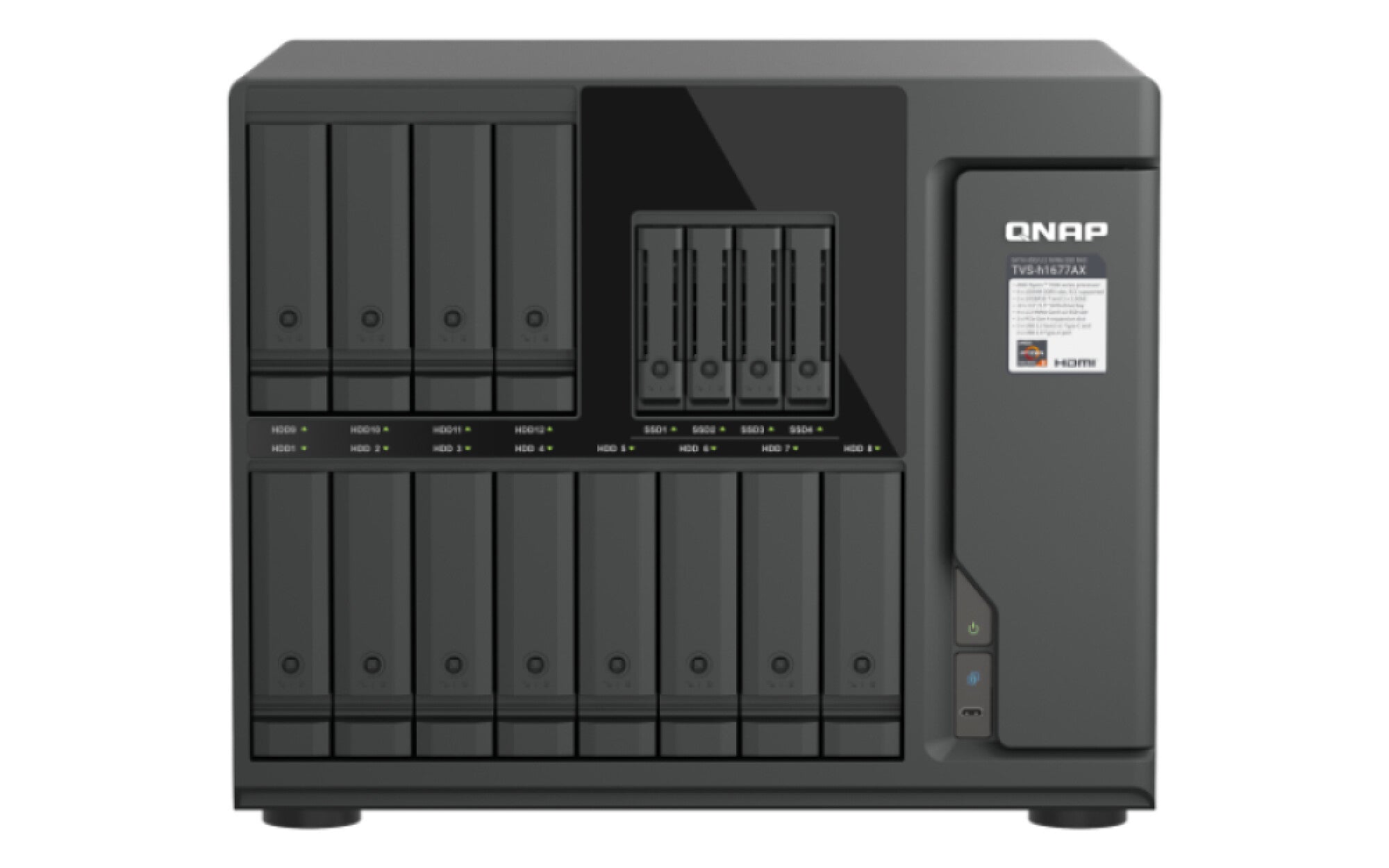

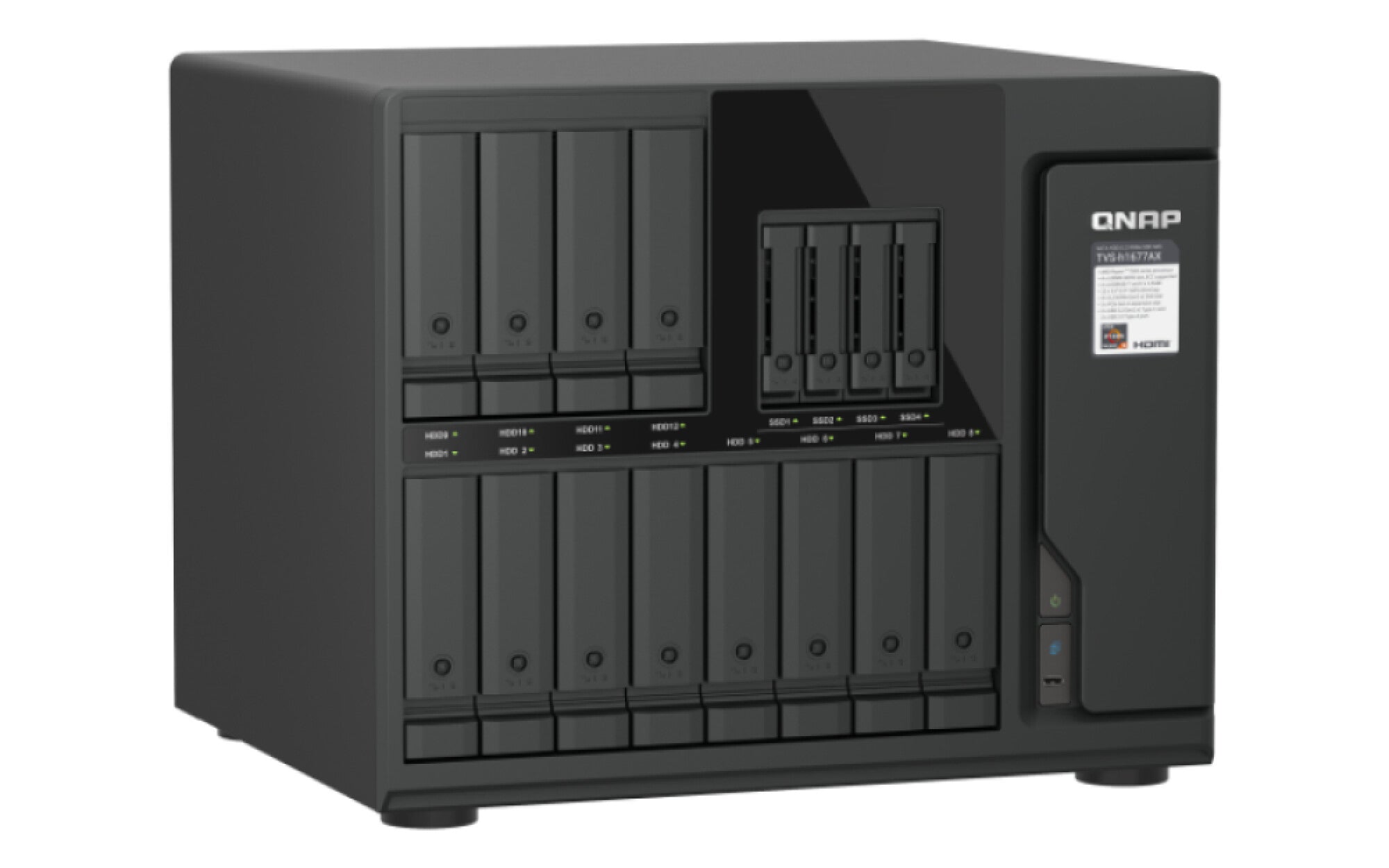

QNAP TVS-H1677AX-R5-16G NAS/storage server Tower AMD Ryzen™ 5 16 GB DDR5 0 TB QuTS hero Black
£5,742.99
inc. VATSpread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,914.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Internal memory16 GB
- Internal memory typeDDR5
- Operating system installedQuTS hero
- Weight11 kg
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Zen 4 Architecture & DDR5 RAM: Powered by AMD Ryzen™ 7000 Series 6 Core processor and supporting up to 192 GB DDR5 memory (optional ECC supported).
- Accelerate with U.2 SSDs: Features multiple hybrid bays supporting U.2 PCIe Gen 4 NVMe SSDs for massive bandwidth.
- Accelerate AI with NFS over RDMA: Bypass CPU overhead for high-throughput, low-latency direct storage ideal for AI workloads.
- 10GbE & 2.5GbE: Built-in dual 10GBASE-T and dual 2.5GbE ports accelerate large file sharing.
- PCIe Gen 4 Expansion: Three PCIe Gen 4 slots for 25GbE cards or NVIDIA RTX™ GPU cards.
- Virtualization Applications: Supports VMs, containers, centralized storage, backup, and disaster recovery.
TVS-h1677AX
Enterprise ZFS Hybrid Desktop NAS — Accelerate Creative & Virtualization Workflows
Powered by AMD Ryzen™ 7000 Series 6 Core processor and DDR5 memory, the TVS-h1677AX series combines ZFS data integrity with the upcoming Qtier storage tiering technology. It redefines performance standards for professional video collaboration and enterprise virtualization.
Specifications
Storage
| Storage drives installed | No |
|---|---|
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 16 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III, Serial ATA II, U.2 |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | ext3, ext4, NTFS, FAT32, HFS, HFS+, exFAT |
| Bad block scan | Yes |
| Auto-rebuild | Yes |
| Disk roaming | Yes |
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Number of processors supported | 1 |
Show all 73 specificationsShow fewer specifications
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR5 |
| ECC | Yes |
| Memory form factor | UDIMM |
| Memory slots | 4 |
| Flash memory | 5000 MB |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 2500,10000,1000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
|---|---|
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
Design
| Chassis type | Tower |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Fan diameter 2 | 6 cm |
| Fan diameter | 8 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
Performance
| Type | NAS |
|---|---|
| Device class | Home & Home Office |
| Backup function | Yes |
| Buzzer | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Access Control List (ACL) | Yes |
| On/off switch | Yes |
Software
| Operating system installed | QuTS hero |
|---|---|
| Operating system version | h5.2.9 |
Power
| Power supply location | Built-in |
|---|---|
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Width | 369.9 mm |
|---|---|
| Depth | 319.8 mm |
| Height | 294.3 mm |
| Weight | 11 kg |
| Package width | 440 mm |
| Package depth | 469 mm |
| Package height | 493 mm |
| Package weight | 13.2 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
