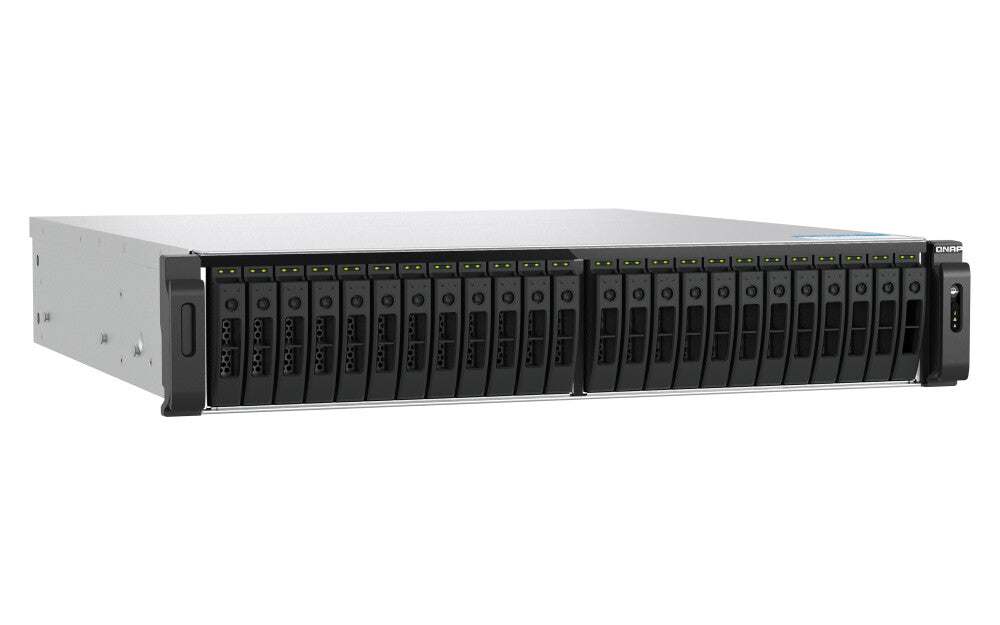

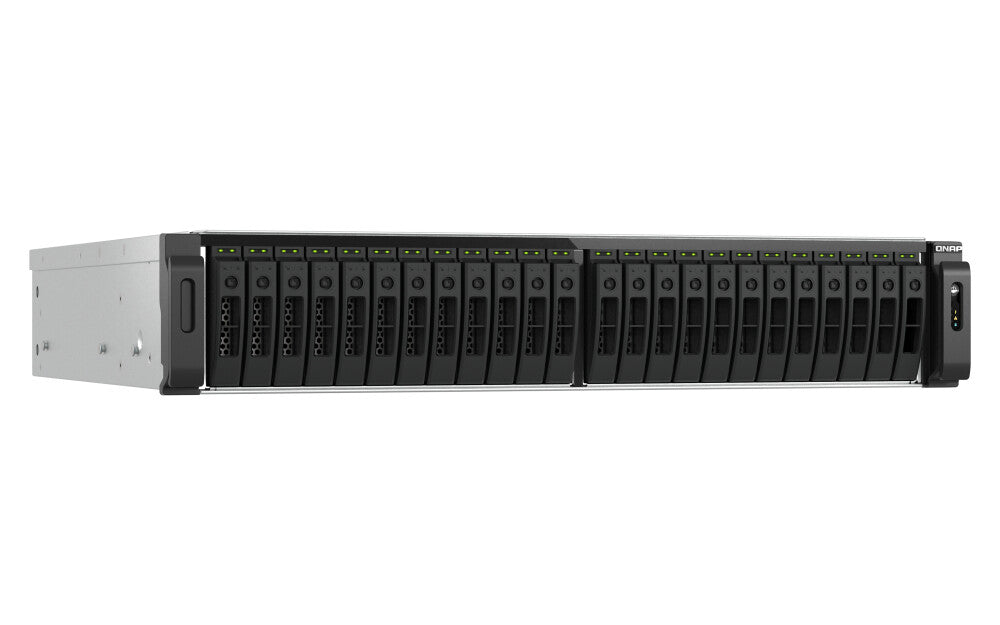

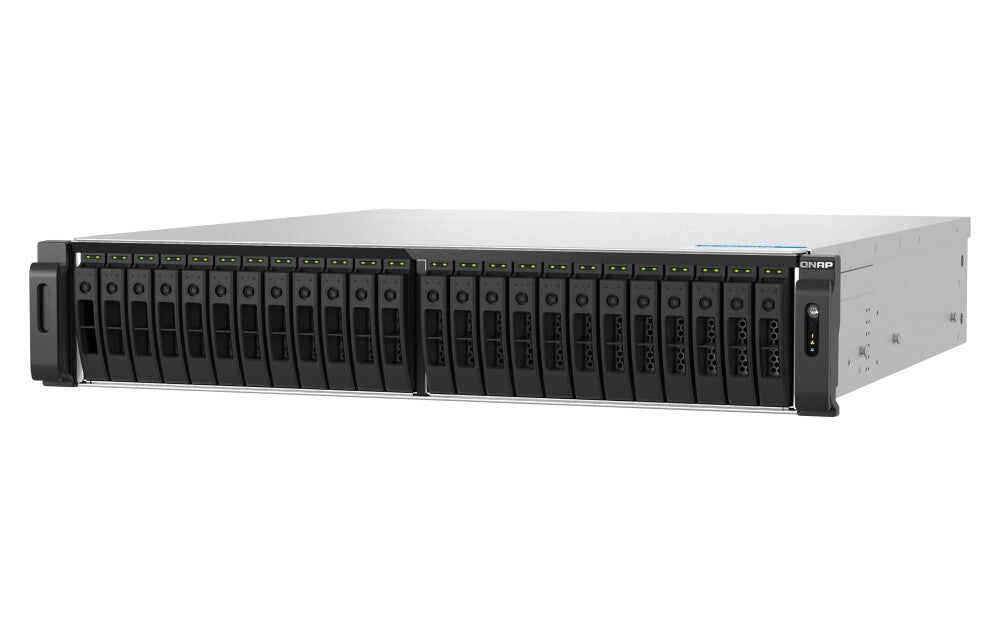

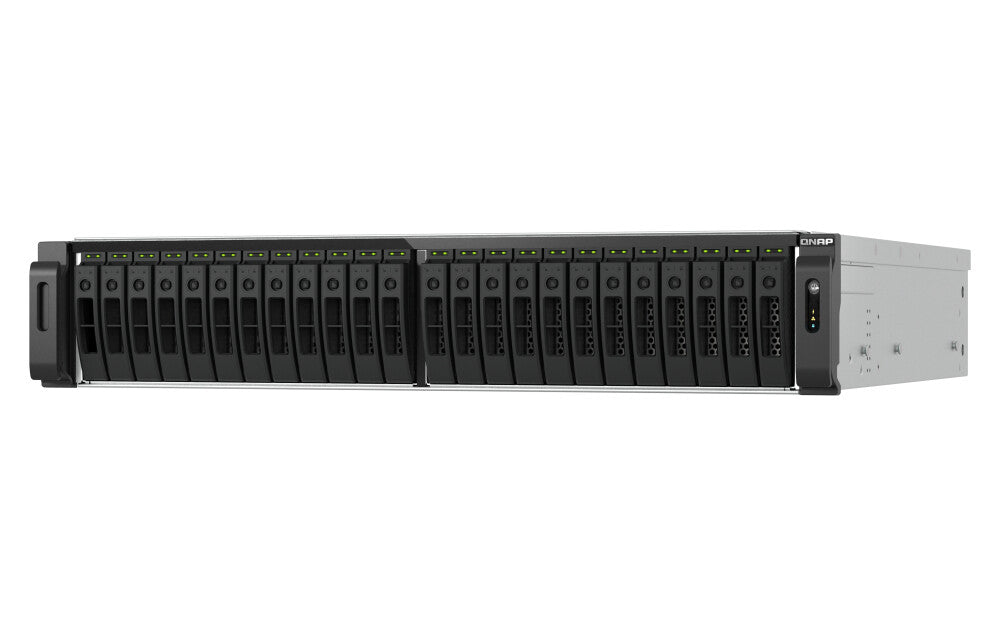

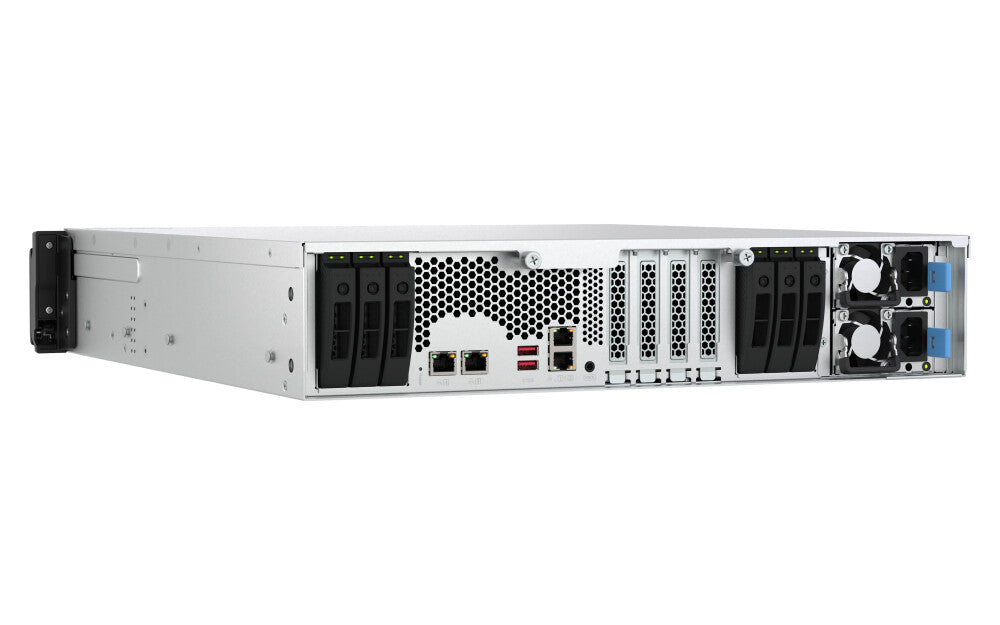

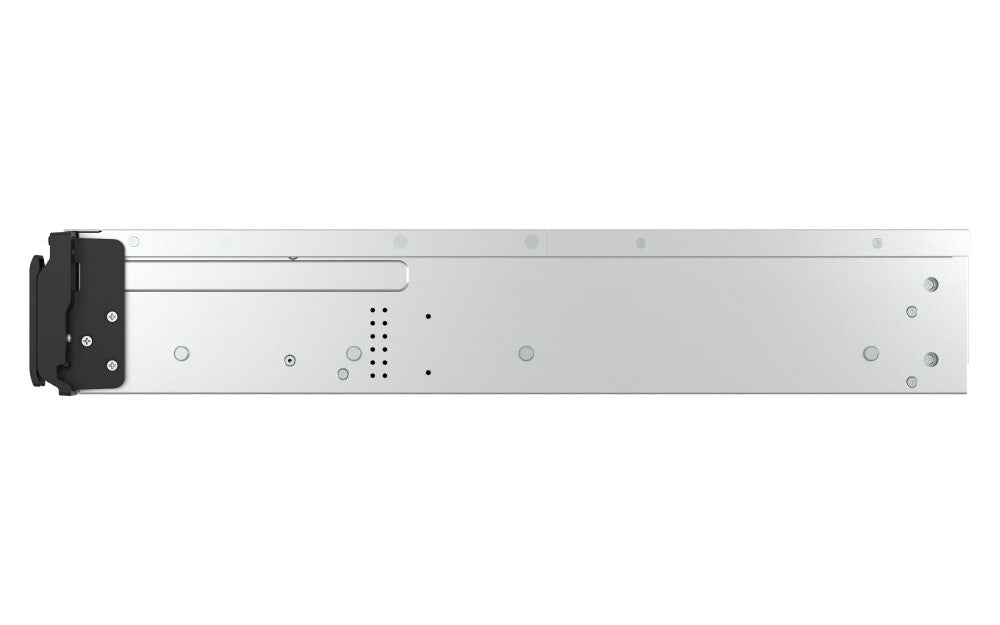

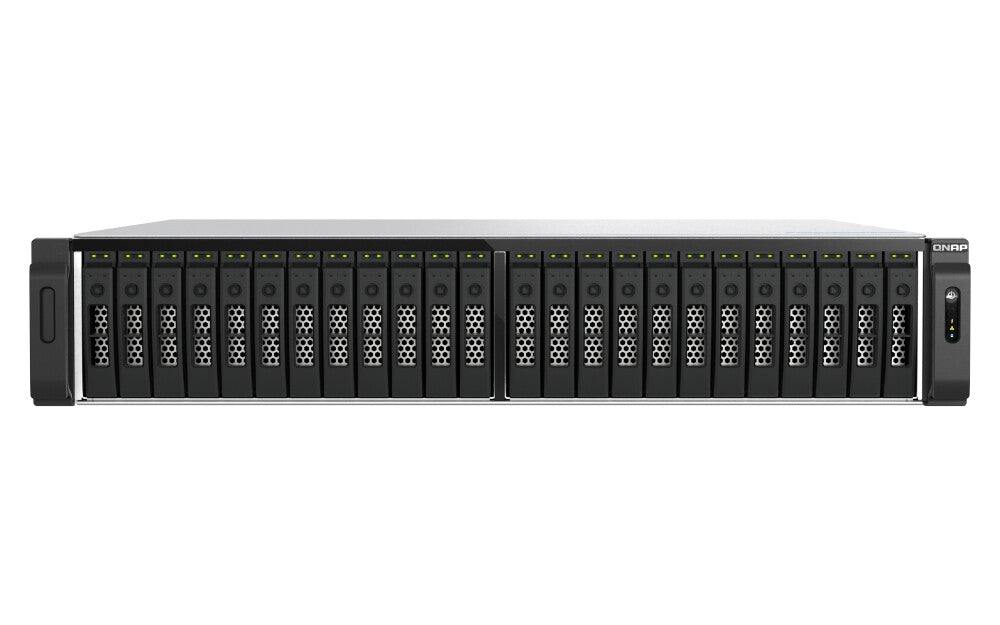

QNAP TS-H3077AFU-R7-64G NAS/storage server Rack (2U) AMD Ryzen™ 5 64 GB DDR5 0 TB QuTS hero Black, Metallic
£8,586.99
Couldn't load pickup availability
- Optimized SSD performance: The QuTS hero operating system maximizes SSD performance and lifespan by featuring technologies such as inline data deduplication, QSAL (QNAP SSD Antiwear Leveling), and more
- 2 x 10/2.5 GbE as standard and upgradable to 100 GbE: Upgrade to 100/25 GbE using a PCIe network card and accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks
- Long-term and stable supply: The TS-h3077AFU will be available and supported by QNAP for an extended period, up to 2030
- Built-in GPU for graphics: Power-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks
- Petabyte-scale storage: Connect up to eight 24-bay JBODs (TL-R2400PES-RP) to attain petabyte-scale storage capacity of 192 drives
- DDR5 RAM: Uses industry-leading DDR5 RAM. Expandable to 192 GB for handling more tasks, and supports ECC memory
TS-h3077AFU
Highly reliable ZFS-based all-flash NAS with AMD Ryzen™ 7000 series processor – boosting all-round business with petabyte-scale storage and 100 GbE potential
Gain a competitive advantage by deploying an AMD Ryzen™ 7000 series-powered SATA SSD all-flash storage with 30 drive bays. The TS-h3077AFU is ideal for media production companies, enterprises, and science research institutions that require high-performance large capacity storage for storing recordings, business assets, Big Data, and virtual machines.
| Storage | |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 30 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5" |
| RAID support | Yes |
| Hot-swap drive bays | Yes |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Memory | |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 192 GB |
| ECC | Yes |
| Memory form factor | UDIMM |
| Memory slots | 4 |
| Flash memory | 5000 MB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black, Metallic |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | LAN, Power, SSD, Status |
| Performance | |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Snapshot | Yes |
| Reset button | Yes |
| Built-in FTP server | Yes |
| On/off switch | Yes |
| Software | |
|---|---|
| Operating system installed | QuTS hero |
| Operating system version | h5.2.1 |
| Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows 11 |
| Linux operating systems supported | Ubuntu 14.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, Solaris 10 |
| Power | |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 380.23 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 549.7 mm |
| Height | 88.3 mm |
| Weight | 12.7 kg |
| Package width | 585 mm |
| Package depth | 739 mm |
| Package height | 305 mm |
| Package weight | 18.7 kg |
| Packaging content | |
|---|---|
| Package type | Box |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
