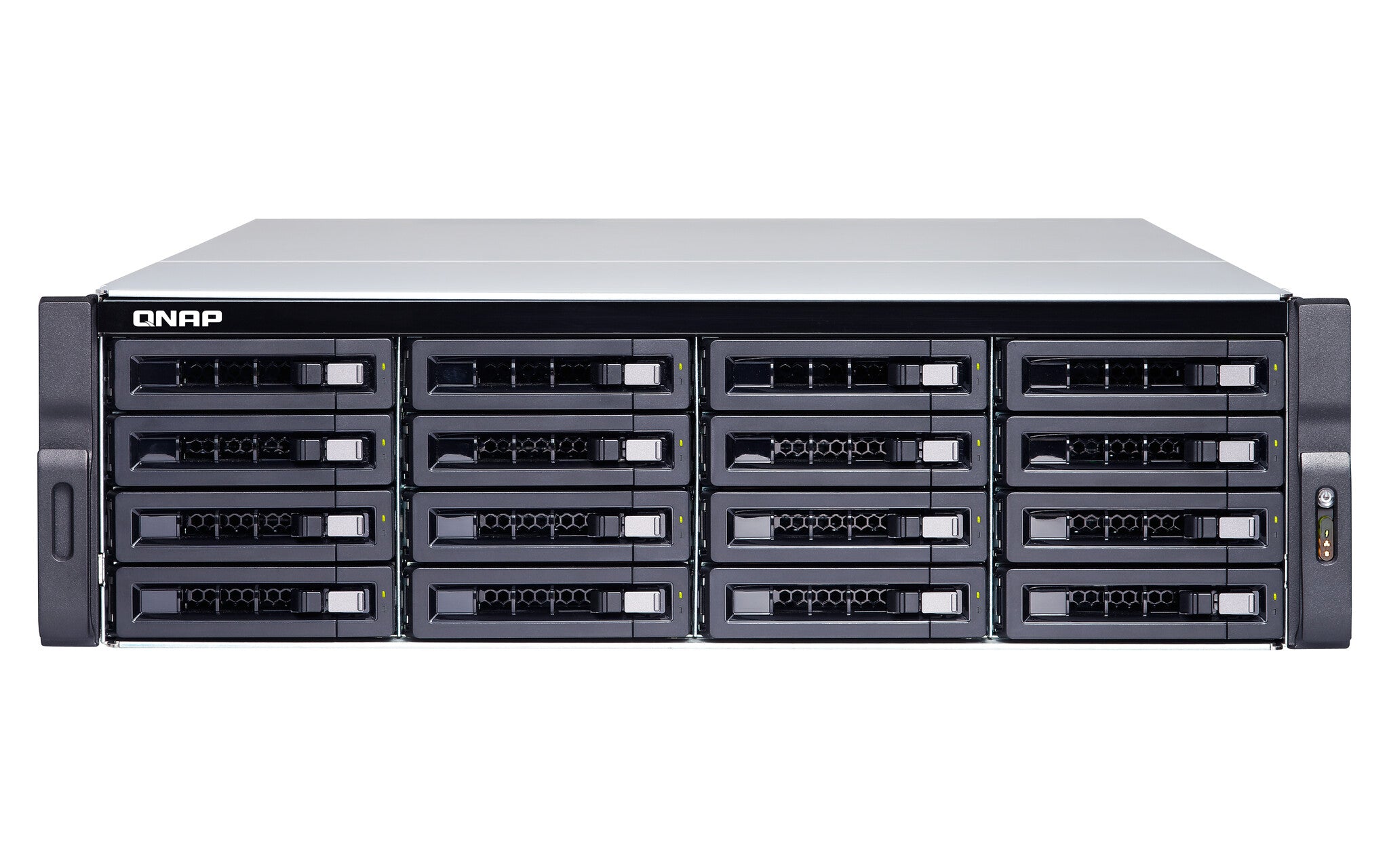

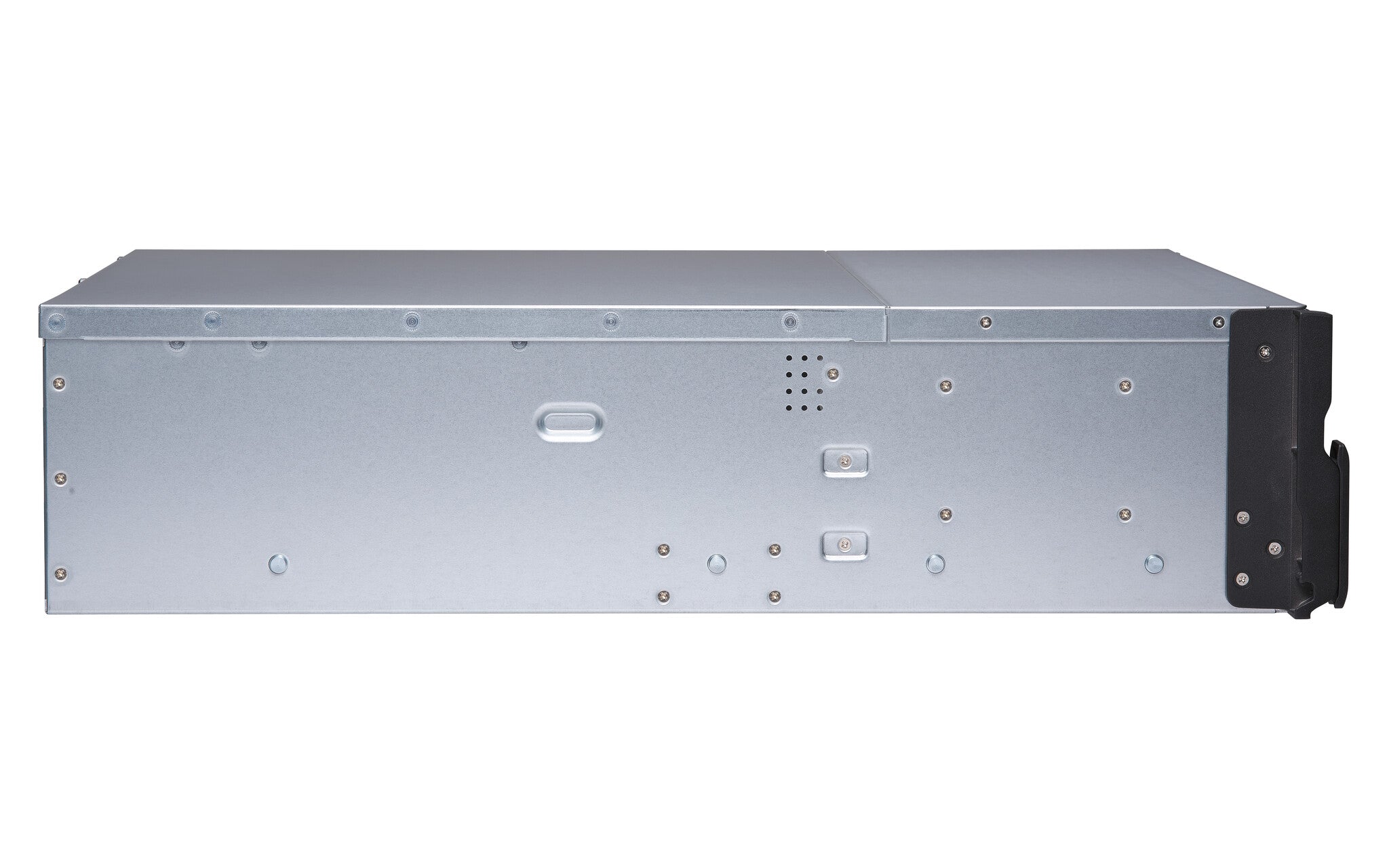

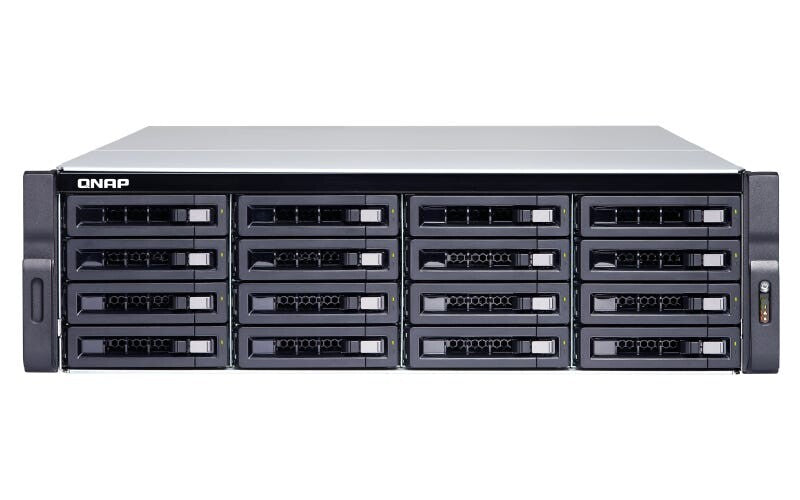

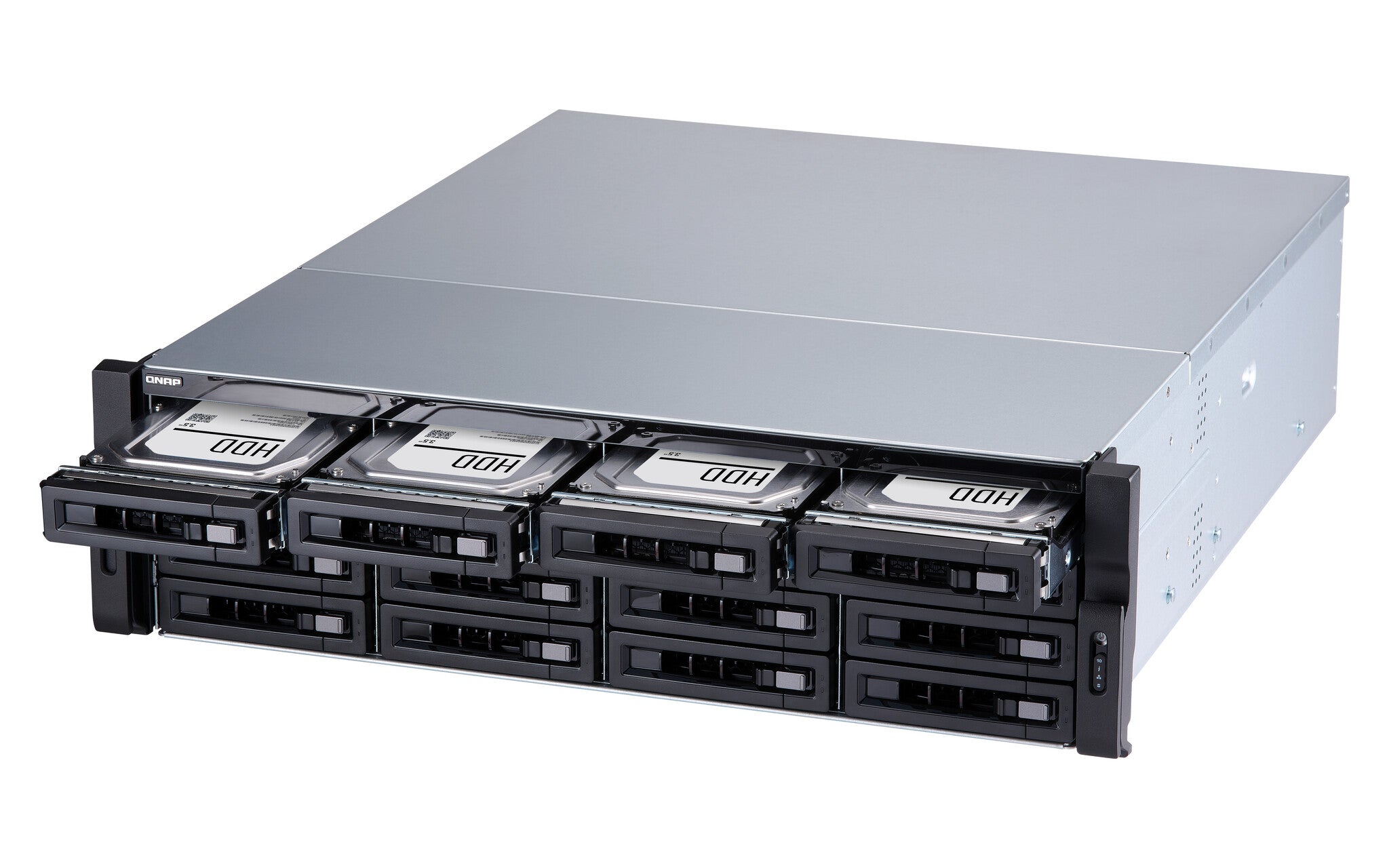

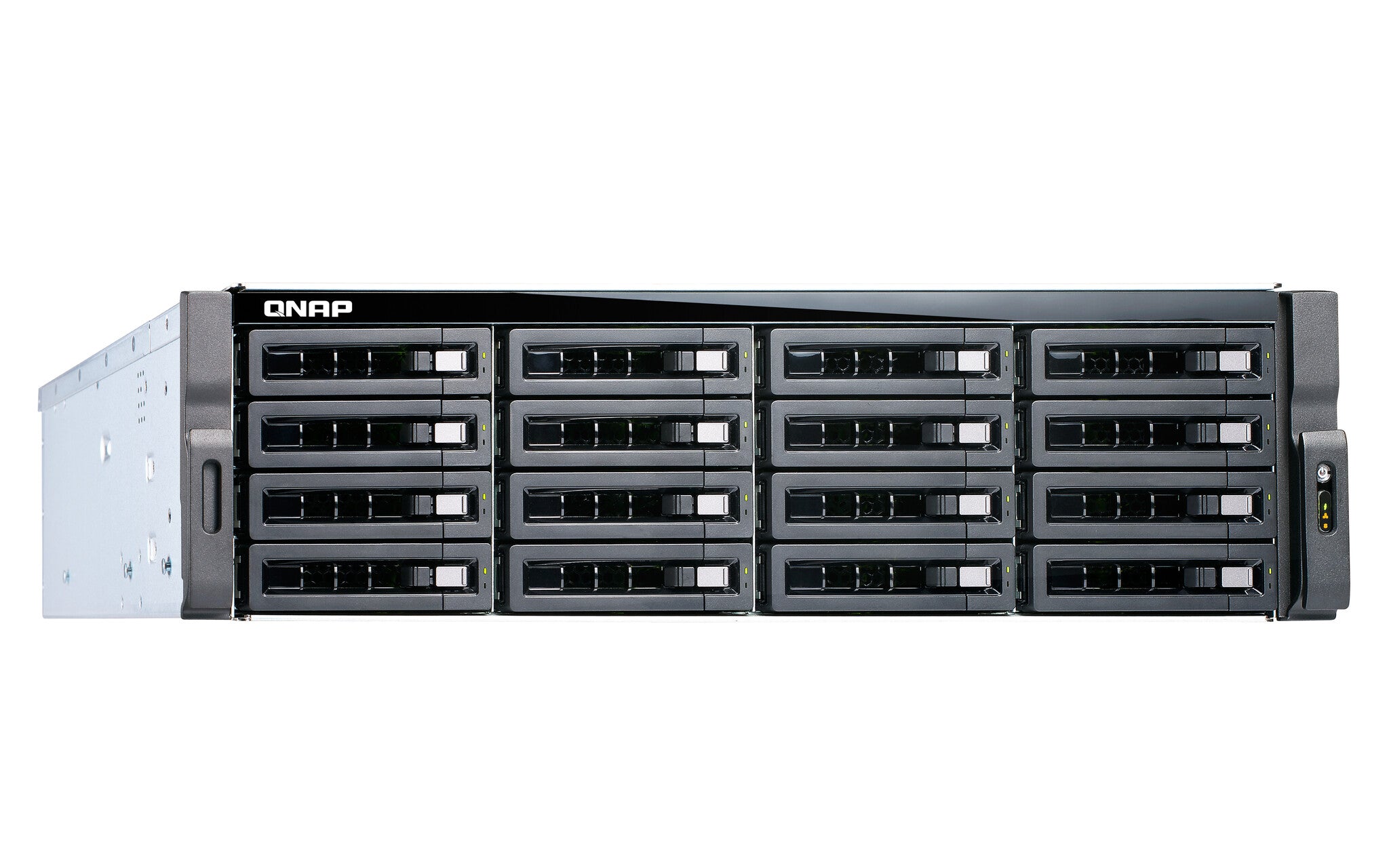

QNAP TS-1683XU-RP NAS Rack (3U) Intel® Xeon® E-2124 16 GB DDR4 128 TB HDD QNAP Turbo System Black, Grey
£8,167.99
Couldn't load pickup availability
- Small & Medium Business NAS Rack (3U) Black, Grey
- QNAP Turbo System 4.3.5
- Total installed storage capacity: 128 TB Number of storage drives supported: 16 HDD & SSD Serial ATA
- Intel® Xeon® E-2124 3.3 GHz
- 16 DDR4 Memory slots: 4 DIMM
- Ethernet LAN 10000 DHCP server Jumbo frames support iSCSI support Wake-on-LAN ready
- Cooling type: Active
- Backup features: Cloud, iSCSI LUN 500 W
The Intel® Xeon® E based TS-1683XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-1683XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.
| Storage | |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 128 TB |
| Number of storage drives installed | 16 |
| Number of storage drives supported | 16 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 8 TB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Bad block scan | Yes |
| Disk roaming | Yes |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2124 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 8 MB |
| System bus rate | 8 GT/s |
| Scalability | 1S |
| Bus type | DMI3 |
| Tjunction | 100 °C |
| Processor codename | Coffee Lake |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 71 W |
| Processor socket | LGA 1151 (Socket H4) |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor cache type | Smart Cache |
| PCI Express slots version | 3.0 |
| On-board graphics card model | Not available |
| Maximum internal memory supported by processor | 128 GB |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | DIMM |
| Memory slots | 4 |
| Flash memory | 4096 MB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| WLAN adapter supported | Yes |
| Dynamic DNS (DDNS) | Yes |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Fan diameter | 9.2 cm |
| LED indicators | Yes |
| Built-in display | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in speaker(s) | No |
| Performance | |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 53 dB |
| Third-party support | Yes |
| Built-in optical drive | No |
| Video input channels | 8 channels |
| Card reader integrated | No |
| Snapshot | Yes |
| Management protocols | SNMP v2/3 |
| Web-based management | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| System log | Yes |
| Built-in iTunes server | Yes |
| Built-in BitTorrent client | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| S.M.A.R.T. support | Yes |
| Built-in UPnP AV media server | Yes |
| On/off switch | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Software | |
|---|---|
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.3.5 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Power | |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 130.43 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Width | 481 mm |
| Depth | 573.5 mm |
| Height | 130 mm |
| Weight | 13.8 kg |
| Package weight | 21.8 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
| Number of screws | 128 |
| Processor special features | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Maximum number of PCI Express lanes | 16 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Memory types supported by processor | DDR4-SDRAM |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
| Processor ARK ID | 134856 |
