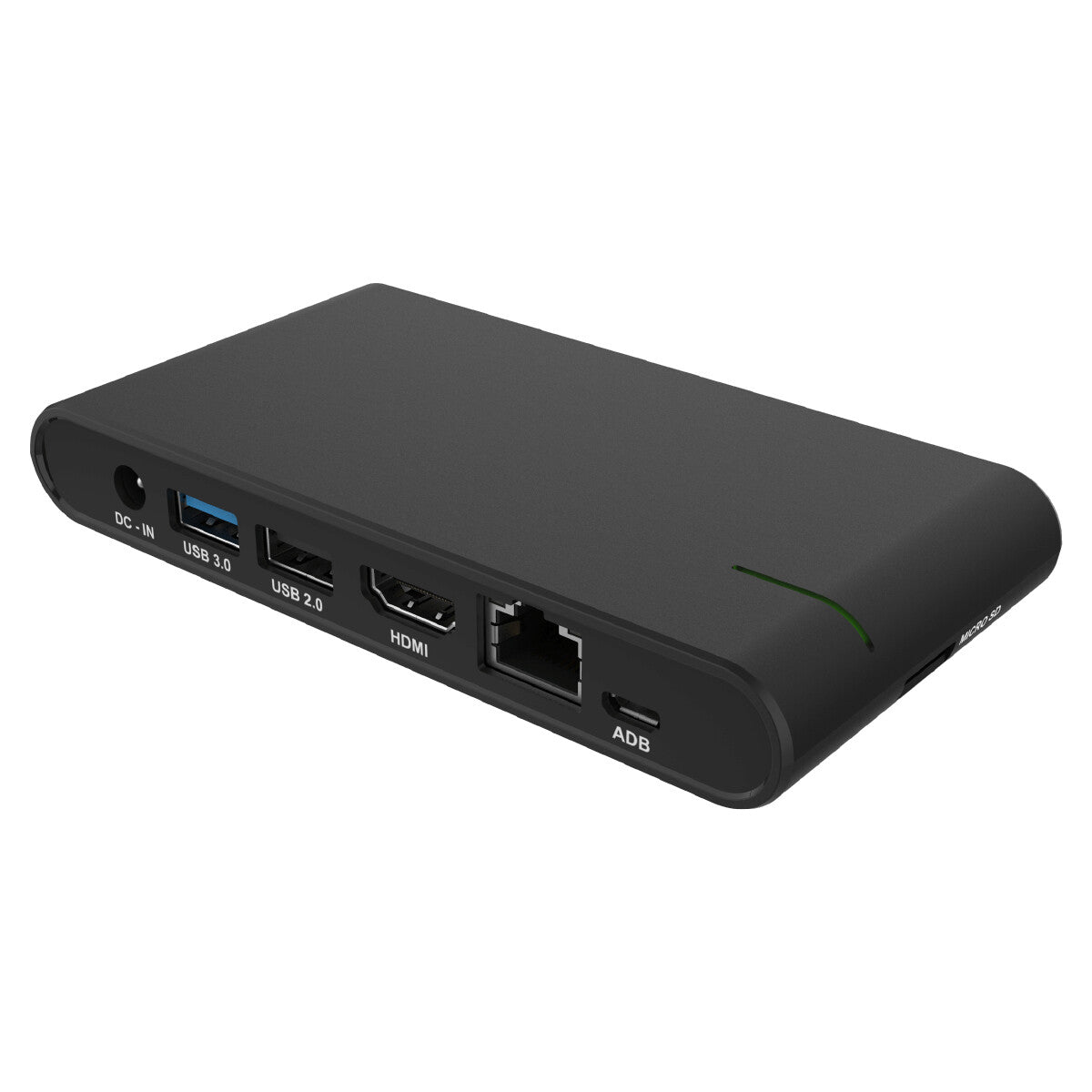

Qbic BXP-100 digital media player Black 4K Ultra HD 3840 x 2160 pixels Wi-Fi
Couldn't load pickup availability
- 4K 60fps
- Armed with Dual Watchdog Timer
- Solid State Fanless Box-PC
- Dual Band WiFi
- Android 10
- Ultra Compact
By far, the most compact, 4K reliable and powerful Enterprise level Box-PC in its class
There's no comparing. Built for enterprise applications. With 4K resolution, the Phantom delivers the best graphics codecing quality and 60fps ensures your content is delivered without missing a beat. And that's not all
ARM Quad Core CPU
Quad Core 1.5GHz processor, ready to take on the most intensive apps you can develop.
Dual Band Wi-Fi
5G/2.4G Dual band wifi providing a stronger and further data transmission.
External storage support
Storage expansion with external microSD cards up to 2TB. Expand storage with any of the supported microSD cards.
Armed with Dual Watchdog timer
Phantom is armed with dual independent watchdog. Additionally reliable and automatically recovers from any unlikely hardware or software malfunction.
Make your signage pop
With the color rich 4:2:0 and 4K contents, you'll be sure to capture the eyes of your audience. Display landscape or portrait signage. The crisp and clear transmission opens up the real estate to any display size.
Vesa mounting
Vesa 75x75mm bracket mount included for quick and easy mounting on any compatible vesa mounts.
| Features | |
|---|---|
| Product colour | Black |
| Supported radio bands | Not supported |
| Video formats supported | AVS, AVS+, H.264, H.265, MPEG1, VC-1 |
| Certification | CE, FCC, RCM |
| Display | |
|---|---|
| Built-in display | No |
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor architecture | Cortex-A53 |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
| Storage | |
|---|---|
| Built-in storage media | No |
| Storage media type | Memory card |
| Card reader integrated | Yes |
| Maximum memory card size | 2 TB |
| Compatible memory cards | MicroSDXC |
| Memory | |
|---|---|
| Internal memory | 2000 MB |
| Internal memory type | DDR4 |
| Flash memory | 32 MB |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Frame rate | 60 fps |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDCP | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Micro-USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ergonomics | |
|---|---|
| Firmware upgradeable | Yes |
| LED indicators | Yes |
| VESA mounting | Yes |
| Reset button | Yes |
| Password protection | Yes |
| Weight & dimensions | |
|---|---|
| Width | 127 mm |
| Depth | 66 mm |
| Height | 18.5 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
