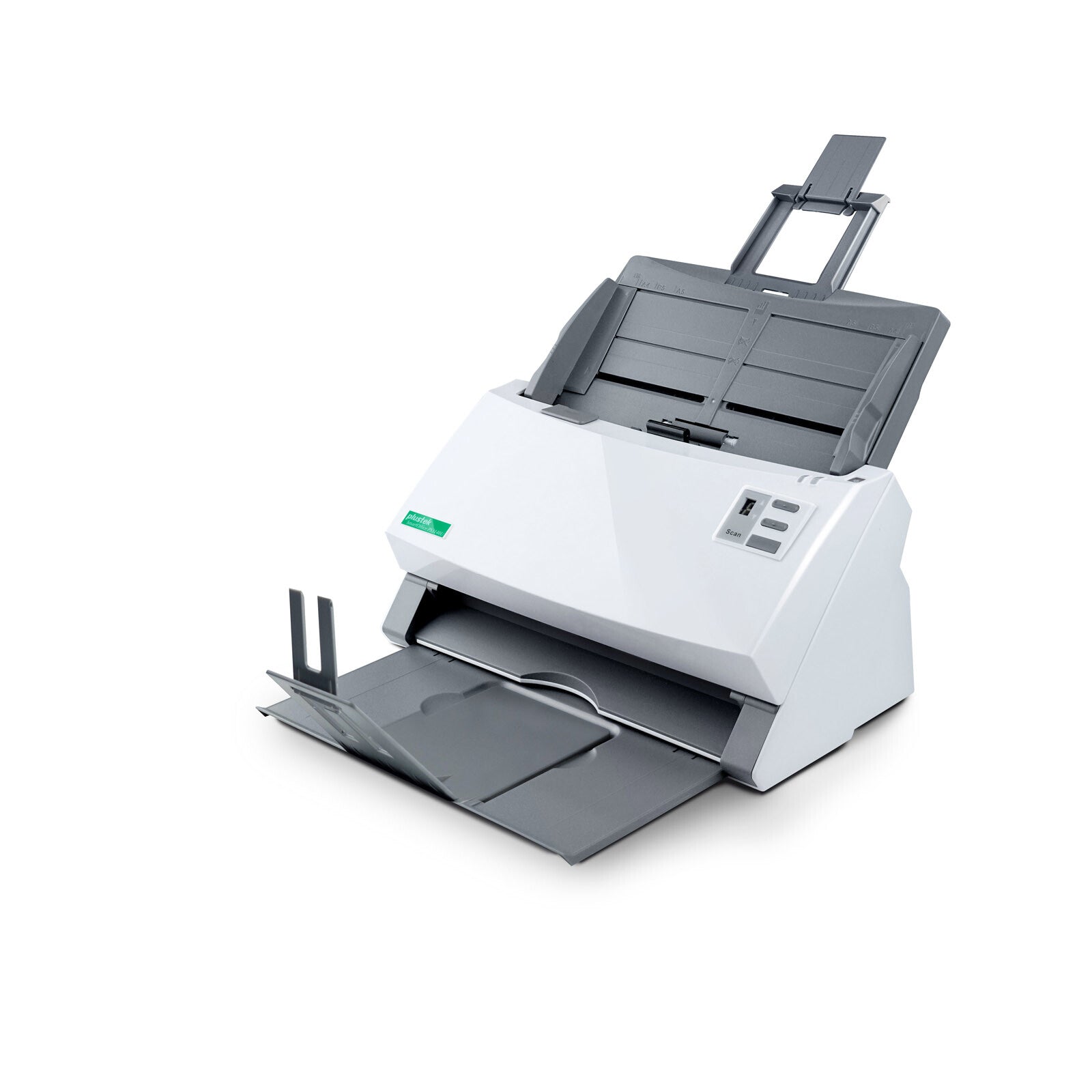

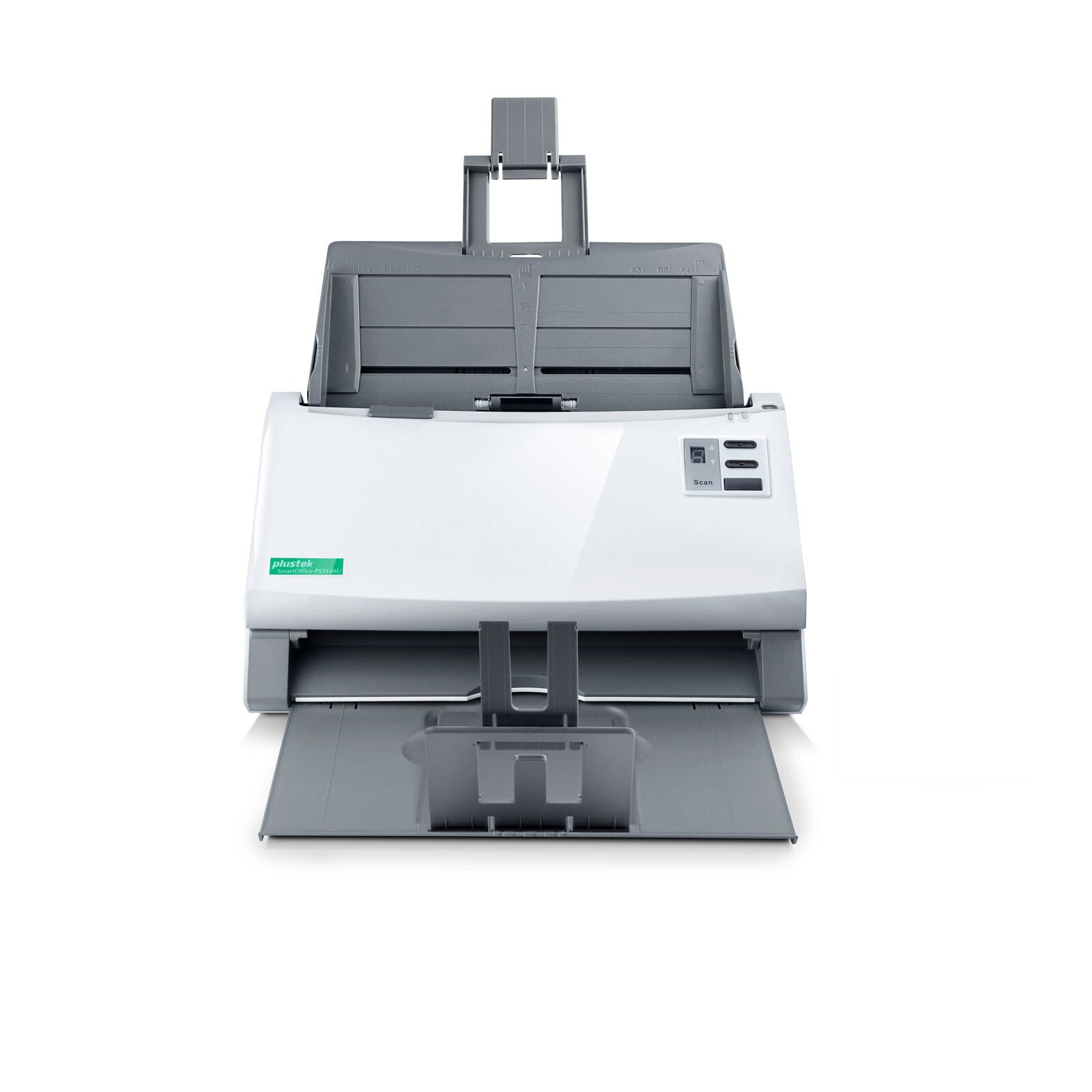

Plustek SmartOffice PS3140U ADF scanner 600 x 600 DPI A4 Grey, White
£388.99
Couldn't load pickup availability
- Scanner type: ADF scanner 600 x 600 DPI
- Colour scanning Duplex scanning
- Built-in display
- A4 Scanning media types supported: Plain paper, Plastic Card
- Maximum scan size: 216 x 5080 mm Sensor type: Dual CIS
- USB port
- Power supply type: DC
Mixed Documents & Multiple Card Feeding
Multi-feed paper detection provides you with the most reliable user experience, this technology can prevent you from having to re-scan.
Image Enhancement Technology
Automatically optimize the image by concentrating the dark color, enhancing the bright background and allocating the color distribution. You don’t need to spend time adjusting IP or learning.
Enhance Paper Feeding
With optimized Friction Roller system with advanced composite material, this technology helps the paper feeding process become more smooth and reliable. This not only minimizes the feeding errors, but also help you efficiently finish the process of digitizing documents.
| Scanning | |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (greyscale, A4) | 40 ppm |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Pad lifetime | 100000 pages |
| Roller lifetime | 300000 pages |
| Design | |
|---|---|
| Scanner type | ADF scanner |
| Built-in display | Yes |
| Product colour | Grey, White |
| Performance | |
|---|---|
| Sensor type | Dual CIS |
| Light source | LED |
| Daily duty cycle (max) | 4000 pages |
| Ultrasonic double sheet detection | Yes |
| Button functions | Down, Scan, Standby, Up |
| Scan drivers | TWAIN |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Long-paper mode | Yes |
| Multi feed detection | Yes |
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 40 - 220 g/m² |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
| Maximum scan area (ADF) | 216 x 5080 mm |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
| Power | |
|---|---|
| Power supply type | DC |
| Output current | 1.25 A |
| Output voltage | 24 V |
| Weight & dimensions | |
|---|---|
| Width | 318.7 mm |
| Depth | 230.7 mm |
| Height | 228.3 mm |
| Weight | 2.7 kg |
| General | |
|---|---|
| Product family | SmartOffice |
| System requirements | |
|---|---|
| Minimum processor | PentiumR IV 2.4 GHz |
| Minimum RAM | 1024 MB |
| Minimum storage drive space | 2048 MB |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Technical details | |
|---|---|
| Maximum paper size | 216 x 5080 mm |
