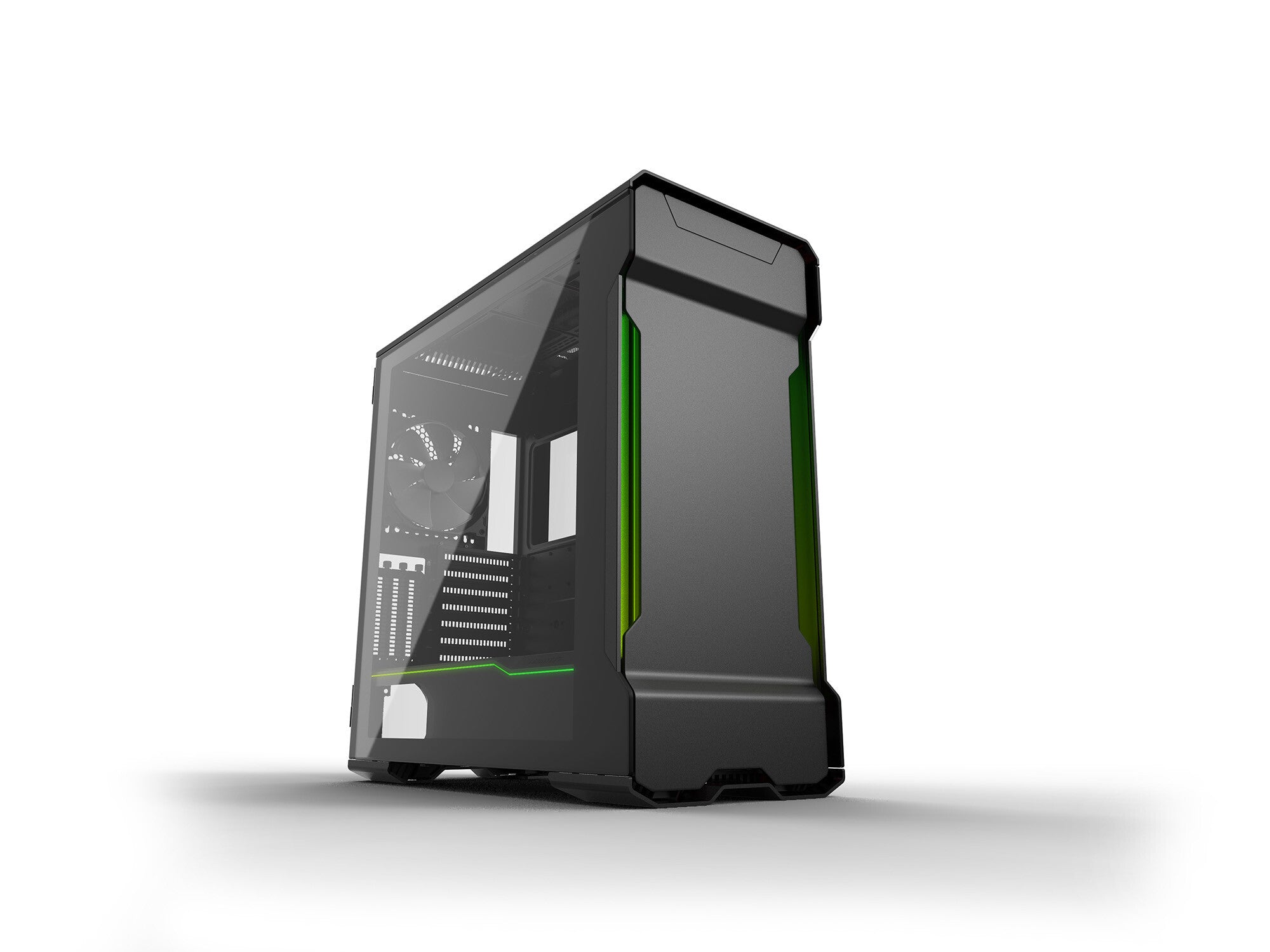

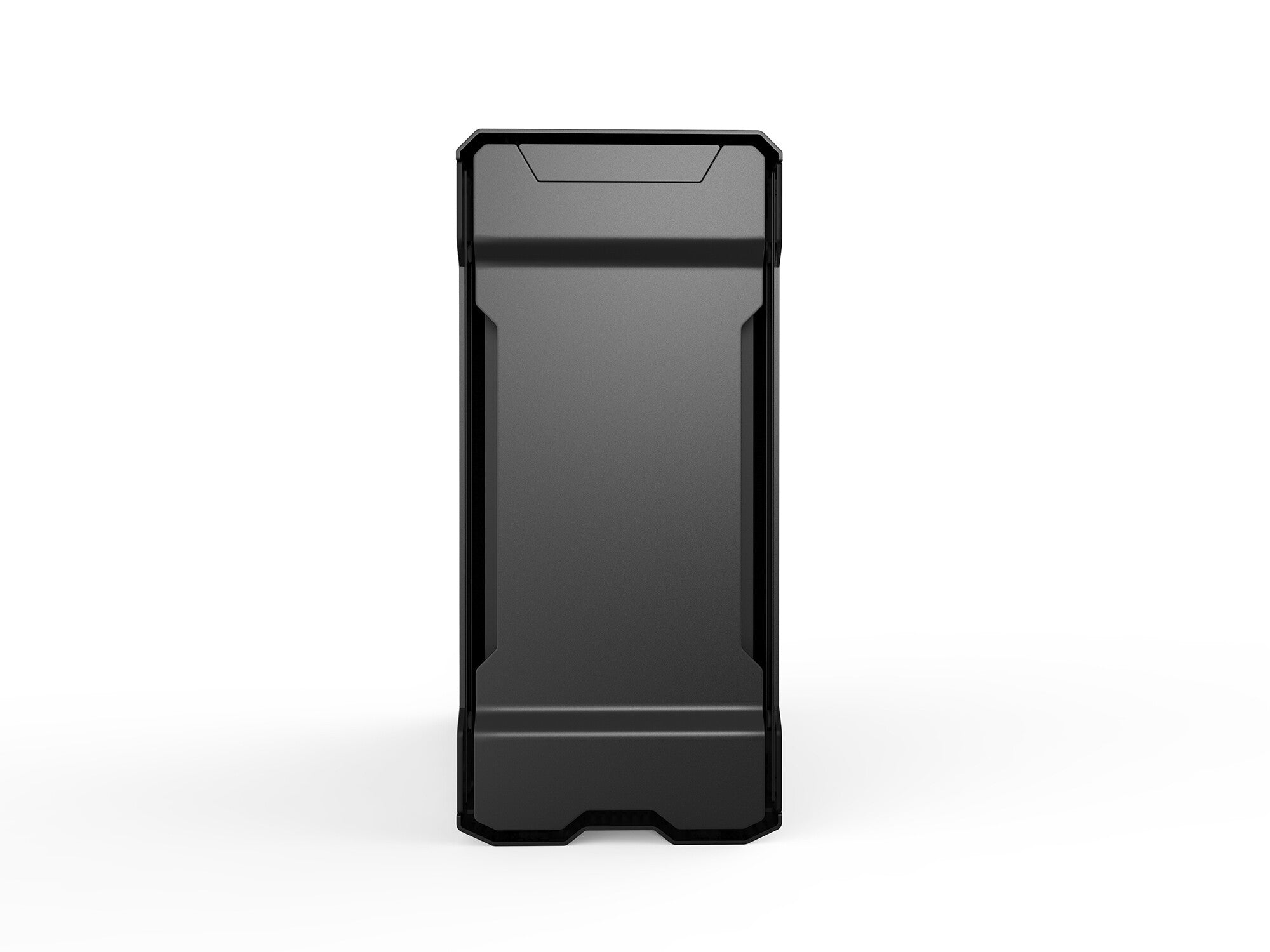

Phanteks Evolv X Midi Tower Black
iFrame
£218.99
Couldn't load pickup availability
- Midi Tower PC Gaming
- ATX, EATX, micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5"
- Number of 2.5" bays: 9 Number of 3.5" bays: 6
- Side window Illumination Blue, Green, Red Anti-dust filter
- Aluminium, Steel, Tempered glass
- Black

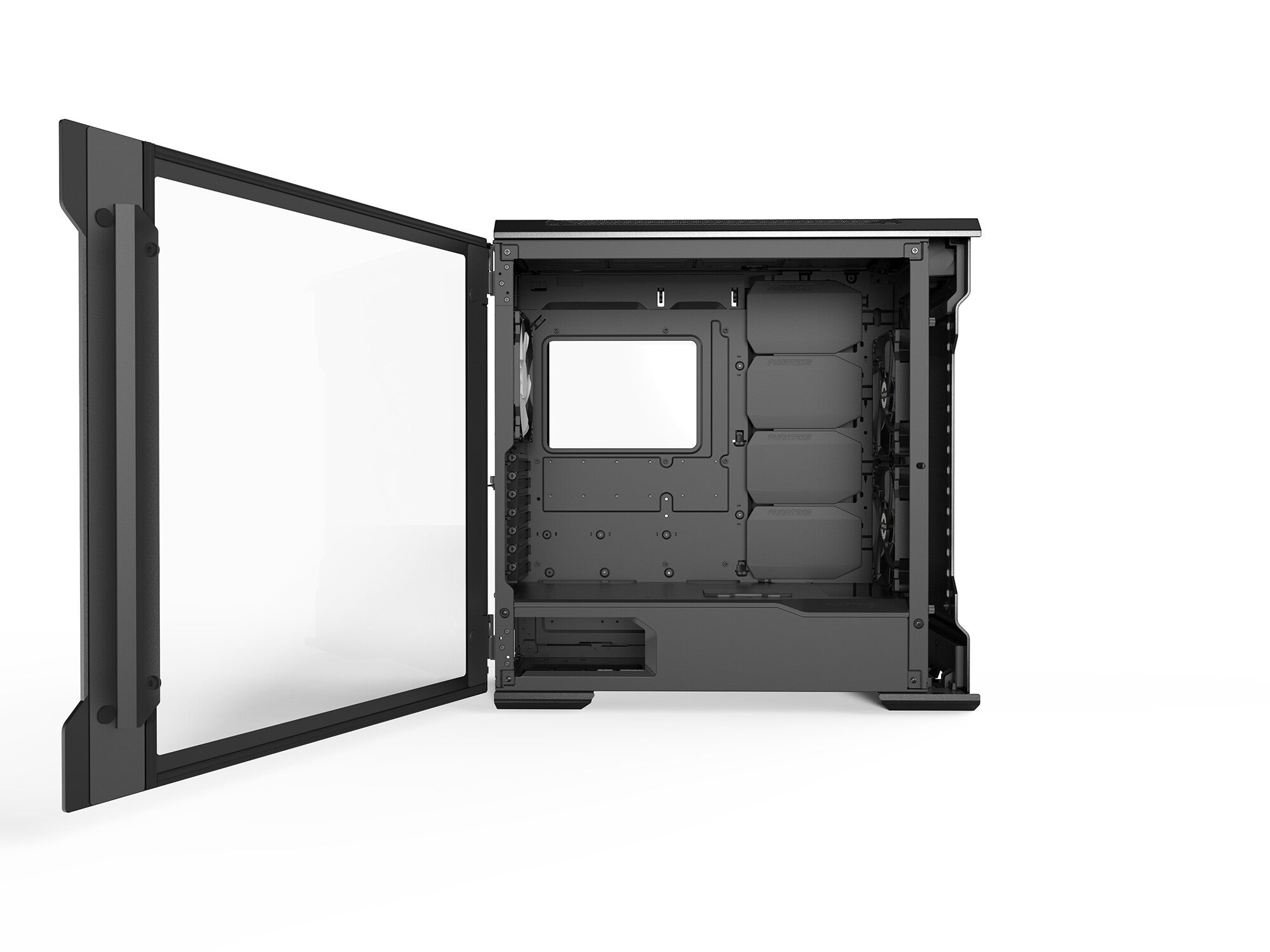

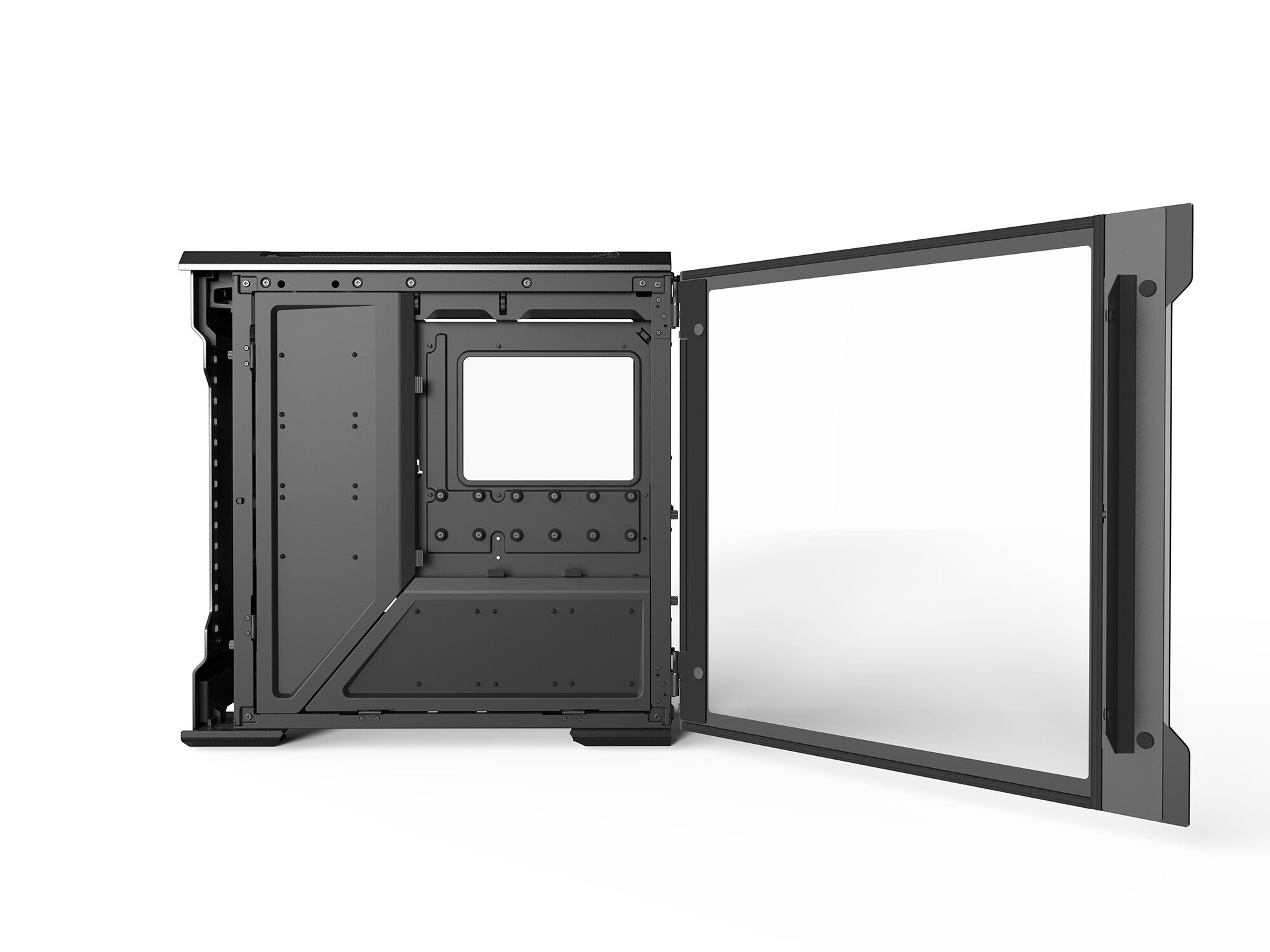

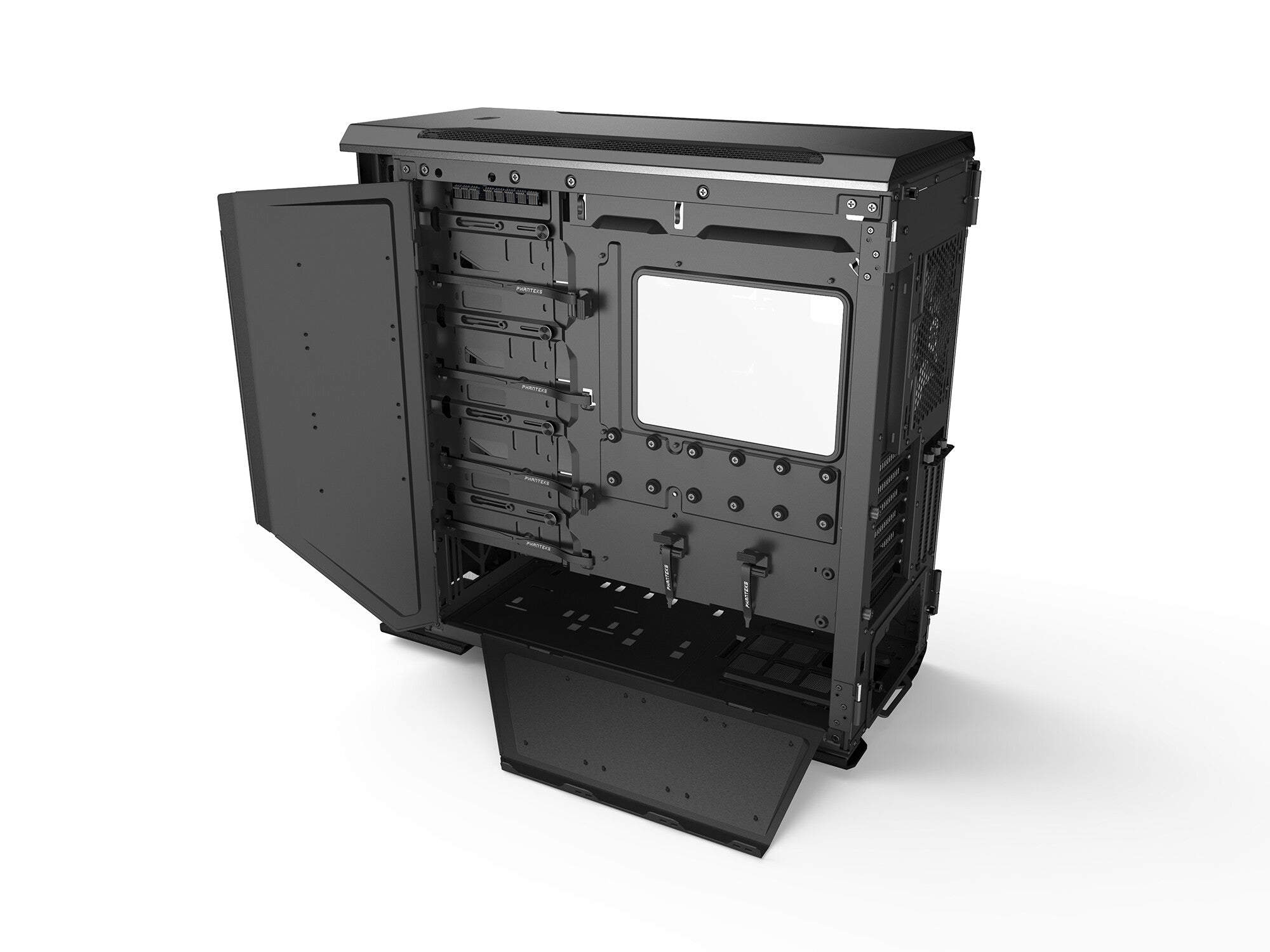

The Evolv X interior is designed in such way that no space is lost, providing you with the ultimate flexibility to customize your desired configuration. Whether it’s a high-end watercooling show case, professional data storage system or even a dual-system PC, the Evolv X has got you covered while keeping a mid tower form-factor.
| Design | |
|---|---|
| Maximum graphics card length | 43.5 cm |
| Maximum CPU cooler height | 19 cm |
| LED indicators | Yes |
| On/off button | Yes |

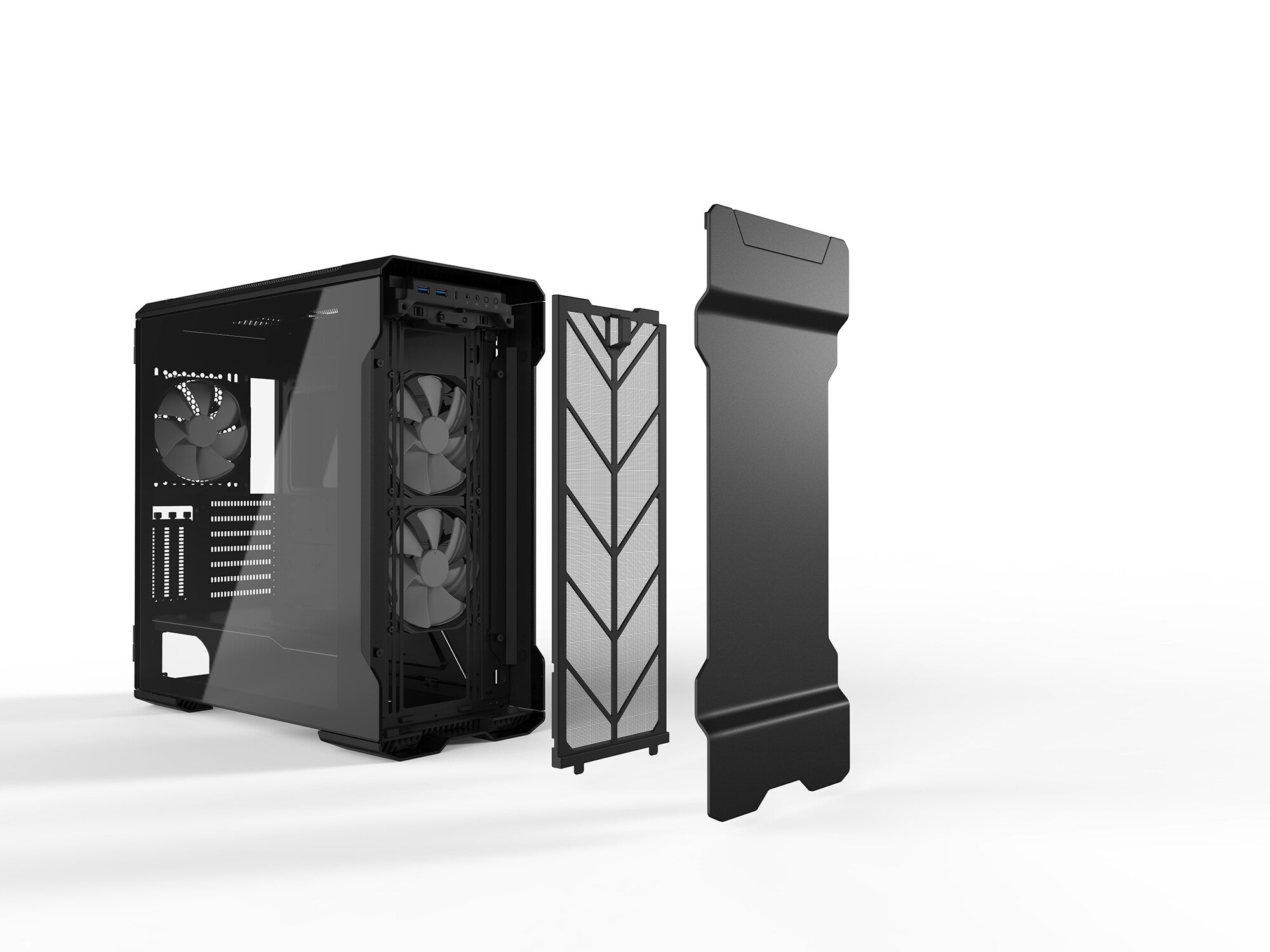

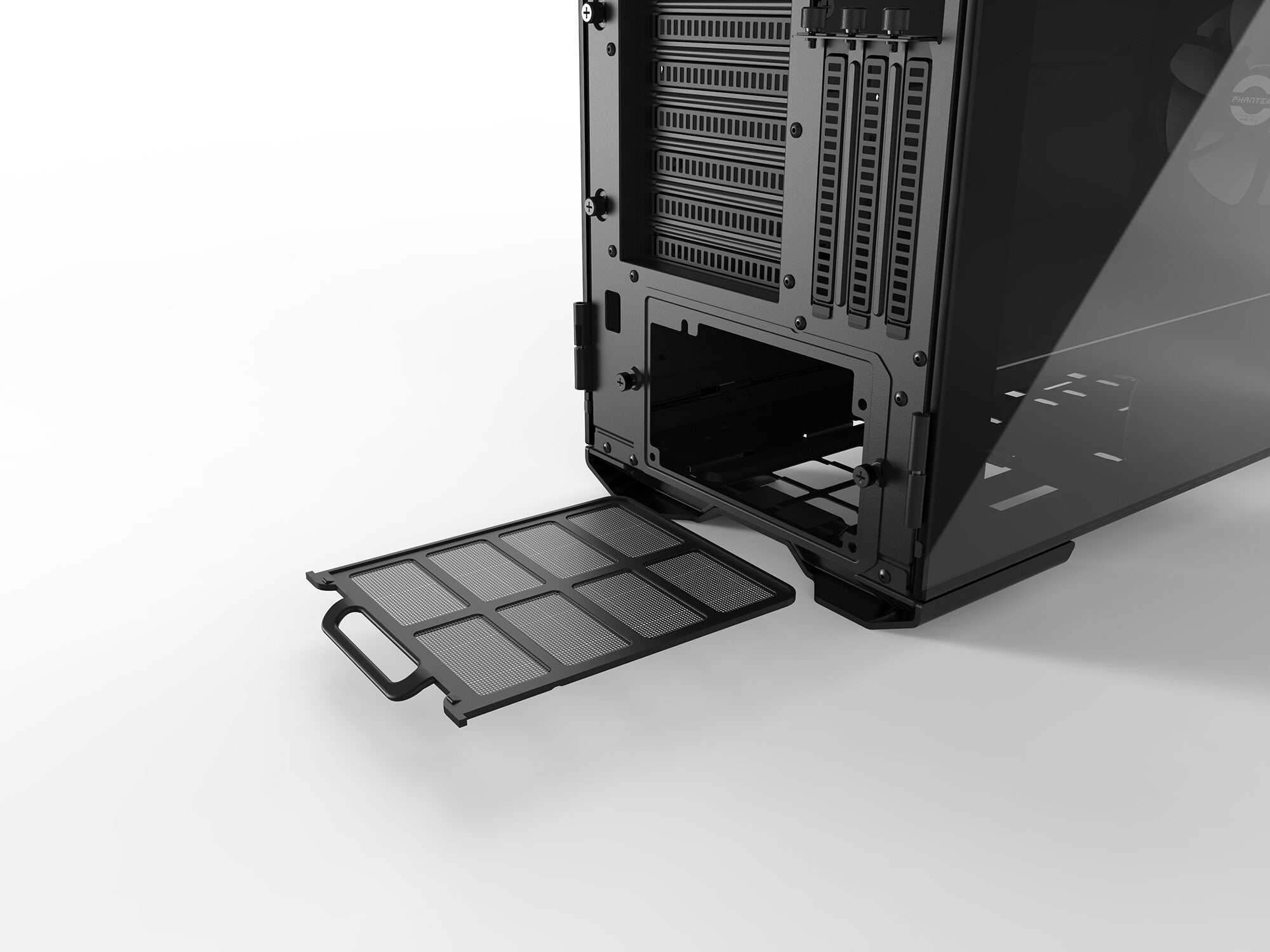

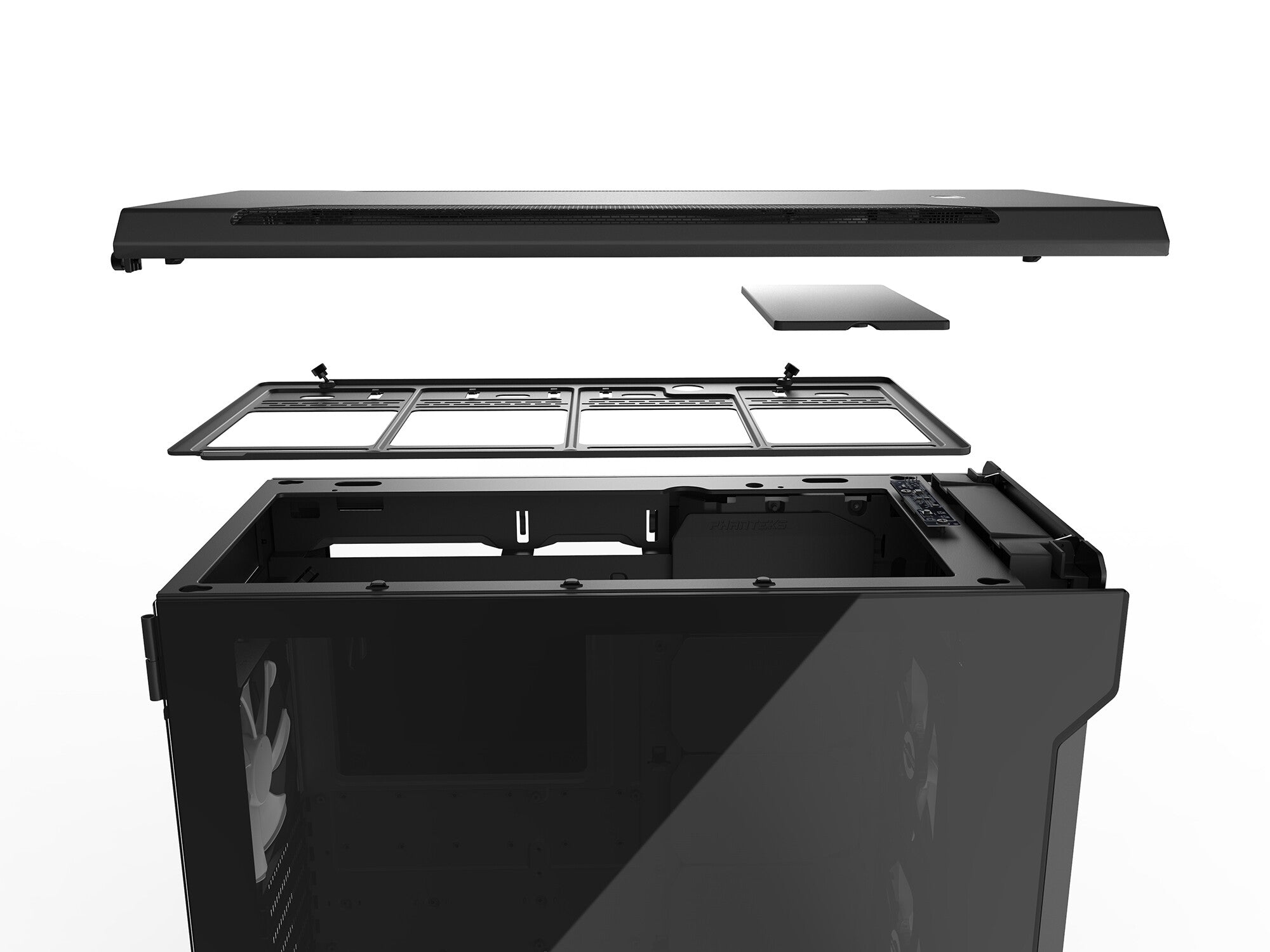

| Anti-dust filter | Yes |

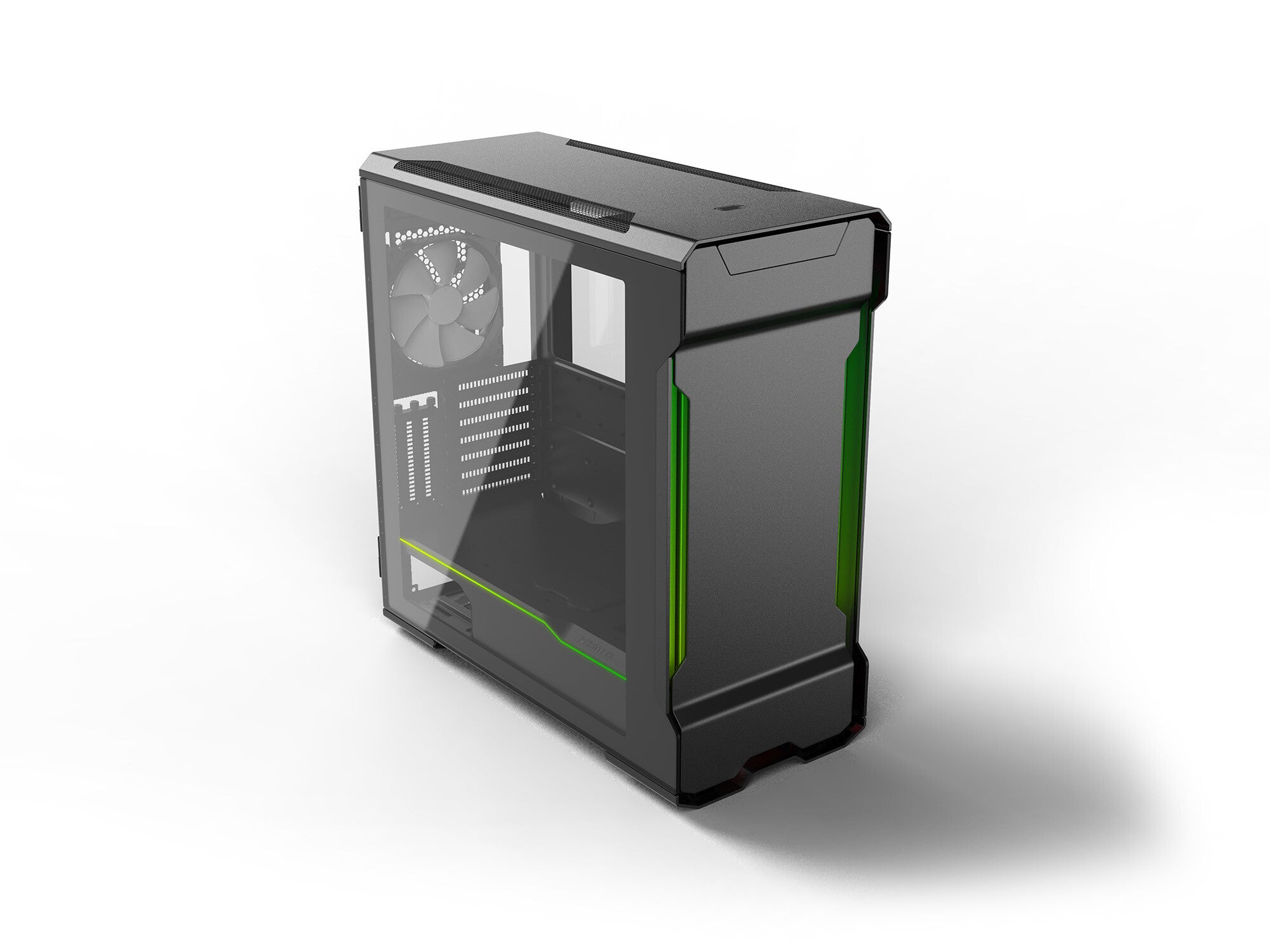

| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of internal 3.5" bays | 10 |
| Number of 2.5" bays | 9 |
| Number of 3.5" bays | 6 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Aluminium, Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | EPS, ITX, mini ITX, microATX |
| Power supply location | Bottom |
| Power supply included | No |

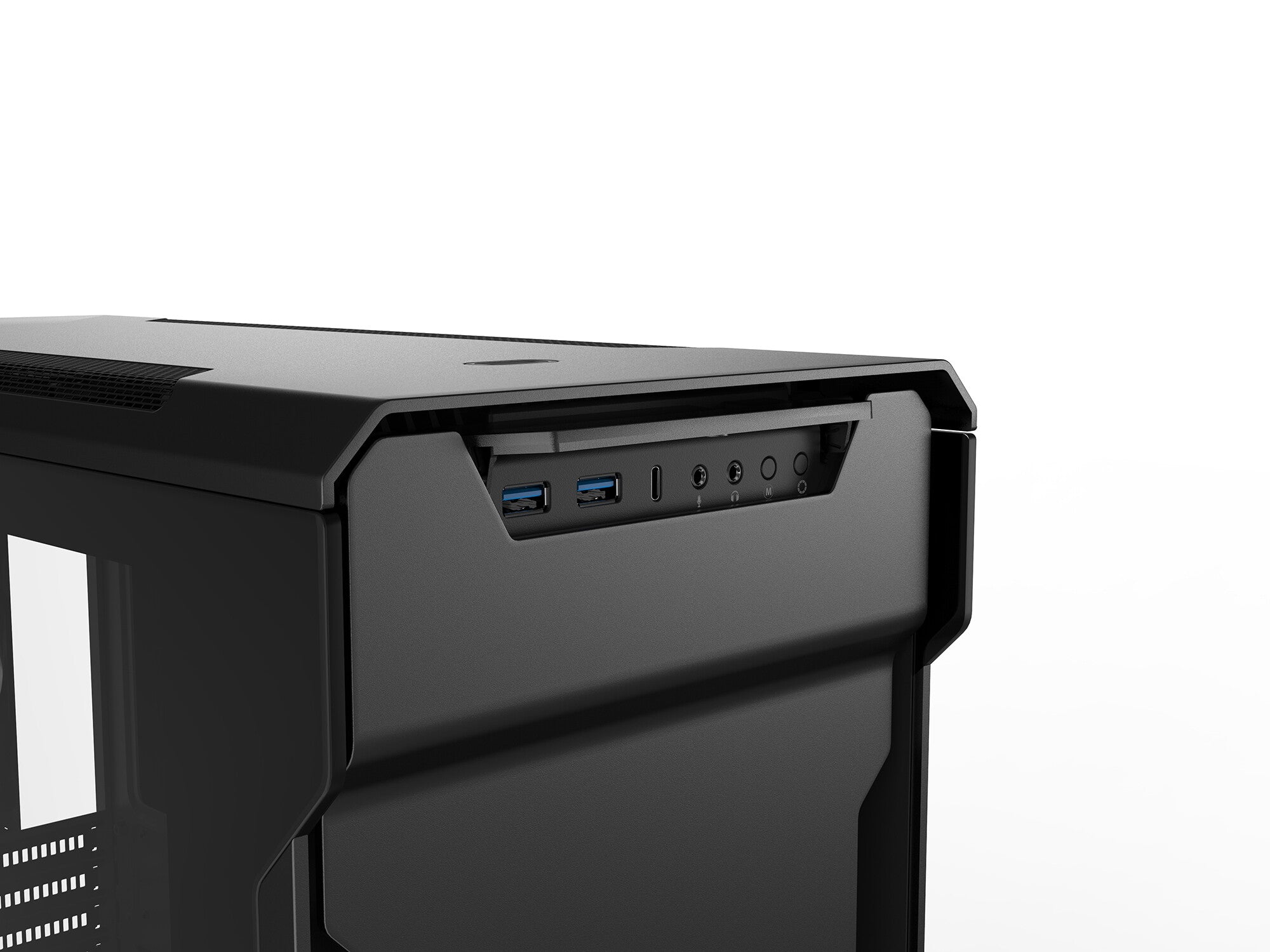

| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 15 kg |
| Height | 520 mm |
| Depth | 520 mm |
| Width | 240 mm |
| Logistics data | |
|---|---|
| Pallet gross weight | 17 kg |
| Pallet gross height | 60.5 cm |
| Pallet gross length | 60.5 cm |
| Pallet gross width | 33 cm |
