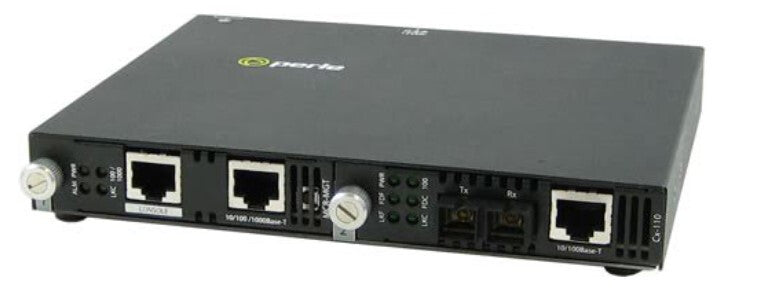

Perle SMI-110-S2SC20 - 10/100 Fast Ethernet Standalone IP Managed Media and Rate Converter. 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-LX 1310nm single mode (SC) [20 km/12.4 miles]

Perle SMI-110-S2SC20 - 10/100 Fast Ethernet Standalone IP Managed Media and Rate Converter. 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-LX 1310nm single mode (SC) [20 km/12.4 miles]

Perle
£1,003.99
Stock Available: 0
  • 10/100Base-TX to 100Base-X Fiber Media Converters
  • Extend network distances up to 120km
  • SC, LC and ST Media Converters
  • Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
  • Manage via SNMP, CLI - Telnet/SSH, Internet browser, or PerleVIEW Central Management Platform

Perle’s advanced line of Managed 10/100 Ethernet Media Converters, transparently connect UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.

Perle 10/100 Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed 10/100 Ethernet Converters the smart choice for IT professionals.

Network
Maximum data transfer rate 100 Mbit/s
Converter input interface 100Base-TX, 10Base-TX
Networking standards IEEE 802.3u, IEEE 802.1p
Ethernet interface type Fast Ethernet
Ethernet LAN data rates 10,100 Mbit/s
Copper ethernet cabling technology 100BASE-TX, 10BASE-TX
Fiber ethernet cabling technology 100BASE-LX
VLAN support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Duplex system Full
Cable types supported Cat5
Performance
Maximum transfer distance 20000 m
Wavelength 1310 nm
Fiber mode structure Single-mode
Fiber cable diameters supported (core/cladding) 9/125 µm
Tx power (min) -18 dBmW
Tx power (max) -7 dBmW
Rx power (min) -32 dBmW
Rx power (max) -3 dBmW
Mean time between failures (MTBF) 246403 h
Features
Internal No
Reset button Yes
DIN rail mounting Yes
International Protection (IP) code IP20
Housing material Metal
Product colour Black
LED indicators Yes
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 2
Fiber optic connector SC
DC-in jack Yes
Power
Input voltage 12 V
Input current 0.34 A
Power consumption (typical) 4.1 W
Power supply input voltage 100 - 240 V
External power adapter Yes
Power plug type Type G
Sustainability
Doesn't contain Lead, Mercury, Cadmium
Weight & dimensions
Width 175 mm
Depth 145 mm
Height 23 mm
Weight 722 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3048 m
Packaging data
Package width 300 mm
Package depth 200 mm
Package height 70 mm
Package weight 1.2 kg
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates REACH, RoHS, Federal Communications Commission (FCC), UL, CE
Logistics data
Export Control Classification Number (ECCN) 5A992
Quantity per pack 1 pc(s)
Other features
MAC address table 1024 entries
UNSPSC-code 43201553
