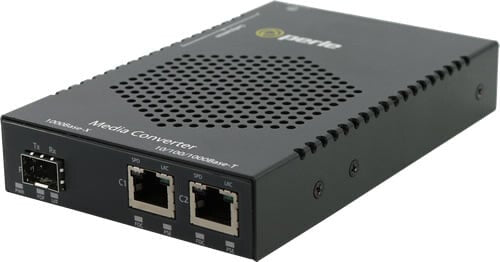

Perle S-1110DHP-SFP-XT network media converter 1000 Mbit/s Black

Perle S-1110DHP-SFP-XT network media converter 1000 Mbit/s Black

Perle
£1,286.99
Stock Available: 0
  • 10/100/1000Base-T to 100/1000Base-X Fiber
  • 1 or 2 empty slots for Cisco and other industry standard SFPs
  • Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
  • Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
  • Dual or Single 10/100/1000Base-T PoE ports
  • Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
  • -40°F to +167°F (-40°C to +75°C) extended operating temperature

S-1110DHP-SFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): Dual 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X - SFP Slot (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power source

Network
Maximum data transfer rate 1000 Mbit/s
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Performance
Maximum transfer distance 100 m
Buffer size 1000 KB
Mean time between failures (MTBF) 324134 h
Features
Internal No
International Protection (IP) code IP20
Housing material Metal
Product colour Black
LED indicators Yes
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 2
Fiber ports quantity 2
Fiber optic connector SFP
Power
Input voltage 52 - 57 V
Power over Ethernet (PoE) Yes
Weight & dimensions
Width 95 mm
Depth 150 mm
Height 26 mm
Weight 400 g
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3048 m
Packaging data
Package width 300 mm
Package depth 200 mm
Package height 70 mm
Package weight 560 g
