£621.99

Stock Available: 0
  • Wired
  • 100 Mbit/s 20000 m
  • Ethernet LAN (RJ-45) ports: 1
  • Single-mode Fiber ports quantity: 1 ST
  • IP20
  • Black

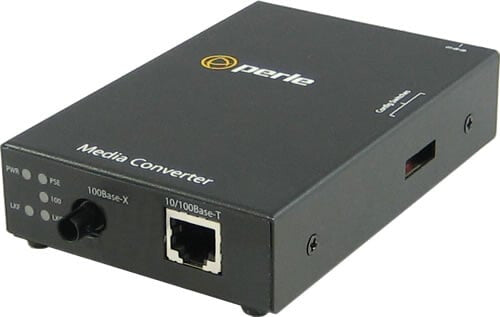

Perle's feature rich Fast Ethernet rate converting PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet (PoE) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points. S-110 PoE Media Converters are also available with support for Extended Temperature ranges. Over 40 models to choose from with either fixed fiber or SFP ports. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.

Perle PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle PoE media converters also provide power to Powered Devices (PDs). Perle has PoE media converter models that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power). Learn more about PoE.

Perle 10/100 PoE Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network with fiber cabling. At the same time they function as PoE injectors to power devices like IP phones, video conferencing equipment, IP cameras and Wi-Fi devices over copper UTP cabling.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's Fast Ethernet rate converting PoE Media Converters the smart choice for IT professionals.

Network
Maximum data transfer rate 100 Mbit/s
Converter input interface 100Base-TX
Networking standards IEEE 802.3u, IEEE 802.3at, IEEE 802.3af
Ethernet interface type Fast Ethernet
Ethernet LAN data rates 10,100 Mbit/s
Auto MDI/MDI-X Yes
Cable types supported Cat5
Performance
Maximum transfer distance 20000 m
Tx wavelength (max) 1310 nm
Rx wavelength (max) 1550 nm
Fiber mode structure Single-mode
Mean time between failures (MTBF) 229220 h
Features
Internal No
Plug and Play Yes
International Protection (IP) code IP20
Product colour Black
LED indicators Yes
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector ST
Power
Input voltage 100 - 240 V
Power consumption (typical) 6 W
Power over Ethernet (PoE) Yes
Weight & dimensions
Width 150 mm
Depth 95 mm
Height 26 mm
Weight 300 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 95%
Packaging data
Package width 300 mm
Package depth 200 mm
Package height 70 mm
Package weight 1 kg
Certificates
Certification Reach, RoHS, WEEE
Logistics data
Quantity per pack 1 pc(s)
