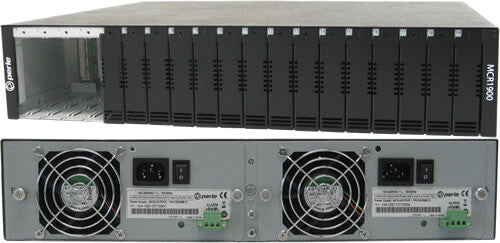

Perle MCR1900-DAC network equipment chassis 2U
£1,417.99
Couldn't load pickup availability
- Rack mounting 2U
- 356 x 435 x 89 mm
- Mean time between failures (MTBF): 255530 h
- Number of power supply units: 2
19 Slot Chassis for Media Converter Modules. Dual hot-swap AC power. 15 empty slot cover plates included
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 2U |
| International Protection (IP) code | IP30 |
| Mean time between failures (MTBF) | 255530 h |
| Number of slots | 19 |
| LED indicators | Power, Status |
| Dimensions (WxDxH) | 356 x 435 x 89 mm |
| Certificates | |
|---|---|
| Certification | FCC Part 15 Class A CISPR 32 / EN 55032 CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A ICES-003, Issue 4, February 2004 (Canada) CISPR 32 / EN 55032 EN61000-3-2 : 1995, Limits for Harmonic Current Emissions EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Power | |
|---|---|
| Number of power supply units | 2 |
| Output power | 240 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Included power plug types | US, UK, EU, AU |
| Weight & dimensions | |
|---|---|
| Weight | 7 kg |
