  • 4 or 8 serial RS232 on RJ45 Ports
  • 10/100/1000 Ethernet
  • Small compact size
  • Wall, desk or DIN Rail mounting
  • Advanced security feature set

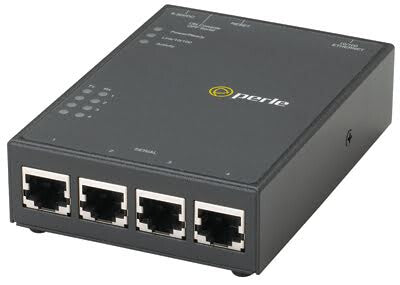

Engineers and Project Managers that require a cost effective 4 or 8 port serial RS232-to-Ethernet solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STG. Having the highest performance processor available along with the Perle’s unique TrueSerialTM technology, the IOLAN STG will provide the most authentic serial connections across Ethernet. IOLAN STG4-P Serial Terminal Servers are also available with support for Power over Ethernet (PoE).

IOLAN STG Secure Serial Terminal Servers are ideal for:
Engineers and Project Managers requiring a high performance serial to Ethernet interface for up to 4 or 8 serial RS232 based devices. Connect to serial based applications over Ethernet
Compact size offers the smallest 4 or 8 port serial to Ethernet solution on the market

Why IOLAN STG Secure Terminal Servers are the preferred choice:
High performance processors for the best throughput available. Ideal for time sensitive applications
Compact size offers the smallest 4 port serial to Ethernet solution on the market
Next Generation IP support (IPv6) for investment protection and network compatibility
TrueSerial™ packet technology – the most authentic serial connections across Ethernet ensures serial protocol integrity
Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
Clustering – Provides a single view of all out of band console ports. Ideal for large data centers
Dynamic DNS – Easy console management access from anywhere on the Internet
Java-free browser access to remote serial console ports via Telnet and SSH
Lifetime warranty – best investment protection available

Technical details
Mean time between failures (MTBF) 171852 h
Serial interface type RJ-45, RS-232
Serial ports quantity 4
Ports & interfaces
Ethernet LAN Yes
Cabling technology 10/100/1000Base-T(X)
Memory
RAM capacity 512 MB
Flash memory 4000 MB
Security
Security algorithms SSH, HTTPS, SSL/TLS
Design
DIN rail mounting Yes
International Protection (IP) code IP30
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) 0 - 55 °C
Weight & dimensions
Width 112 mm
Depth 82 mm
Height 28 mm
Weight 350 g
Package width 260 mm
Package depth 170 mm
Package height 70 mm
Package weight 660 g
Indication
LED indicators Power, Network
Power
Input voltage 9 - 30 V
