• High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
• Clustering – Provides a single view of all out of band console ports. Ideal for large data centers
• Intelligent Power cycling of equipment
• with Perle Remote Power Switches
• Next Generation IP support (IPv6) for investment protection and network compatibility
• Primary/Backup host functionality enables automatic connections to alternate hosts should the primary
• TCP connection go down
• EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
• FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
• Dynamic DNS – Easy console management access from anywhere on the Internet
• Java-free browser access to remote serial console ports via Telnet and SSH
• Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear

Secure Serial Console Management

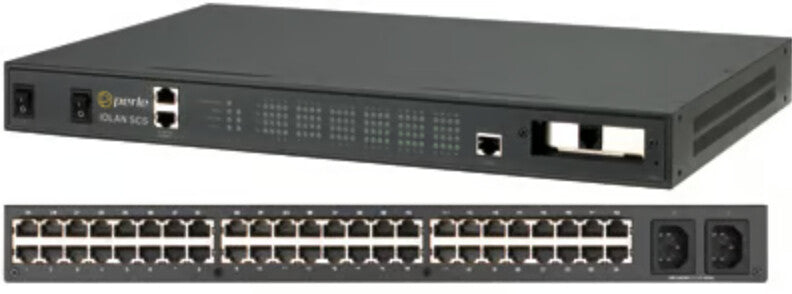

IOLAN SCS Console Servers enable administrators to securely access remote serial console ports on equipment
such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Data
management information is protected through standard encryption tools such as Secure Shell (SSH) and Secure
Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS,
TACACS+, LDAP, Kerberos, NIS and RSA Security’s SecurID tokens.
By using encryption technologies, an IOLAN Console Server protects sensitive and confidential data before being
sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major
encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.
Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec
standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a
standard it is ideal for multi-vendor interoperation within a network, providing flexibility and the ability to match the
right solution for a particular application.

High Availability Access
The IOLAN SCS has built-in fault tolerant capabilities to ensure secure and reliable access for managing important
mission critical equipment. Dual Ethernet interfaces on the IOLAN SCS provide redundant network paths while dual
AC power supply models ensure that console management is available even if the primary AC power source fails.
For remote administrators that require access from home, on the road or in the event of a total network failure, an
optional IOLAN V.92 modem card delivers a solid, integrated solution with direct phone line attachment via its
onboard RJ11 jack.
Protection against electrostatic discharges and power surges is provided with robust 15Kv ESD protection circuitry
on each serial port

Advanced IP Technology
With support for Next Generation IP (IPv6) the IOLAN range provides organizations with investment protection to
meet this rapidly growing standard.
Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address.
With the implementation and rollout of 3G cellular networks, a robust method is needed to handle the huge influx of
new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all
equipment purchased from 2005 be IPv6 compatible with full implementation by 2008. In addition, all major
Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.
It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6
standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Lifetime Warranty
All Perle IOLAN SCS models are backed by the best service and support in the industry including Perle’s unique
lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest
levels of performance, flexibility and quality.
