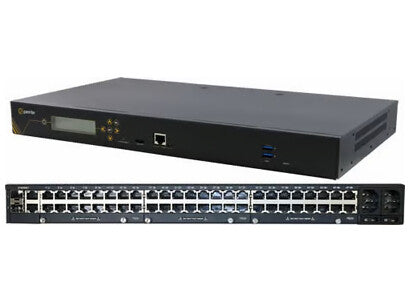

Perle IOLAN SCG50 S RS-232/RJ-45
£6,182.99
Couldn't load pickup availability
- Modular design supports RS232/RS422/RS485 RJ45 and USB 3.0 Interfaces
- Dual 10/100/1000 Network Connection with RJ45 Copper and SFP Fiber Ports
- ZTP & PerleVIEW Central Management Platform simplifies configuration, administration, monitoring, and troubleshooting.
- Cloud Hosting -- Deploy and manage your network from the cloud
- Advanced routing engine with AAA security and SSH/SSL encryption to meet all data center compliance policies
- Dual AC or Dual Feed 48vDC Power for Fault-tolerant uptime
Console Server: 48 x software selectable RS232/422/485 RJ45 interfaces, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, REST / Python, Cloud-hosting, advanced data encryption, user authentication and event management security features included, COM port redirector, 15kv ESD, Dual AC Power
| Technical details | |
|---|---|
| Package depth | 360 mm |
| Package weight | 4.36 kg |
| Package width | 590 mm |
| Package height | 90 mm |
| Product colour | Black |
| Rack mounting | Yes |
| Security | |
|---|---|
| Security algorithms | SSL/TLS |
| Ports & interfaces | |
|---|---|
| Console port | RS-232/RJ-45 |
| SFP module slots quantity | 2 |
| Serial ports quantity | 32 |
| Memory | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| RAM capacity | 1000 MB |
| Flash memory | 4000 MB |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15.5 W |
