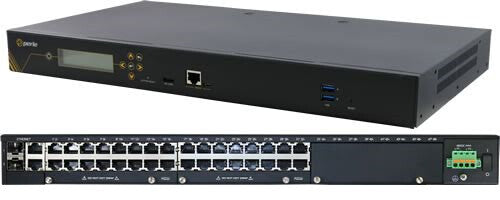

Perle IOLAN SCG34 R-D RS-232/RJ-45
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,498.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 18, 34 or 50 Console Management Ports
- Modular design supports RS232/RS422/RS485 RJ45 and USB 3.0 Interfaces
- Dual 10/100/1000 Network Connection with RJ45 Copper and SFP Fiber Ports
- ZTP & PerleVIEW Central Management Platform simplifies configuration, administration, monitoring, and troubleshooting.
- Cloud Hosting -- Deploy and manage your network from the cloud
- Advanced routing engine with AAA security and SSH/SSL encryption to meet all data center compliance policies
- Dual AC or Dual Feed 48vDC Power for Fault-tolerant uptime
The Perle IOLAN SCG R/U Console Servers provide data center managers with the ultimate solution for redundant, secure remote console management of any device with an RS232 RJ45 or USB console port. And, the IOLAN G16 RS-Multi Card, with 16 x software-selectable RS232/422/485 RJ45 interfaces enables organizations to connect a variety of serial-based devices to Ethernet. With an expandable modular hardware platform, integrated firewall, two-factor authentication, advanced failover to multiple networks, and Zero Touch Provisioning (ZTP), your IT professionals and network operations center (NOC) personnel will have everything they need to easily perform secure remote data center management and out-of-band management of IT assets from anywhere in the world. This cost-effective 1U rack solution also maintains protocol integrity across Ethernet and adds full IPv4/IPv6 routing capabilities with support for RIP, OSPF, and BGP protocols.
Modular Hardware Platform enables Console Management of all IT assets
The IOLAN SCG R/U Console Server provides up to 50 Console Management ports supporting USB, RS232, RS422, and RS485 interfaces . The modular design of the IOLAN SCG allows the user to swap, upgrade, and scale to any combination of 16-port module cards to support all types of admin ports in one Console Management solution.
Specifications
Technical details
| Package depth | 360 mm |
|---|---|
| Package weight | 4.27 kg |
| Package width | 590 mm |
| Package height | 90 mm |
| Product colour | Black |
| Rack mounting | Yes |
Security
| Security algorithms | SSL/TLS |
|---|
Show all 20 specificationsShow fewer specifications
Ports & interfaces
| Console port | RS-232/RJ-45 |
|---|---|
| SFP module slots quantity | 2 |
| Serial ports quantity | 32 |
Memory
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Card reader integrated | Yes |
| RAM capacity | 1000 MB |
| Flash memory | 4000 MB |
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Power consumption (typical) | 15.5 W |
