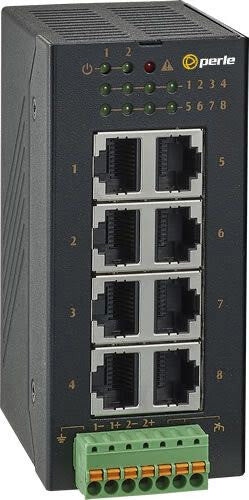

Perle IDS-108FE Unmanaged Fast Ethernet (10/100) Black
Perle IDS-108FE Unmanaged Fast Ethernet (10/100) Black

Perle IDS-108FE Unmanaged Fast Ethernet (10/100) Black

Perle · MPN: 07017470
£184.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £61.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10BASE-T, 100BASE-TX, 100BASE-FX
  • MAC address table: 2000 entries
  • DC

IDS-108FE Industrial Ethernet Switches

8-port Compact DIN Rail Switches
Perle IDS-108FE Industrial Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-108FE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality. These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources. For automation and industrial control systems using EtherNet/IP, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).

Specifications

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Show all 35 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1p
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-FX
Half duplexYes
Auto-negotiationYes
Auto MDI/MDI-XYes

Data transmission

MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2048
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps
Packet buffer memory0.768 MB

Design

Product colourBlack
LED indicatorsYes
DIN rail mountingYes
International Protection (IP) codeIP40

Performance

Mean time between failures (MTBF)11705657 h

Power

Power sourceDC
DC input voltage55 V
Power consumption (typical)3.4 W
Power protection featuresReverse polarity, Overload

Other features

MaterialMetal

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Width45 mm
Depth75 mm
Height100 mm
Weight336 g
