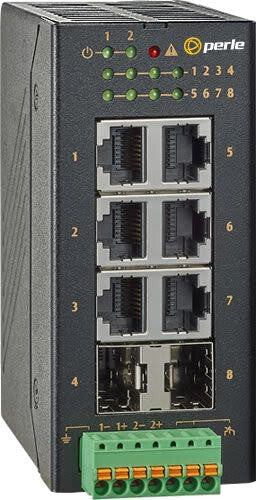

Perle IDS-106FE Unmanaged Fast Ethernet (10/100) Black
Couldn't load pickup availability
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 6
- 10BASE-T, 100BASE-TX, 100BASE-FX
- MAC address table: 2000 entries
- DC
IDS-106FE Industrial Ethernet Switches
8-port Compact DIN Rail Switches
With a combination of six Fast Ethernet copper ports, and two SFP fiber ports for long distance connectivity, Perle IDS-106FE Industrial Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-106FE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality. These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources. For automation and industrial control systems using EtherNet/IP, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1p |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-FX |
| Half duplex | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Packet buffer memory | 0.768 MB |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 8481986 h |
| Power | |
|---|---|
| Power source | DC |
| DC input voltage | 55 V |
| Power consumption (typical) | 3.4 W |
| Power protection features | Reverse polarity, Overload |
| Other features | |
|---|---|
| Material | Metal |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Weight & dimensions | |
|---|---|
| Width | 45 mm |
| Depth | 75 mm |
| Height | 100 mm |
| Weight | 336 g |
