Perle Fast Ethernet, 100Base-TX - 100Base-ZX, 1550nm, single mode, ST, AUS Power Cord
£633.99
Couldn't load pickup availability
- Wired
- 100 Mbit/s 40000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 1 ST
- IP20
- Black

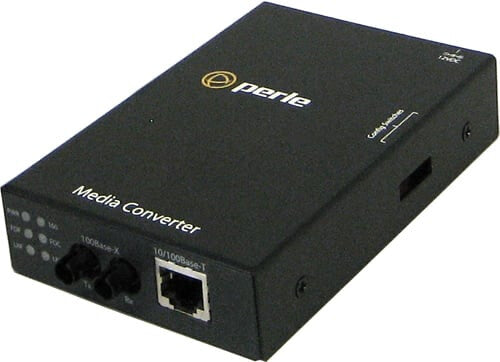

S-110-S1ST20U - 10/100 Fast Ethernet Media and Rate Converter. 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (ST) [20 km/12.4 miles]
| Network | |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Networking standards | IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Performance | |
|---|---|
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 432138 h |
| Features | |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| Product colour | Black |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 3.5 W |
| Weight & dimensions | |
|---|---|
| Width | 120 mm |
| Depth | 80 mm |
| Height | 26 mm |
| Weight | 300 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 170 mm |
| Package depth | 280 mm |
| Package height | 70 mm |
| Package weight | 550 g |
| Certificates | |
|---|---|
| Certification | Reach, RoHS, WEEE |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
