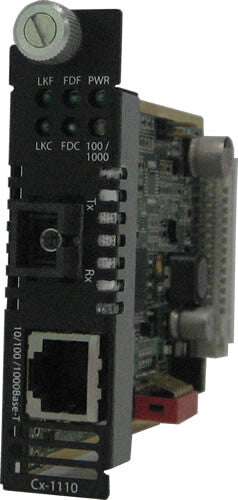

Perle CM-1110-M1SC05U network media converter Internal 1000 Mbit/s 1550 nm Black
£584.99
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 500 m 1550 nm
- SC 62.5/125 µm
- Internal
- Black
CM-1110-M1SC05U - 10/100/1000 Gigabit Ethernet Media and Rate Converter Managed Module. 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASEBX 1310nm TX / 1550nm RX single strand fiber, multimode (SC) [550 m/1804 ft]. Managed or unmanaged operation. A Fiber to Ethernet Media Converter designed to be used with the Perle Media Converter Chassis.
| Network | |
|---|---|
| Networking standards | IEEE 802.3u |
| Converter output interface | 1000Base-BXU |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 598 h |
| Buffer size | 125 KB |
| Sensitivity | 7 dBmW |
| Rx power (max) | -3 dBmW |
| Rx power (min) | -17 dBmW |
| Tx power (max) | -4 dBmW |
| Tx power (min) | -10 dBmW |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Wavelength | 1550 nm |
| Maximum transfer distance | 500 m |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Internal | Yes |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (max) | 2.1 W |
| Weight & dimensions | |
|---|---|
| Weight | 330 g |
| Height | 152 mm |
| Depth | 203 mm |
| Width | 38 mm |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
|---|---|
| Safety | UL 60950-1, EN60950, CE, EN 60825-1:2007 |
| Compliance certificates | RoHS |
