• 3-Phase Input Voltage Range: 320 ... 575 V AC
• 2-Phase Input Voltage Range: 360 ... 575 V AC
• Input Voltage Range: 450 ... 800 V DC
• Output Voltage: 24 V DC
• Output Range: 18 ... 29.5 V DC
• Output Current: 40 Amps
• Output Power: 960 Watts
• Voltage Isolation: 4 kV AC
• Operating Temperature: -25C to +70C
• Additional Features: -40C Start-up, SFB Technology, Shipbuilding Approvals

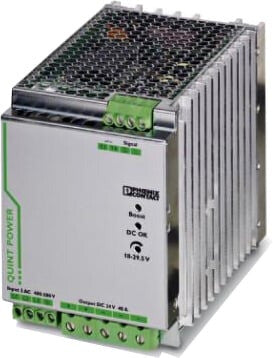

QUINT 3-Phase Power Supplies offer a range of rugged AC to DC and DC to DC Converters built to meet the high stability and efficiency expectations of industrial, machine automation and process control environments. They also feature the unique combination of preventive function monitoring and power reserve a compact size. Perfect for use in high power applications, these Switching (switch mode) Power Supplies ensure a regulated output voltage even in the event of voltage fluctuations in the power supply network. During parallel operation, and when connected to different phases, loads are reliably supplied even in the event of problems with the input voltage. With all required safety certifications to support ITE (Information Technology Equipment), ruggedized packaging, extended operating temperatures, high peak load capabilities and high isolation voltages, QUINT Industrial Power Supplies are designed to meet the needs of your industrial application.
