Perle 23208988 electric converter 480 W
£746.99
Couldn't load pickup availability
- Input Voltage Range: 85 ... 264 V AC & 86 ... 430 V DC
- Output Voltage: 24 V DC
- Output Range: 18 ... 29.5 V DC
- Output Current: 20 Amps
- Output Power: 480 Watts
- Voltage Isolation: 4 kV AC
- Operating Temperature: -40C to +70C
- Additional Features: -40C Start-up, ATEX / IECEx, Protective Coating, SFB Technology, Railway Approvals, Medical Approvals, Shipbuilding Approvals, DeviceNet Certified

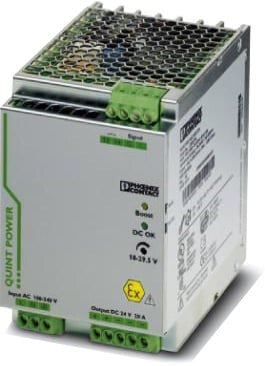

The QUINT-PS/1AC/CO Industrial Power Supply is specifically designed to operate in hazardous industrial locations and extreme ambient conditions. With numerous certifications, including ATEX and ANSI/ISA 12.12 Class 1 Division 2, you are ensured safe and reliable operation in locations where flammable gases, liquids or vapors are handled, processed or used. In addition, the PCB coating protects against dust, corrosive gases, and 100% humidity as well as failures caused by corrosion-related creepage currents and electrochemical migration.
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Power | |
|---|---|
| Power | 480 W |
| AC input frequency | 45-65 Hz |
| AC input voltage | 85-264 V |
| Input current | 5.1 @ 120 V AC; 4.9 @ 110 V DC; 2.4 @ 220 V DC |
| Output voltage | 24 V |
| Output current | 20000 mA |
| DC input voltage | 90-410 (+5%) V |
| Technical details | |
|---|---|
| Compliance certificates | ATEX, IECEx, UL, cUL, CSA, CB, REACH, RoHS, WEEE, China RoHS |
| DIN rail mounting | Yes |
| Type | Industrial DIN rail power supply |
| Material | Metal |
| Quantity | 1 |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Certification | ATEX; IECEx; UL 508; UL 60950-1; CB Scheme; Shipbuilding approval; Railway approval; DeviceNet Certified |
