Panasonic Toughbook 40 mk3 14" Laptop (FZ-40KZ00HBE) - Intel Core Ultra 5 235H, 16GB RAM, 512GB SSD, Windows 11 Pro
Couldn't load pickup availability
- Laptop Clamshell Black, Grey
- Intel Core Ultra 5 235H Processor cores: 14
- Touchscreen 35.6 cm (14") Full HD 1920 x 1080 pixels IPS 16:9
- 16 GB DDR5-SDRAM 5600 MHz
- 512 GB SSD
- Intel Arc 140T
- Wi-Fi 7 (802.11be) Ethernet LAN 1000 Mbit/s Bluetooth 5.4
- Lithium-Ion (Li-Ion) 12 h
- Windows 11 Pro
The toughest, most modular TOUGHBOOK ever made.
The high performance TOUGHBOOK 40 laptop is made for complex field operations, with extreme durability and flexible configuration to adapt to any situation, and enabling best-in-class security.

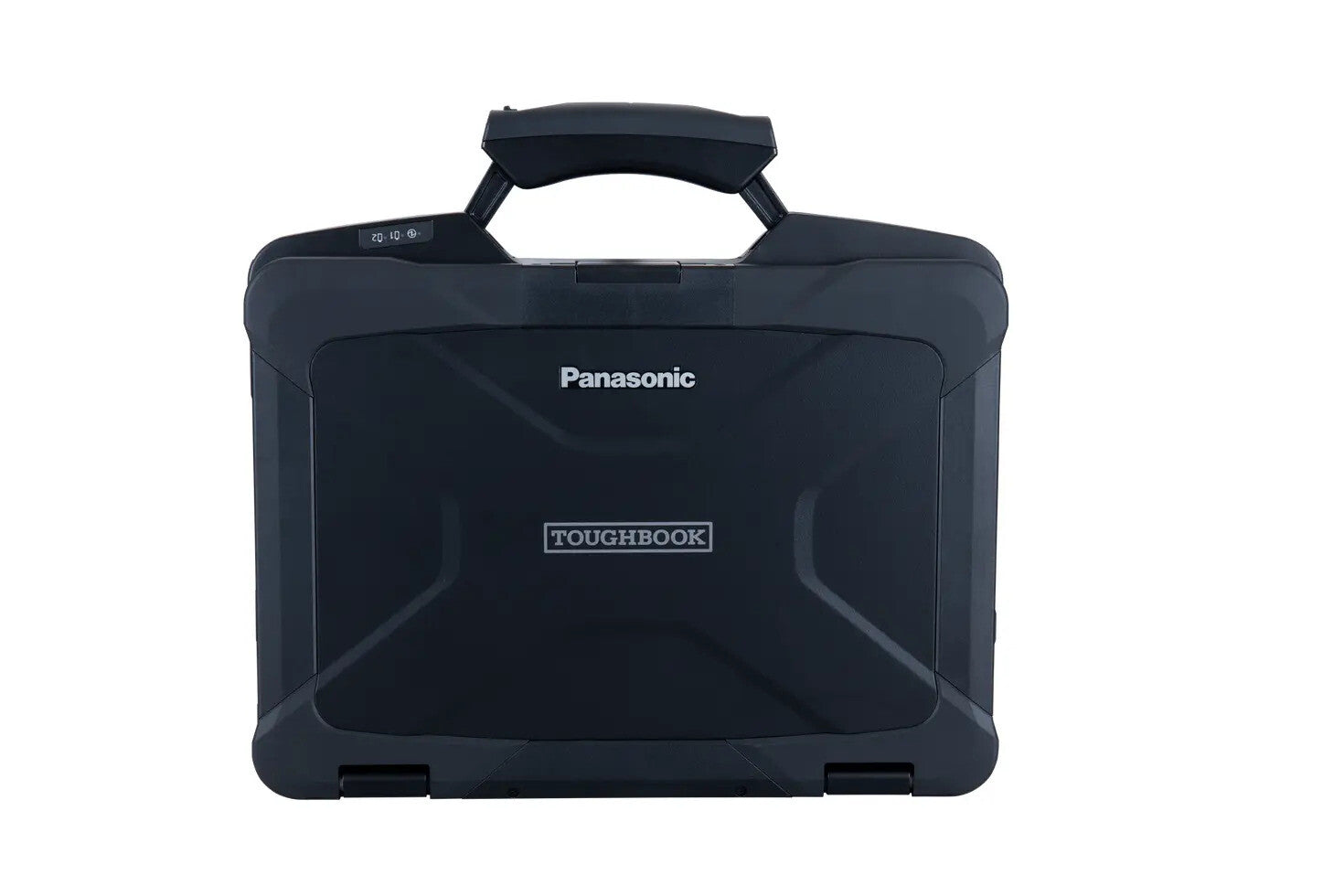

Engineered for the extreme
The TOUGHBOOK 40 is built to thrive in any environment, ensuring maximum uptime and durability. Its rugged magnesium-alloy chassis meets MIL-STD-810H and IP66 standards, providing exceptional protection against extreme conditions and operates in temperatures from -29°C to +63°C. Whether you're working in remote field operations, or disaster response zones, the TOUGHBOOK 40 is designed to perform reliably wherever you go.
Powering AI at the edge
AI-ready and built for performance, the TOUGHBOOK 40 is equipped with the latest Intel® Core™ Ultra vPro® processor and a dedicated AI Neural Processing Unit (NPU). It delivers fast, responsive computing power wherever it's needed. Optional discrete graphics provide smooth, high-quality visuals, while advanced thermal management keeps the device cool and dependable, even in the most demanding environments.

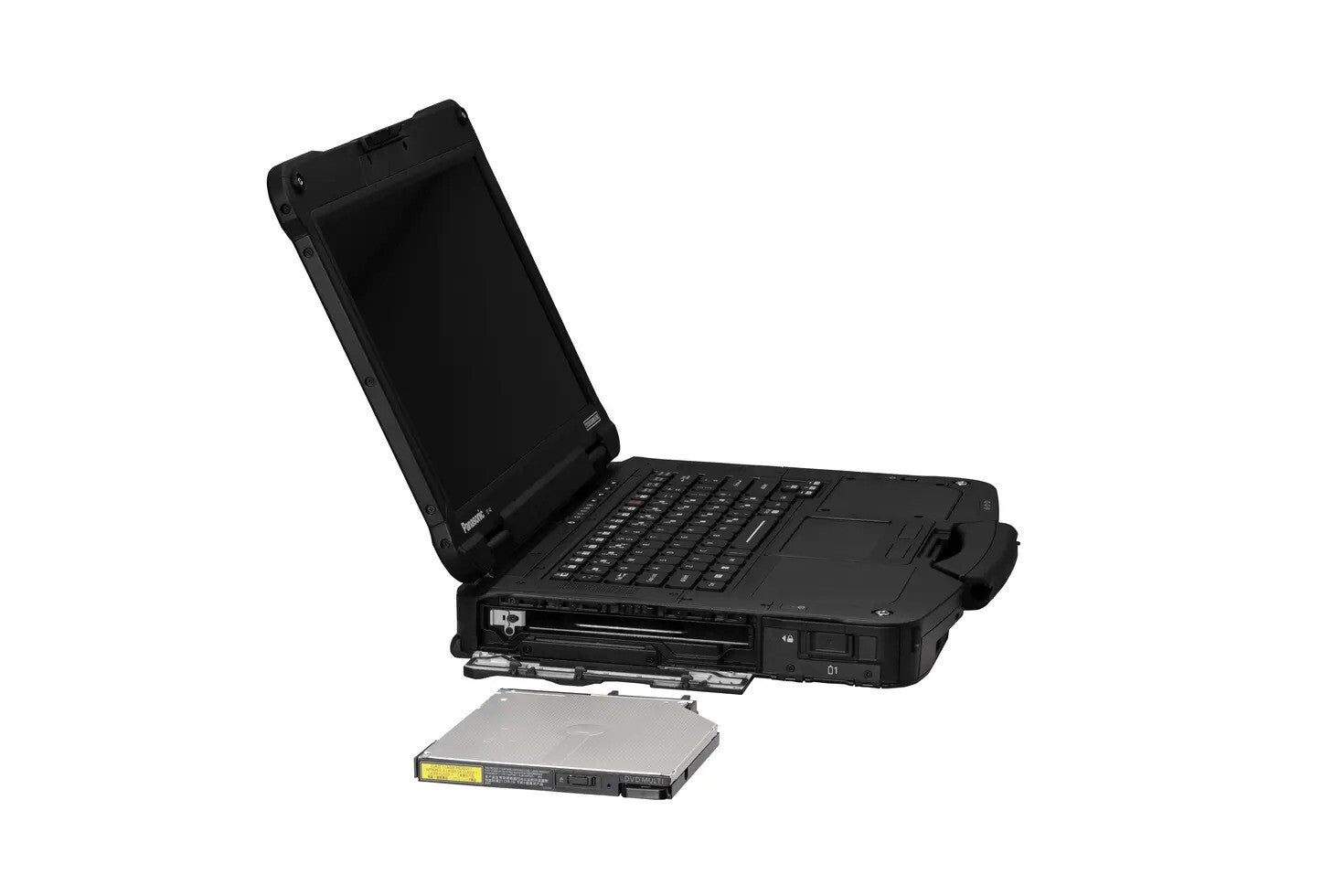

Modularity for any mission
The TOUGHBOOK 40 adapts to any task, role, or environment with 7 expansion areas and versatile attachments. Easily reconfigurable and self-upgradable in the field, it supports smartcard and fingerprint readers, HF-RFID, DVD and Blu-ray drives, as well as multiple interfaces, including options for a second LAN port and true serial ports. Additionally, it allows for easy upgrades, including expanding RAM and adding a second SSD, ensuring the device evolves with your needs over time.

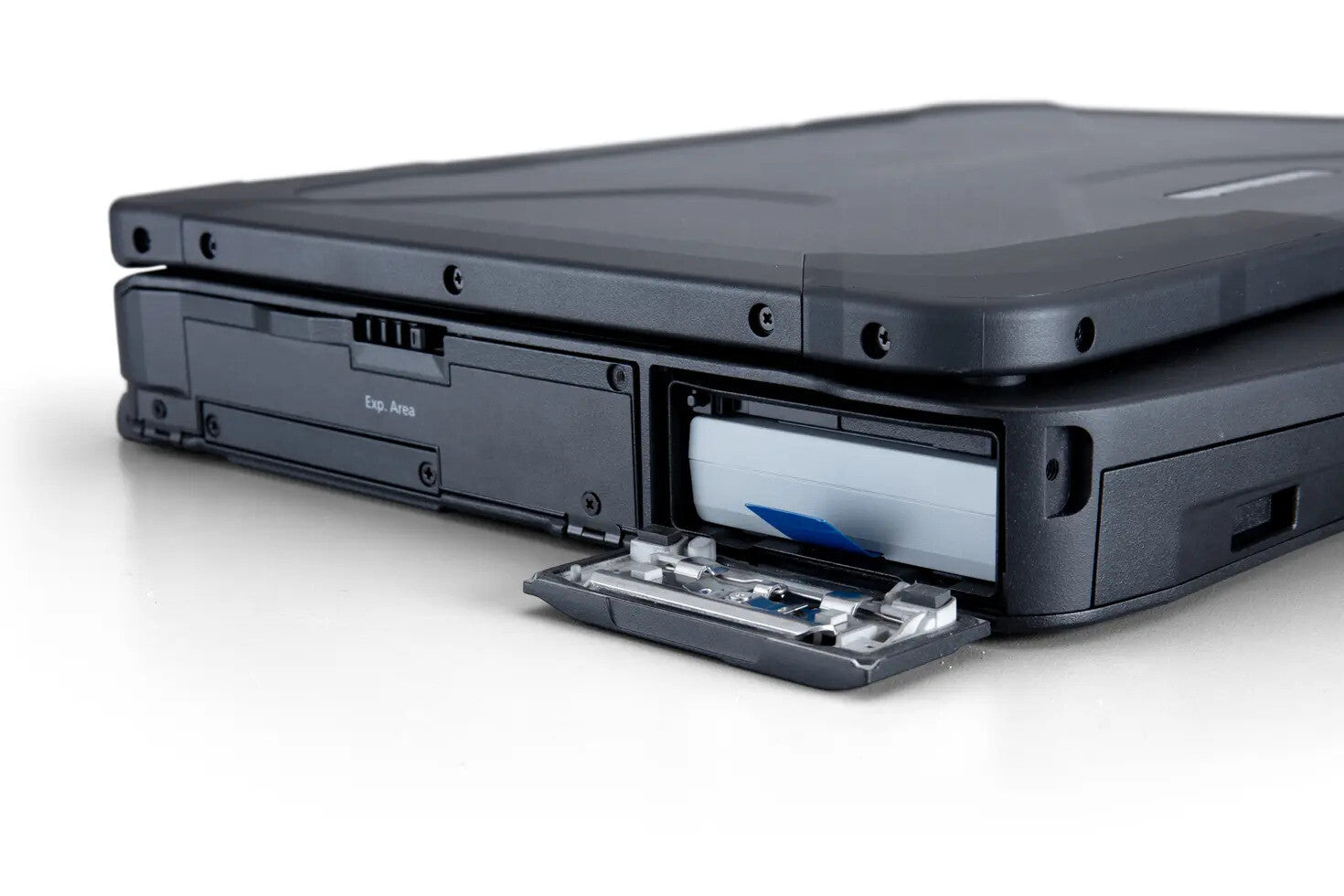

Uninterrupted power, anywhere
With up to 24 hours of battery life, the TOUGHBOOK 40 powers through even the longest shifts. Its plug-and-play hot-swap feature allows easy, tool-free battery replacement, without the need to shut down the laptop. Designed and manufactured by Panasonic, our Safety Technology ensures longevity with Auto-Predictive Monitoring and Active Smart Charging to optimise battery performance and longevity.

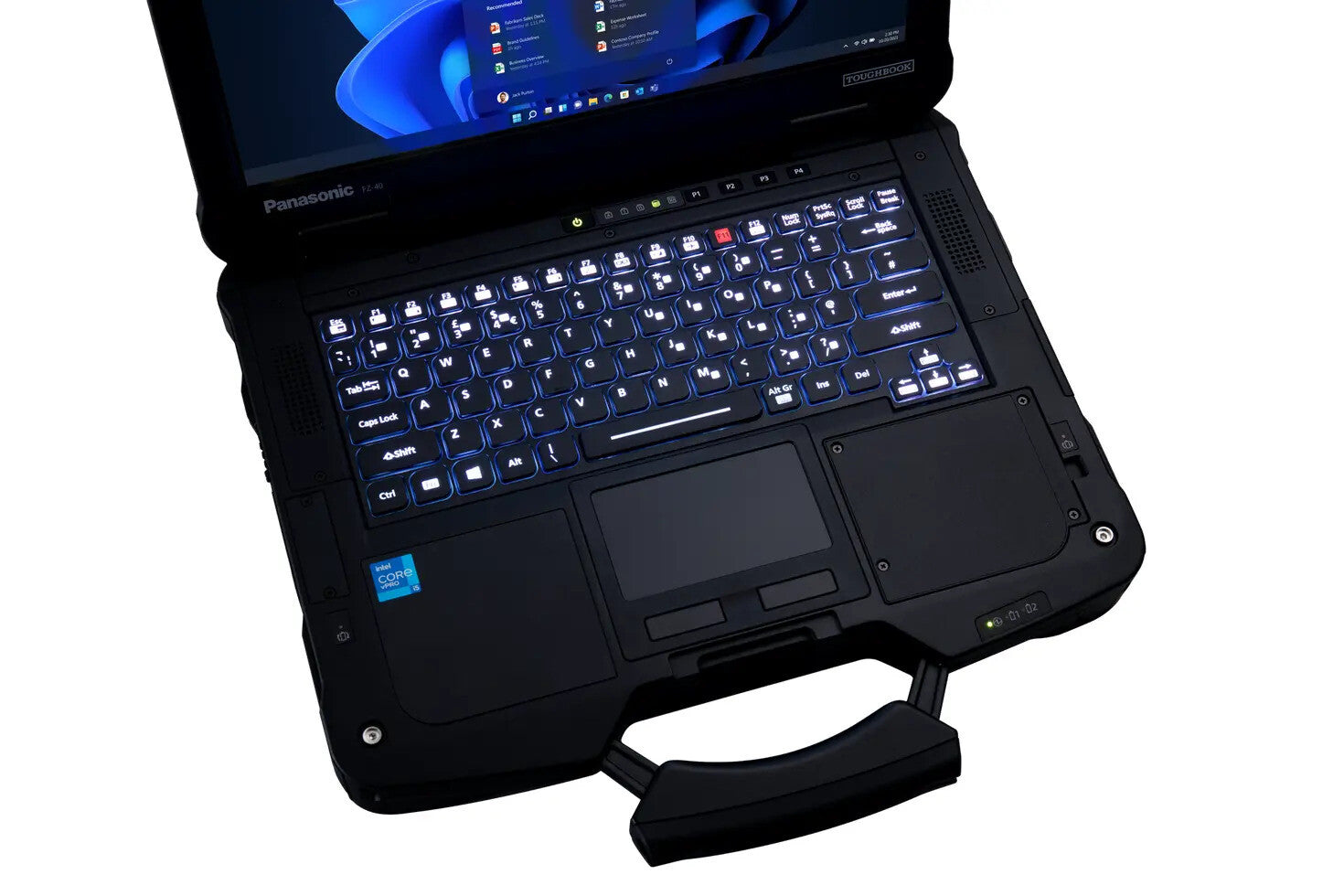

Maximum visibility and precision
The 14-inch, anti-scratch Full HD touchscreen delivers clear readability in any light or weather, with auto-adjusting brightness from 1,200 cd/m² to 2 cd/m² and anti-glare/reflection protection. The multi-touch display offers precise operation, even in wet conditions or when wearing gloves.
Connect without limits
Panasonic’s self-developed, in-house integrated antennas ensure optimal signal strength, even in remote areas. The TOUGHBOOK 40 supports high-speed 4G and 5G, including standalone and private 5G networks, with eSIM capability for seamless transitions between networks. Stay connected and work uninterrupted where other devices fall short.
Best-in-class security
The TOUGHBOOK 40 is a Microsoft Secured Core PC with a secure BIOS, fast boot-up, and Windows Hello facial recognition. It offers strong data protection through OPAL SSD, multi-user authentication, and optional smart card and fingerprint readers. Additional features include conceal mode, remote wipe, optional Viasat encryption, customizable component exclusions, and MIL-STD-461G certification for electromagnetic interference (EMI) resilience.
| Design | |
|---|---|
| Product type | Laptop |
| Product colour | Black, Grey |
| Form factor | Clamshell |

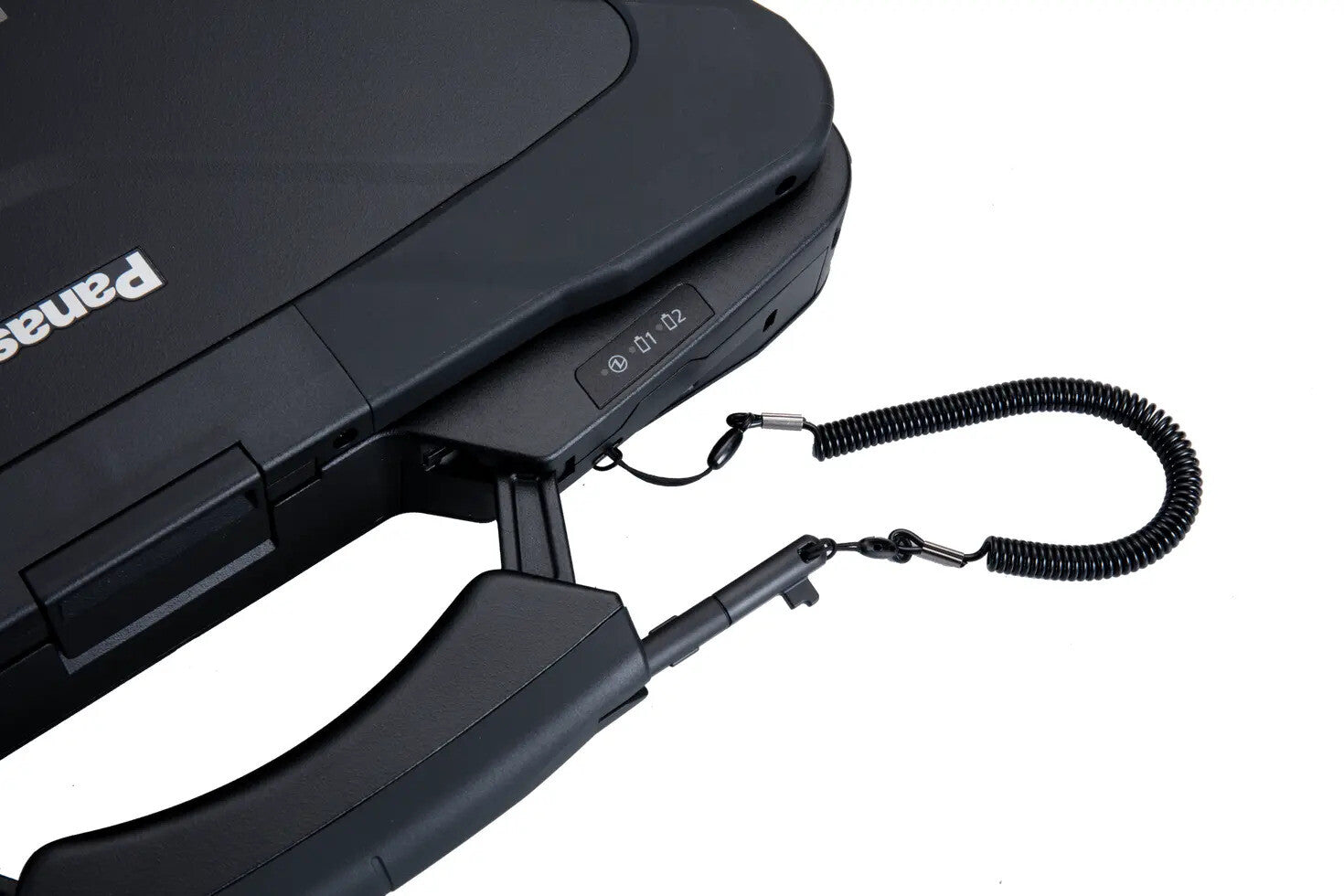

| Stylus pen support | Yes |
| Rugged design | Yes |
| Built-in stylus pen storage | Yes |
| Display | |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-reflective coating | Yes |
| Gorilla Glass version | Gorilla Glass 3 |
| Display glass type | Gorilla Glass |
| Display brightness | 1200 cd/m² |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 235H |
| Processor cores | 14 |
| Processor threads | 14 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 115 W |
| Processor base power | 28 W |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebGPU, WebNN, Windows ML |
| Total processor performance up to | 94 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 74 TOPs |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc 140T |
| Audio | |
|---|---|
| Audio system | MaxxAudio |
| Built-in microphone | Yes |
| Camera | |
|---|---|
| Front camera | No |
| Network | |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Keyboard | |
|---|---|
| Pointing device | Touchpad |
| Keyboard language | UK English |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery replacement accessibility | End-user |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 10.8 V |
| Battery life (max) | 12 h |
| Removable battery | Yes |
| Battery recharge time | 3 h |
| Power | |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100-240 V |
| Security | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -29 - 63 °C |
| Drop proof | 180 cm |
| Weight & dimensions | |
|---|---|
| Width | 354 mm |
| Depth | 301 mm |
| Height | 54.4 mm |
| General | |
|---|---|
| Product family | Toughbook |
