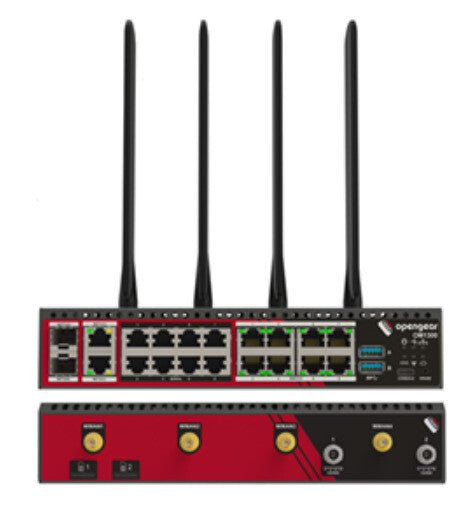

Opengear OM1308-8E console server RS-232/RJ-45
£1,969.99
Couldn't load pickup availability
- Managed networking with VLAN and Routing support
- IP based device management with Smart OOB™
- 4GB LPDDR4 memory / 32GB eMMC storage
- TPM 2.0 embedded physical security
- 4 port Serial and 4 port Ethernet management OR 8 port Serial and 8 port Ethernet management
The compact OM1300 appliance is purpose-built for secure edge deployments – working seamlessly with Lighthouse Management Software. By combining Smart OOB™ access with integrated switch ports for connecting servers, firewalls, and other critical equipment, it delivers a simplified, resilient platform that supports modern network management and automation at remote sites.
| Technical details | |
|---|---|
| Cellular | Yes |
| Compliance certificates | CB, GCF, ICES, PTCRB, PSE, RoHS, UL, VCCI |
| Supported programming languages | Python |
| 4G LTE | Yes |
| Temperature sensor | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Internal modem | Yes |
| Rack mounting | Yes |
| Event logging | Yes |
| Management features | |
|---|---|
| Management protocols | ZTP, Ansible, API based OS, SNMP |
| Security | |
|---|---|
| Authentication method | TACACS+, RADIUS, Active Directory/OpenLDAP |
| Security algorithms | FIPS 140-2, IPSec, TACACS+ |
| Ports & interfaces | |
|---|---|
| Console port | RS-232/RJ-45 |
| SFP module slots quantity | 2 |
| Ethernet LAN (RJ-45) ports | 10 |
| Serial ports quantity | 8 |
| Other features | |
|---|---|
| Safety | IEC 62368-1:2018, IEC 62368-1:2014, IEC 62368-1:2023 |
| Network | |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX |
| Supported network protocols | IPv6, IPSec, OpenVPN, TACACS+, RADIUS, SNMP |
| Processor | |
|---|---|
| Processor model | Cortex-A53 |
| Processor architecture | ARM Cortex-A53 |
| Processor cores | 4 |
| Processor frequency | 1600 MHz |
| Certificates | |
|---|---|
| Certification | PTCRB, GCF, Verizon, AT&T, EN 18031-1:2024, EN 18031-2:2024, EN 18031-3:2024, EN55032:2015+A11:2020, IEC 61000-3-2: 2018+A2:2024, EN 61000-3-2:2019+A2:2024, IEC 61000-3-3:2013+A2:2021, EN 61000-3-3:2013+A2:2021, 47 CFR Parts: 15B, ICES-003 Issue 7, EN 55035:2017+A11:2020, KS C 9832:2024, KS C 9835:2024, AS/NZ CISPR 32:2015+A1:2020, VCCI-CISPR 32:2016, CISPR 32:2015+A1:2019, CNS 15936:2016, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.3.1, EN 303 413 V1.2.1, EN 301 908-25 V15.1.1, EN 301 489-1:2019 v.2.2.3, EN 301 489-52:2021 v.1.2.1, EN 62311: 2020, EN 63000:2018, IEC 62368-1:2018, IEC 62368-1:2014, IEC 62368-1:2023 |
| Memory | |
|---|---|
| eMMC capacity | 32 GB |
| RAM type | DDR4 |
| RAM capacity | 4000 MB |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating temperature (T-T) | -25 - 60 °C |
| Power | |
|---|---|
| AC input voltage | 110 - 240 V |
| Power consumption (max) | 32 W |
