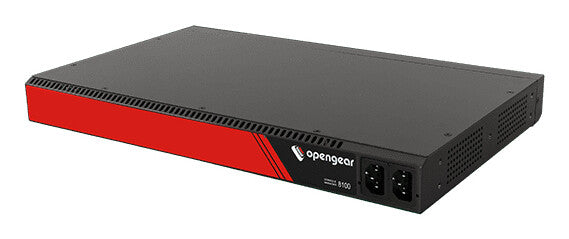

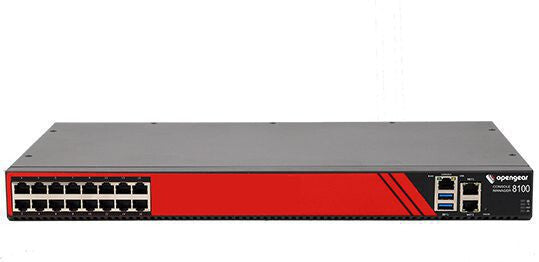

Opengear CM8116-10G-C console server RS-232
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,029.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 16, 32 or 48 port serial console server with Smart Out-of-Band™
- Enables Data Center and Enterprise Network automation with Python and Docker support
- Ideal replacement for legacy terminal servers
- Embedded physical security using TPM 2.0 module
- Dual power supplies with independent monitoring
- Integrated environmental temperature monitoring
CM8100 Console Server
The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
Specifications
Technical details
| Mobile network generation | 5G |
|---|---|
| Cellular | Yes |
| Compliance certificates | RoHS |
| Supported programming languages | Perl, Python |
| MIB support | Yes |
| Product colour | Black, Red |
| Temperature sensor | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Rack mounting | Yes |
Security
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Authentication method | TACACS+, RADIUS, OpenLDAP |
| Security algorithms | IPSec, SNMP, SSH |
Show all 33 specificationsShow fewer specifications
Ports & interfaces
| Console port | RS-232 |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 16 |
| AC outlet types | C14 coupler |
Features
| Cooling type | Passive |
|---|
Network
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
|---|
Processor
| Processor family | Marvell |
|---|---|
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 1600 MHz |
Memory
| eMMC capacity | 32 GB |
|---|---|
| Internal memory | 2000 MB |
| RAM type | DDR4 |
| Flash memory | 32000 MB |
Operational conditions
| Operating relative humidity (H-H) | 5 - 90% |
|---|---|
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 5 - 50 °C |
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Number of power supply units | 2 |
