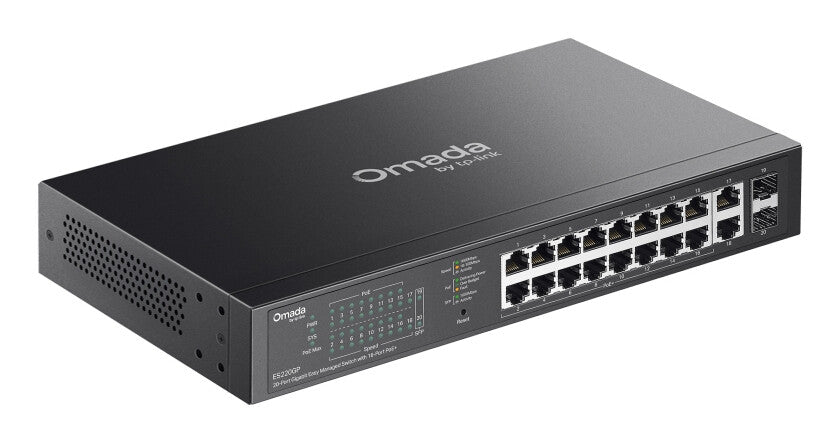

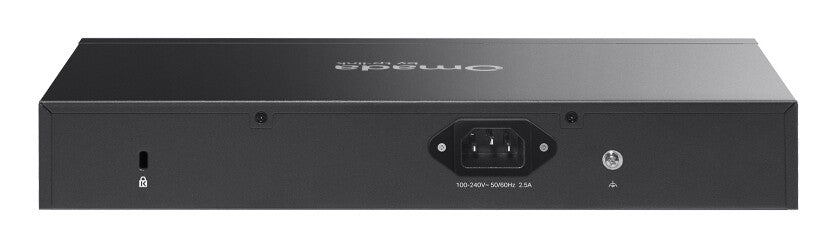

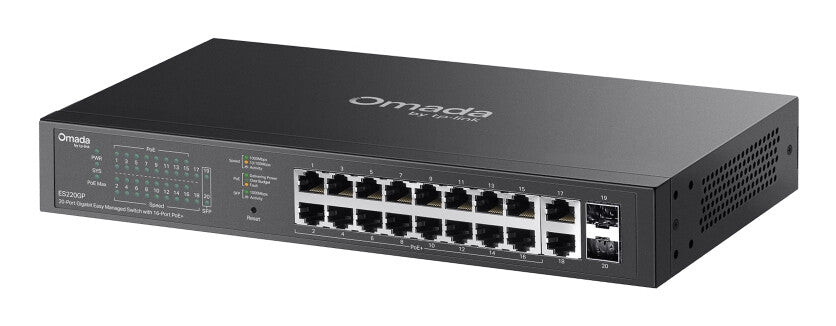

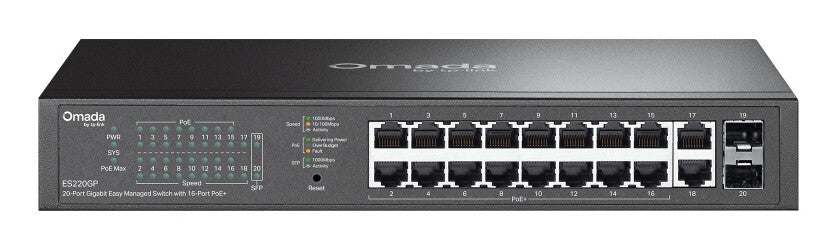

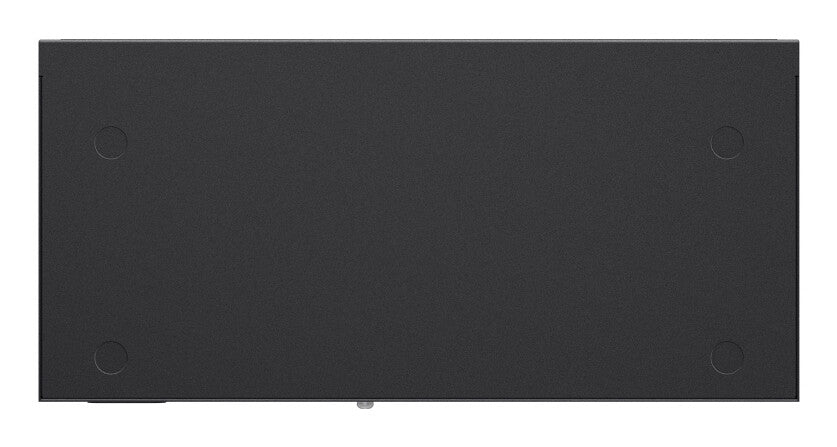

OMADA ES220GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£181.99
Couldn't load pickup availability
- 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP Slots
- 150W PoE Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 820ft PoE, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack mounting design
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Security | |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Performance | |
|---|---|
| Noise level | 20.1 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 320156 h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 182.43 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| User guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
