Neomounts NM-D775DX3SILVER Monitor arm 17-27" - gas spring - Topfix - 180°-stop
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £96.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Maximum weight capacity: 6 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 3

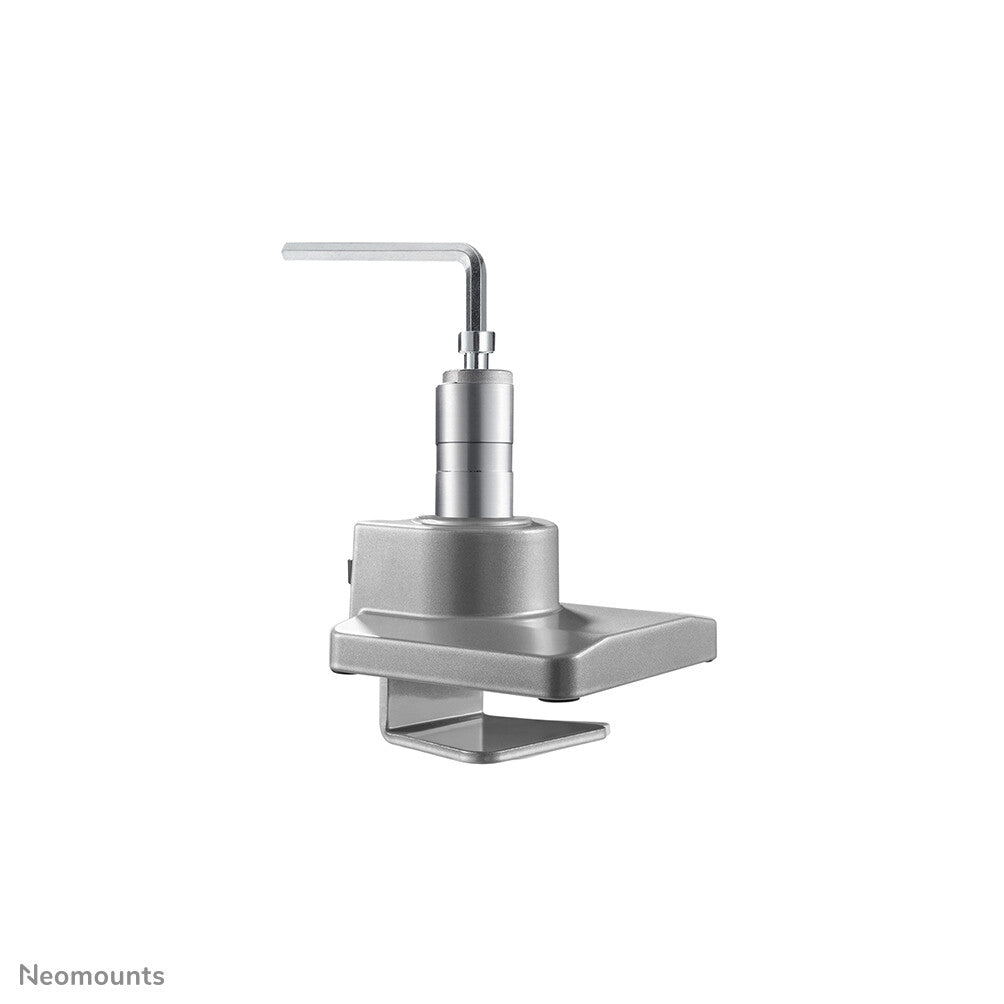

- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- Aluminium Silver

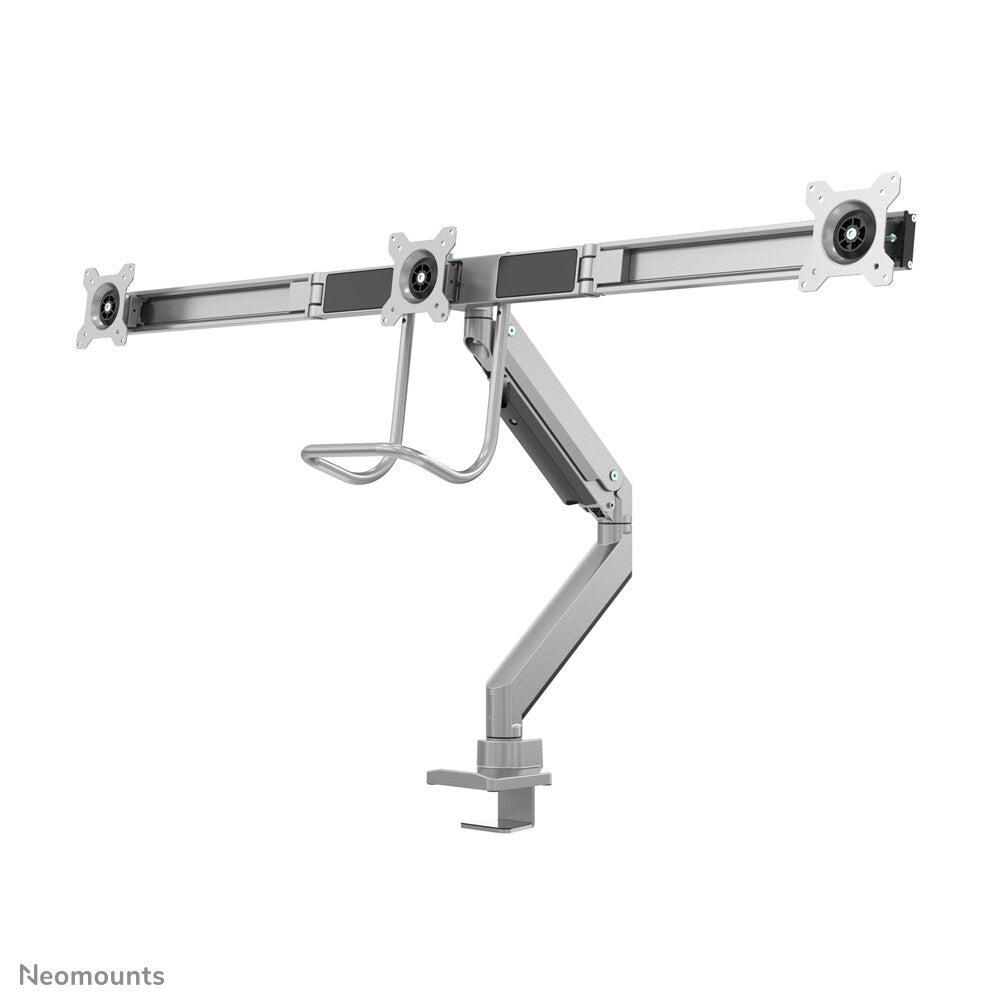

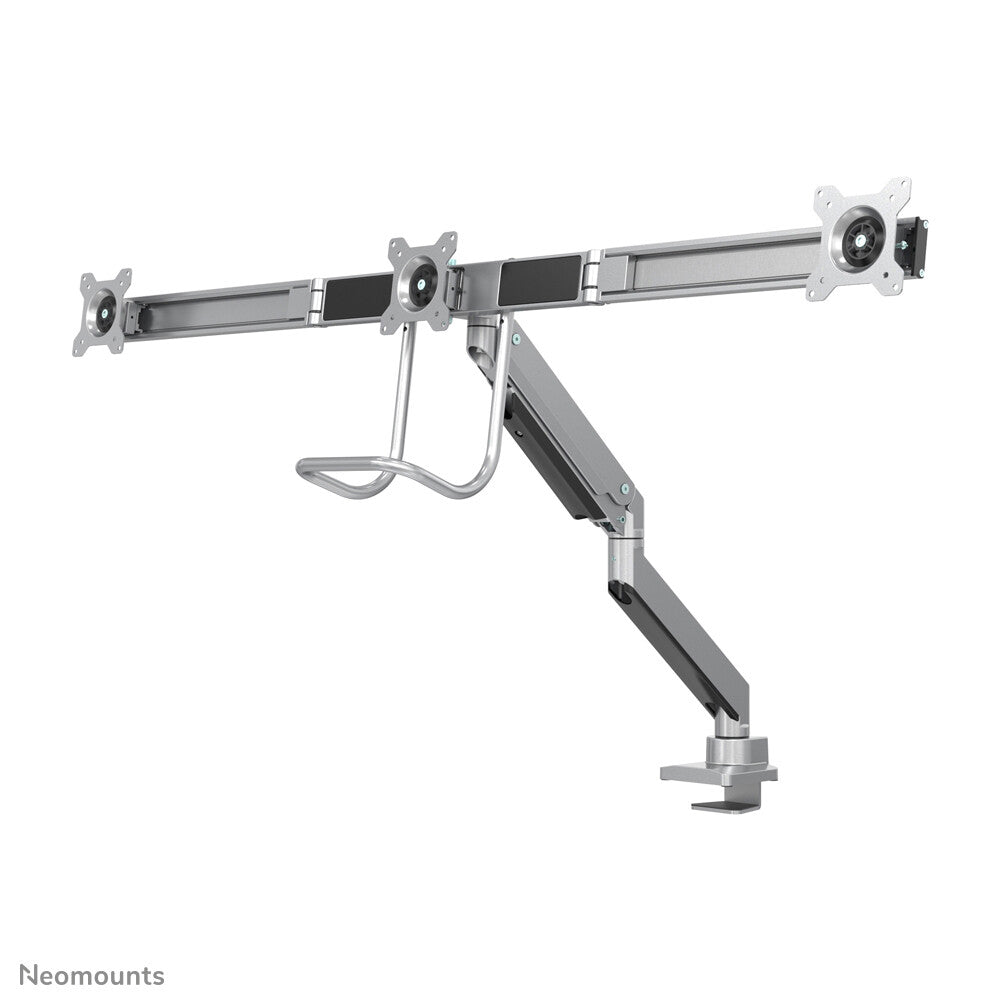

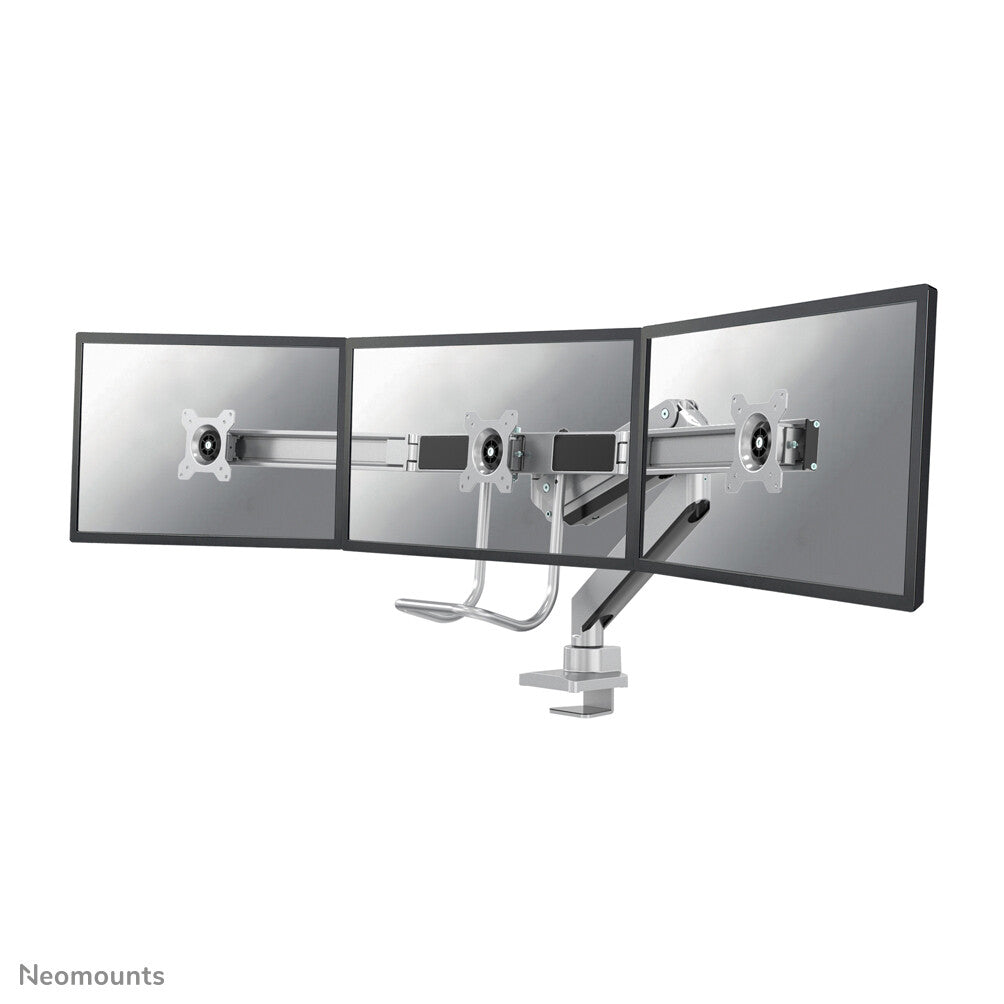

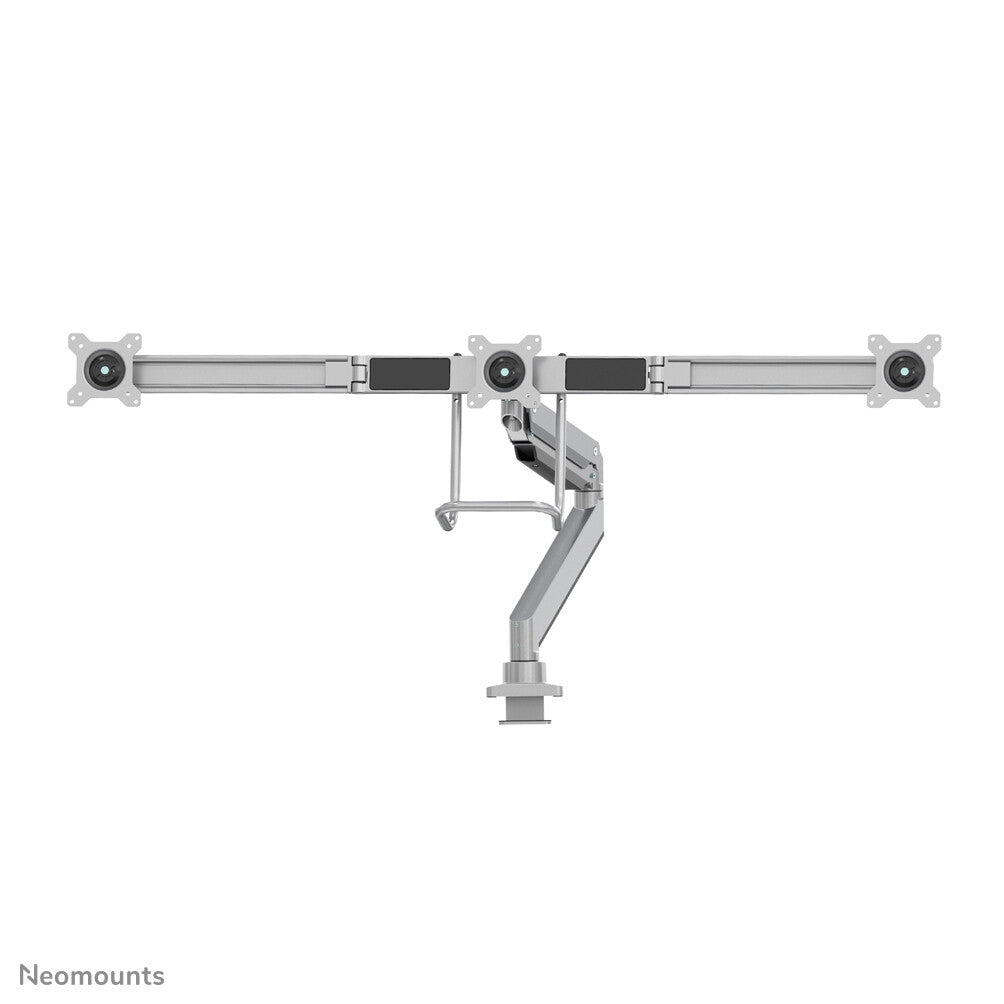

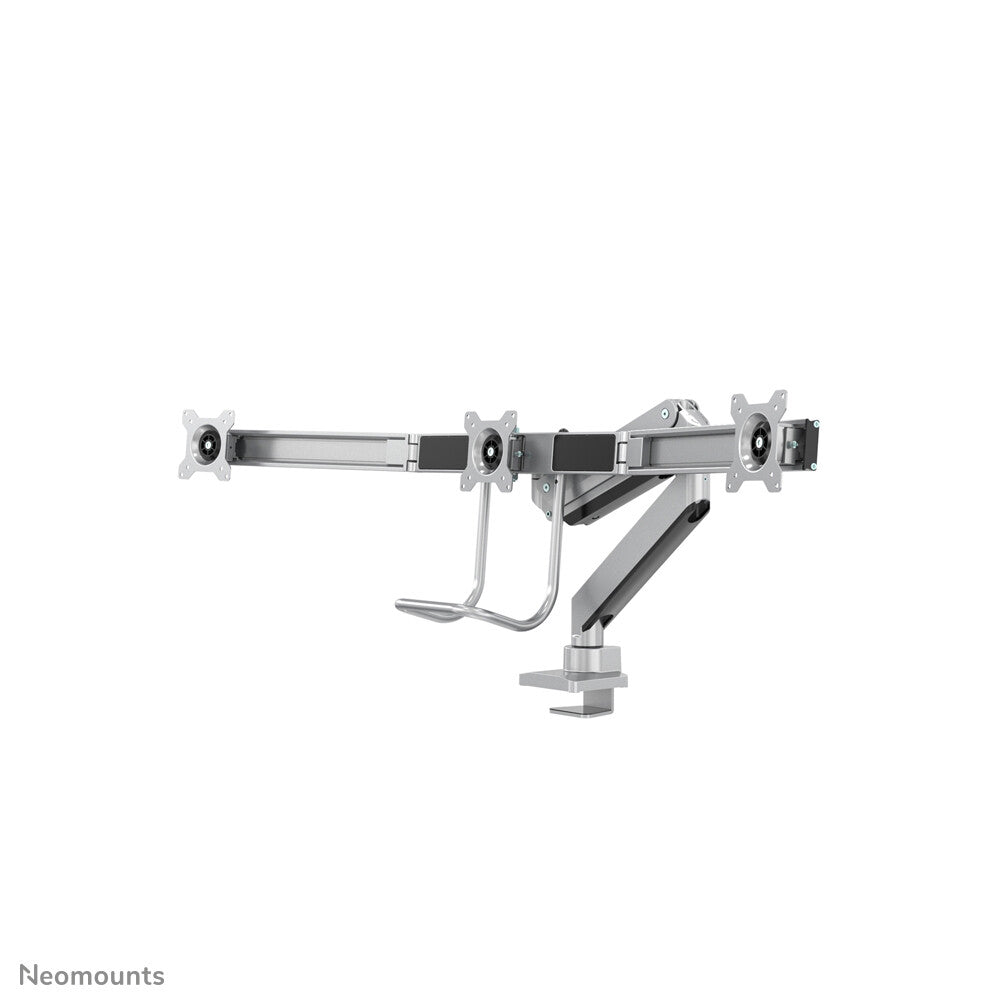

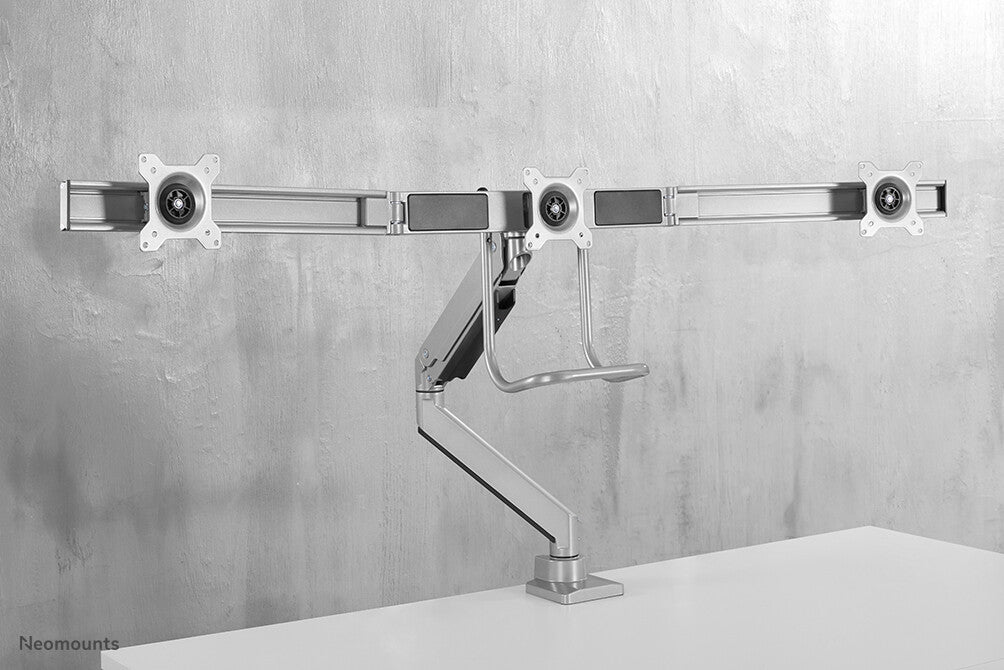

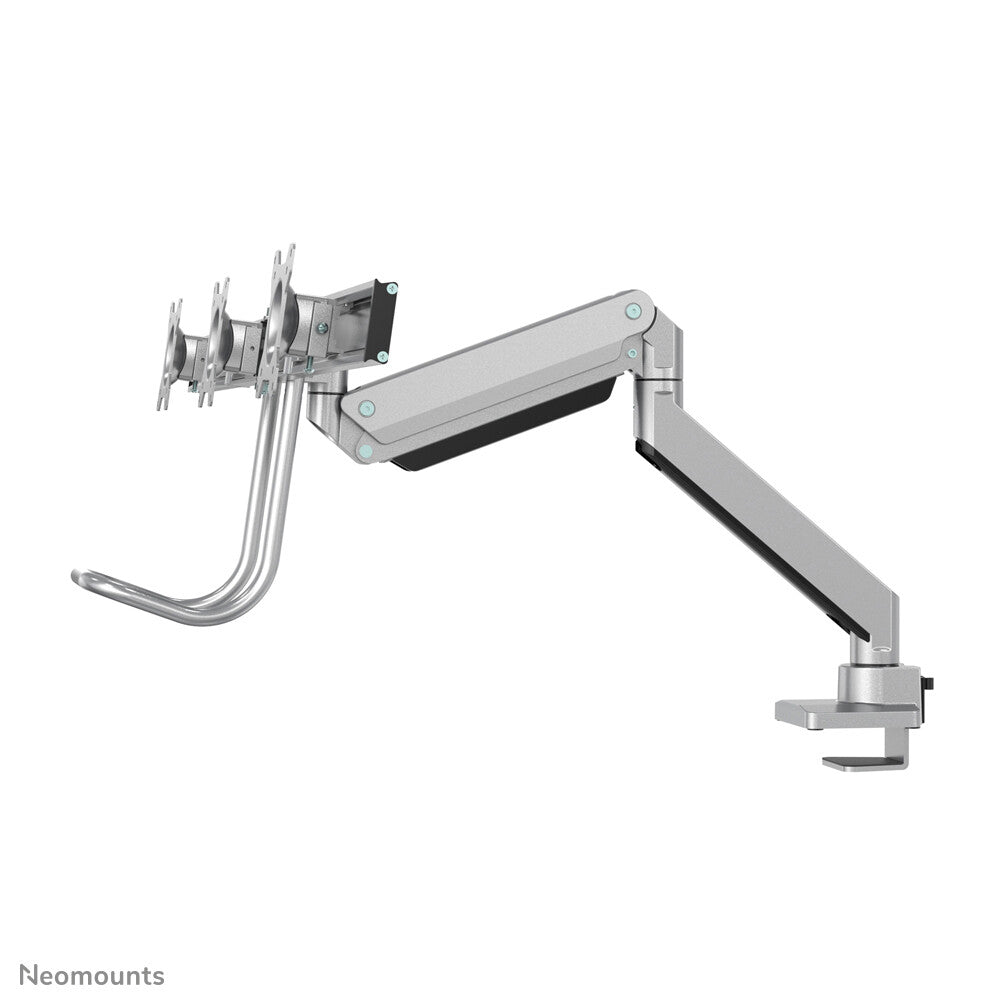

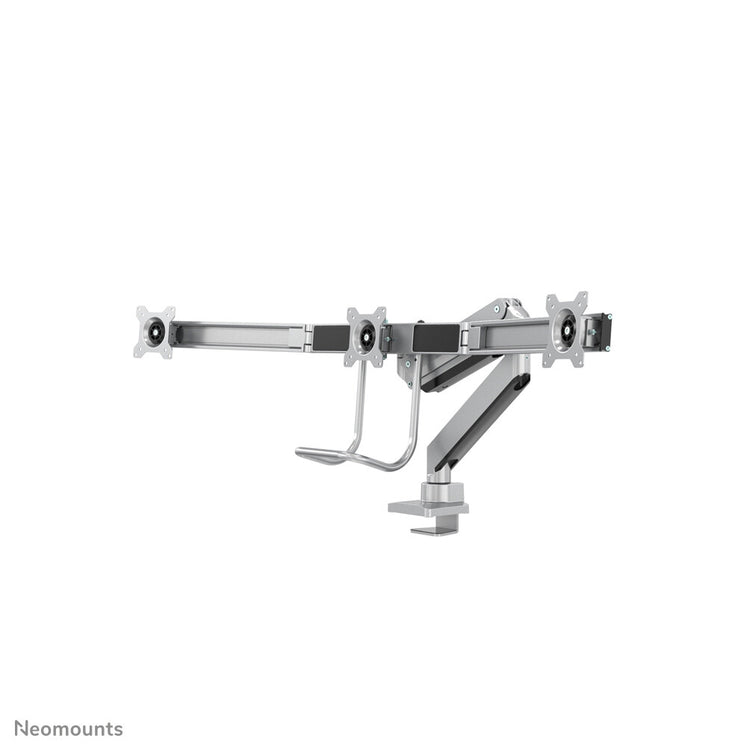

The Neomounts NM-D775DX3SILVER is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

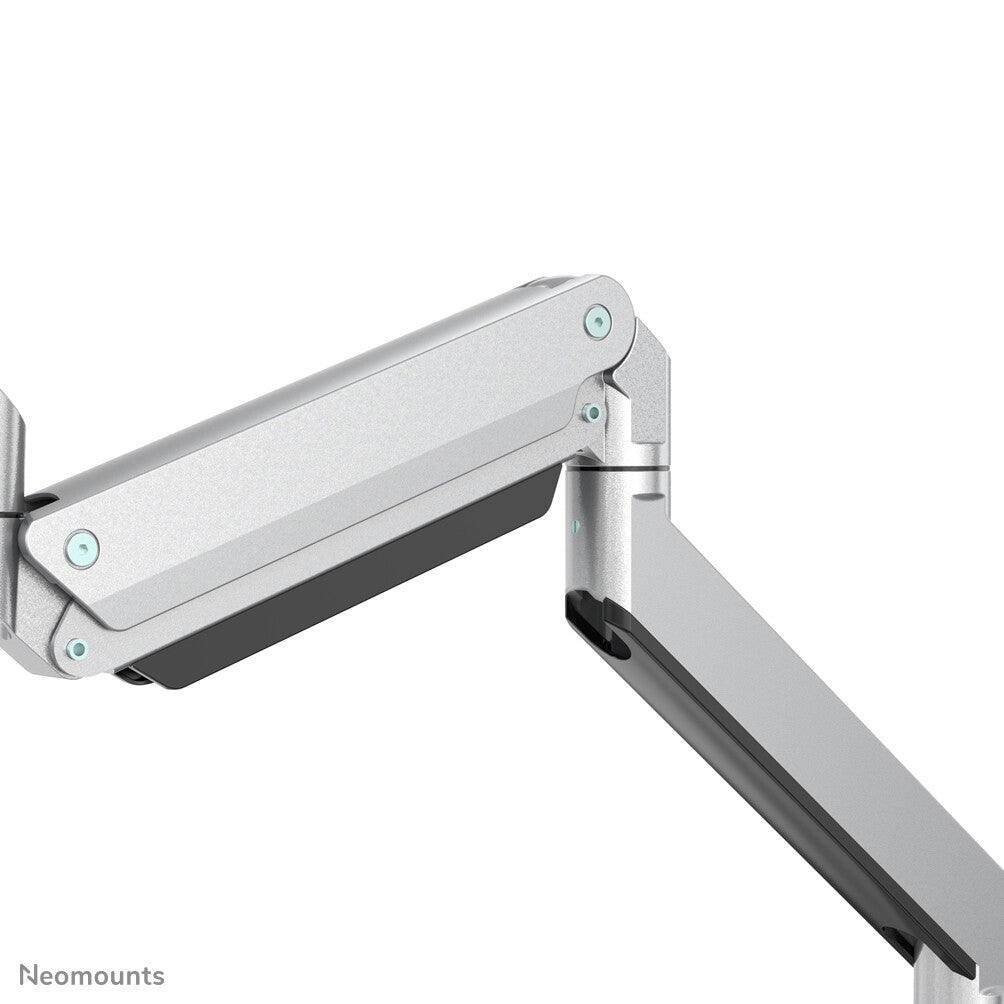

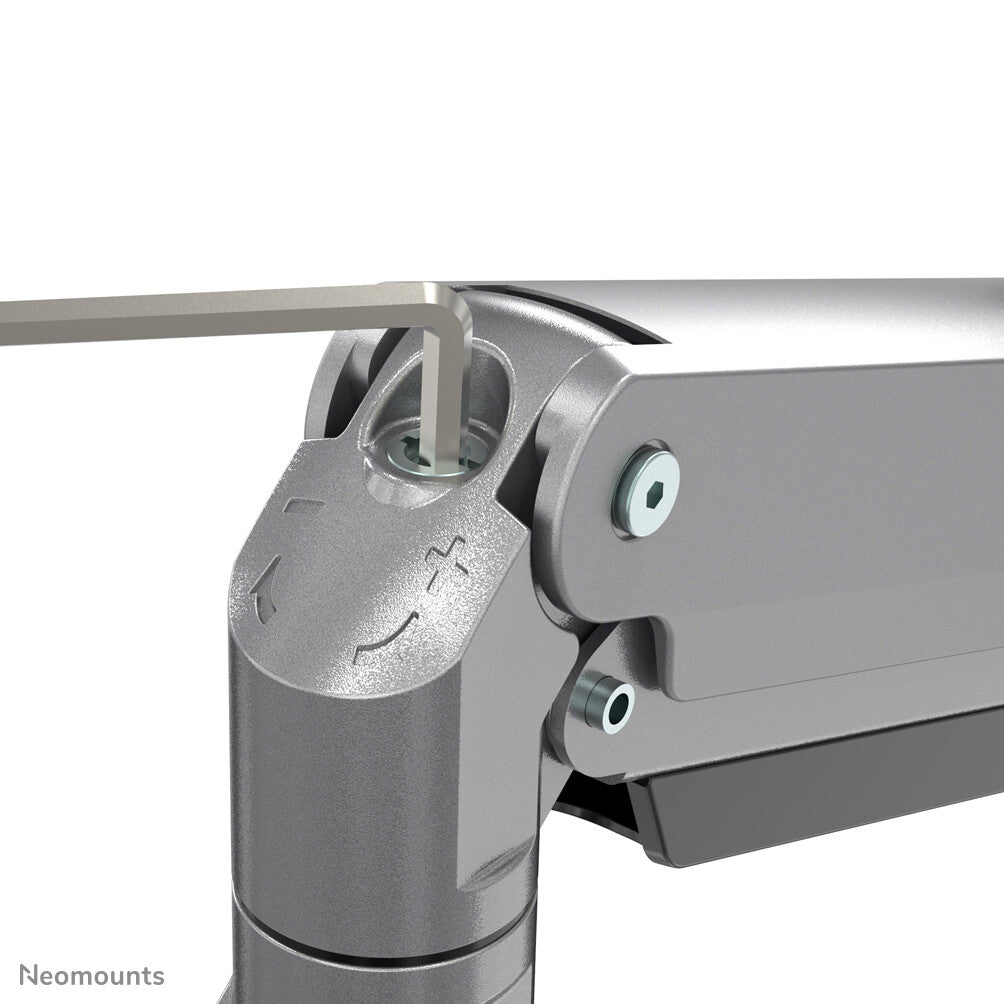

Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3SILVER with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
Mounting
| Maximum weight capacity | 6 kg |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Desk |
| Maximum weight capacity (per display) | 6 kg |
| Mounting | Clamp/Grommet |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 3 |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
Ergonomics
| Height adjustment | Yes |
|---|---|
| Height adjustment type | Gas spring |
| Height adjustment range | 270 - 600 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 630 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 20° |
| Swivelling | Yes |
| Swivel angle | 360° |
| Swivel angle range | 0 - 360° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
Show all 30 specificationsShow fewer specifications
Design
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
Weight & dimensions
| Height | 600 mm |
|---|---|
| Weight | 8.58 kg |
Other features
| Minimum weight | 1 kg |
|---|
