Neomounts NM-D750DSILVER Monitor arm 10-32" - gas spring

Newstar
£213.99
Stock Available: 0
  • Maximum weight capacity: 9 kg
  • Minimum screen size: 25.4 cm (10") Maximum screen size: 81.3 cm (32")
  • Number of displays supported: 2
  • Clamp/Grommet Mounting type: Desk
  • Maximum VESA mount: 100 x 100 mm
  • Gas spring Height adjustment Tilt adjustment
  • Steel Silver

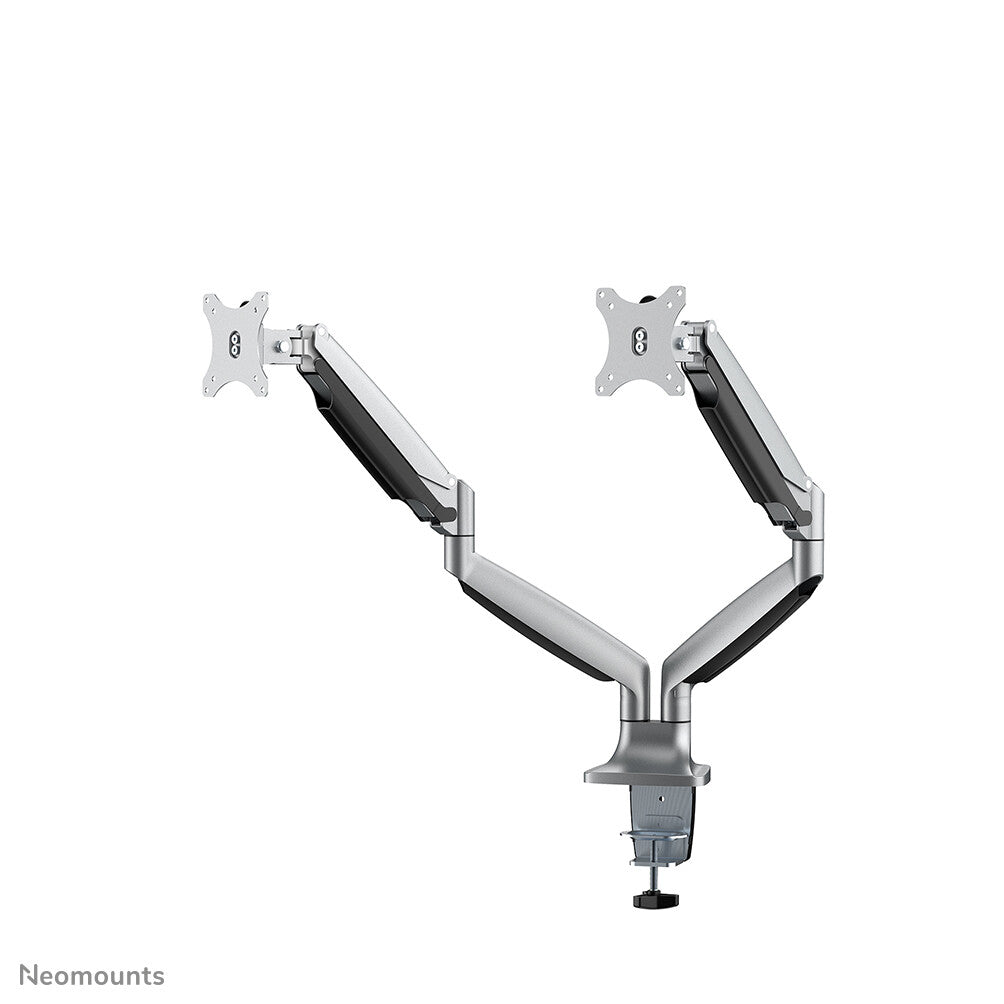

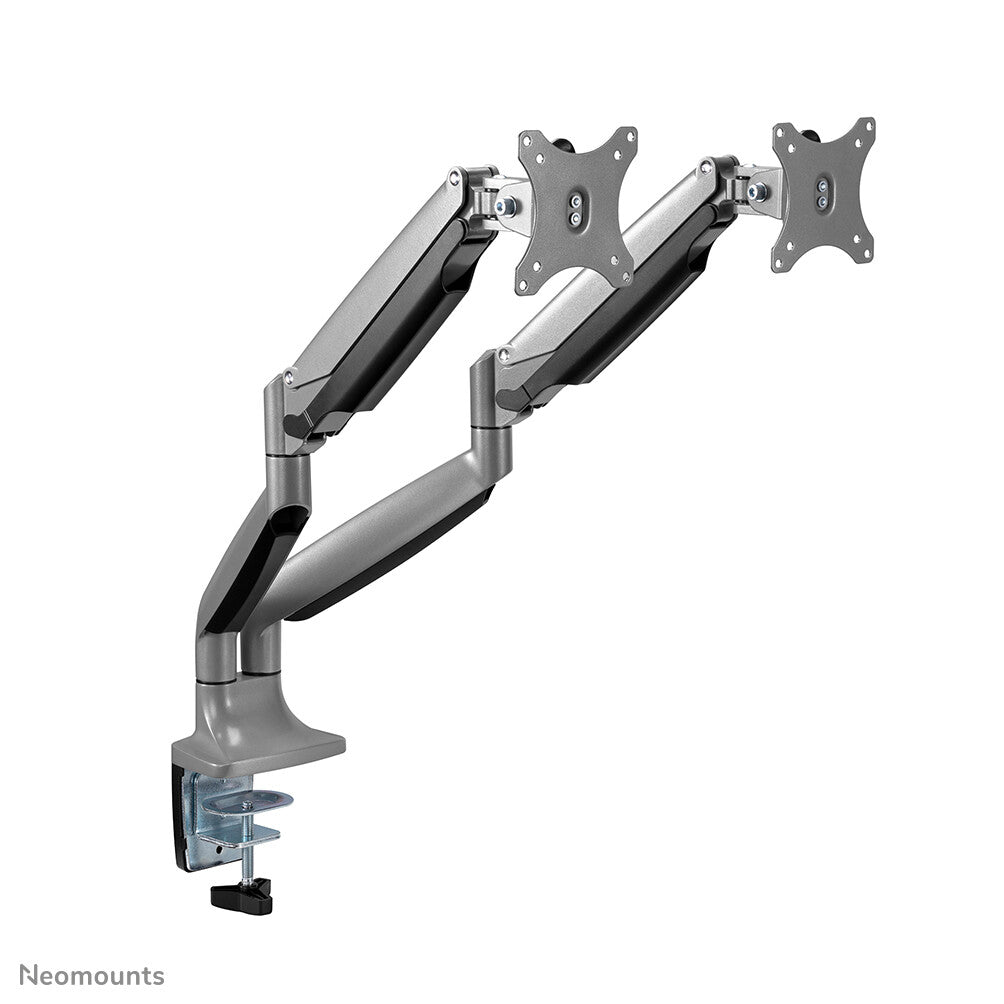

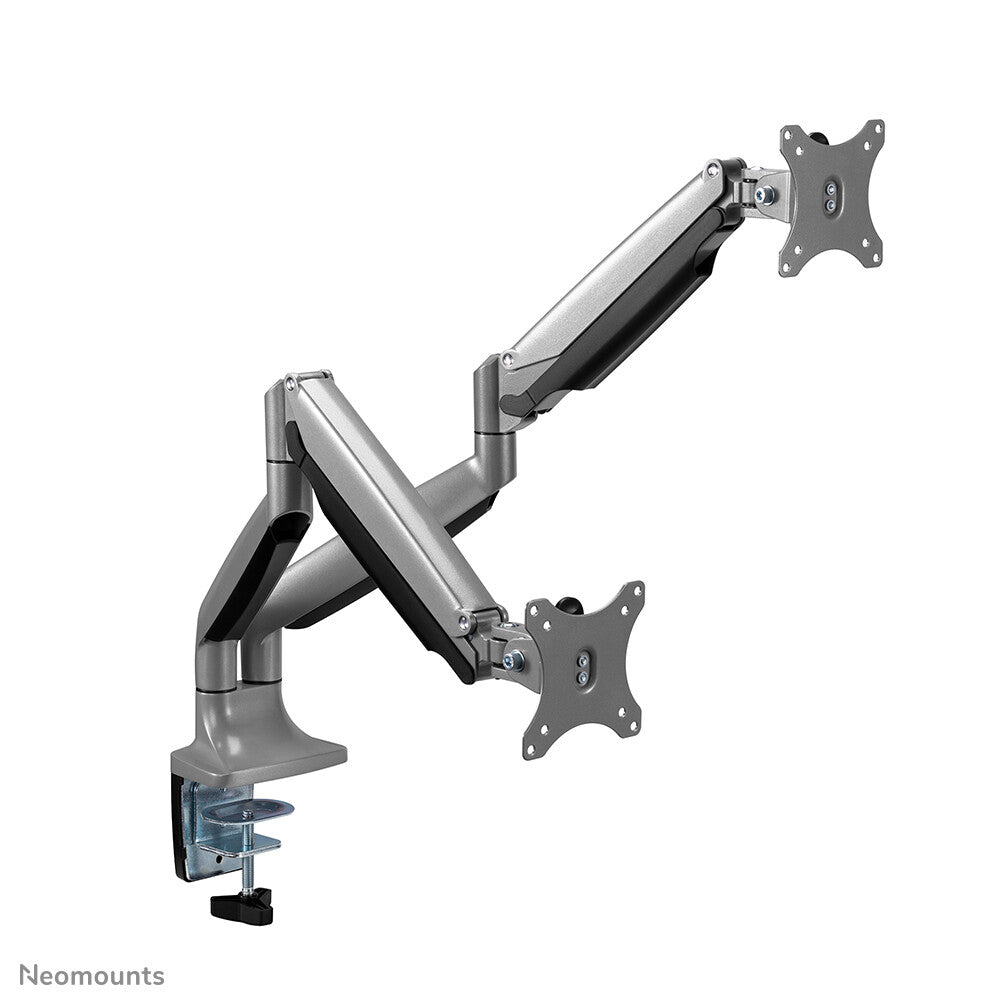

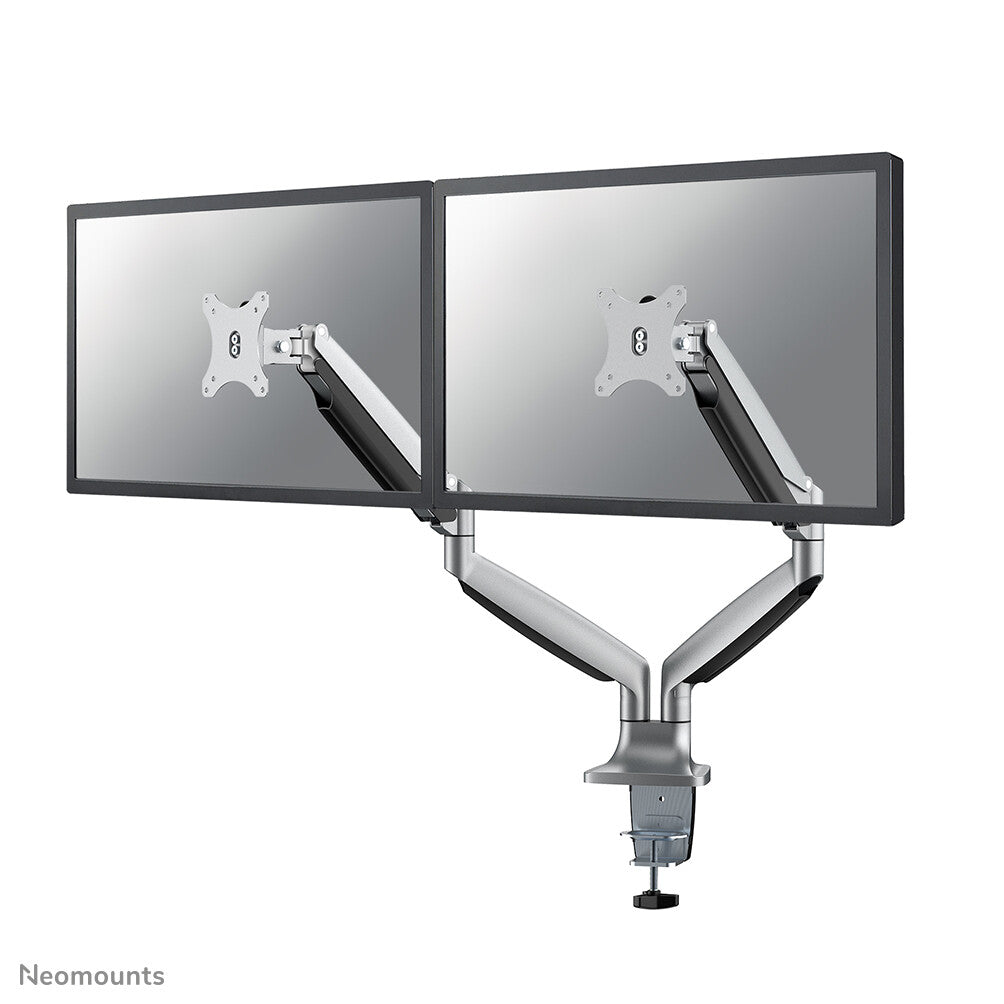

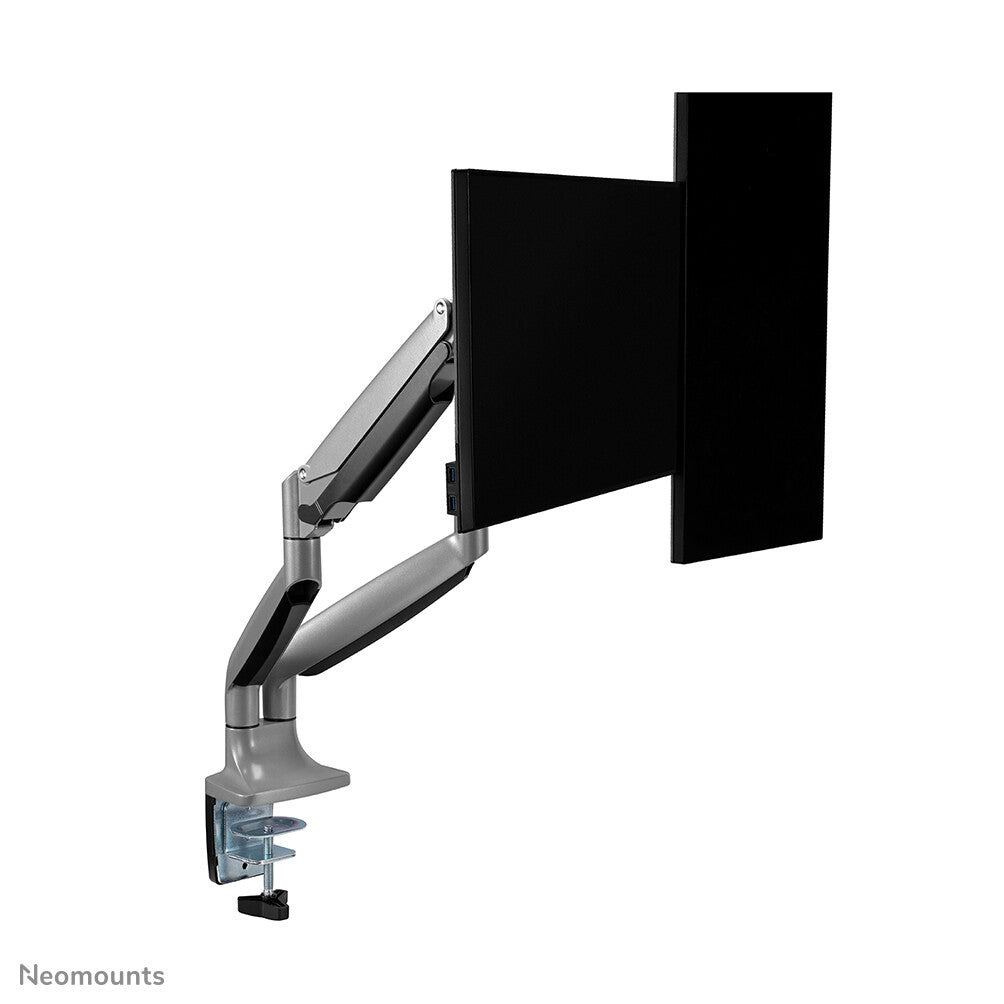

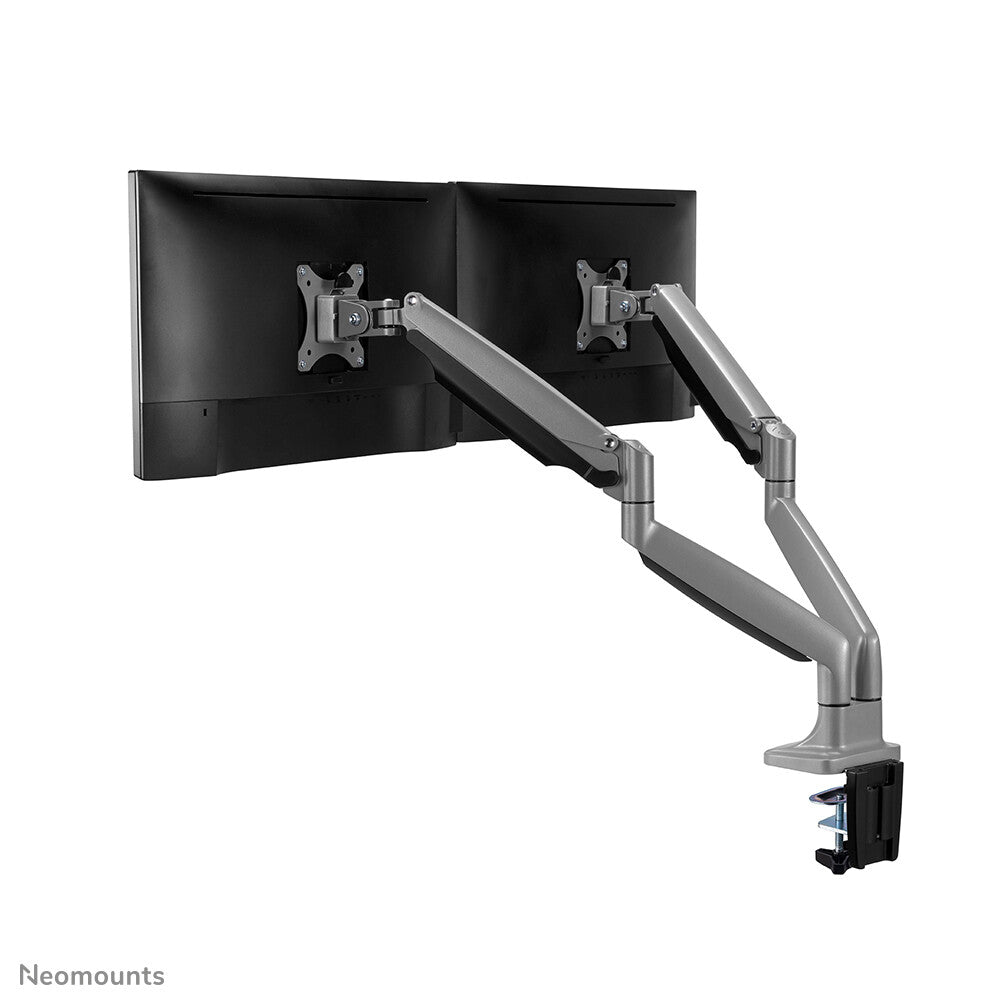

The Neomounts desk mount, model NM-D750DSILVER is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

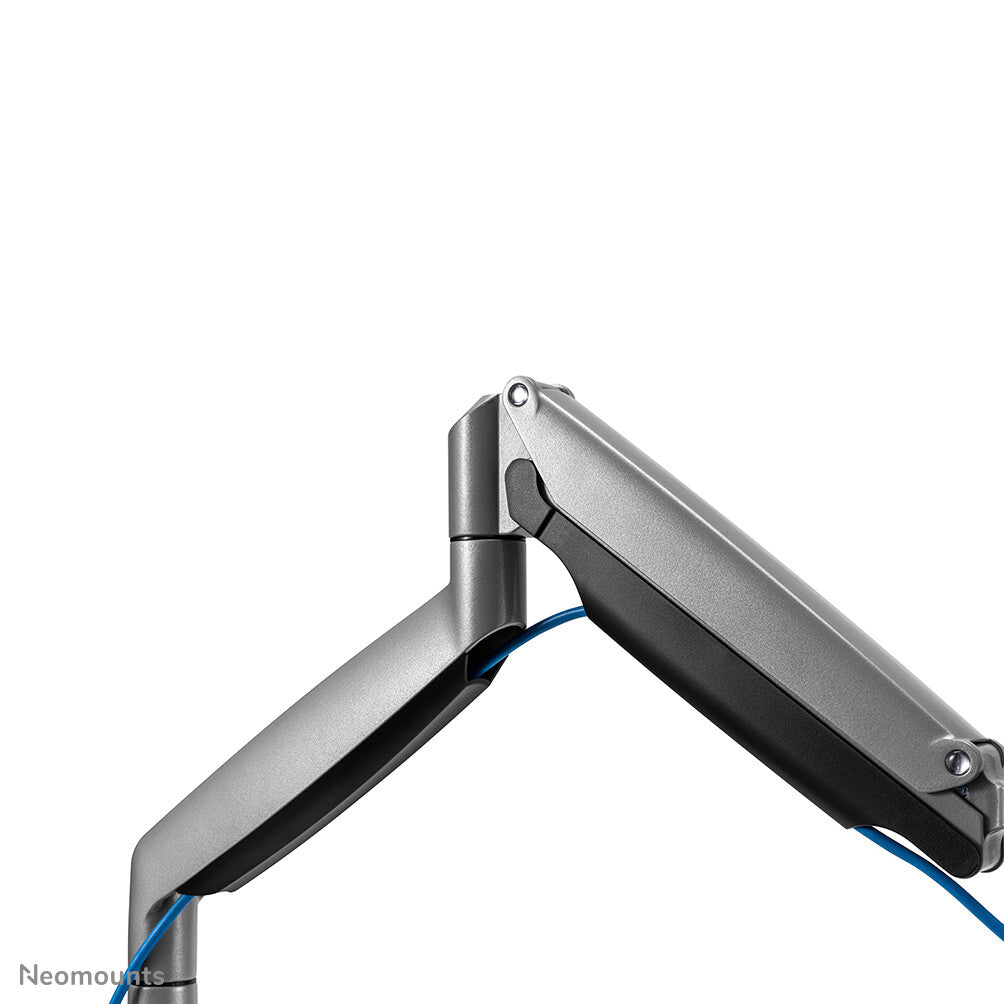

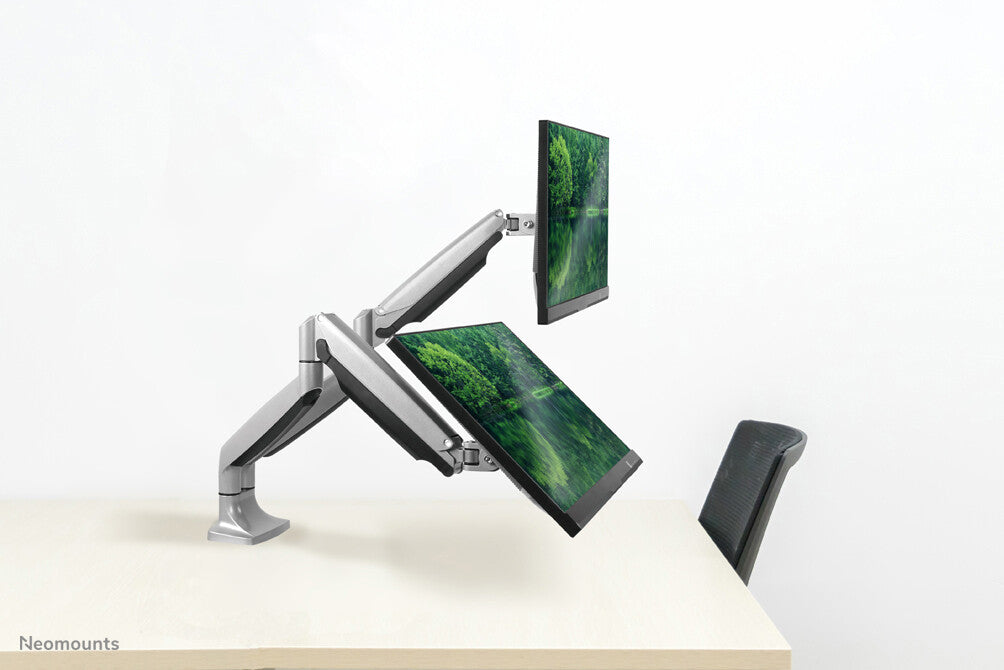

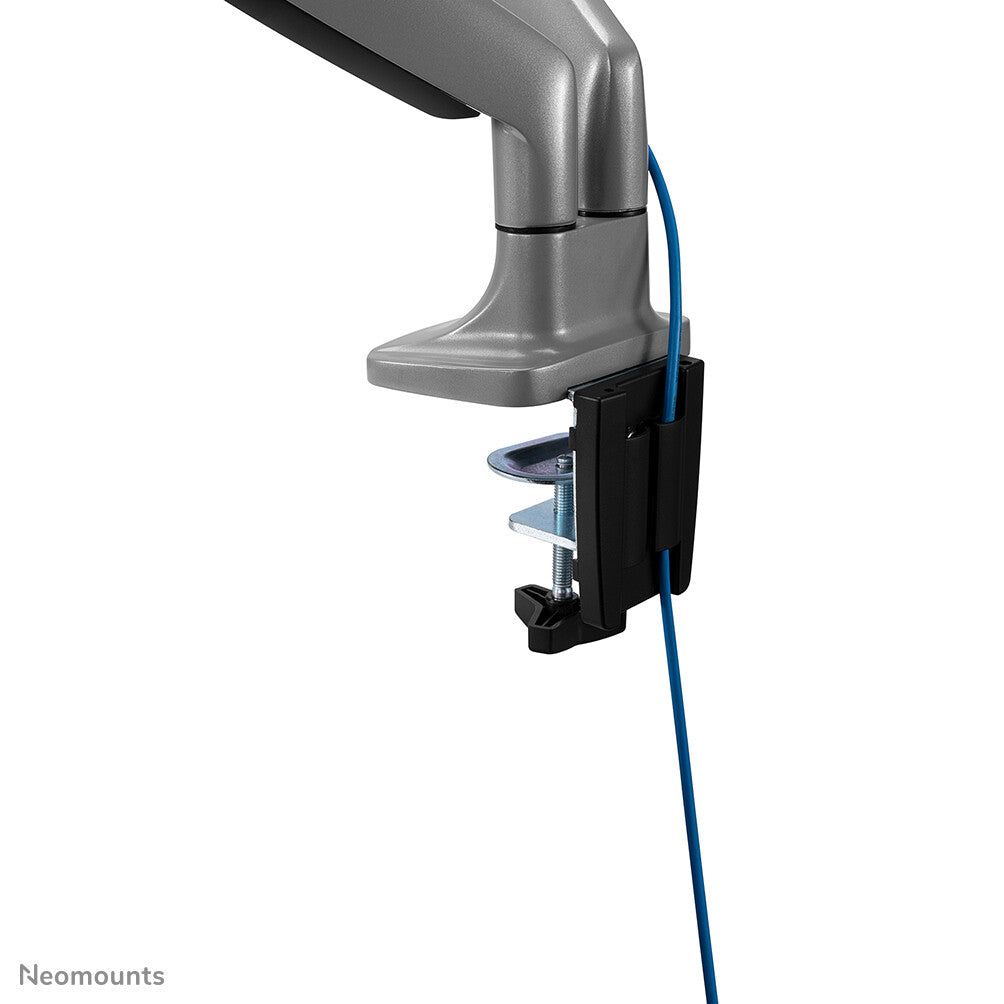

Neomounts' unique tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

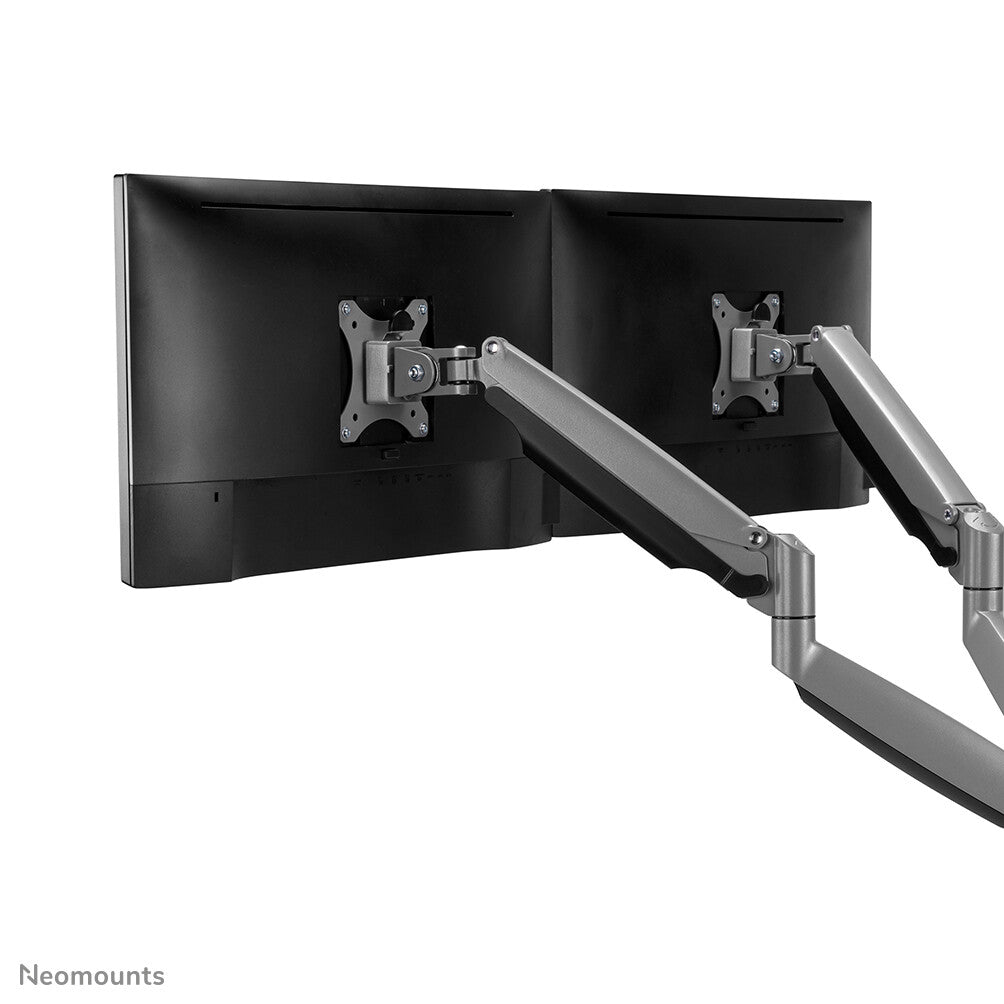

Neomounts NM-D750DSILVER has three pivot points and is suitable for screens up to 32" (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

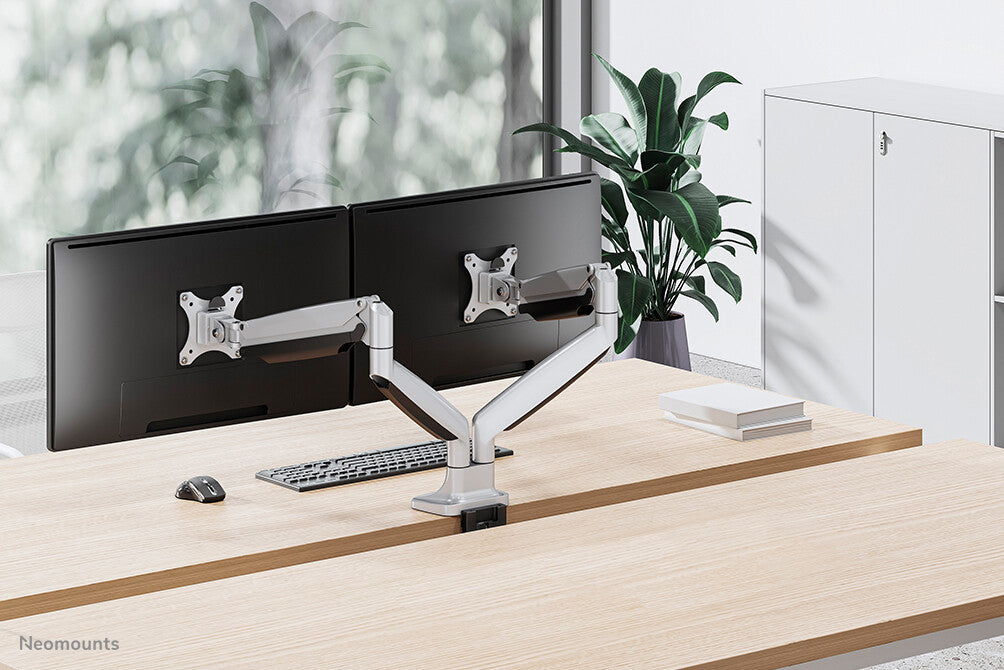

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Mounting
Distance to the wall (max) 65.1 cm
Distance to the wall (min) 12.6 cm

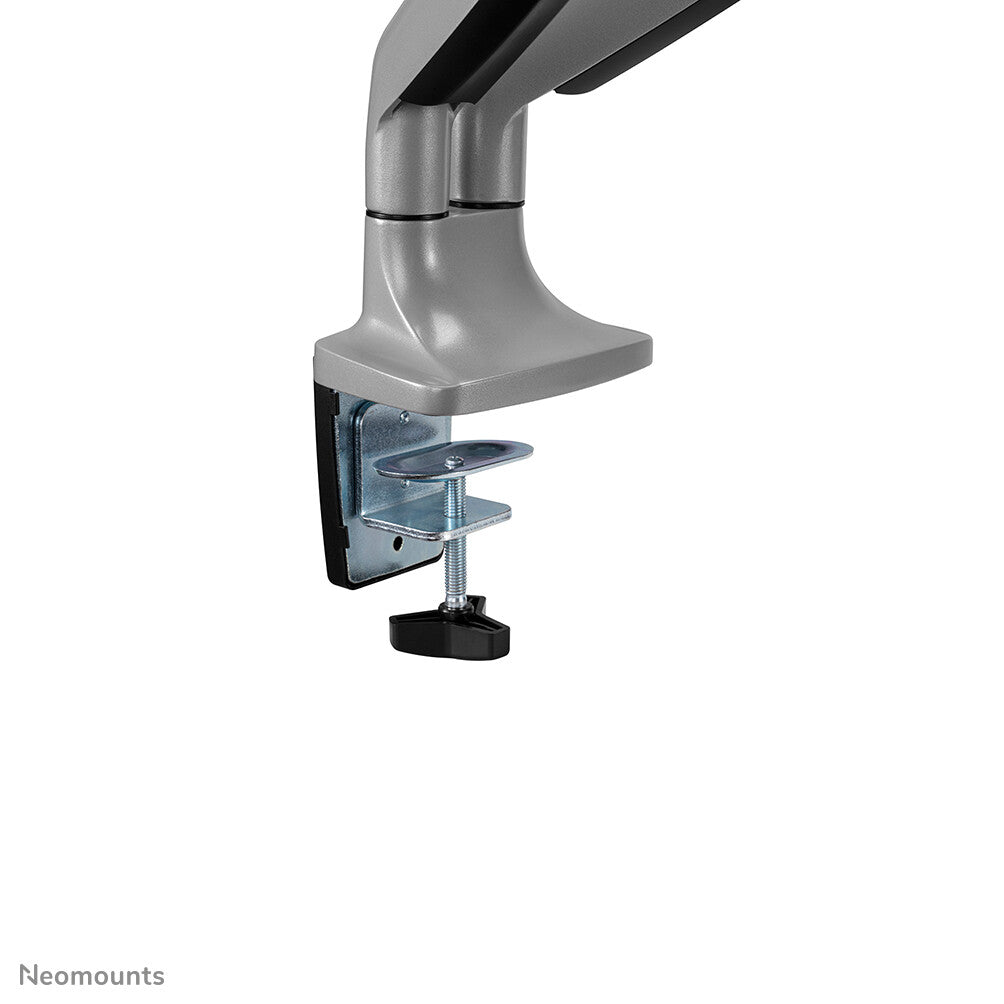

Desk thickness (max) 8.5 cm
Desk thickness (min) 1 cm
Number of displays supported 2
Panel mounting interface 100 x 100,75 x 75 mm
Maximum VESA mount 100 x 100 mm
Minimum VESA mount 75 x 75 mm
Mounting Clamp/Grommet
Maximum weight capacity (per display) 9 kg
Mounting type Desk
Maximum screen size 81.3 cm (32")
Minimum screen size 25.4 cm (10")
Maximum weight capacity 9 kg
Ergonomics
Pivot angle -180 - 180°
Angle of rotation 360°
Rotating Yes
Swivel angle range -90 - 90°
Swivel angle 180°
Swivelling Yes
Tilt angle range -90 - 90°
Tilt adjustment Yes
Width adjustment 110 cm
Depth adjustment range 0 - 615 mm
Height adjustment range 170 - 505 mm
Height adjustment type Gas spring
Height adjustment Yes
Design
Housing material Steel
Product colour Silver
Weight & dimensions
Weight 6.1 kg
Height 505 mm
Depth 615 mm
Packaging data
Package weight 6.1 kg
Package height 570 mm
Package depth 116 mm
Package width 465 mm
Other features
Minimum weight 1 kg
Width adjustment range 0 - 1100 mm
Logistics data
Country of origin China
Master (outer) case net weight 12.2 kg
Harmonized System (HS) code 7326909890
Products per pallet (EU) 36 pc(s)
Products per master (outer) case 2 pc(s)
Master (outer) case gross weight 16.5 kg
Master (outer) case height 250 mm
Master (outer) case length 480 mm
Master (outer) case width 590 mm
