Neomounts NM-D335BLACK Monitor stand 10-30"
Couldn't load pickup availability
- Maximum weight capacity: 10 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 76.2 cm (30")
- Number of displays supported: 1
- Clamp/Freestanding/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Manual Height adjustment Tilt adjustment
- Steel Black

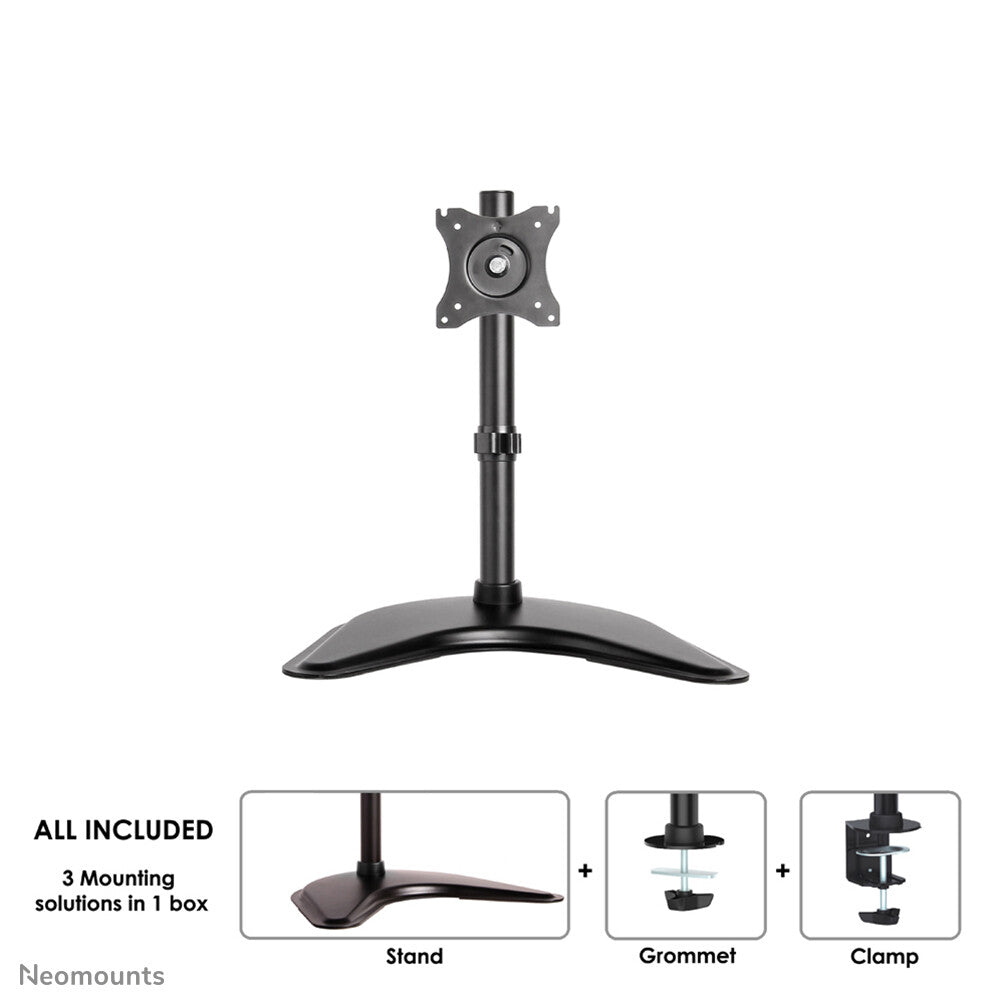

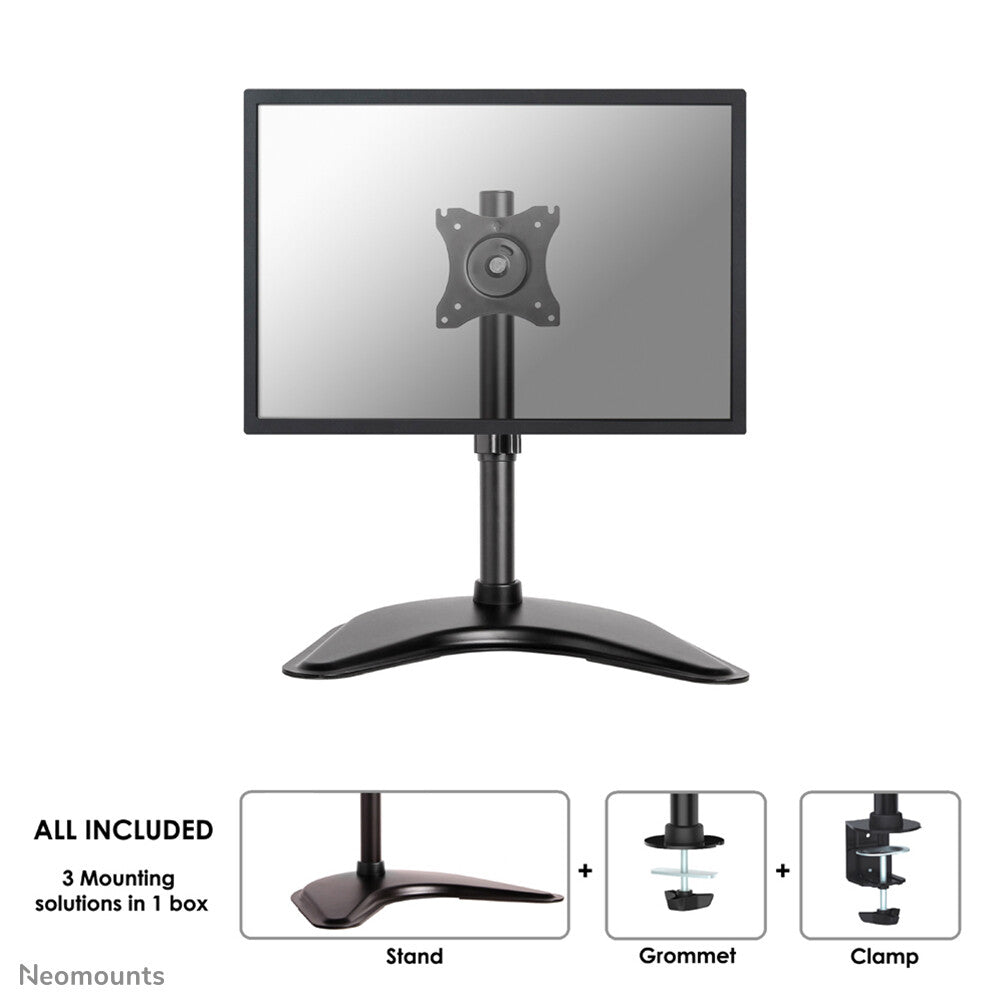

The Neomounts desk mount, model NM-D335BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp, desk stand or desk grommet.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 46 centimetres. Depth adjustable to 8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

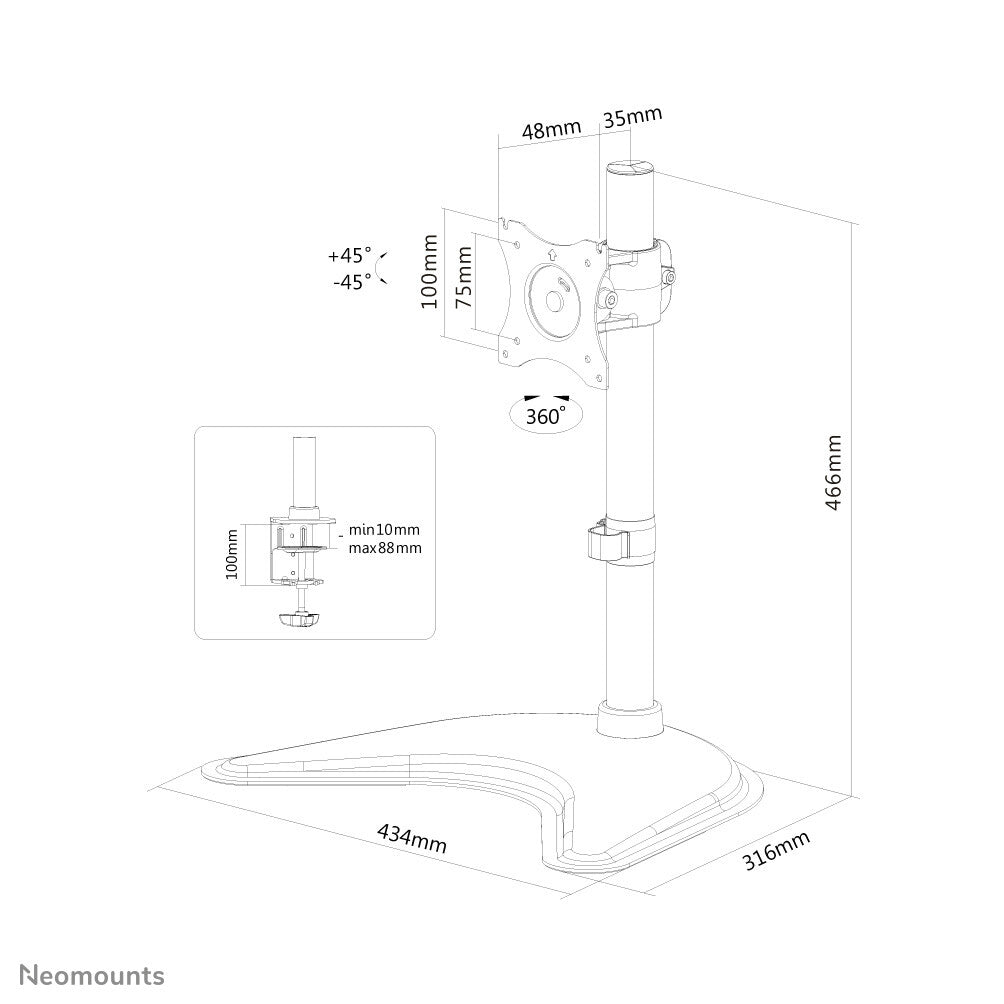

Neomounts NM-D335BLACK has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Distance to the wall (max) | 8 cm |
| Desk thickness (max) | 9 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Freestanding/Grommet |
| Maximum weight capacity (per display) | 10 kg |
| Mounting type | Desk |
| Maximum screen size | 76.2 cm (30") |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 10 kg |
| Ergonomics | |
|---|---|
| Pivot angle | -180 - 180° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle range | -45 - 45° |
| Swivel angle | 90° |
| Swivelling | Yes |
| Tilt angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Depth adjustment range | 0 - 80 mm |
| Height adjustment range | 0 - 460 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 4.4 kg |
| Height | 460 mm |
| Depth | 80 mm |
| Packaging data | |
|---|---|
| Package net weight | 4.3 kg |
| Package weight | 4.3 kg |
| Package height | 460 mm |
| Package depth | 132 mm |
| Package width | 326 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 17 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 48 pc(s) |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case gross weight | 19 kg |
| Master (outer) case height | 340 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 475 mm |
