• Maximum weight capacity: 10 kg
• Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
• Number of displays supported: 6
• Clamp Mounting type: Desk
• Maximum VESA mount: 100 x 100 mm
• Manual Height adjustment
• Aluminium Silver

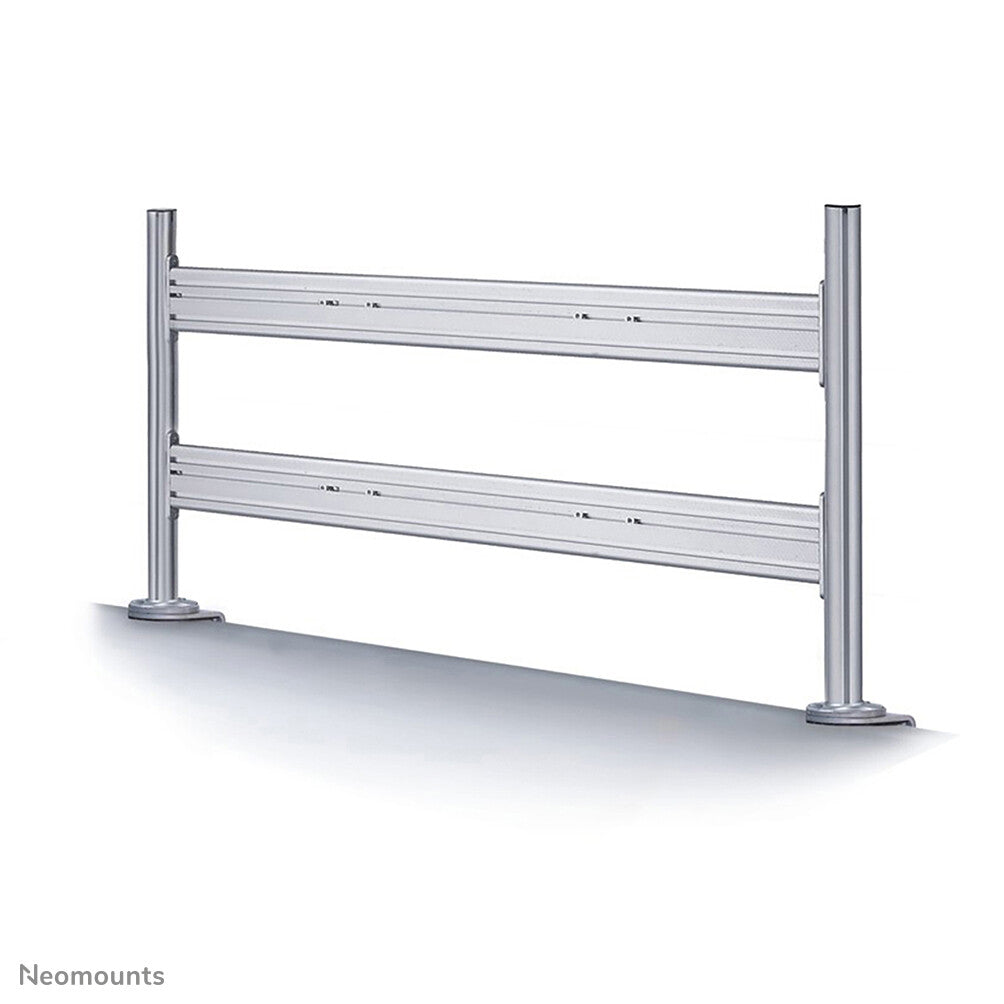

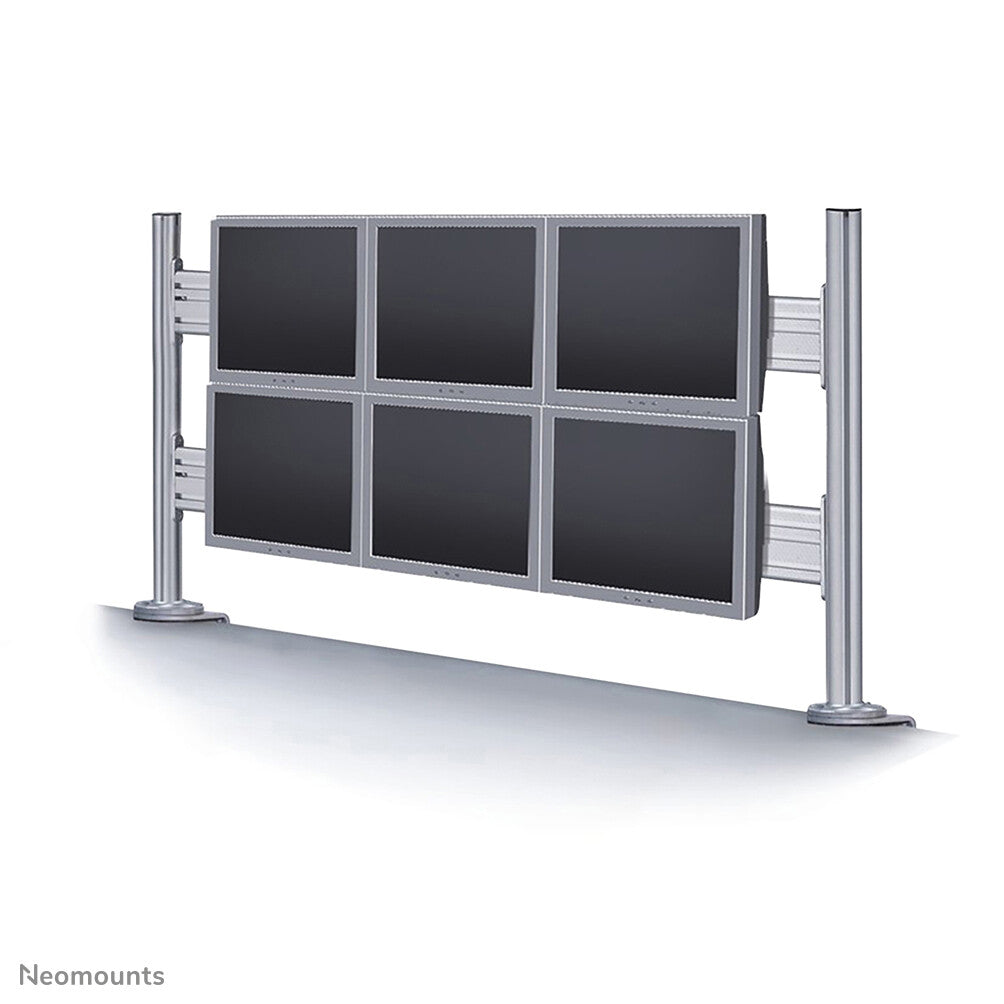

With the Neomounts FPMA-DTB200 toolbar desk rail, you can install up to 6 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.

There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.

Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.

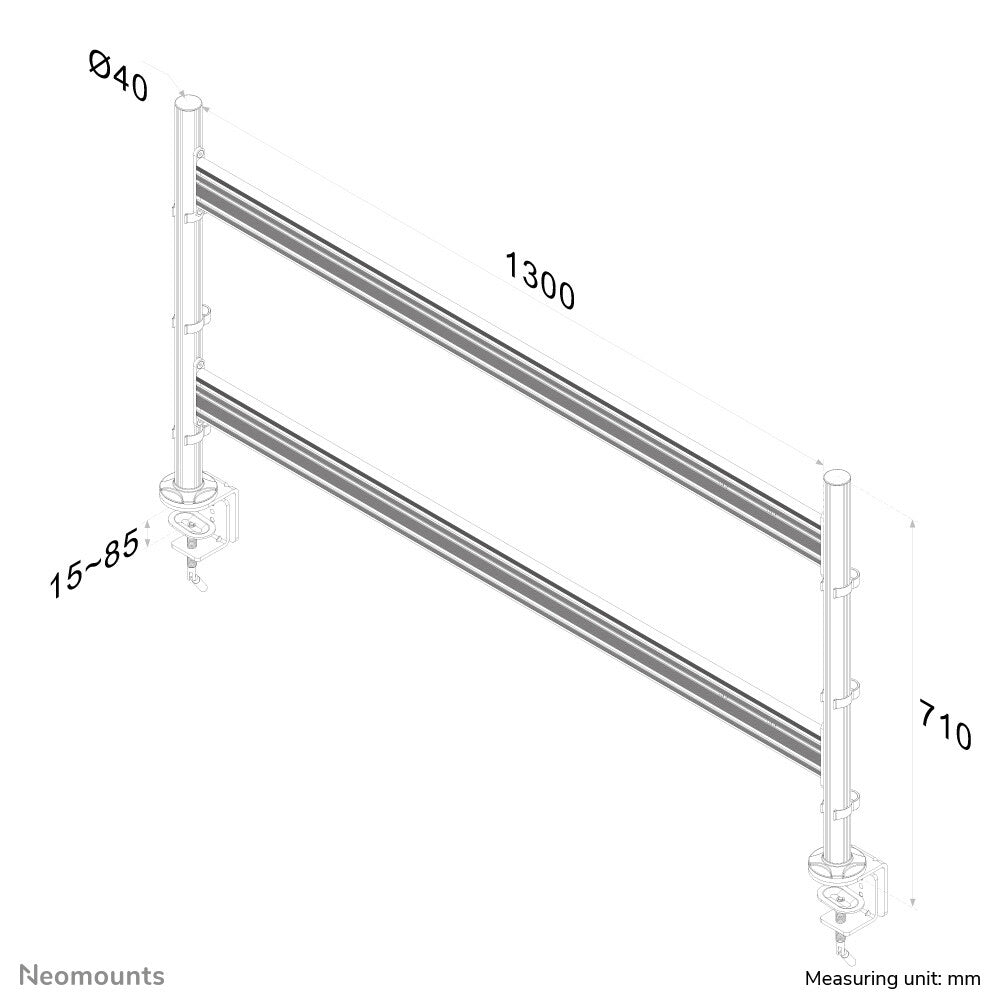

• Line drawing
• Safety information
• manual pdf
• leaflet
