Neomounts FPMA-D100 Monitor arm 10-30" - gas spring
Couldn't load pickup availability
- Maximum weight capacity: 10 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 76.2 cm (30")
- Number of displays supported: 1
- Clamp Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Aluminium Grey

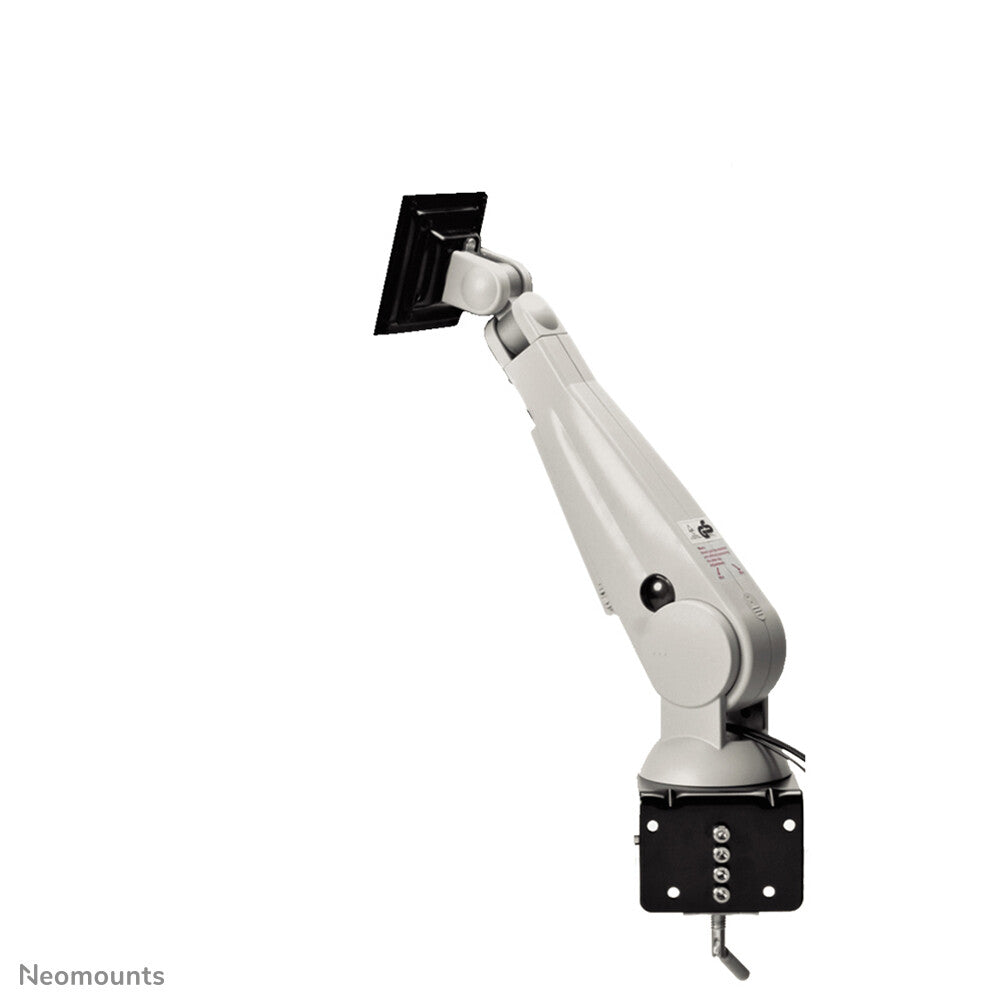

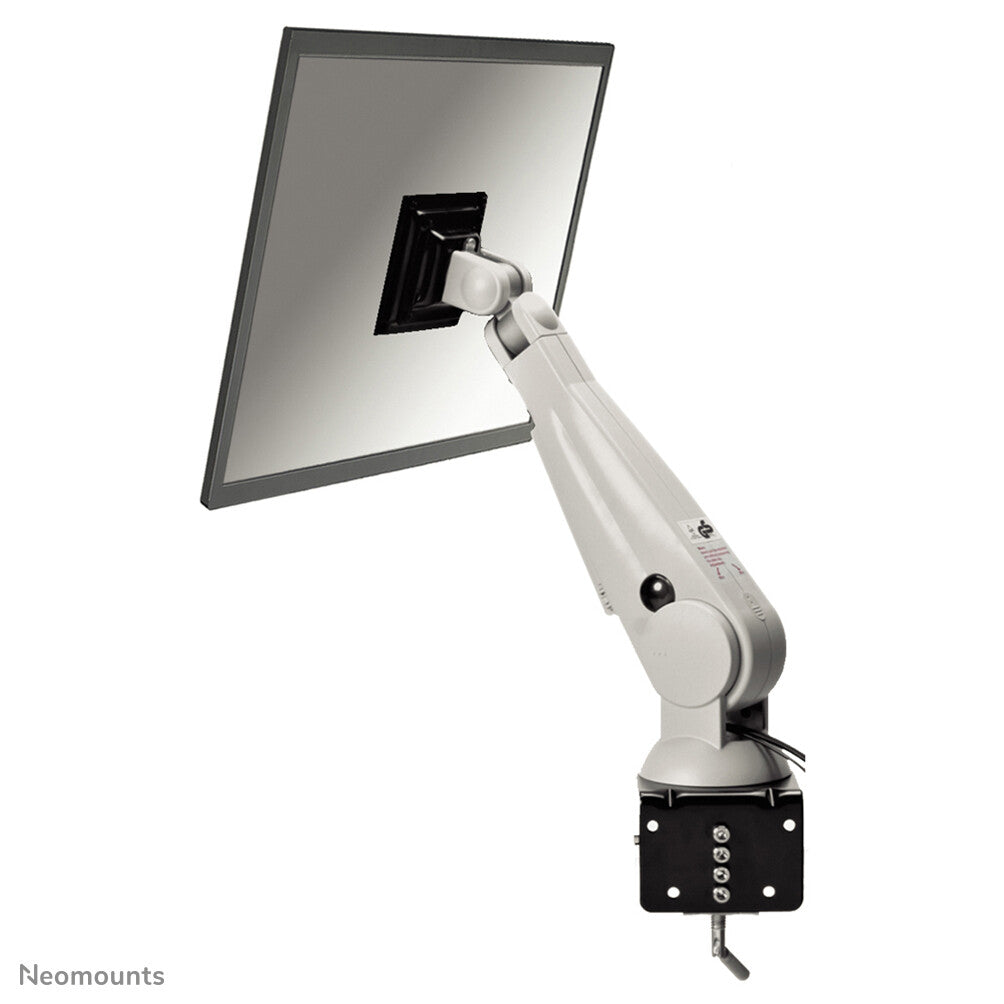

The Neomounts desk mount, model FPMA-D100 is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

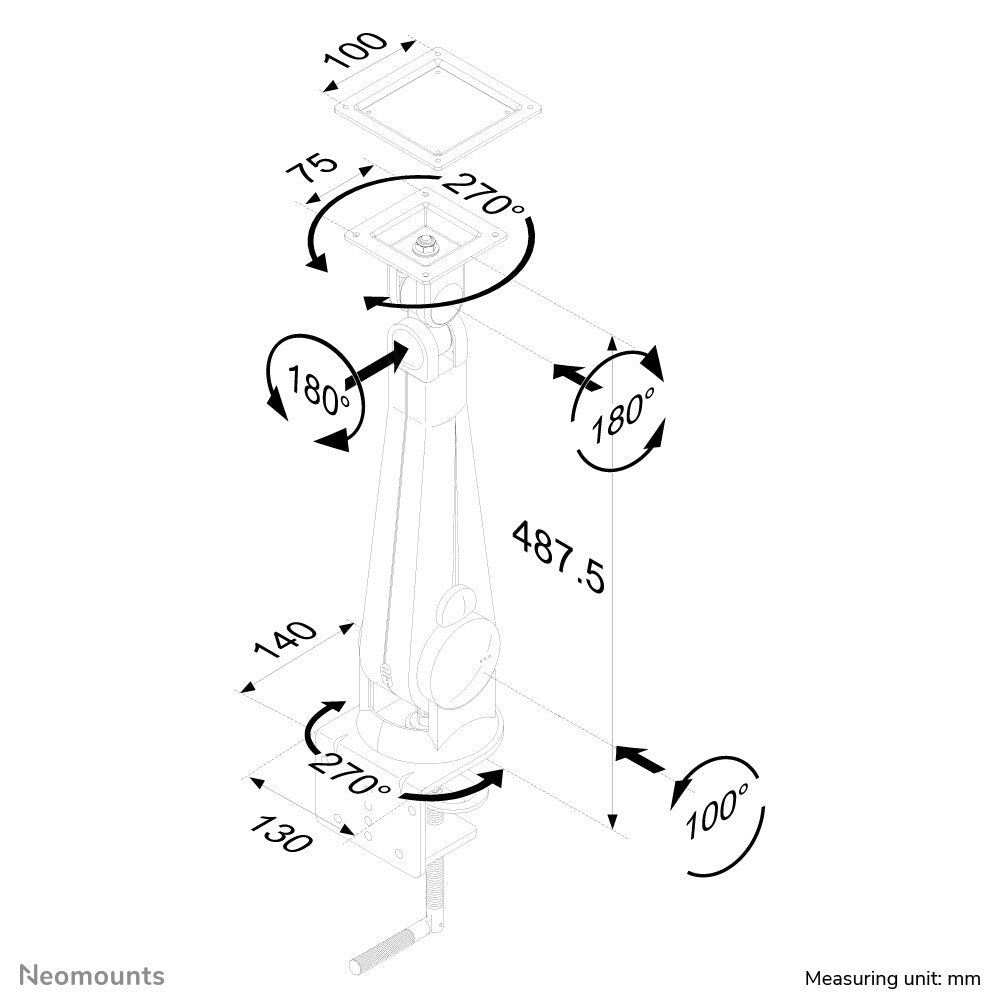

Neomounts versatile tilt (180°), rotate (270°) and swivel (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 45 centimetres using a gas spring. Depth adjustable from 15 to 48 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D100 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Maximum weight capacity | 10 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Desk |
| Maximum weight capacity (per display) | 10 kg |
| Mounting | Clamp |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Desk thickness (max) | 9 cm |
| Distance to the wall (min) | 15 cm |
| Distance to the wall (max) | 48 cm |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 450 mm |
| Depth adjustment range | 150 - 480 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
| Swivelling | Yes |
| Swivel angle | 270° |
| Swivel angle range | 0 - 270° |
| Rotating | Yes |
| Angle of rotation | 270° |
| Design | |
|---|---|
| Product colour | Grey |
| Housing material | Aluminium |
| Weight & dimensions | |
|---|---|
| Height | 450 mm |
| Weight | 5.9 kg |
| Packaging data | |
|---|---|
| Package width | 330 mm |
| Package depth | 370 mm |
| Package height | 170 mm |
| Package weight | 5.6 kg |
| Logistics data | |
|---|---|
| Master (outer) case width | 660 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 44 pc(s) |
| Master (outer) case net weight | 11.8 kg |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7616991099 |
