Neomounts DS70S-950BL2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
Couldn't load pickup availability
- Maximum weight capacity: 18 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 88.9 cm (35")
- Number of displays supported: 2
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management Easy to install
- Aluminium Black

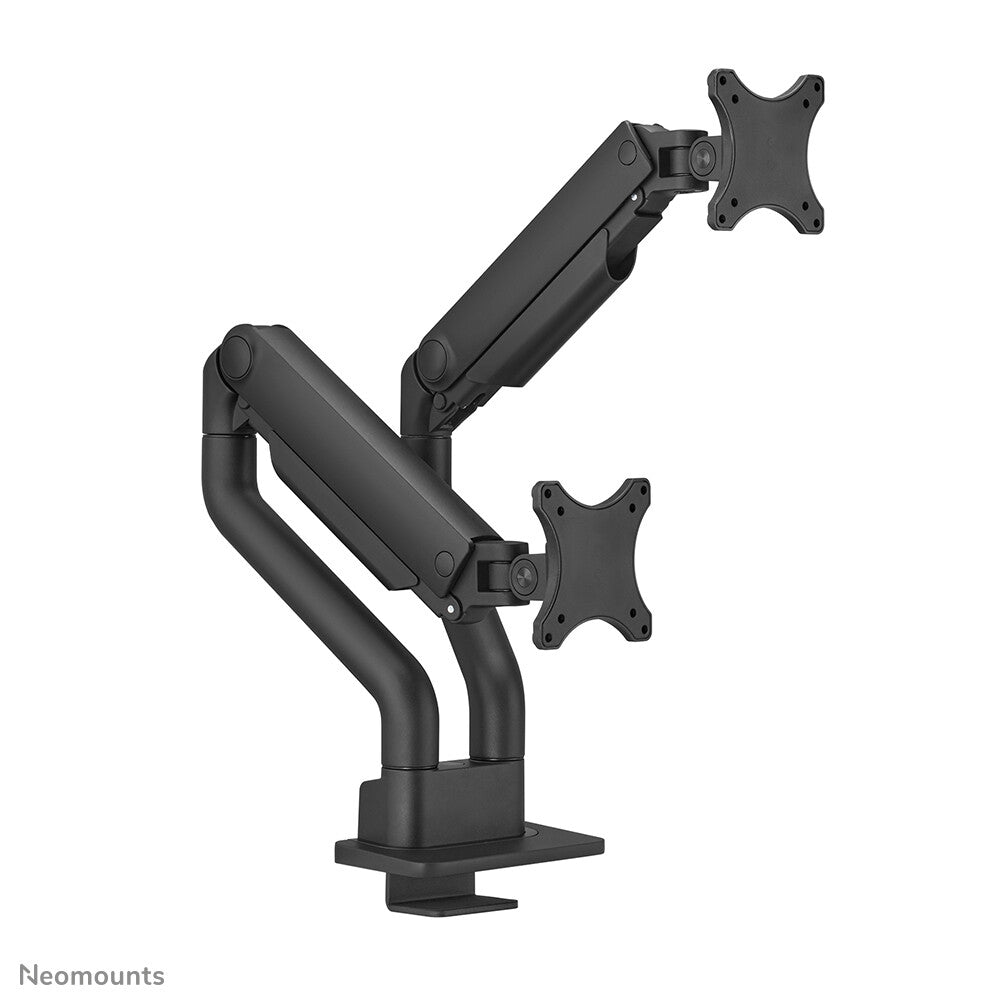

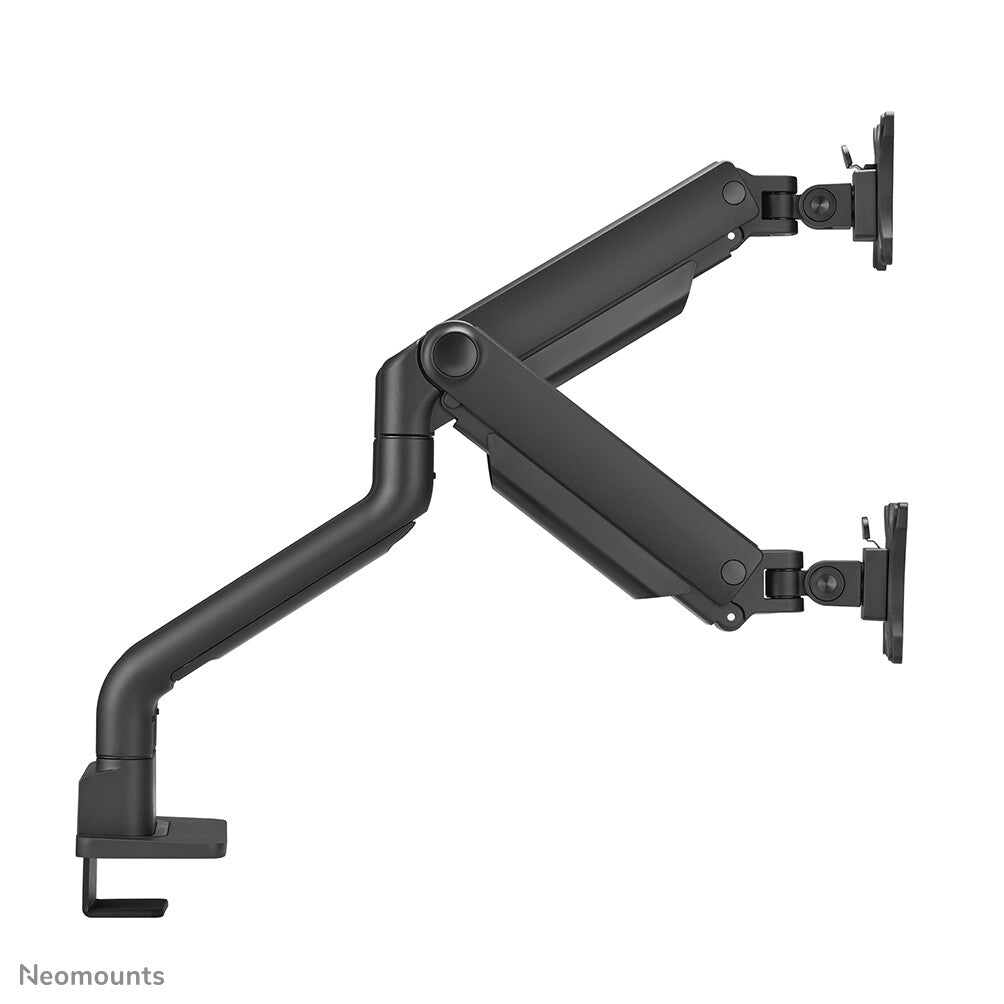

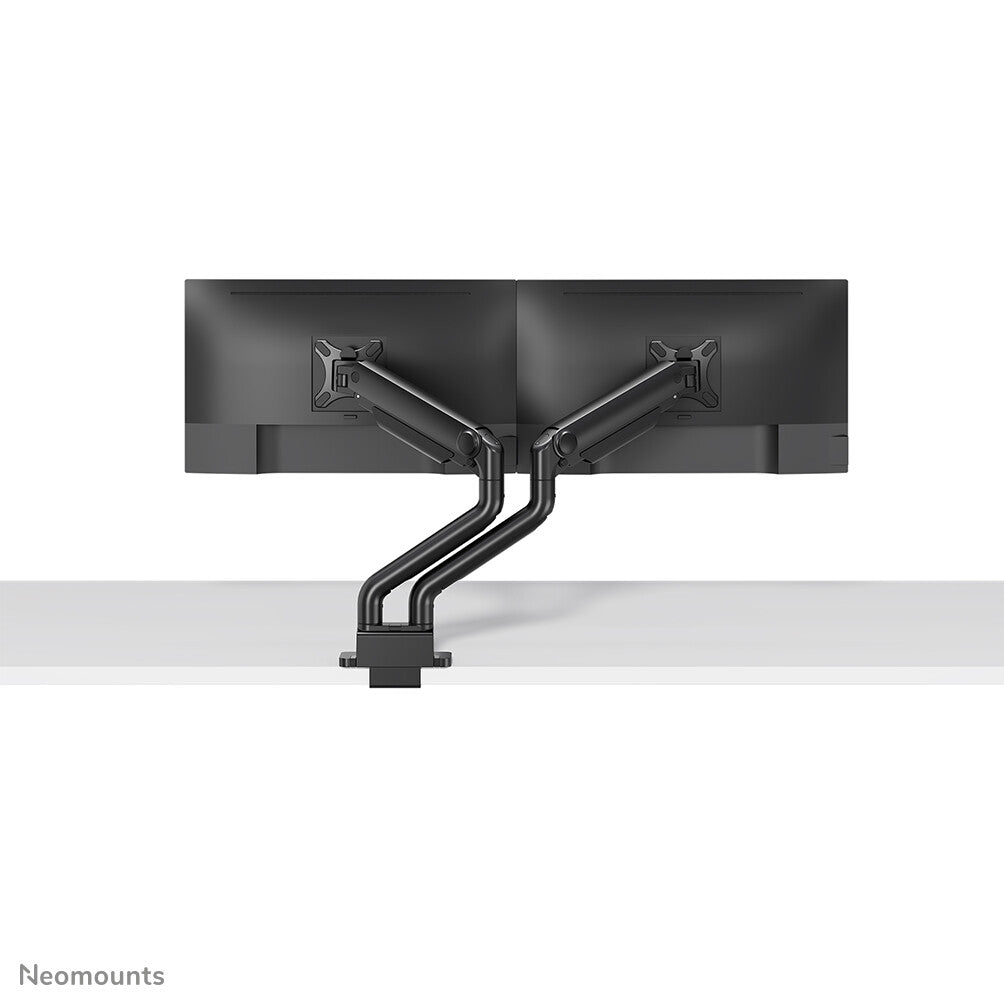

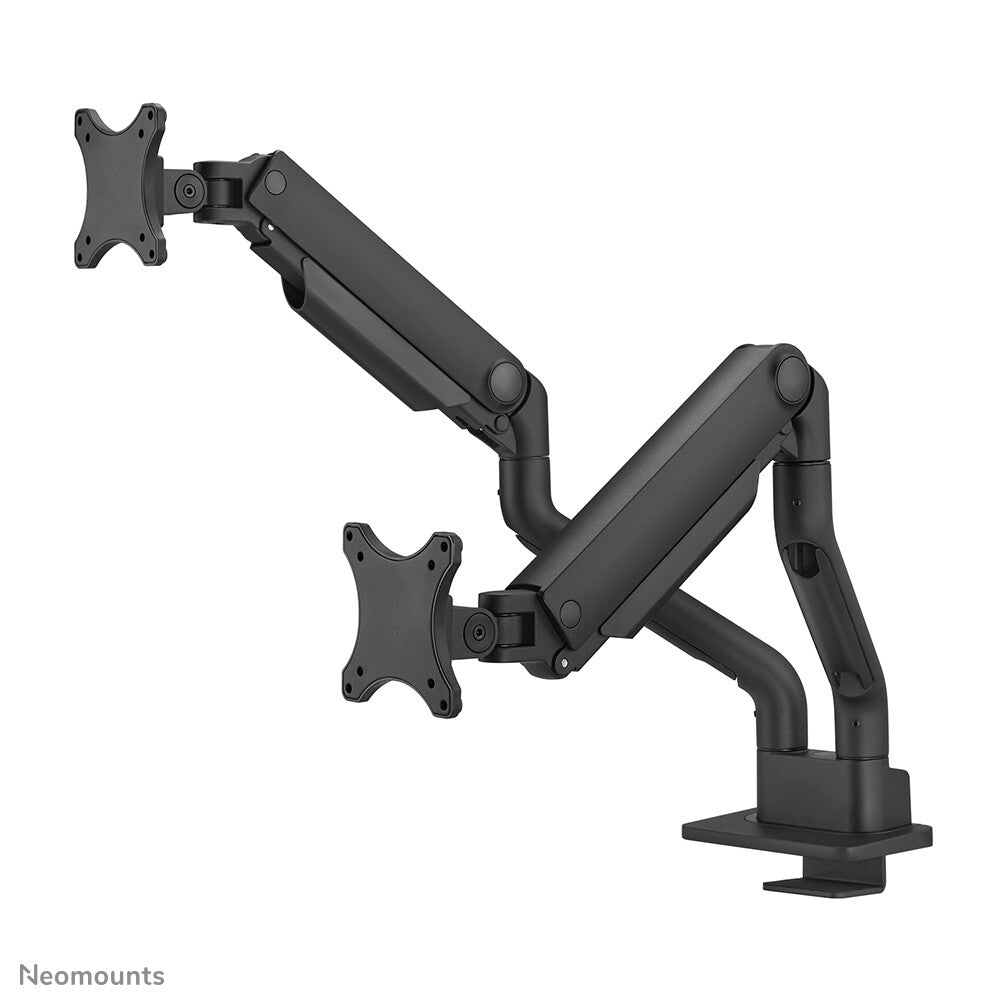

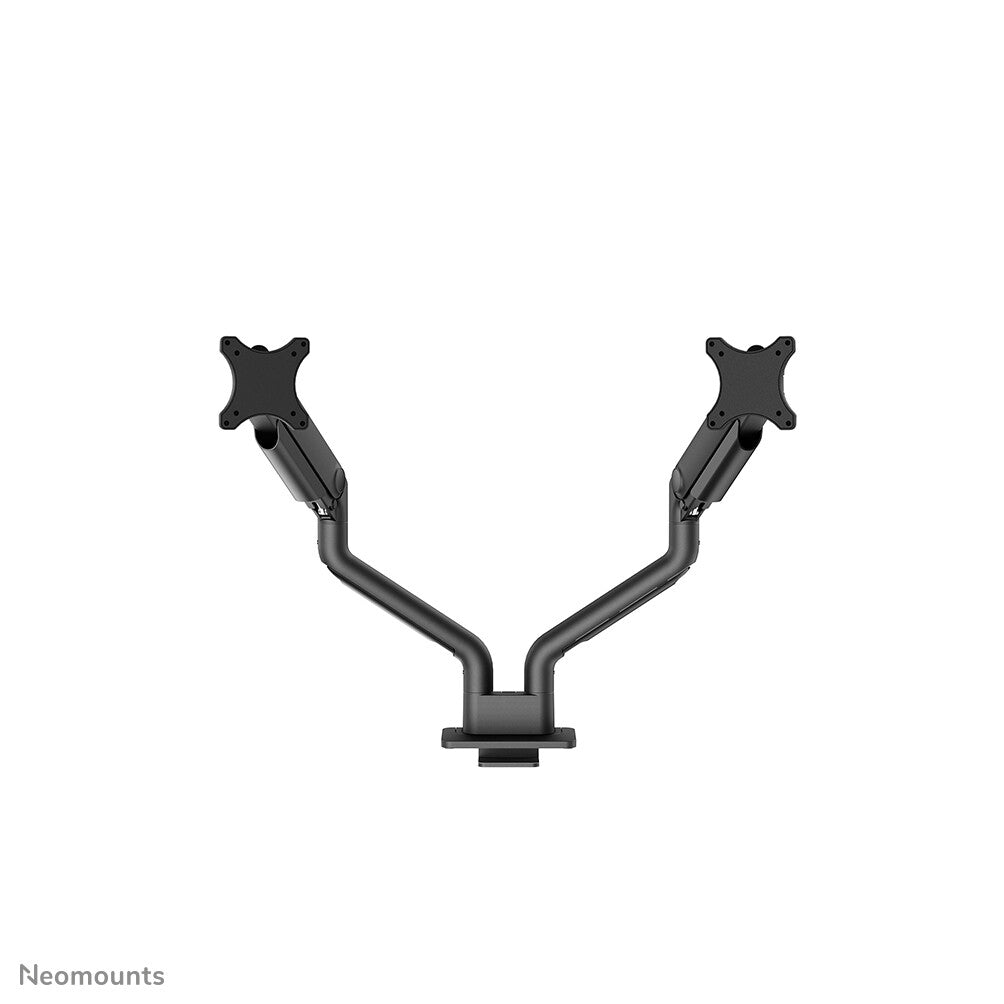

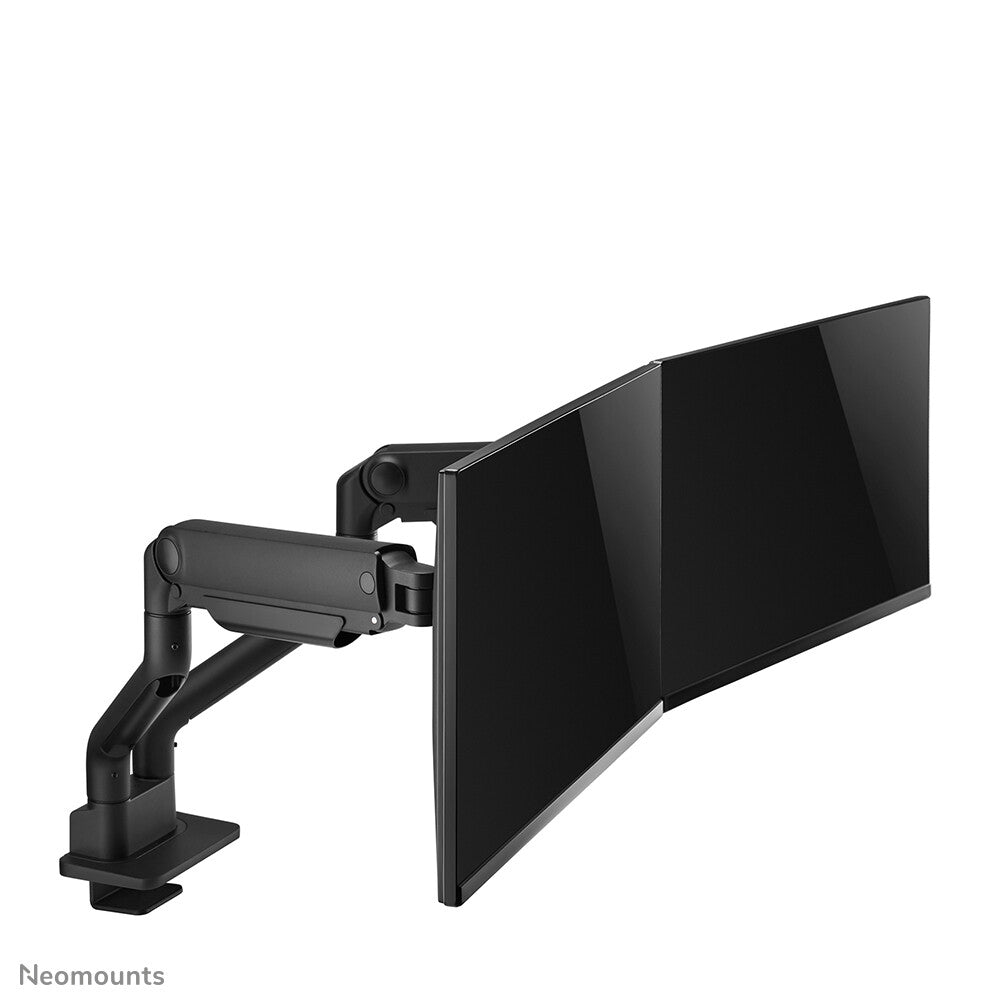

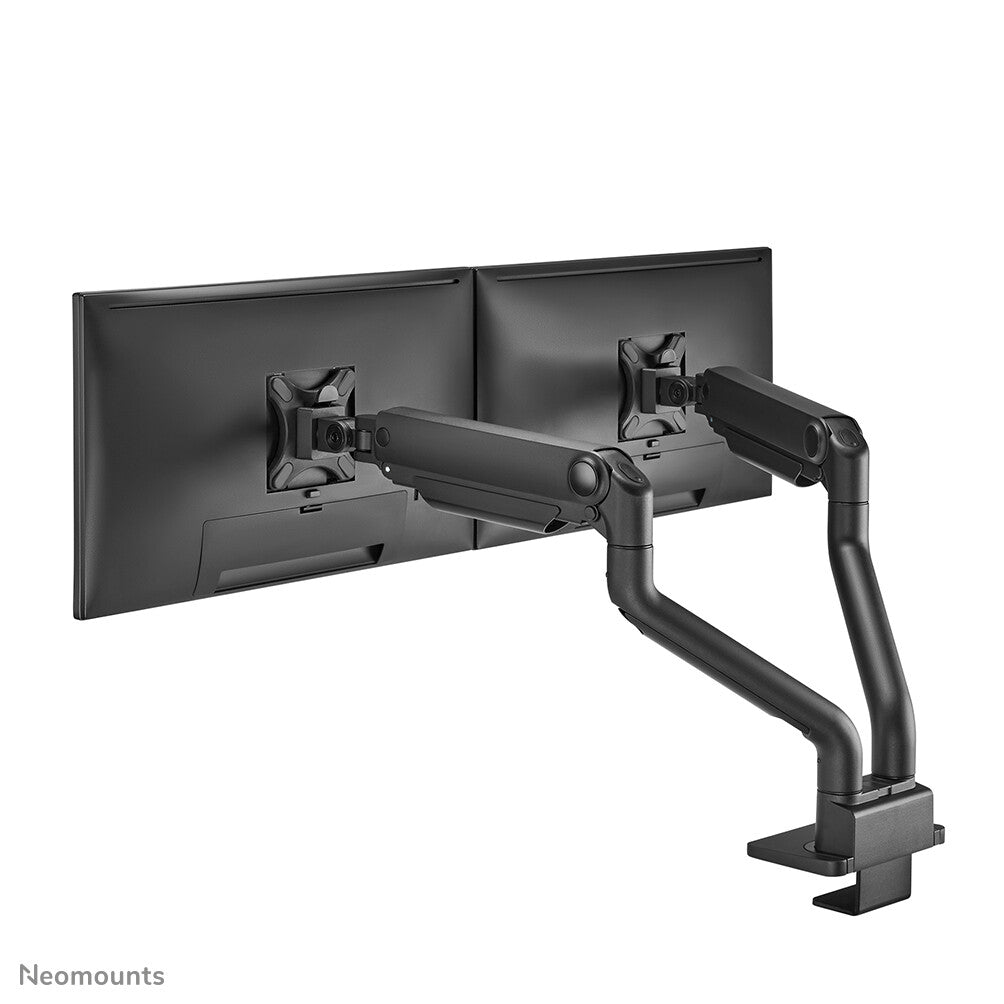

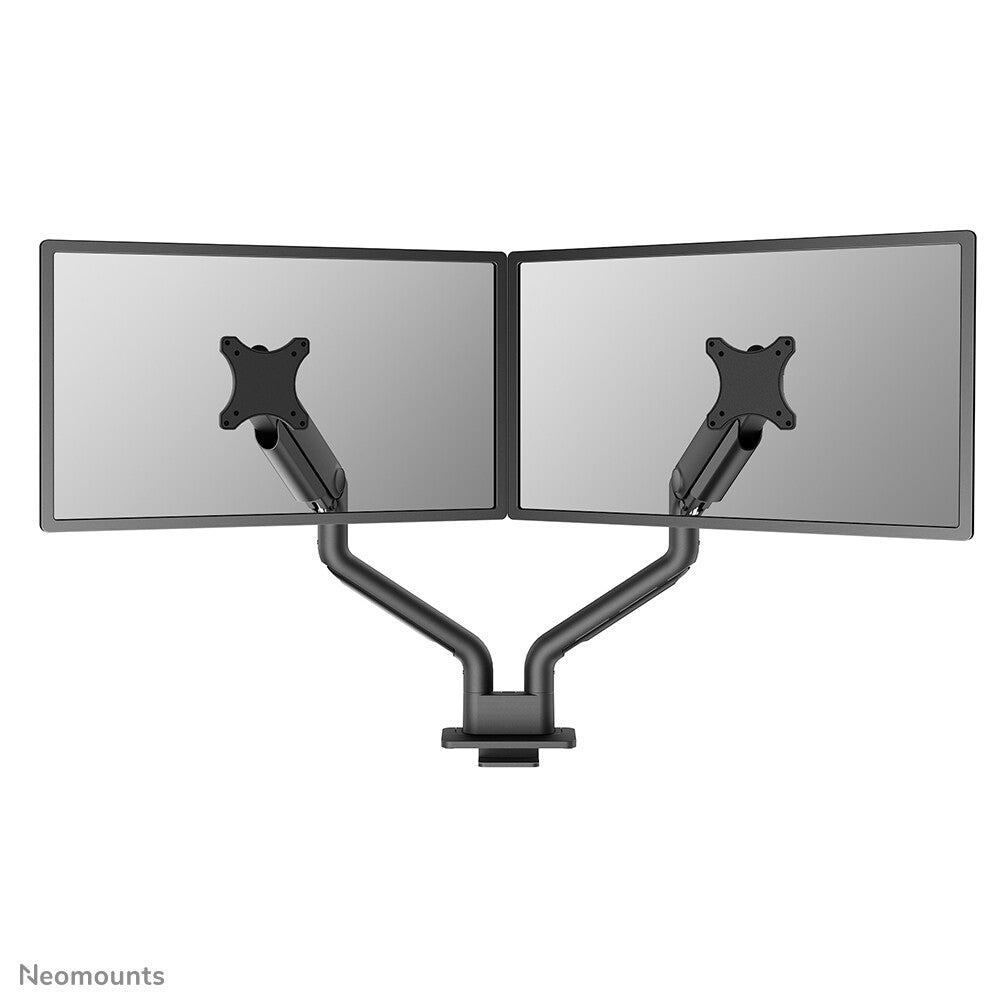

The Neomounts DS70S-950BL2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950BL2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

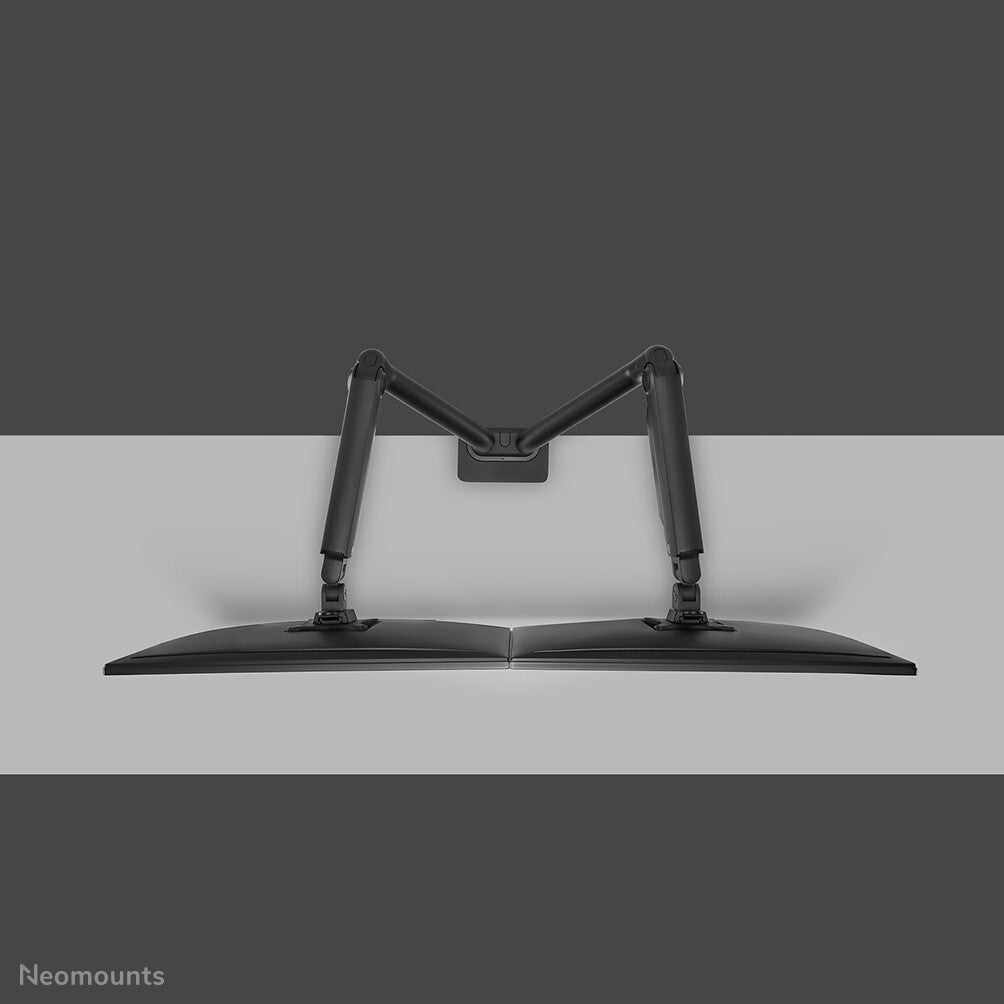

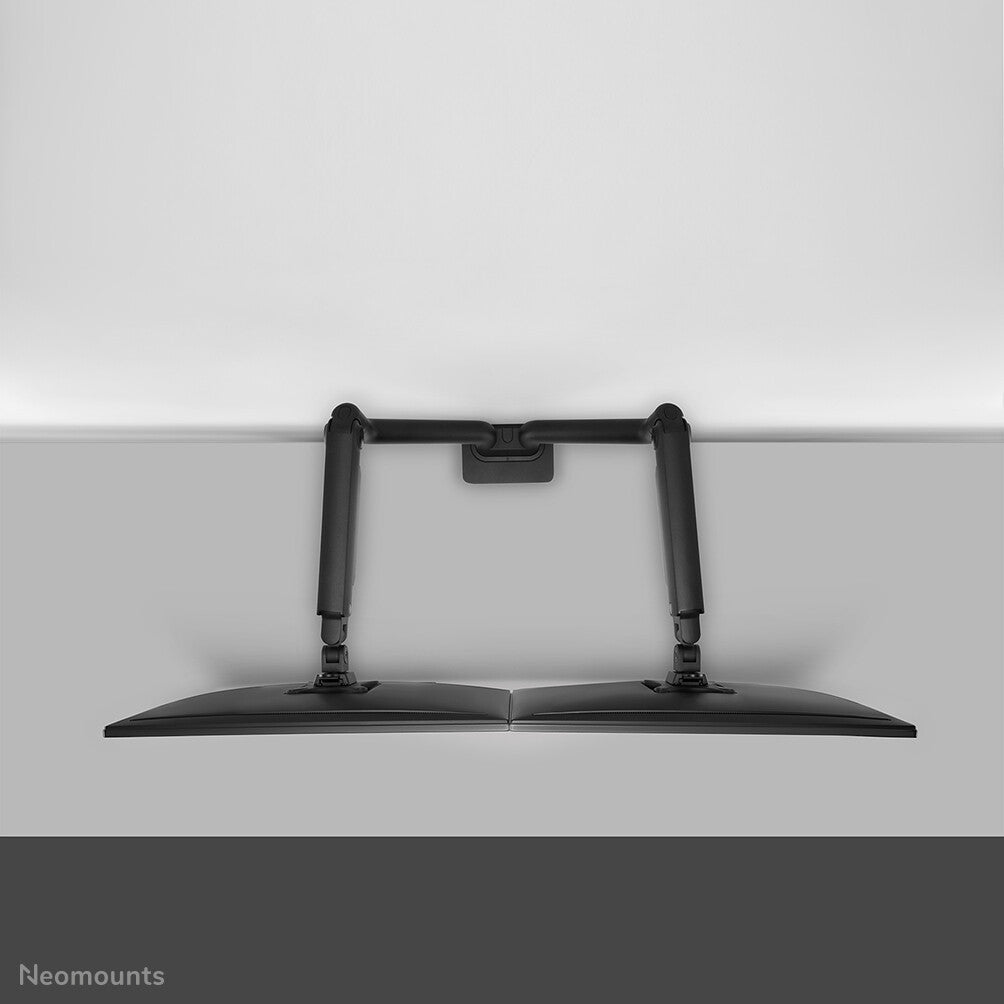

The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

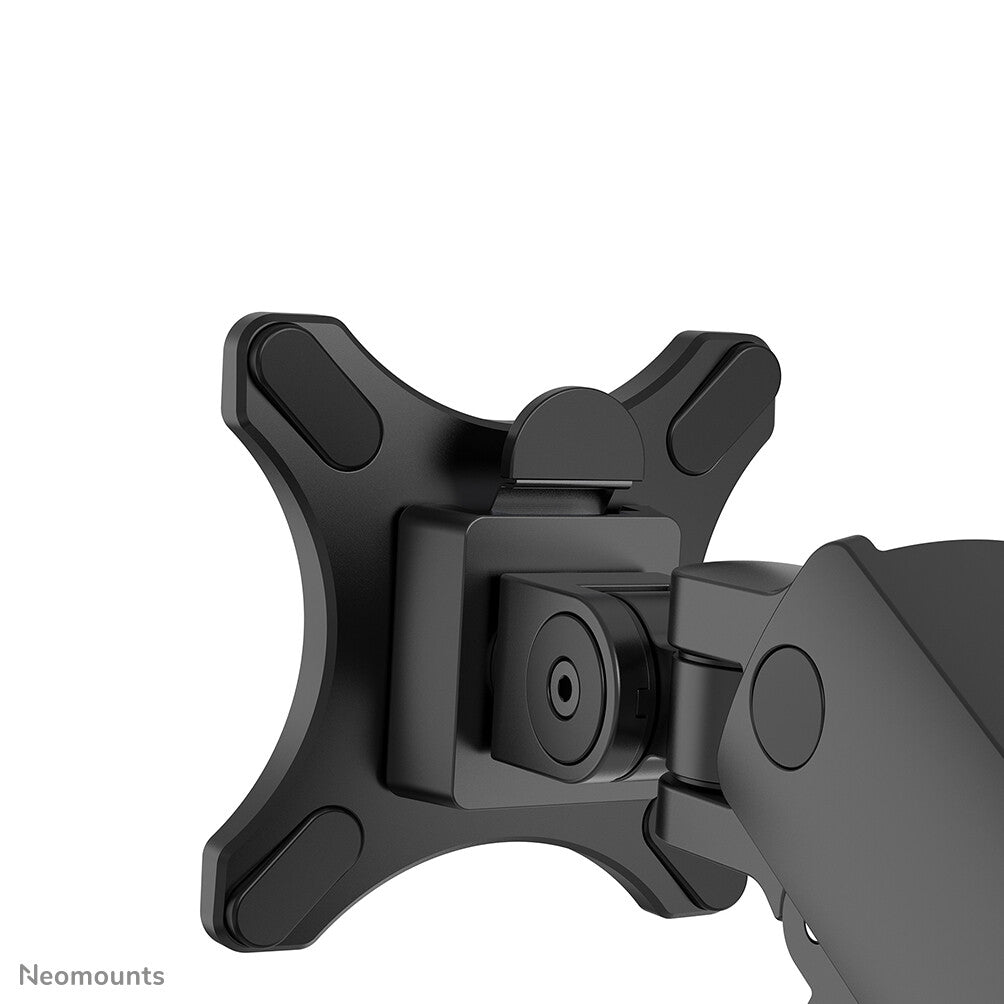

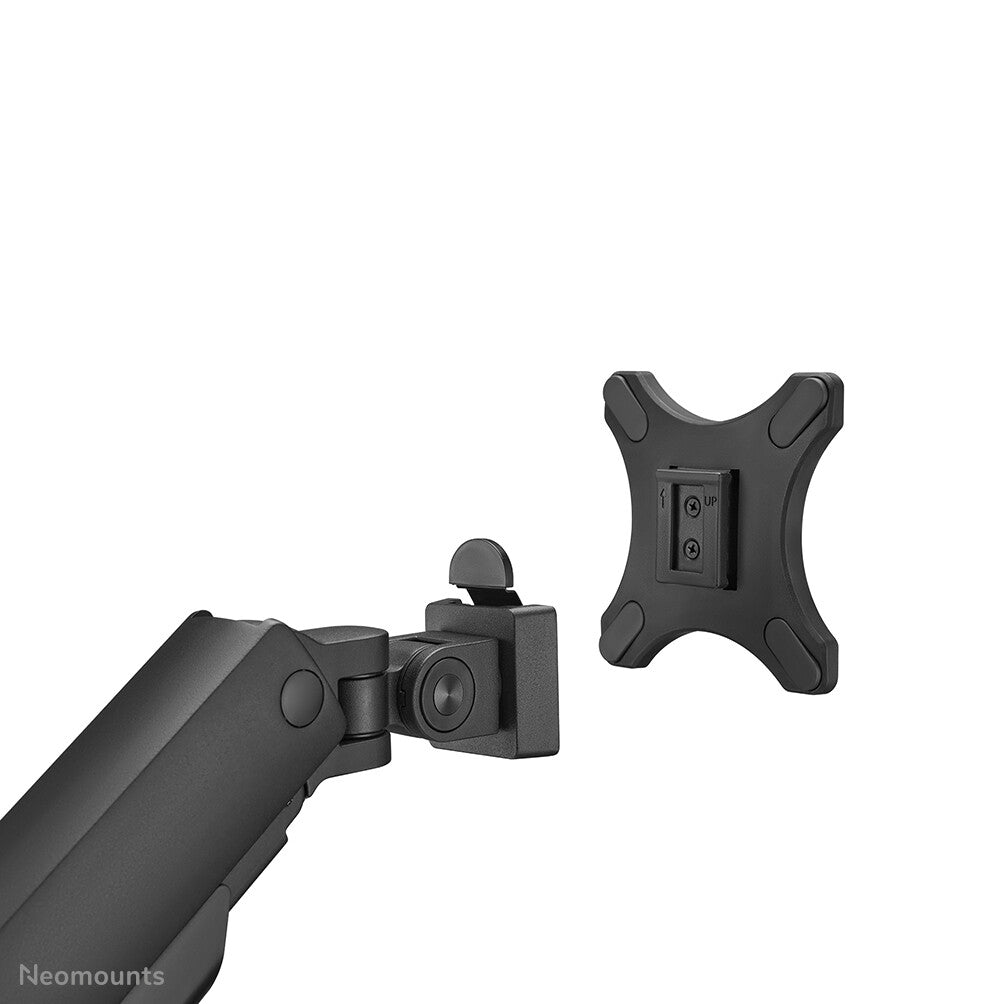

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
| Mounting | |
|---|---|
| Distance to the wall (max) | 65.6 cm |
| Distance to the wall (min) | 11.9 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Clamp mount desk thickness (max) | 5 cm |
| Desk thickness (max) | 5.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Maximum weight capacity (per display) | 18 kg |
| Mounting type | Desk |
| Maximum screen size | 88.9 cm (35") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 18 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Number of arms | 2 |
| Pivot angle | -180 - 180° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle range | -90 - 90° |
| Swivelling | Yes |
| Tilt angle range | -90 - 90° |
| Tilt adjustment | Yes |
| Width adjustment | 115.9 cm |
| Depth adjustment range | 88 - 625 mm |
| Adjustable depth | Yes |
| Height adjustment range | 202 - 522 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Easy to install | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 6.98 kg |
| Height | 579 mm |
| Depth | 656 mm |
| Width | 186 mm |
| Packaging data | |
|---|---|
| Package net weight | 7.8 kg |
| Package type | Box |
| Package weight | 7.8 kg |
| Package height | 496 mm |
| Package depth | 124 mm |
| Package width | 410 mm |
| Other features | |
|---|---|
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 1159 mm |
| Warranty period | 10 year(s) |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | 7616991099 |
| Products per pallet (EU) | 48 pc(s) |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 16.2 kg |
| Master (outer) case height | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case width | 260 mm |
