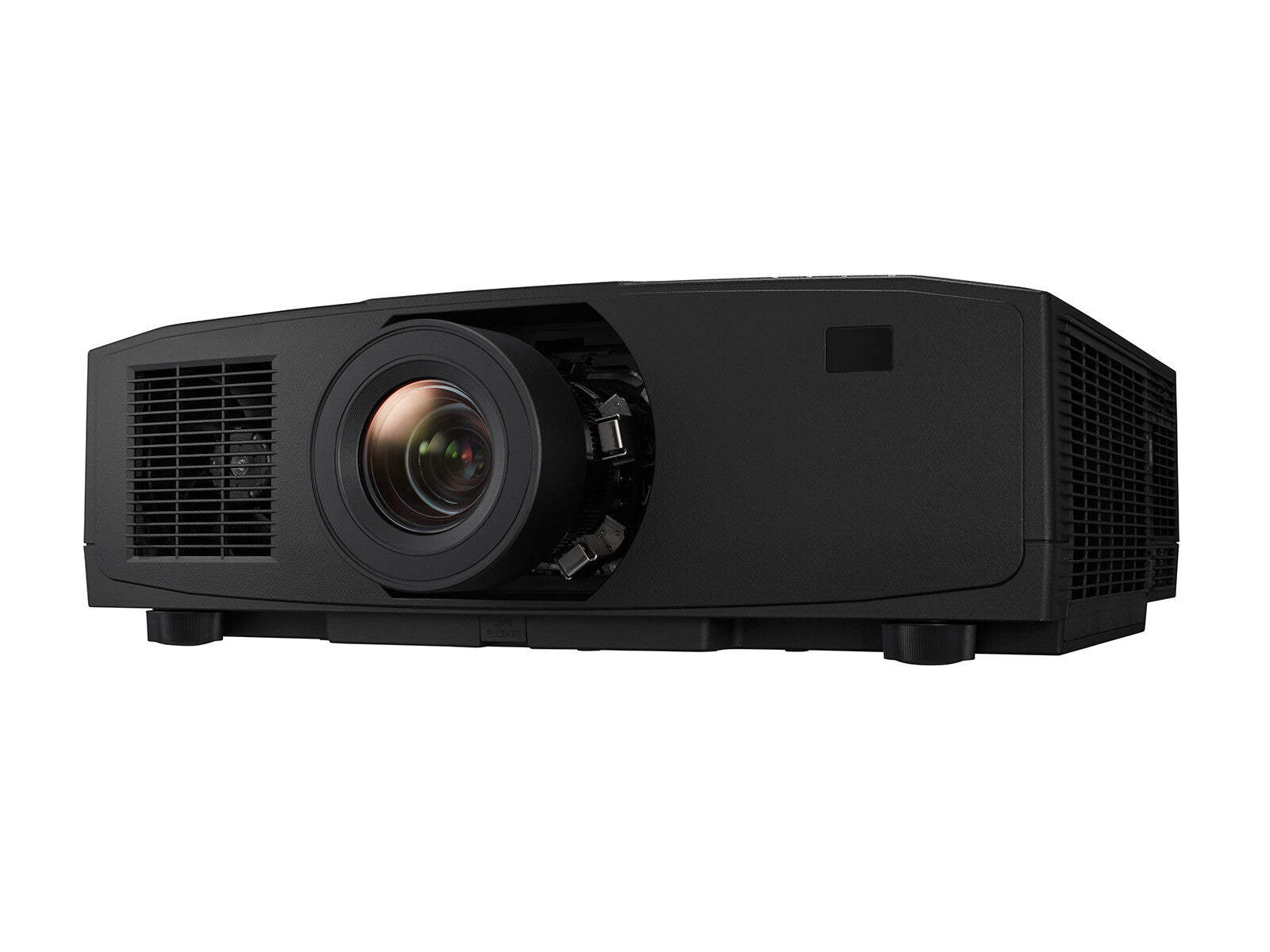

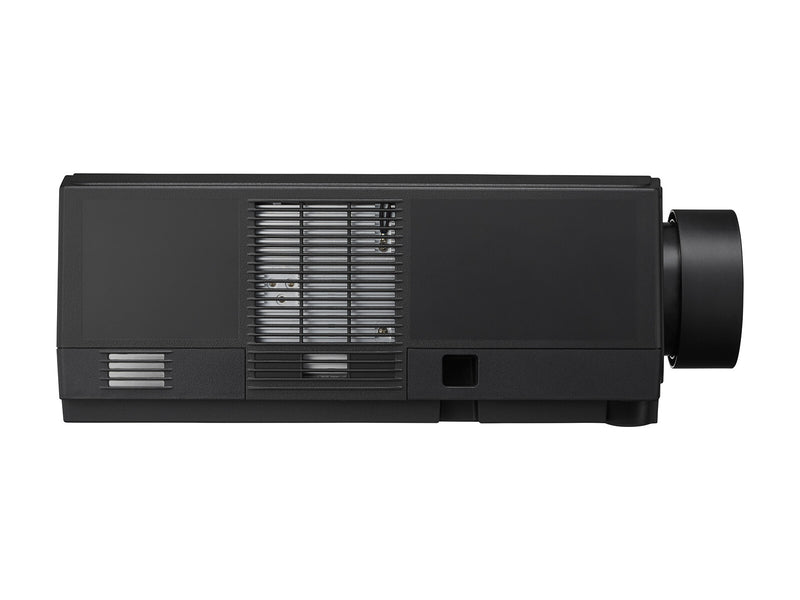

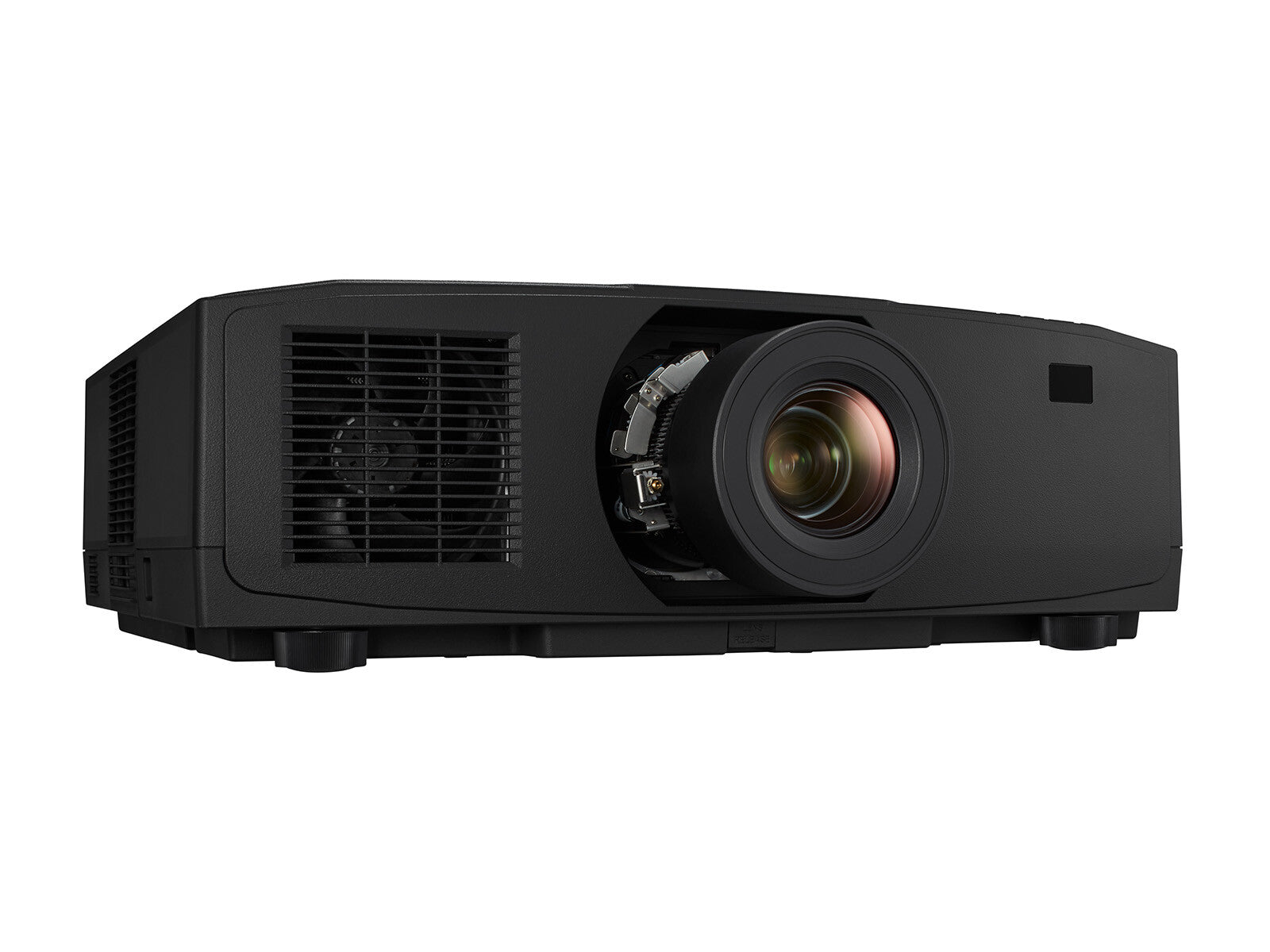

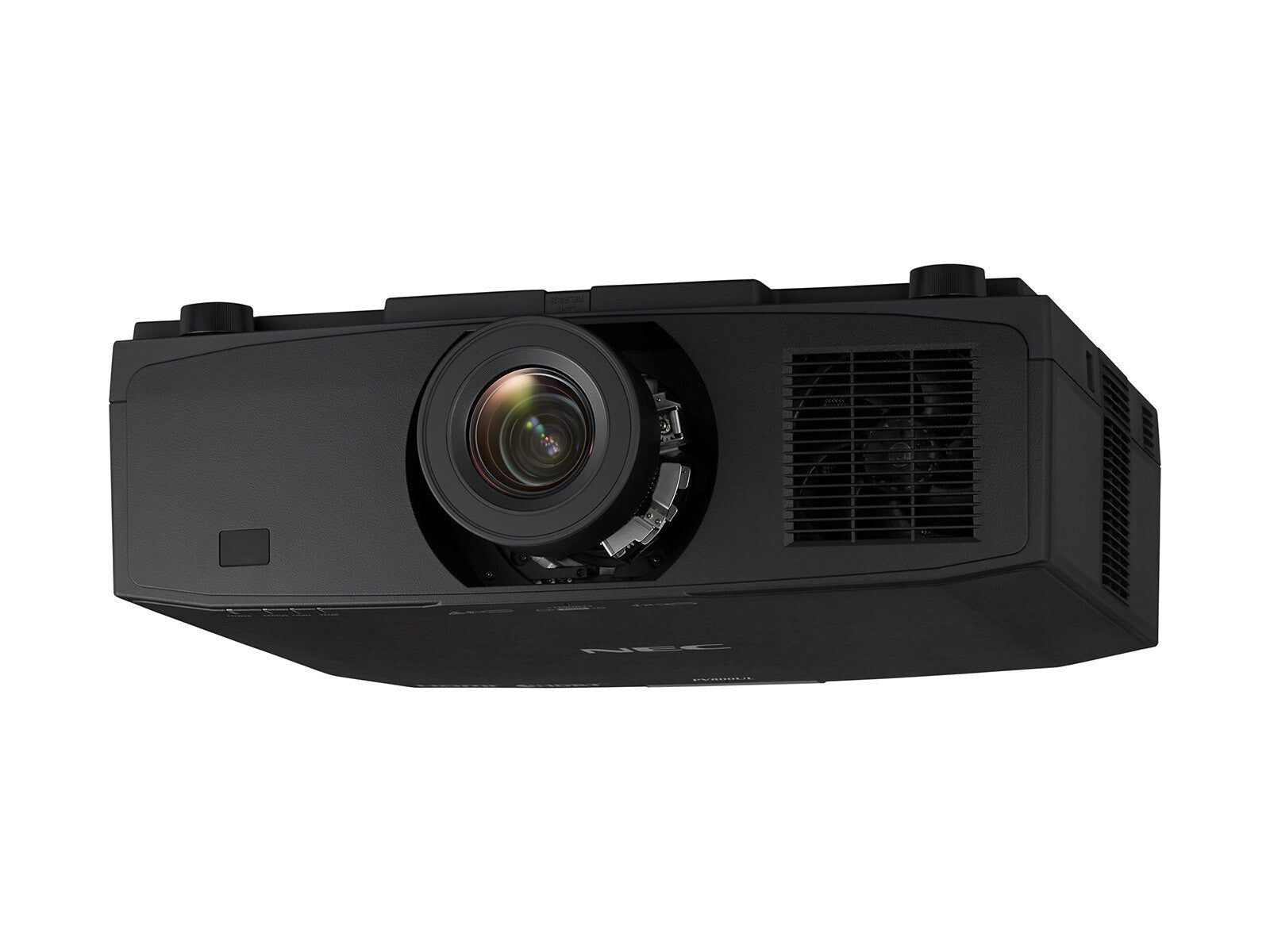

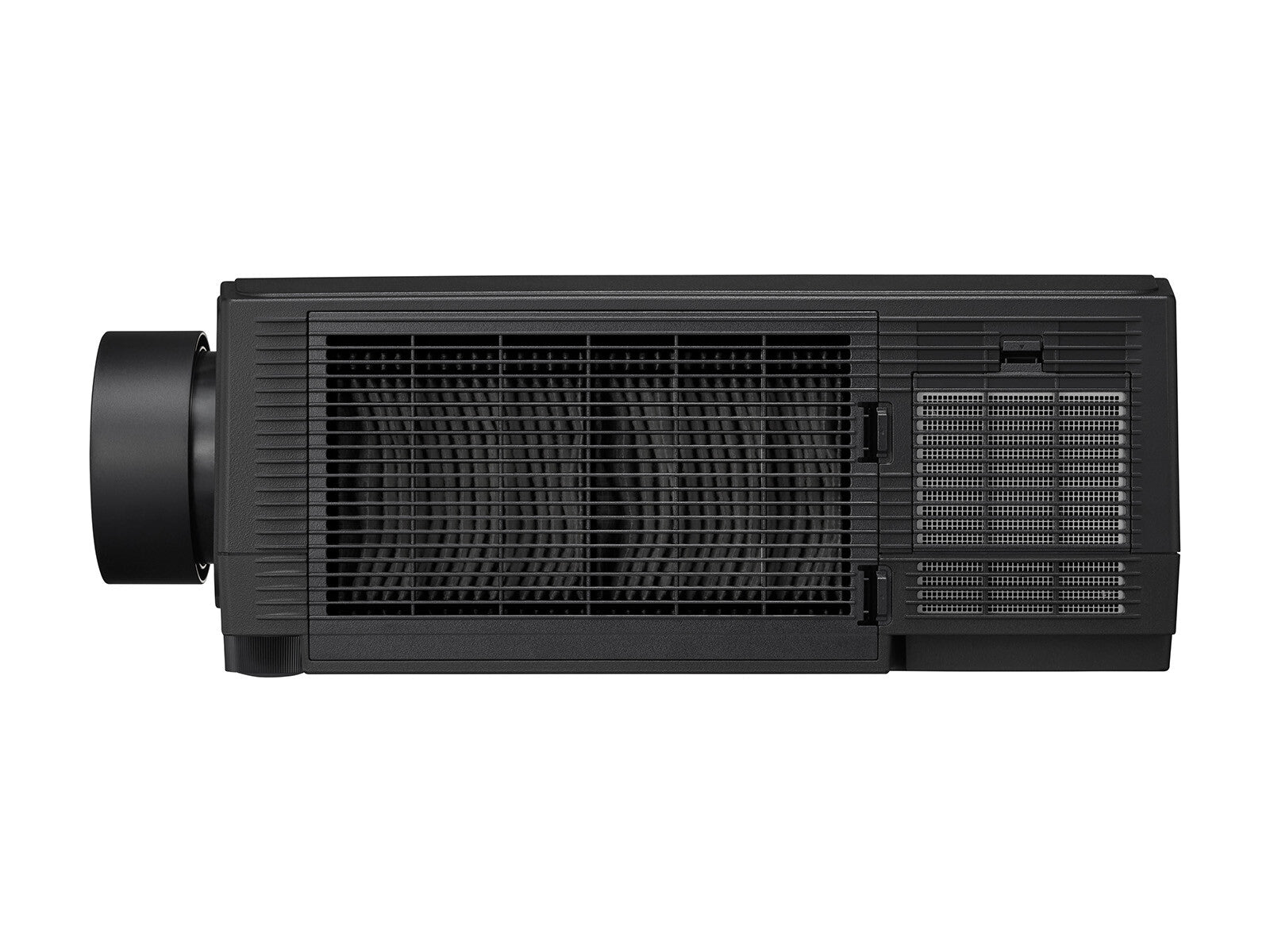

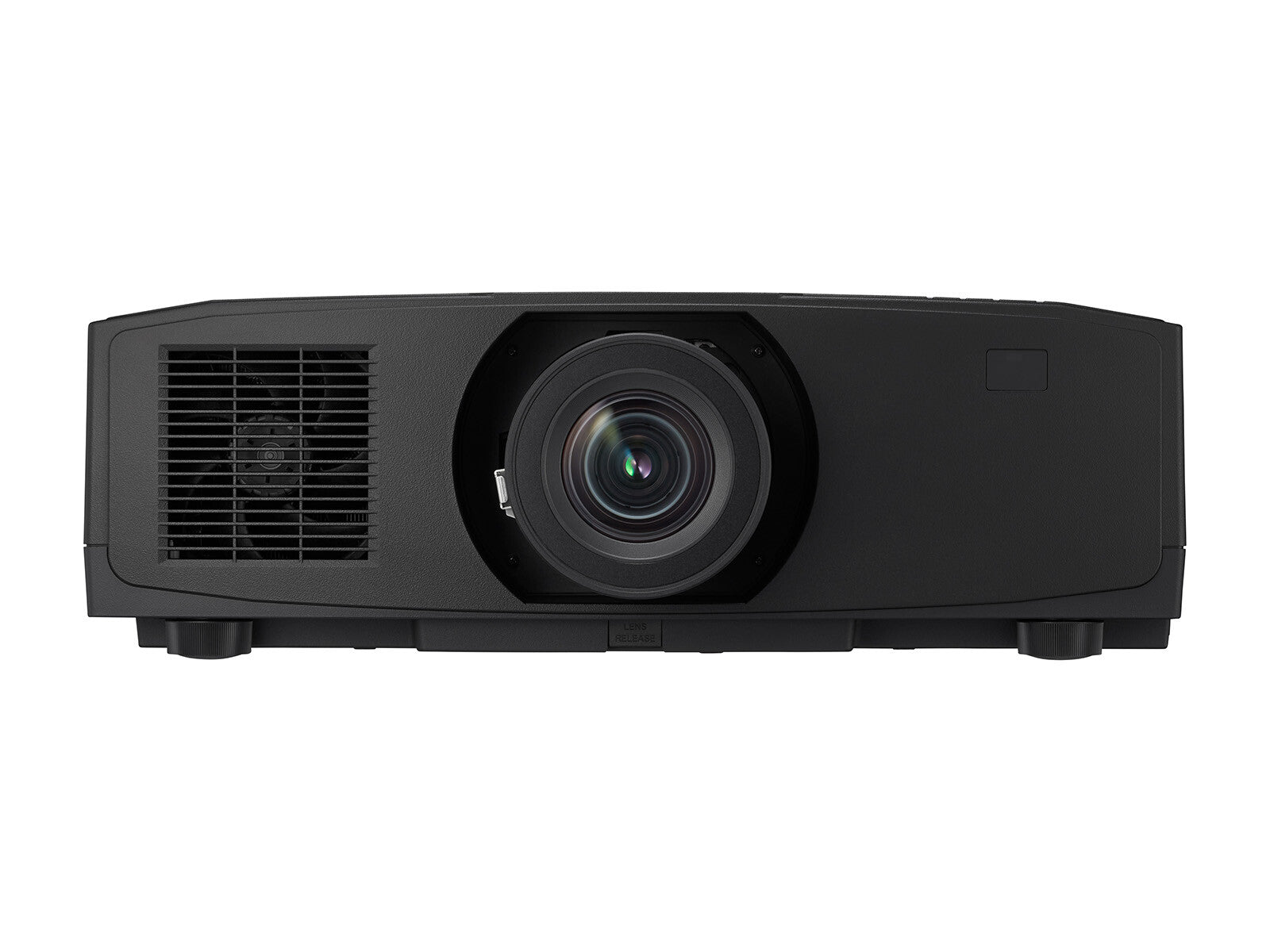

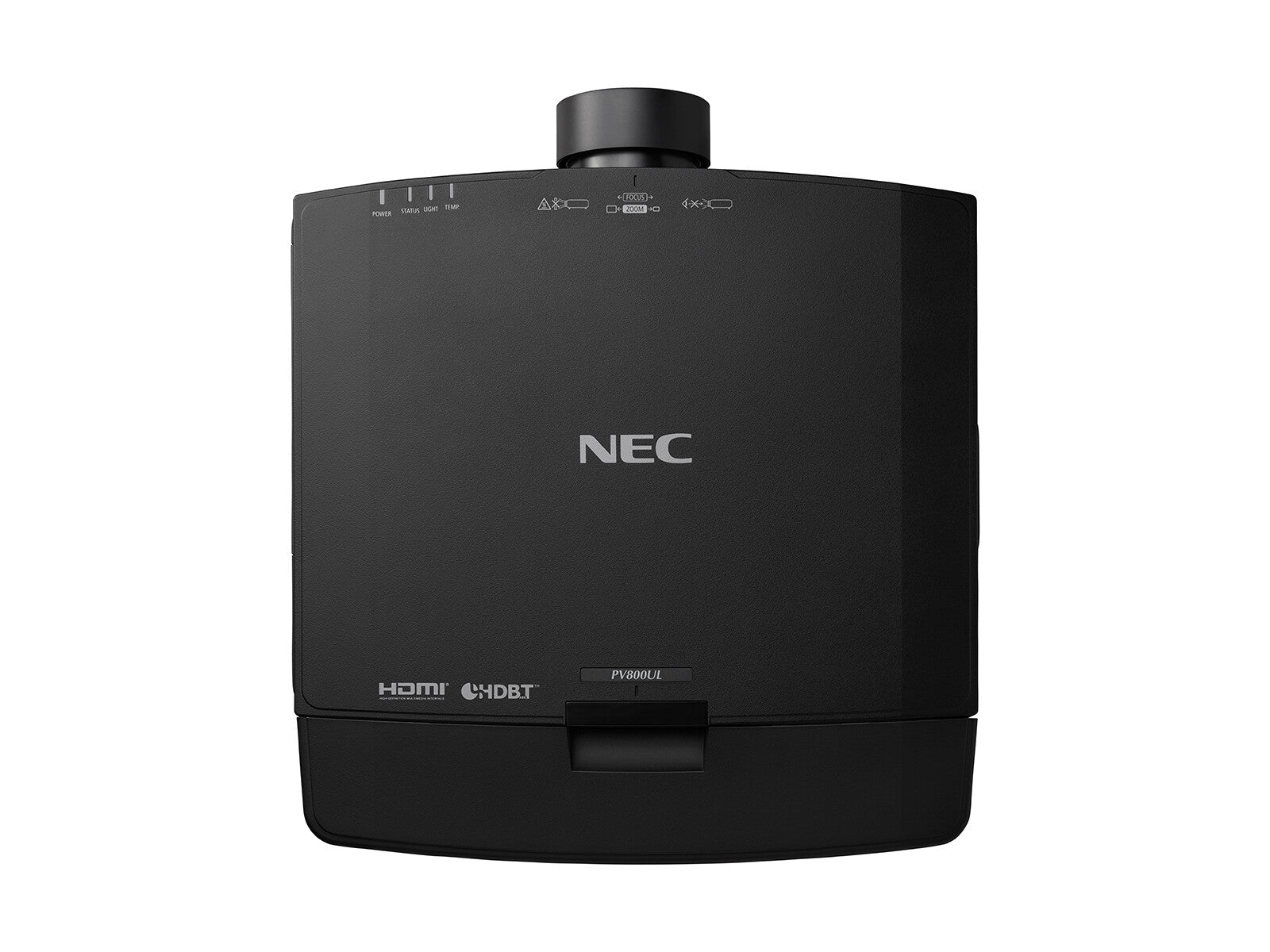

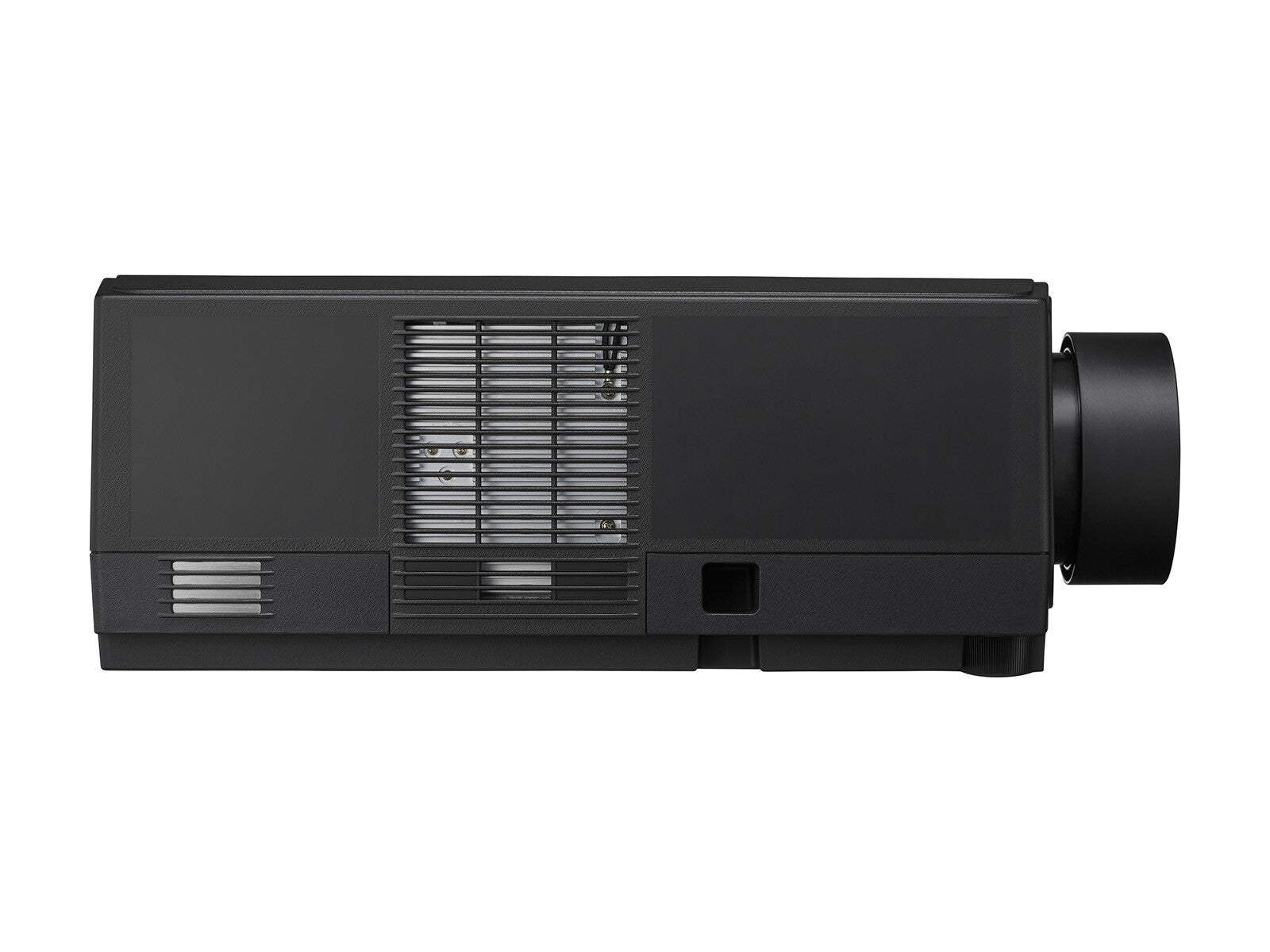

NEC PV710UL Standard throw projector 7100 ANSI lumens 3LCD WUXGA (1920x1200) Black
Couldn't load pickup availability
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source
- Get Great Performance – while not compromising on quality and ease of use
- Low Noise Level – with 31dB, the silent technology will not disturb your meeting
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast
Cost-effective LCD-based laser projector with interchangeable lenses
A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.
3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (min) | 50000 kHz |
| Vertical synchronization (max) | 120000 kHz |
| Projection distance | 0.7 - 50.9 m |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Smart projector | No |
| Supported aspect ratios | 16:10 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000000:1 |
| Projector native resolution | WUXGA (1920x1200) |
| Projection technology | 3LCD |
| Projector brightness | 7100 ANSI lumens |
| Light source | |
|---|---|
| Light source brightness | 7400 lm |
| Service life of light source | 20000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Zoom type | Manual |
| Zoom capability | Yes |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160 |
| 3D | No |
| Full HD | No |
| Analog signal format system | Not supported |

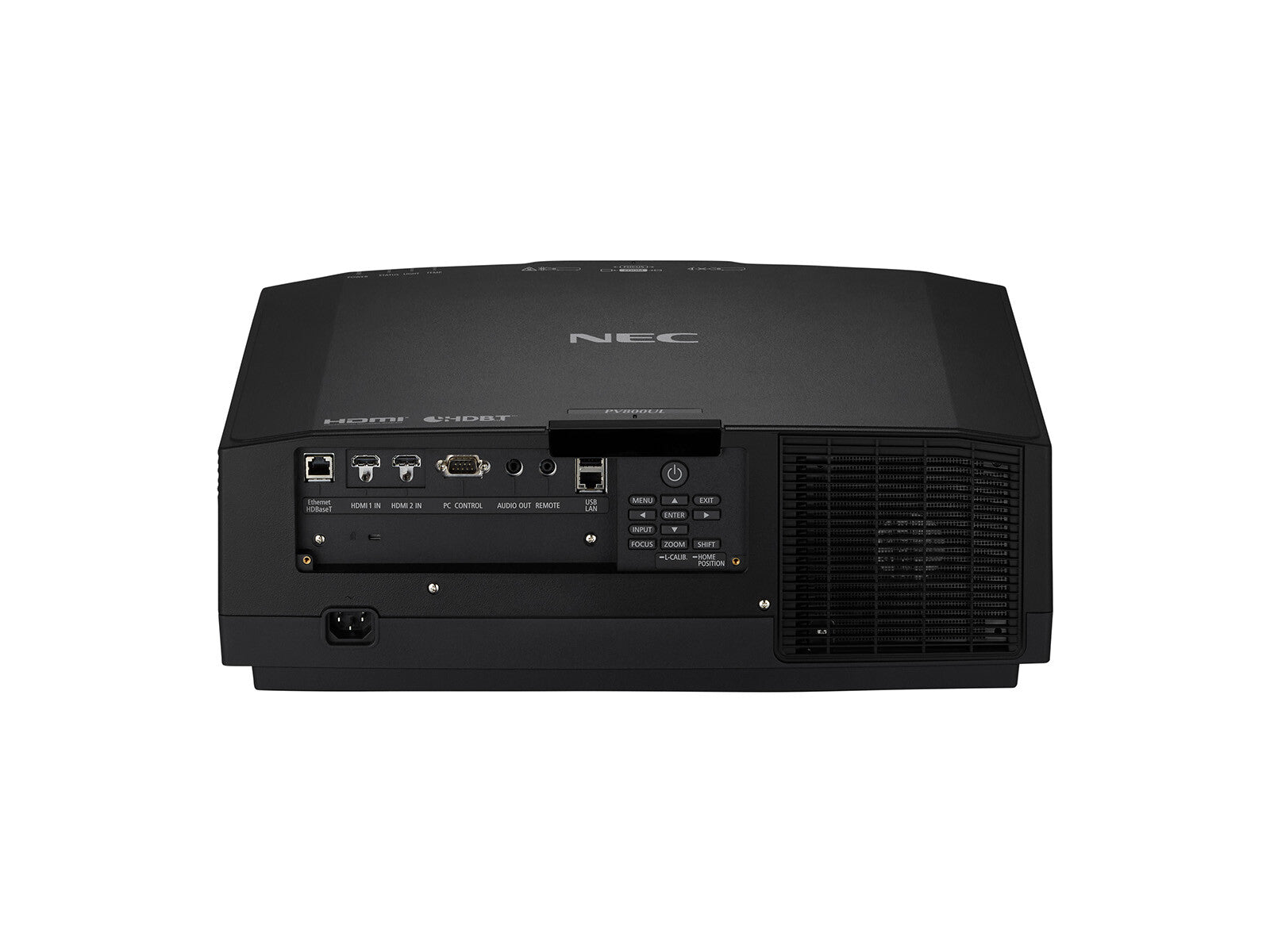

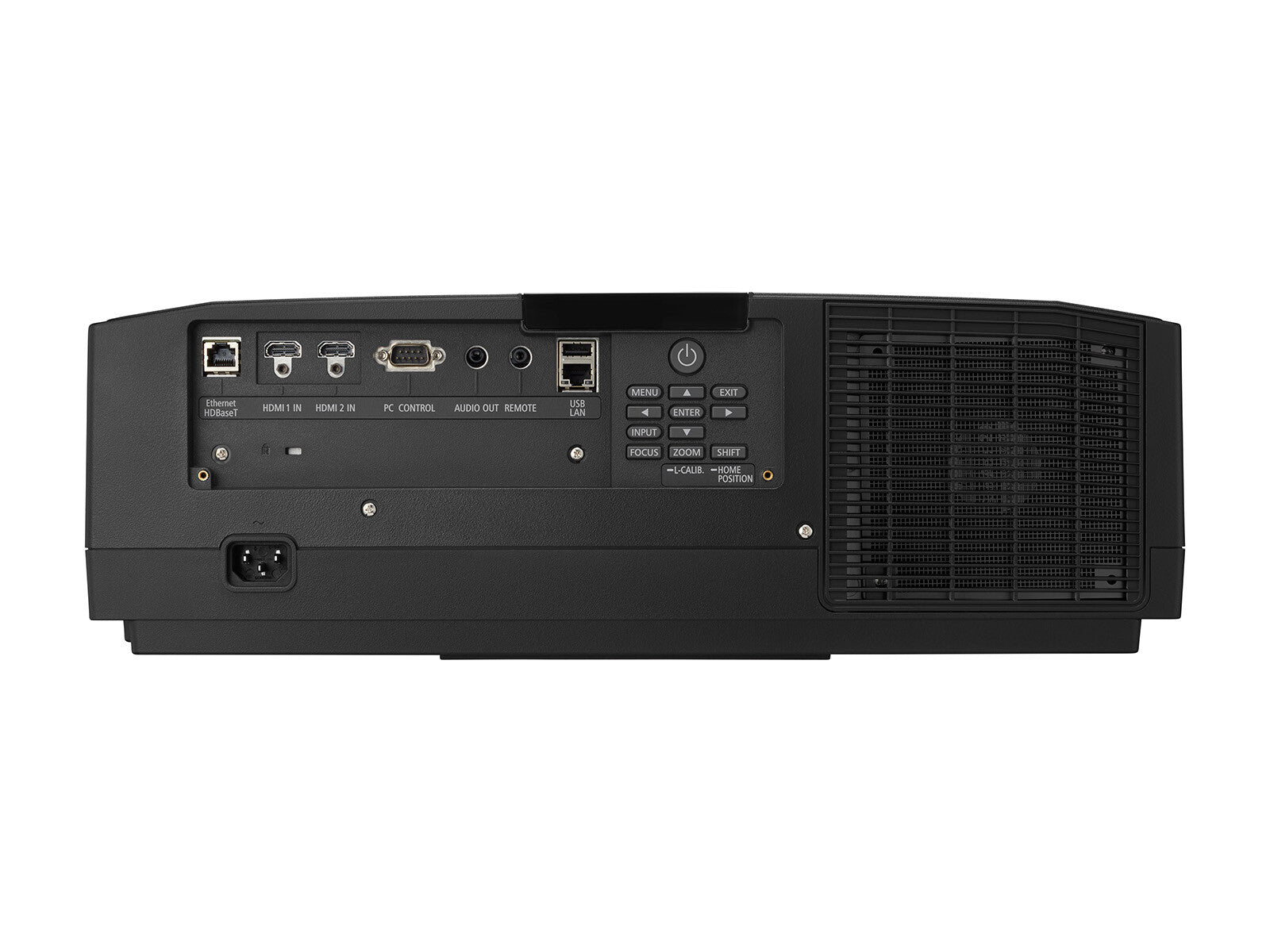

| Ports & interfaces | |
|---|---|
| PC in (D-Sub) | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI connector type | Full-size |
| HDMI ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Certification | CE; EAC; ErP; RoHS; TUEV Type Approved |
| HDCP | Yes |
| Noise level | 40 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 434 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 80% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 164 mm |
| Depth | 407 mm |
| Width | 499 mm |
| Weight | 11.2 kg |
| Packaging content | |
|---|---|
| Cables included | Power |
| Manual | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
