MSI · MPN: 4711377412230
£233.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £77.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

In stock

FREE delivery

Express £9.99

Price drop alert

MSI PRO X870E-S EVO WIFI motherboard AMD X870E Socket AM5 ATX
Now £233.99

We'll email you if the price of this item drops in the next 90 days.

Overview

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and PCB Fabric Peak
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-S EVO WIFI is ready for the challenge of high-end processors.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5600,8200 MHz
Supported memory clock speed (max)8200 MHz
Maximum internal memory256 GB
Show all 69 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported7
Number of HDDs supported4
RAID supportYes
RAID levels0, 1

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

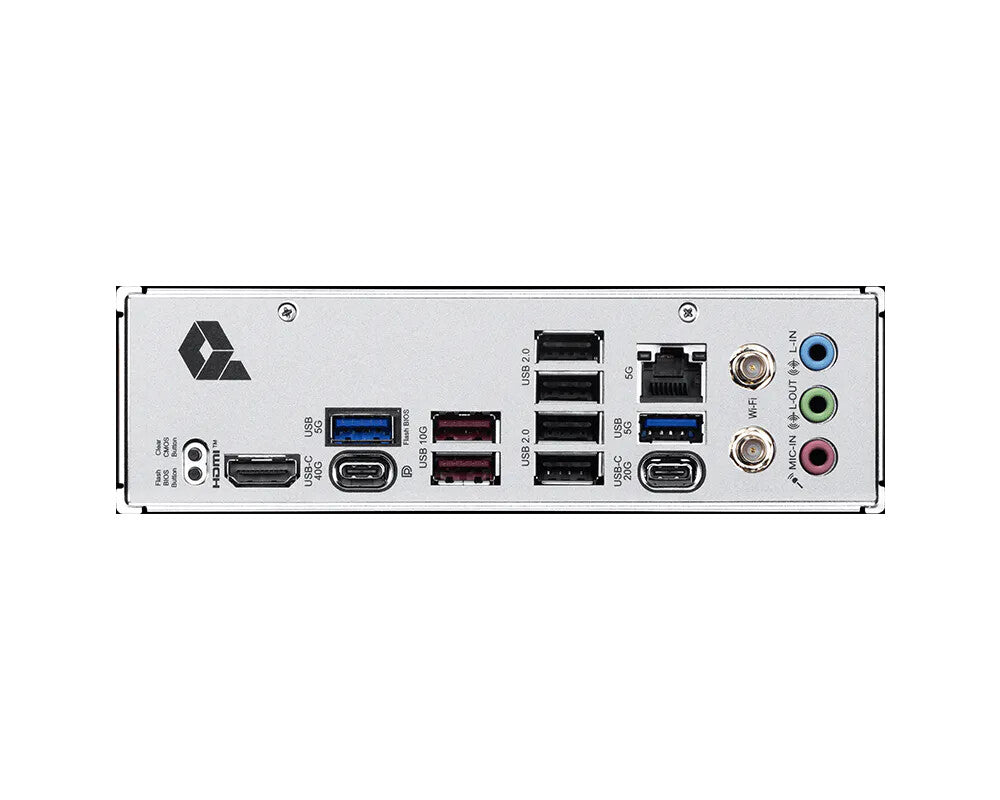

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 3x2 ports quantity1
USB4 Gen 2x2 ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity2
DisplayPort version1.4

Network

Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X870E
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBlack
PC health monitoringCPU, Fan, Temperature, Voltage
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots3
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size512 Mbit
ACPI version6.5
System Management BIOS (SMBIOS) version3.7
