MSI
£123.99

Stock Available: 0
  • ATX 3.1 Ready
  • PCIe 5.1 Ready (600W)
  • 105°C Main Electrolytic Capacitor
  • 80 PLUS Platinum Certification
  • Embossed Jacket Certified Cables
  • Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.

GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.

Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.

Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

Power
Total power 850 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 849.6 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 70.8 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Ports & interfaces

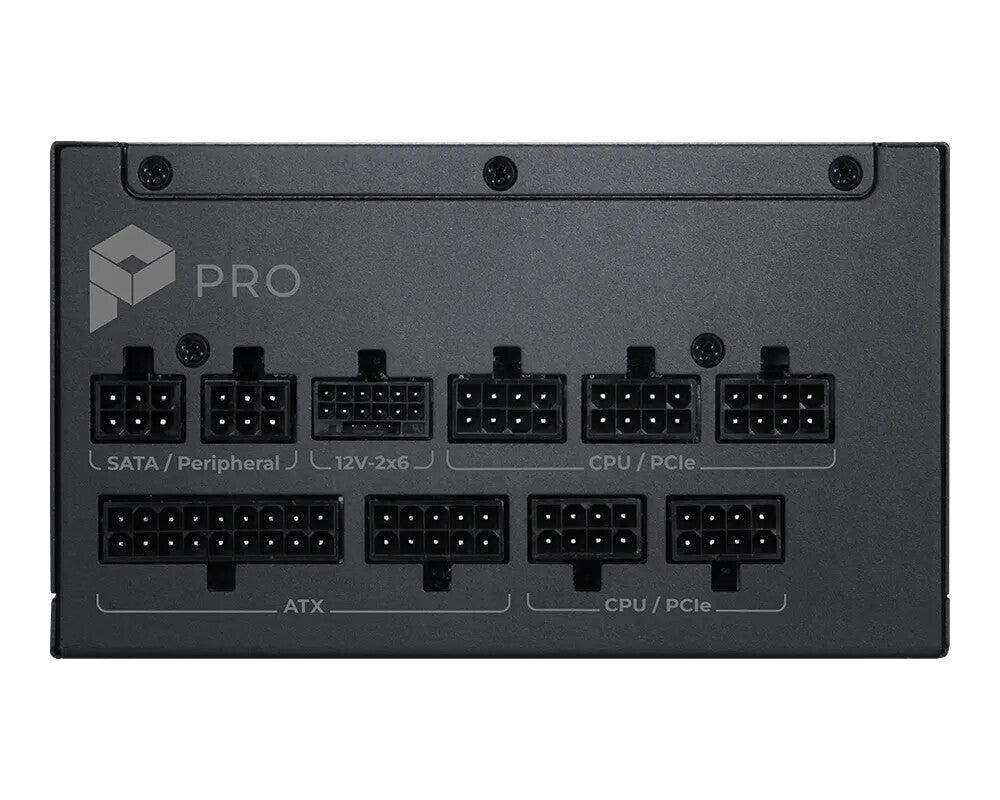

Motherboard power connector 20+4 pin ATX
Motherboard power cable length 60 cm
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 2
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 3
CPU power connector (4+4 pin) Yes
ATX Power connector (24-pin) No
ATX power connector (20+4 pin) Yes
Floppy disk drive connector No
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
Design
Product colour Black
Cooling type Active

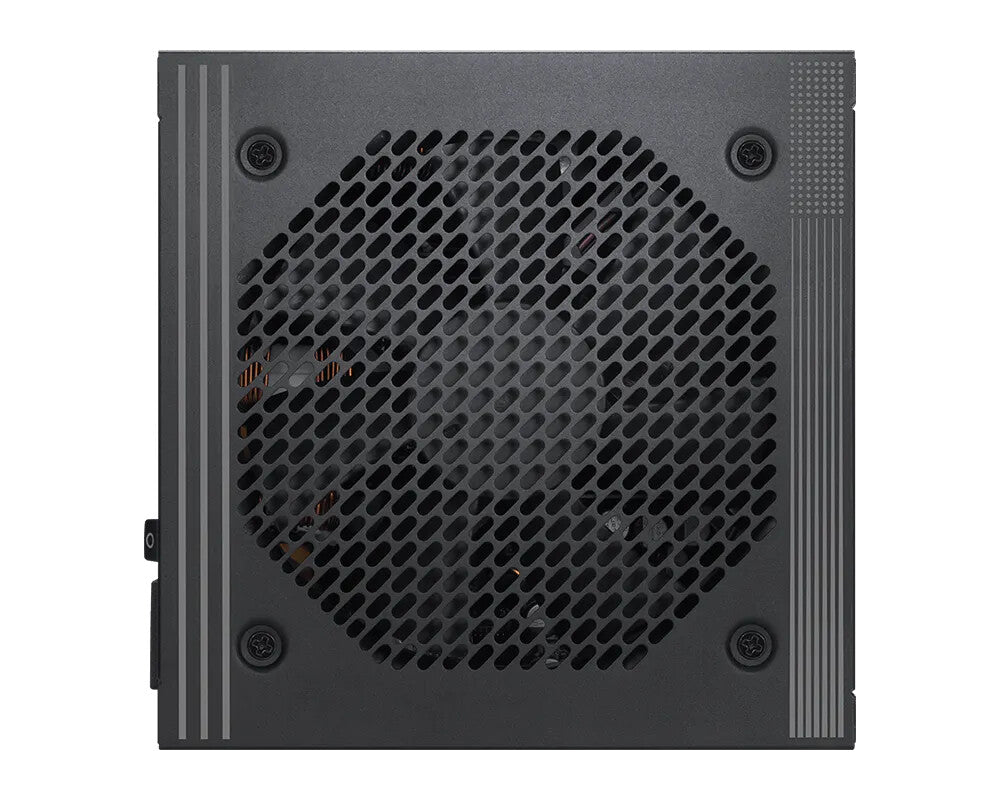

Fan diameter 12 cm
Number of fans 1 fan(s)
On/off switch Yes
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
