MSI Cubi Z AI 8M AMD Ryzen 7 8845HS, Desktop PC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), AMD Radeon Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
iFrame
£730.99
Couldn't load pickup availability

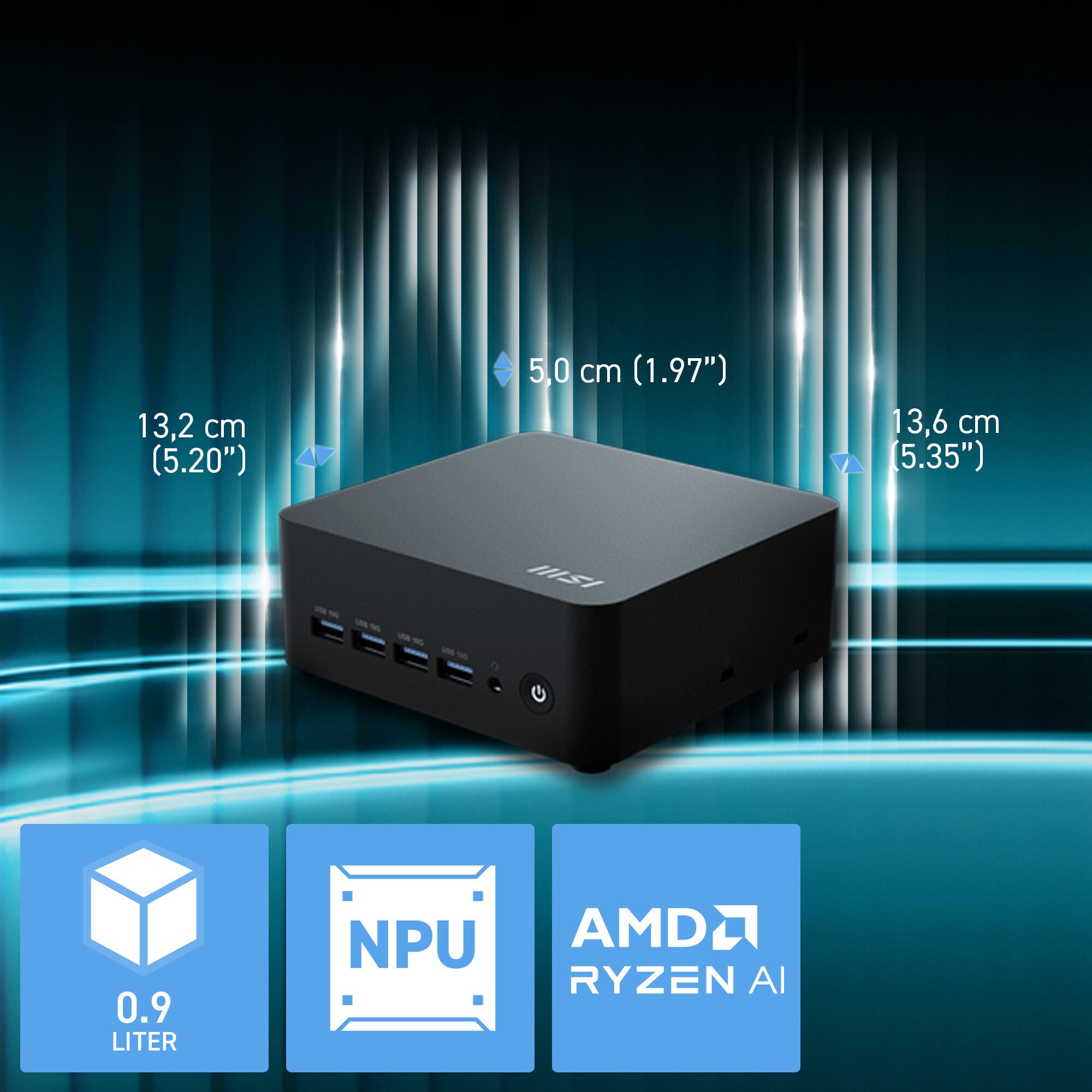

- Compact Design with Powerful AI -The Cubi Z AI Series Mini PC comes in a palm-sized 136.00 x 132.00 x 50.10 mm case (0.9L/0.79Kg) with far less performance trade-off compared to laptops. Equipped with a built-in AI Boost NPU, the Cubi Z AI Series provides users with an AI-ready PC experience

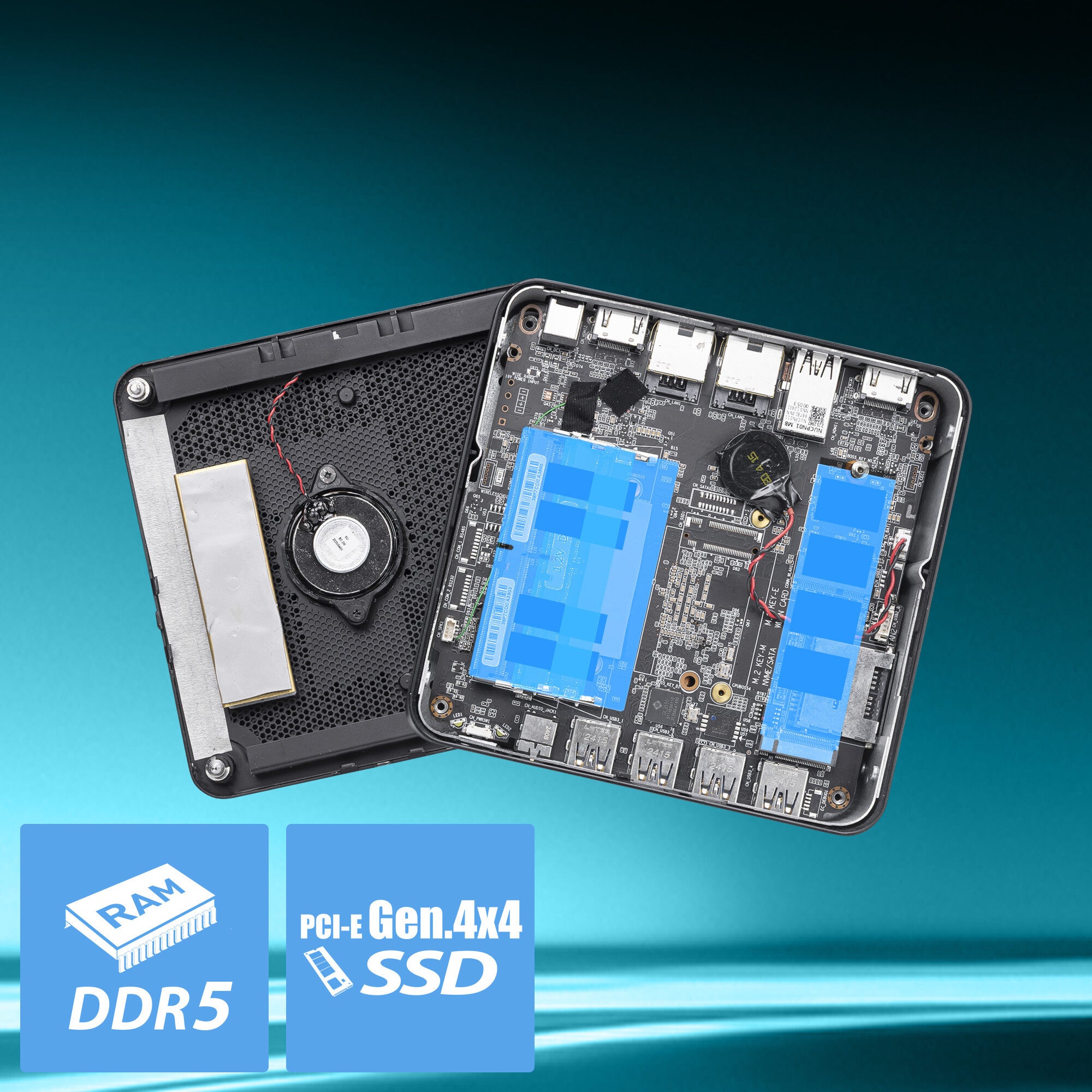

- Capable - RAM capacity: The Cubi Z AI Series can support DDR5 5600MHz memory (2 x SO-DIMM, up to 64GB).Storage options:1 x M.2 2280 SSD (PCIE, factory pre-installed)

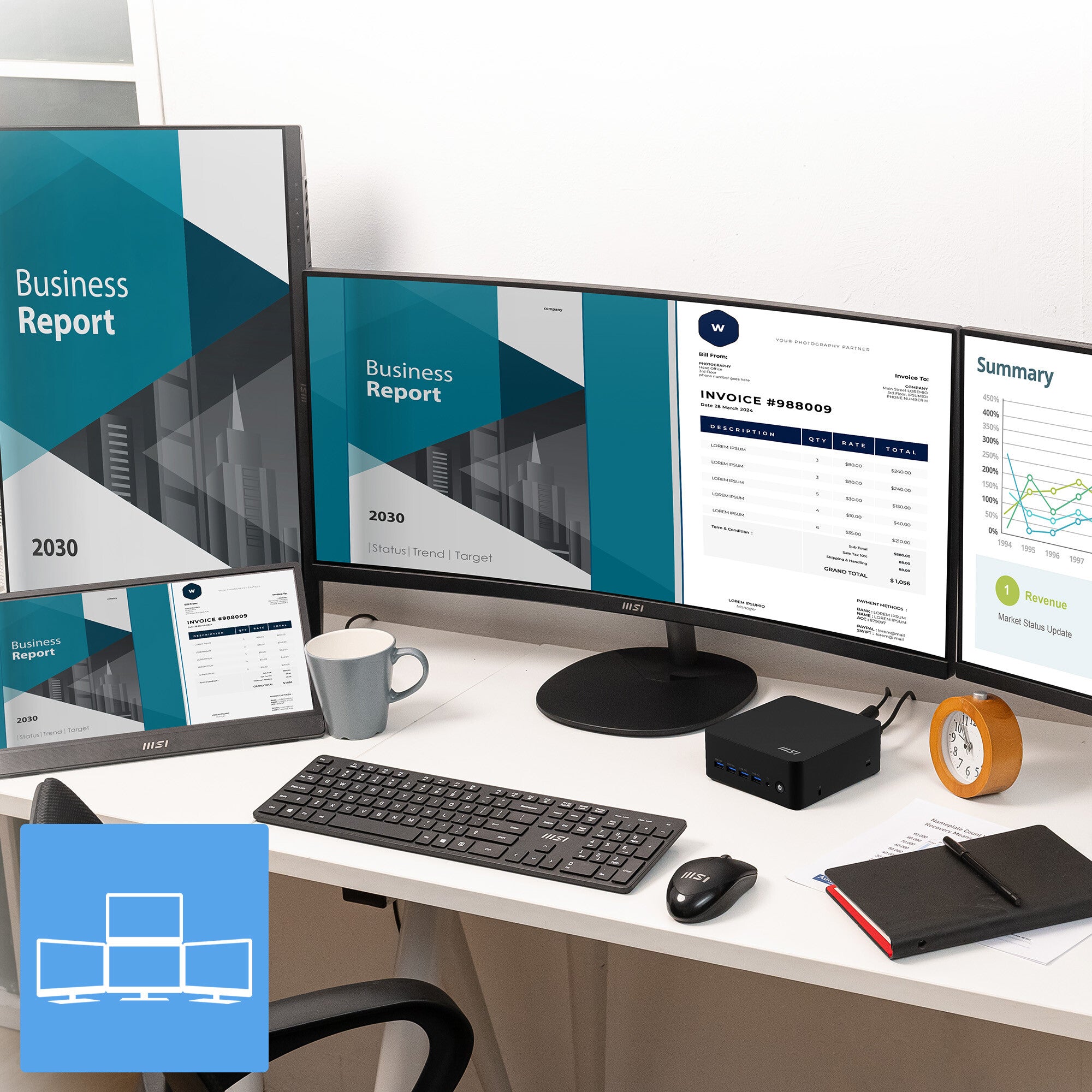

- Quadruple Display Support -The rear I/O panels feature two USB4 ports and two HDMI 2.1 outputs, supporting quadruple monitor setups for enhanced workflow efficiency or previewing e-commerce content

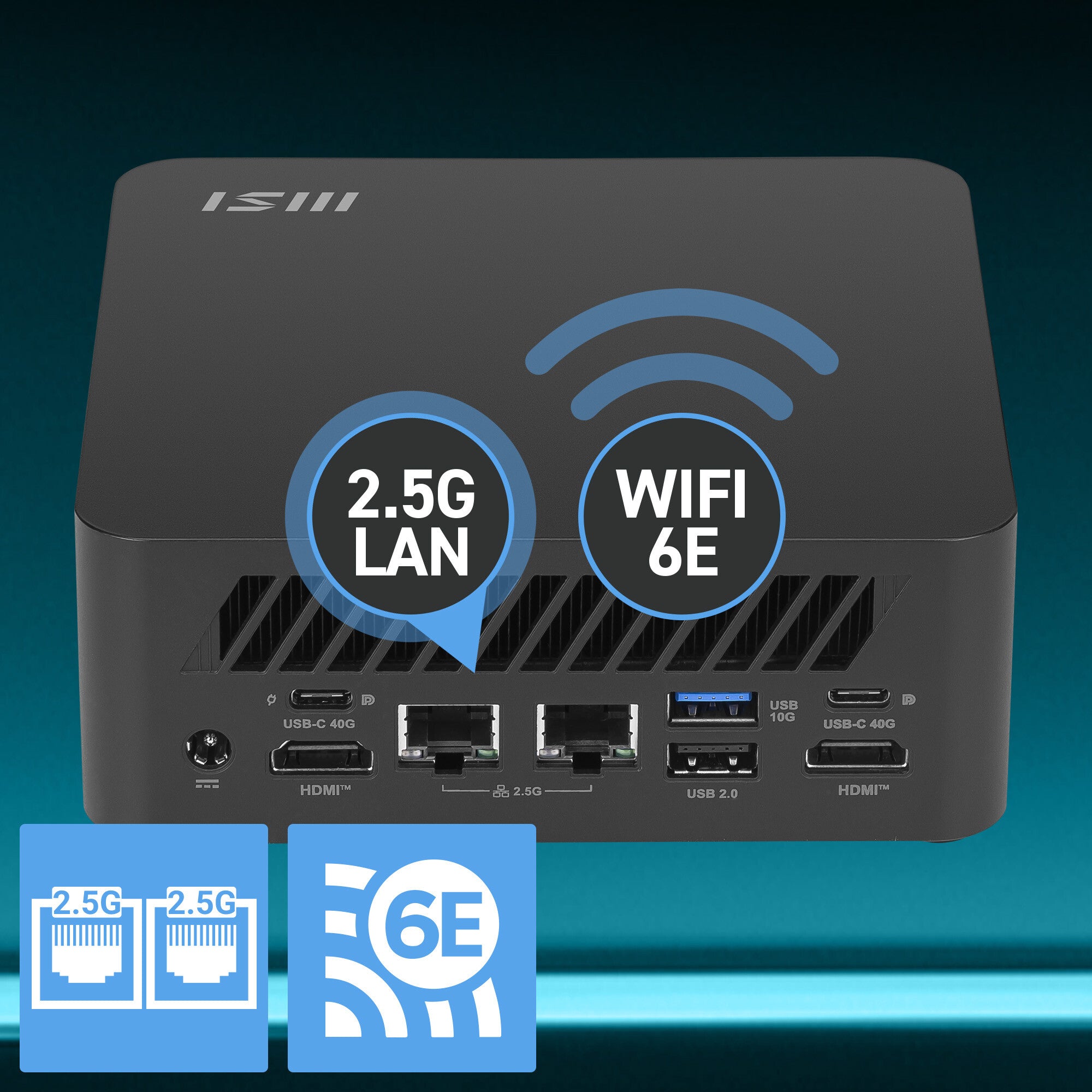

- Dual 2.5G LAN - Network connectivity includes AMD wireless, Bluetooth, and dual 2.5G Ethernet LAN. dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords. Kensington Lock slot included

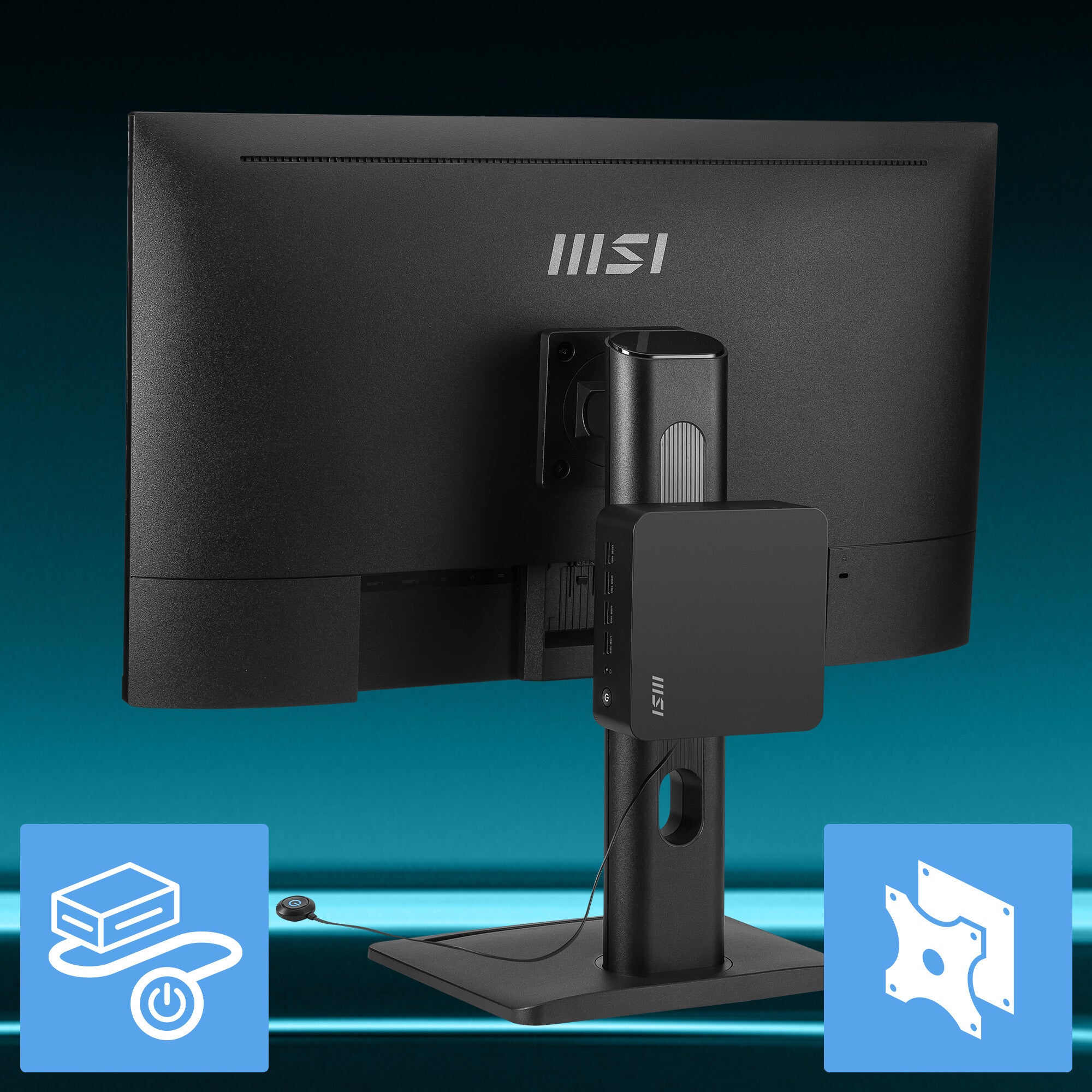

- VESA Mountable Design - The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment. External power switch (optional) enhances the convenience of turning on the computer

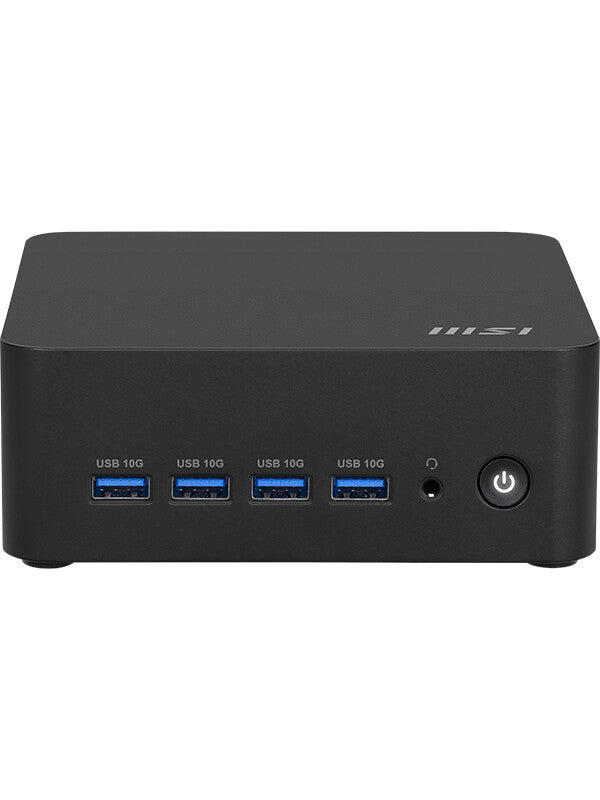

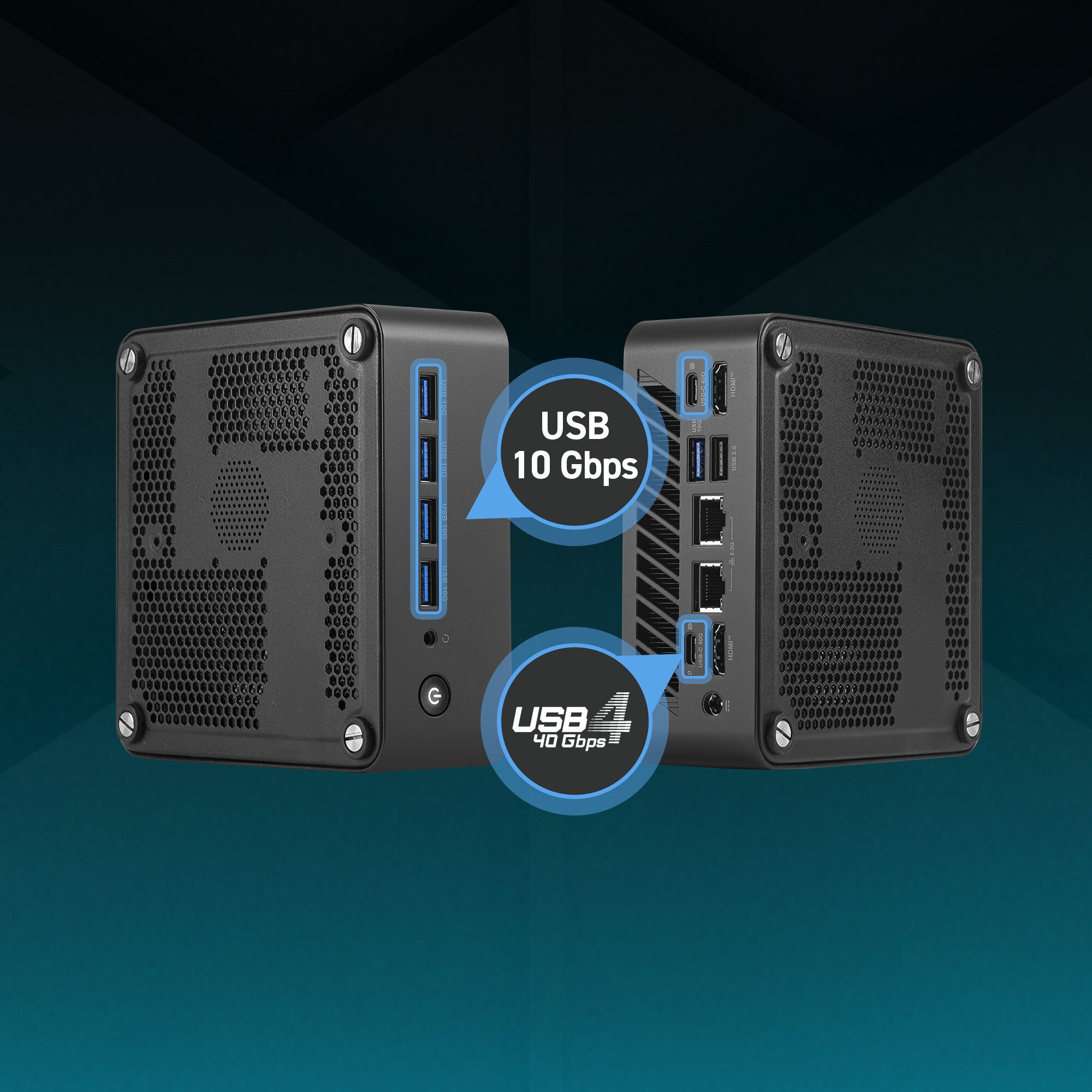

- Connection - The front features four USB 10Gbps Type A ports, and the rear has two USB Type A ports, ensuring that plugging in and transferring data between devices is quick and hassle-free. The two rear USB4 ports support the display and power delivery output of 15W

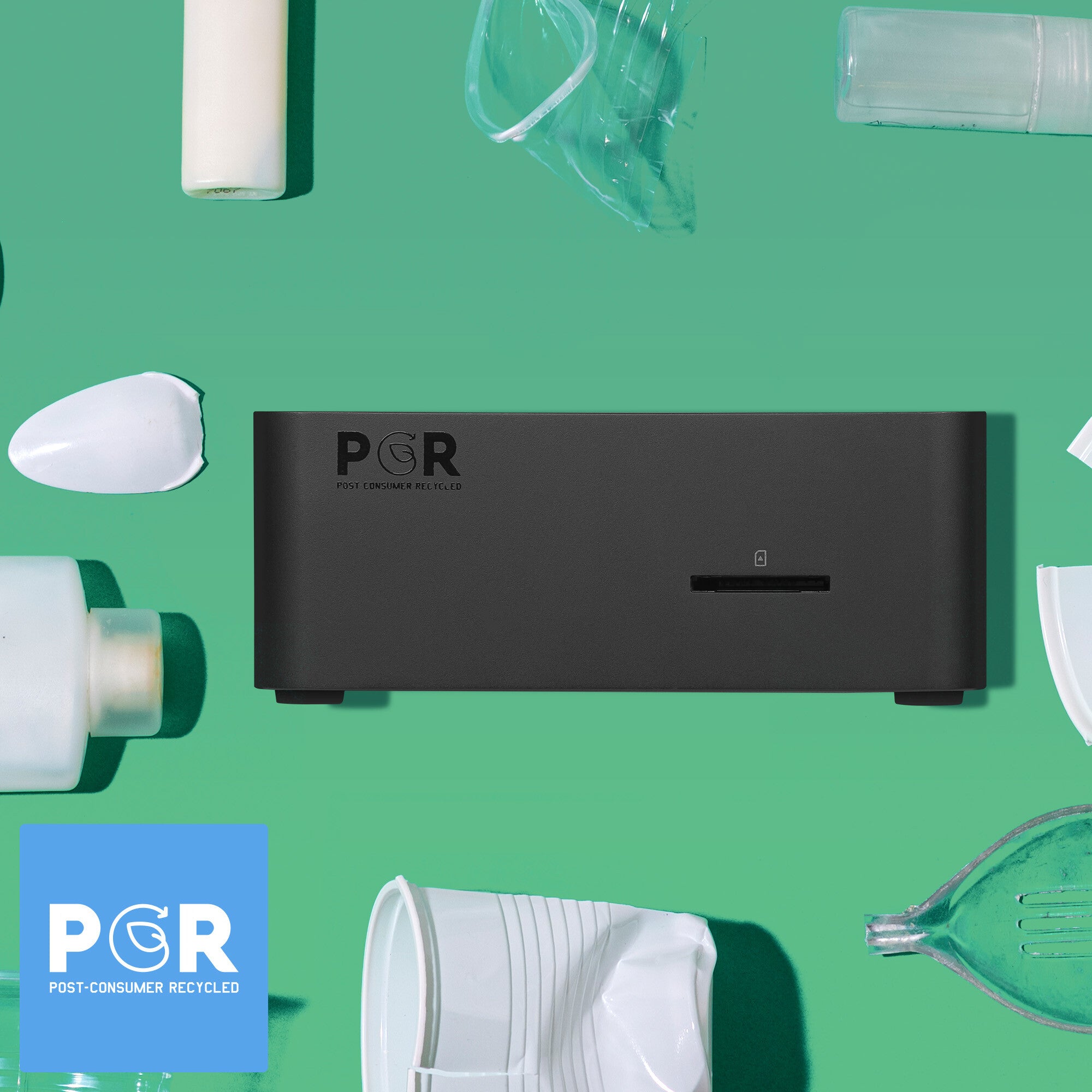

- Sustainable Design -Made with PCR (Post-consumer Recycled) plastic materials.Reduce waste by using a recycled molded pulp tray packing design. Manufatured with 99% of renewable energy in factory
- MSI AI Engine & Built-in Speaker - MSI AI Engine offers multiple optimizations that can help lighten the workload. A Built-in Speaker can eliminate the need for external speakers for notifications and calls, saving space and reducing clutter
The MSI Cubi Z AI 8M combines AMD Ryzen™ 8000 Series with a built-in NPU in a compact 0.9-liter design. Features dual USB4 ports with speeds of up to 40Gbps, a 100W power delivery input, dual HDMI ports supporting up to four displays, dual 2.5G LAN ports for fast networking, a Kensington Lock for security, a built-in speaker, and a VESA mountable design.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 8000 Series |
| Processor model | 8845HS |
| Processor frequency | 3.8 GHz |
| Number of processors installed | 1 |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, Int8 |
| AI software frameworks supported by NPU | Onnx, Windows ML |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory data transfer rate | 5600 MT/s |
| Buffered memory type | Unregistered (unbuffered) |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| ECC | No |
| Storage | |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Total HDDs capacity | 0 GB |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD memory type | TLC |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Intel® Optane™ Memory module installed | No |
| Compatible memory cards | Not supported |
| Intel® Optane™ Memory module capacity | 0 GB |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | AMD |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | AMD RZ616 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Miracast | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | No |
| Intel® Thunderbolt 4 | No |
| Intel® Thunderbolt 5 | No |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | No |
| Line-in | No |
| Line-out | No |
| Combo headphone/mic port | Yes |
| S/PDIF out port | No |
| DC-in jack | Yes |
| Fiber NIC port (Flex I/O) | No |
| Number of front audio ports | 1 |
| Number of front USB ports | 4 |
| Number of rear USB ports | 4 |
| Design | |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 0.9 L |
| VESA mounting | Yes |
| Placement supported | Horizontal/Vertical |
| Water cooling system | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Copilot key | No |
| Product colour | Black |
| Introduction month | December |
| Housing material | Metal, Plastic |
| Viewing window | No |
| RGB memory lighting | No |
| Introduction year | 2025 |
| Country of origin | China |
| Refurbished | No |
| Certified refurbished | No |
| Performance | |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | AMD Ryzen |
| Virtual Reality (VR) ready | No |
| Compatible processor series | AMD Ryzen 8000 Series |
| Audio chip | Realtek ALC269 |
| Audio system | High Definition Audio |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Fingerprint reader | No |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Copilot+ PC | No |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | No |
| Operating system language | English |
| Apple Intelligence | No |
| Compatible operating systems | Windows 11 Pro |
| Drivers included | Yes |
| Pre-installed software | MSI Center、Nahimic 3 |
| Processor special features | |
|---|---|
| Video encode engine | Yes |
| Video decode engine | Yes |
| Power | |
|---|---|
| Power supply | 120 W |
| Power supply input voltage | 100-240 V |
| Power supply input frequency | 50-60 Hz |
| 80 PLUS certification | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UL |
| Weight & dimensions | |
|---|---|
| Width | 136 mm |
| Depth | 132 mm |
| Height | 50.1 mm |
| Weight | 790 g |
| Package width | 469 mm |
| Package depth | 221 mm |
| Package height | 517 mm |
| Package weight | 2 kg |
| Packaging content | |
|---|---|
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| Keyboard backlit | No |
| Numeric keypad | No |
| Power cable length | 1.8 m |
| Cables included | AC, Power |
| VESA mount included | Yes |
| Manual | Yes |
| General | |
|---|---|
| Product family | Cubi |
| Other features | |
|---|---|
| Locale | English |
| Warranty period | 3 year(s) |
