• Number of ports: 1
• PoE output: 90W
• Data rates: 10/100/1000 Mbps
• Power input: AC
• Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
• Regulatory compliance: IEEE 802.3bt Type 4, RoHS Compliant, WEEE Compliant, CE
• EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
• Safety: UL/EN/IEC 60950-1 (Ed.2)
• Compact design

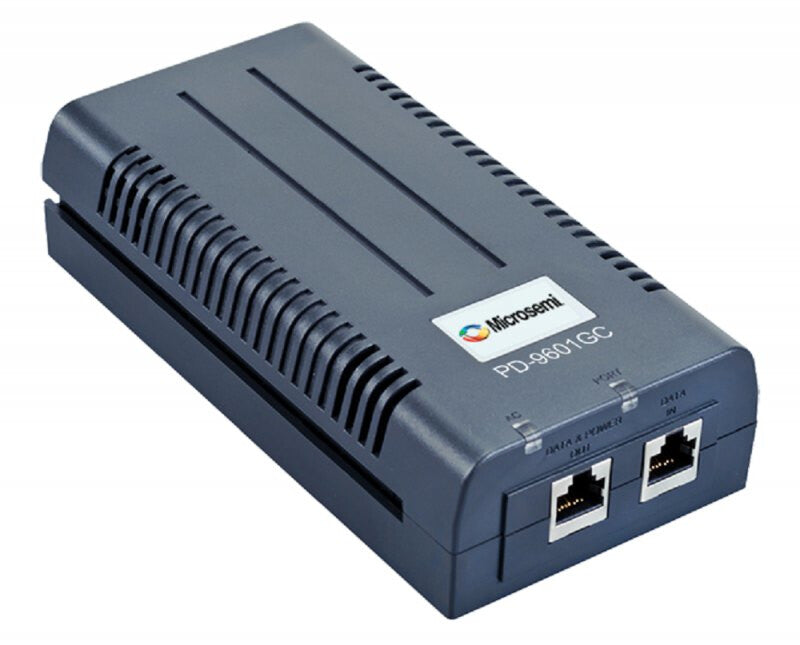

The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. The midspan is IEEE 802.3bt type 4 and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points, powering 10/100/1000Base-T devices. With the midspan’s plug and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
