Microchip Technology PD-9506-10GC/AC 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet 100 V
£1,247.99
Couldn't load pickup availability
- Supports IEEE 802.3bt Type 3 standard PDs
- IEEE 802.3af/at backward compatible
- Legacy and pre-standard support
- Supports 10/100/1000 Mbps, 2.5/5/10 Gbps
- PowerView Pro remote, web-based SNMPv3 power management environment

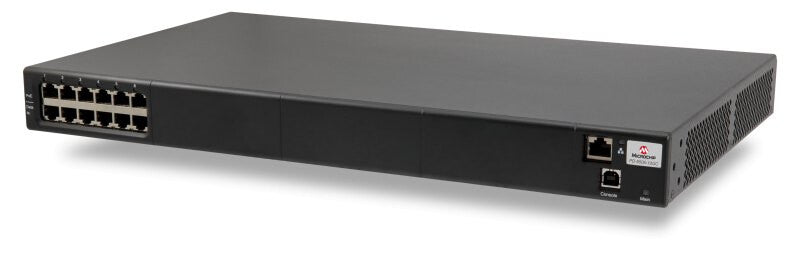

Microchip’s PD9506-10GC is a six ports Power over Ethernet midspan offering 60W power per port according to the IEEE 802.3bt standard. The PD-95XX-10GC family is available in 6, 12 and 24 port configurations. Input power is provided through a universal AC voltage connector. The product is designed for use with a standard 10/100/1000 and 10G BaseT Ethernet network over a standard category 6A or better cabling plant, according to the IEEE 802.3bt standard. The PD-9506-10GC incorporates power management through Microchip’s PowerView Pro software allowing the user to monitor and control the midspan via a remote network management station.
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | |
|---|---|
| LED indicators | Power |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 6 |
| Power | |
|---|---|
| Power consumption (typical) | 60 W |
| Input current | 5 A |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Output power | 450 W |
| Power over Ethernet (PoE) voltage | 100 V |
| Certificates | |
|---|---|
| Certification | CE, WEEE |
| Compliance certificates | CE, WEEE |
| Operational conditions | |
|---|---|
| Operating altitude | -400 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.54 kg |
| Height | 44 mm |
| Depth | 435 mm |
| Width | 271 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85044095 |
